envair electrodyne ltd. Bhosari, Pune, Maharashtra

Pass Box is installed at the interface of the clean and non-clean zones and is used for material movement. TYPES: 1) Static Pass box. SIZE: - 650(W) X650 (D) X725 (H)2) Dynamics Pass box [with laminar flow air flow] 3) SIZE: - 700(W) X700 (D) X1100 (H)Overall Size (mm) 700(w) x 650(d) x 750(h) Features Wall Mounting type. Door Interlocking system. Audio-visual indication for door operations Optional Accessories U. V. Tube light Stainless Steel bottom tray OPTIONAL ITEM The Pass Box can be provided with the following features: Floor mounting for trolley movement Custom sizes Filtration system - Dynamic

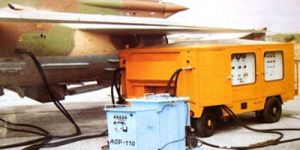

To keep system Hydraulic Oil in superfine condition by removing contamination, like dirt, dust, sludge, and metallic particle. Since conventional system of Purification like centrifuge mechanical filtration has limitations and cannot remove particles below 5 microns, cost effectively.If system hydraulic oil is maintained in super clean condition 80 to 85% problems on hydraulic equipment are prevented. In turn it enhances life of the equipment and its accessories such as pump, valve etc. saves on oil replacement cost etc.

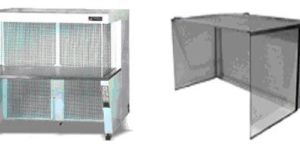

The design allows them to be used as individual units, or with side panels removed, which can be joined together for pass through assembly. Noise is minimized by designing a special type of air plenum. Vibrations are reduced to the work surface by mounting motor-blower assembly on springs

Feature : Well lit work surface Low vibration and noise Convenient service access Easy to reassemble

The design allows them to be used as individual units, or with side panels removed, which can be joined together for pass through assembly. Noise is minimized by designing a special type of air plenum. Vibrations are reduced to the work surface by mounting motor-blower assembly on springs  FEATURES Well lit work surface Low vibration and noise Convenient service access Easy to reassemble

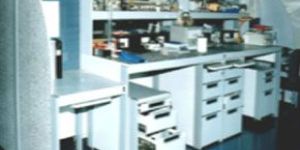

ENVAIR LAB WORKSTATIONS PROVIDE THE PERFECT BLEND OF ERGONOMICS, MODULARITY, DURABILITY, STRIKING GOOD LOOKS AND USER FRIENDLINESS.THE ALUMINIUM EXTRUSION USED IN LAB WORKSTATION IS ROBUST, STABLE AND DISTORTION FREE. TWO MM THICK C FRAME IS PROVIDED BELOW THE TABLE TOP FOR STRAIGHTH AND FLATNESS. THIS STRUCTURE INCREASES THE UNIVERSAL LOAD BEARING CAPACITY UPTO 250-300 KG.COMPARED TO OTHERS PROVIDING UPTO 80-90 KG.TABLE TOPS ARE AVAILABLE IN MDF, TELEPHONIC BLACK GRANITE ,CHEMICAL RESISTANCE LAMINATE, MELAMINE LAMINATE,VETRIFIED TILES,STAINLESS STEEL & IMPORTED SYNTHETIC MARBLE LIKE CORIEN ALL ADDON ACCESSORIES REQUIRED IN LAB WORKSTATIONS LIKE SINK, SECOND WORK LEVEL (REGENT RACKS) , BIN HOLDER, HOOK ON CONTAINER, EYE WASH SYSTEM ETC ARE AVAILABLE.ENVAIR LAB WORKSTATIONS HAVE CLEAN ROOM COMPATIBILITY DUE TO SELECTION OF PARTICLE NON SHEDDING MATERIALS

Clean Oil is necessary to get good performance from your machines equipments. Contaminations in oil are responsible for breakdown, losses and replacement of the oil. Conventional methods of oil purification, viz: filtration, centrifuge and straining, are incapable of adequately cleaning oil, as they remove particles only above 5 microns in size. These remaining small size particles cause high contamination and therefore require regular changing of oil. The electrostatic cleaning presents a far superior and highly effective method of purifying hydraulic oil. Contaminants caused due to dust, abrasive metallic particles, oxidation, sludge and fine water are removed by this method. Oil cleaned by this method meets NAS class 45 requirements. (National Aerospace Standards 1638)

Clean Oil is necessary to get good performance from your machines/ equipments. Contaminations in oil are responsible for breakdown, losses and replacement of the oil.Conventional methods of oil purification, viz: filtration, centrifuge and straining, are incapable of adequately cleaning oil, as they remove particles only above 5 microns in size.These remaining small size particles cause high contamination and therefore require regular changing of oil.Air breathers and cylinders effectively act as gates of entry to dust particles, which being only 2 microns in size, escape conventional oil purification methods.The electrostatic cleaning presents a far superior and highly effective method of purifying hydraulic oil. Contaminants caused due to dust, abrasive metallic particles, oxidation, sludge and fine water are removed by this method. Oil cleaned by this method meets NAS class 4/5 requirements. (National Aerospace Standards 1638)The KEOC 55, KEOC 110, APO-110 machines clean oil by electrostatic process, hence presence of moisture / water content in the oil affects the conductivity of the oil. These machines can clean oil with moisture / water content upto 500 ppm.However if the moisture / water content in the oil exceeds 500 ppm then our models KEOC-110 DH & FDU 35 are useful. KEOC-110 DH can clean oil with a moisture content upto 1500 ppm.If the moisture content exceeds 1500 ppm then the moisture has to be removed by FDU-35 (Flash Distillation Unit) then sent for electrostatic cleaning through KEOC-55 / KEOC-110 SOURCES OF CONTAMINATION OF OIL The Hydraulic Oil in the system may get contaminated from any of the following sources. During manufacturing of components and assembly of systems, burr, chips, weld spatter, casting sand, particles from seals and gaskets, adhesives, paint particles etc. are left in the various components which go into the oil.Many a times oil is contaminated by the time it arrives at the user’s end.Air borne dust, dirt, rust, enter into the system and then into the oil through Air breathers, seals etc.Metal particles that are produced by abrasive wear, erosion and surface fatigue in the system itself.Contaminations due to surrounding atmosphere and leakages in the system.

CONSTRUCTION Filtering Media Micro glass fiber filter paper, pleated with Aluminium spacers used for separating consecutive pleats. Frame GI Powder Coated / Al.. Anodized / Wood. Adhesive Epoxy based adhesive is used for leak proof joint Between filter paper & frame Gaskets Sponge rubber gaskets are provided for sealing of filter on its mounting frame PERFORMANCE Recommended for operating efficiency of 99.97% down to particle size of 0.3 micron by DOP (Di-Octyl-Pthalate) test as per STD ISO 14644. OPERATING CONDITIONS Ambient temperature (max. 50 degree C) and Humidity up to 100% RH

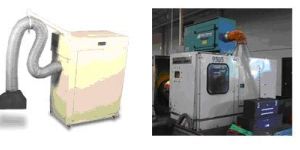

Pollutants Like welding fumes, smoke and mist, grinding dust, foundry fumes, solvents, and vapoures.which are present in most industrial environments need to be eliminated by using source extractors, since these pollutants are toxic and hazardous to the workers and also affect the quality of the products. Kirloskar Fume Extractors and Oil Mist Collectors are the only effective solutions to these problems. They improve the working environment and reduce cost of general ventilation by spot exhaustion and cleaning.These work on the principle of electrostatic precipitation

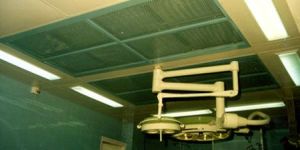

Sterile Clean Air plays an important role during surgical procedure. Sterile Clean Air has a dramatic effect in deep wounds. In the Operating Room any kind of operation being performed should be under Sterile Air Environment. This sterile air environment protects the surgical open area from any kind of infection and also protect septic patient from effects of septic condition. It reduces healing period hence reduces post operation curing period and dose of antibiotics.Hospital will have positive points for NABL Accredition

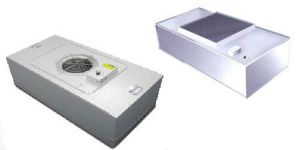

Fan Filter Unit(FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing electronics components, food products, pharmaceuticals , health care or any precision engineering products .The installation space is the system ceiling grid. For a large clean room, a large number of FFU are required depending upon class of cleanliness.  FEATURES Modular Design to change layouts Low Height & Weight. Air Tight Performance Low Noise & Vibration Ductable Design Cost optimization HEPA and ULPA filters (Mostly minipleat) Choose either a HEPA Filter 99.99% eff. @ 0.3 micron or ULPA Filter 99.9995% eff. @ 0.12 Micron filters Various optional accessories like prefilter Diffusion plate,pressure gauge Group control management system Fixed speed or variable speed control Horizontal flow table unit CONSTRUCTION: Envair Fan Filter Units are self-contained, motorized Supply Air Modules equipped with either HEPA or ULPA filters. Envair FFU's can be used in either horizontal or vertical flow positions, wherever clean air is needed.They are designed for easy connection to the building power & Air Handelling system and are equipped with a pre-filter, four clips located at all corners for providing strong suspension points.Housings are fabricated from 18-gauge steel with a white powder coat finish or thermoformed plastic or GI or aluminum or stainless steel. Envair FFU are Tested as per Std. ISO �?14644 & US FED STD.209

Fan Filter Unit(FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing electronics components, food products, pharmaceuticals , health care or any precision engineering products .The installation space is the system ceiling grid. For a large clean room, a large number of FFU are required depending upon class of cleanliness.

In any working environment, particularly in commercial 7 industrial establishments, computer facilities, telephone exchanges, precision shops, suspended particulate matter like dust, pollen, smoke needs to be eliminated to ensure high quality performance by both men and machines. ENVAIR Electrostatic Air Cleaner is an ultimate effective solution to this problem as it provides clean air for all applications by recycling interior air, while saving energy costs. It purifies air efficiently without exhausting heated or cooled air. In a typical Application like currency chests in banks, no other conventional air cleaner can be effective than envair electrostatic cleaner to remove contamination from superfine dust on hates. Electrostatic Air Cleaner work on the principle of electrostatic precipitation.

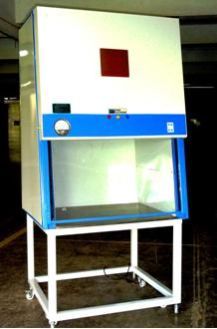

Bio safety cabinate Compact in design FEATURES Well-lit work surface Low vibration and noise. Convenient service access. Easy to reassemble Adjustable motor blower speed. Gas cock assembly. Stainless Steel work surface Sink Ultra-violet tube light Exhaust duct in PVC. Virus burner Speed Regulator for Blower ADDITIONAL FEATURES Slant Design for better Aesthetes & Visibility Front Side Maintenance access for Filters, Blower & Electrical Components All Audio Visual Alarm for Excessive Shutter Opening. Interlocking Provision of U/V Tube Light with Fluorescent Tube Light & Shutter. U/V Tube Light Hour Meter. Digital Display for supply Velocity & Exhaust Velocity. Automatic Blower Speed Control w.r.t. Supply Air Velocity. INBUILT ACCESSARIES Stainless Steel Table Top Sliding Front Shutter Sink and Drainpipe Supply and Exhaust Manometer Damper Air / Gas / Vacuum Cock

ENVAIR Air Showers are fully automatic, electrically operated units, that give personnel a high velocity clean air wash, before they enter controlled clean-air environments. Air interlock system prevents contaminants from entering clean rooms, by containing them in the Air Shower itself.Versatile ENVAIR Air Showers possess a modular joinable design. This permits single or tunnel constructions, to perfectly meet the needs of small to large users. Different sizes and flexible models of entry and exit, afford both economy of space and compatibility with user environmentsEvery ENVAIR Air Shower is thoroughly factory tested for high efficiency. Corrosion resistant pre-treated stove enameled, MS Sheets are used to ensure manufacturing quality that is built to last.

LONGEVITY ELIMINATES CONTAMINATION Pet Animals, Soft Toys and Human Micro Flora Smoke of Cigarettes Indoor Cleaning Of House Pollen Grains Outdoor Dusty Air from autos & debris Contamination from Cough & Cold Swine flue virus BENEFITS PATIENTS WHO HAVE Eye Irritation Coughs And Colds Headache And Fatigue Pneumonia Asthma Cross Infection In Patients Infection In Burn Patients   REMOVES ALERGY-AGGREVATING MICRO PARTICLES Longevity is specialized product that removes Allergens from indoor environments Effectively and economically. Longevity Removes microscopic particles, viruses, Bacteria, smoke, fumes etc. It uses High Efficiency Particulate Air (HEPA) FILTERS and is particularly useful for asthma patients.  LONGEVITY HELPS AT HOME The reduction of airborne allergens is particularly important for CAT and DOG Allergens. These allergens are extremely small (less than 2.5 (microns) and stay airborne for hours. At the opposite end of the spectrum, dust mite, allergens (5-50 microns) settle much Quicker and are re-launched into the air by various household activities Longevity contains a uniquely formulated Gas and Odor Filter media. Odors from pets, cooking, tobacco, even paint fumes, disappear without significantly reducing the airflow rate. The unit has the capability to absorb high molecular weight such as Volatile Organic Compounds (VOCs) like benzene, toluene and xylene AND for low molecular weight such as formaldehyde and hydrogen sulfide. It removes tobacco smoke from the air to improve Indoor Air Quality (IAQ). This is a useful product for APPLICATION HOMES OFFICES RESTAURANTS BARS DOCTORS CONSULTING ROOMS HOSPITALS SEMICLEAN ROOMS

Envair Air Curtains form invisible thermal as well as dust barriers between controlled and outside environments. They allow easy through fare of persons & material with minimum effect of outside air on controlled environments. Hence these are most suitable for clean Factories, Hospitals, Operation Theatres & such other applications. These reduce energy bills on air-conditioning, as losses from frequent door openings, are reduced.
