Eureka Industrial Equipments Private Limited Paud Road, Pune, Maharashtra

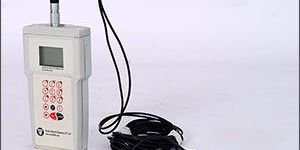

KATRONIC make portable and field mounted Ultrasonic Flowmeters for liquids have easy to clamp on sensors with no process interruption, no pressure loss, fast and accurate, with diameters from 10 mm to 6.5 m. Can be used up to 4 independent flow channels.

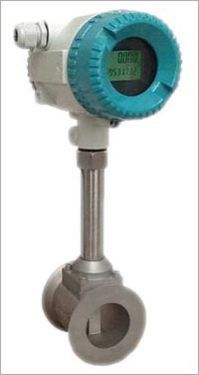

Principle of Vortex meter is based on the Karman vortex street. When fluid flows through a bluff body, vortices are alternately formed on both sides with opposite directions of rotation. These vortices each generate small amount of pressure. The pressure fluctuations are recorded by the sensor and converted to electrical pulses. The vortices develop very regularly within the permitted limits of the meter. Therefore, the frequency of vortex shedding is proportional to the volume flow.   Power supply, Protection Power Supply : 24 VDC / Battery operated Flow, Totaliser display : optional Transmitter : 4 to 20 mA DC current signal Housing : non ex. Proof / ex. proof Protection : IP65

Accuracy : Liquid ±1% of reading ,Gas/ Steam ±1.5% of reading

Repeatability : ±0.1%

Usage : Gas, Liquid Steam

The EUSONIC flowmeters work on the Transit time ultrasonic principals. This put simply, involves sending and receiving ultrasonic pulses from a pair of sensors and examining the time difference in the signal. This is a more direct method of determining flow than some other systems and thus provides a more reliable measurement. Ultrasonic transducers are mounted on the external surface of the pipe and are used to generate ultrasonic pulses which are passed through the pipe wall. The flowing liquid within causes time differences, frequency variations and phase shifts in the ultrasonic signals which are then evaluated by the flowmeter to produce an accurate flow measurement. The key principle is that sound waves travelling with the flow will move faster than those travelling against it. The difference in the transit time of these signals is directly proportional to the flow velocity of the liquid and thus the volumetric flow rate. Whilst elements such as flow profle, liquid type and pipe material could have an effect on the measurement, the flowmeter electronics compensate for and adapt to changes in the medium in order to provide a reliable measurement. The fast digital processors and sophisticated analysis used in the new EUSONIC flowmeter guarantee reliable, respectable results, even when used of a clamp-on flowmeter would not have been possible. All measurements are independent of pressure and do not disturb the integrity of the pipeline in any way. This allows the flowmeter to be fitted to pipes where size, pressure, temperature, liquid type or pipe access would have made the installation of an invasive measurement device impossible.   No shut-down, no lost production No pressure drop No costly and risky mechanical installation Low maintenance, no danger of blockage or damage Quick and simple installation Cost effective solution, particularity on large pipes.

KATRONIC make portable and field mounted Ultrasonic Flowmeters for liquids have easy to clamp on sensors with no process interruption, no pressure loss, fast and accurate, with diameters from 10 mm to 6.5 m. Can be used up to 4 independent flow channels.

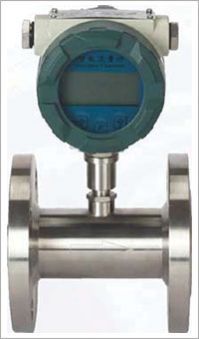

EUTURB consists of a multiple-bladed rotor mounted in a pipe, perpendicular to liquid flow. Liquid flows through the pipe causing a rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. Pulses are counted & 4-20 mA gets generated with the use of converter. Performance Repeatability : ±0.2% Accuracy Standard : ±1% of reading Wetted Components Body : Standard SS304 (optional SS316) Bearings and Shaft : Tungsten Carbide Rotor : Standard - 2Cr13 Stainless Steel (optional Alloy CD4Mcu) Retaining Rings : SS316 Power supply, Protection Power Supply : 24 VDC / Battery operated Flow, Totaliser display : optional Transmitter : 4 to 20 mA DC current signal Housing : non ex. Proof / ex. proof Protection : IP65

Usage : Water, Diesel, Gasoline, Oil etc.

Mass Flow Meters and Controllers for gas applications with an electronic housing suitable for laboratory conditions. EL-FLOW" series instruments are truly unique in their capability to control flow ranges between 0...1 mlnmin and 0...1250 lnmin with pressure rating ranging between vacuum and 400 bar - all in one range of instruments. This versatility in flow ranges and in operating conditions has ensured that the EL-FLOW® series remains our most popular and field proven of instruments. These have a fast response and a high accuracy: ± 0,5% of reading + ± 0,1% of F.S., analog and digital [fieldbus] communication.

MASS-VIEW Series Thermal Mass Flowmeters/Regulators operate on the principle of Direct Thermal Mass Flow Measurement. They have high Accuracy ( ± 1% FS ± 1% RD ), high Rangeability ( up to 1 : 100 ), OLED digital bar graph Flowrate & Total Flow display, low power consumption. These can be supplied in full scale ranges from 0.2 - 200 ln/min and handles pressures up to 10 bar(g). MASS-VIEW ® Flowmeters have various alarms and counter functions, analog output signals, a digital interface & two relay contacts. Flow control can be achieved by an optional built in high quality needle valve.

Rotary Type Sight Flow Indicators are with rotating wheel are suitable for installation in any position, but are particularly adapted to pipe lines carrying dark opaque solutions, where the motion of the wheel is easily detected. This model is equally adapted to transparent solutions and gases. It is frequently installed where observations must be made from a distance.

Flanges : ASTM A216 GR WCB, ASTM A 351 GR CF8,ASTM A 351 CF8M, Brass, Cast Iron, Gun Metal

Orifice Plates are most commonly used primary elements for flow measurement in pipelines based on the principle of measurement of 'Differential Pressure' created when an obstruction is placed in the fluid flow, due to increase in fluid velocity. Orifice Plates cover a wide range of applications of fluid and operating conditions. They give an acceptable level of uncertainties at lowest cost and long life without regular maintenance.

The Weld Neck Flange is normally referred to as "High Hub" flange. It is designed to transfer stresses to the pipe, thereby reducing high stress concentrations at the base of the flange. The pressure tappings are provided through the flange which are at a distance of 1" from the face of the plate.

The Weld Neck Flange is normally referred to as "High Hub" flange. It is designed to transfer stresses to the pipe, thereby reducing high stress concentrations at the base of the flange. The pressure tappings are provided through the flange which are at a distance of 1" from the face of the plate. The Plate Holder Assembly is a combination of plate holder and an Orifice Plate designed for Ring Tongue Joint (RTJ) Flanges. The plate holder has a function of holding the Orifice Plate and also function as a gasket to prevent leakage of the process fluid. The plate holder has an oval or octagonal ring for mounting between ring type joint flanges. This metallic sealing system is useful for a fluid of high temperature and high pressure. The pressure tapping system normally is of the flange tap type.

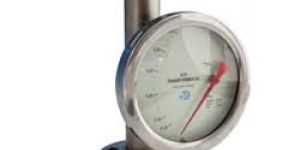

"MT" series Rotameters are all Metal Variable Area Type Flow Meter designed to measure flow rate of liquids and gases under critical conditions. It consists of a tapered metal tube, an indicating assembly and float. A magnet encapsulated in float couples with rotating magnets connected to an indicating pointer as show in figure. Thus the movement of the float, is accurately indicated in terms of flowrate.

Manger + Wittman (subsidiary of Bronkhorst High - Tech) make Mass Stream Flowmeters & Controllers for gases have a unique, all AISI SS 316 sensors with low pressure drop and fast.

Mass Flow Meters and Controllers for liquids flow ranges between 0...30 mg/h and 0...20 kg/h (Water equivalent). LIQUI-FLOW® has a fast and accurate measuring signal, analog (models L1/L2) and digital (models L10/L20/L30) versions available. These are insensitive to mounting position.

Electromagnetic Flowmeters, Commonly known as Magmeters are a type of inferential flow metering devices used to measure the flow of electrically conductive liquid in closed pipe applications where the magnetic flux permeates the entire cross sectional area of the liquid flow. Magmeters measure electromotive force to determine liquid velocity using Faraday's Law of Electromagnetic Inducation and compute the flowrate using the equation of conductivity.

Eureka Variable Area Flow Meters (Rotameters) work on the principle of Variable Area. The float moves freely up and down in the tapered borosilicate glasstube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The vertical position of the float as indicated by scale is the measure of the instantaneousflow rate

Full View Sight Flow Indicators are assembled with tubular Borosilicate glass. These indicators are simple in construction and used for checking flow from any direction where various values or pump might have to be operated based on the flow in the line. These are recommended where there is no mechanical strain in the pipe line. Inside diameter of the glass tube is as large as or larger than the nominal size of the flow indicators. It is designed for only a negligible pressure drop.

Suitable specially for oil flow monitoring Viscosity compensated flow measurement. Suitable for oils having viscosity bet 30-600 cst Max. Operating Temperature: 120 Deg C Max. Operating Pressure:300 bar Max. Flow range: 110 lpm Applications Central lubricationTransformersCircular lubrication

Flow nozzle is a DP type flow meter consisting of rounded profile at inlet providing a smooth inlet to the fluid & the particles in the steam there by reducing the wear & tear thus extending the product life. This smooth inlet passage leads to lesser pressure drop & more efficiency. Eureka's NZL series is typically used for measurement of erosive & high velocity flow, such as high pressure high temperature steam. It can also be used with other fluids such as water, air or other gases.

Flapper Type Sight Flow Indicators are recommended for horizontal and vertical pipeline with upward flow. These units are best suited transparent or slightly opaque solutions and are used for gases also. Position of the flapper indicates flow. One important use of these flow indicators is, in pipe lines where a downstream value may remain closed and even through the flow indicator remains full, there may not be any flow. In such cases, the flapper position alone can indicate where there is flow or not.

Electromagnetic Flowmeters, Commonly known as Magmeters are a type of inferential flow metering devices used to measure the flow of electrically conductive liquid in closed pipe applications where the magnetic flux permeates the entire cross sectional area of the liquid flow. Magmeters measure electromotive force to determine liquid velocity using Faraday's Law of Electromagnetic Inducation and compute the flowrate using the equation of conductivity. Eureka make Eumag Flowmeters operate with electrically conductive liquids and are relatively immune to the effects of Pressure, Temperature, Density & Viscosity of the liquid medium. For Eumag Flowmeter the electrically conductive liquid is defined as a liquid with a Conductivity of at least 5 Micro Siemens/Cm. Convertor with inputs display: Apart from the above features, it has isolated RS 485 or RS 232 or HART capability. It also includes the Batching option, Logging option etc. 16x2 Backlit Display (ch. Size 3 mm) 6 Key Membrane Keyboard Serial Interface with basic MF board Serial Interface to field: RS 485 Galvanically Isolated for Modbus / Profibus Options Batching capability Operator Menu based Interface For Setting Up and Servicing. Note: At any given time only one of the interfaces can be offered : RS 485 or Rs 232 or HART Basic Features: High accuracy & stable performance No moving parts Easy installation and operation Minimal maintenance Microprocessor based designs offering exceptional configuration flexibility Basic model has isolated current output Programmable through PC by serial port even in basic model Easy programmablility using key board on Alpha numeric display Configutation personality stored in a pluggable personality module Advanced model having advance features of: RS 485 communication, HART, Batching, special parameter indications of pressure, temperature and energy metering like heating/cooling Compact and rugged, IP 65 protection class The display can be rotated in desired angle to offer ease in viewing Converter can be mounted away from the sensor

Accuracy : +0.5% of Flow Rate or better in between 0.5 to 10m/sec. velocity

CORI-FLOW® utilizes a patented, advanced Coriolis type mass flow sensor to achieve unsurpassed performance, even with changing operation conditions in pressure, temperature, density, conductivity and viscosity. CORI-FLOW® is offered with or without an integral control valve but with both analog and digital communications. Flow ranges available between 0...200 g/hr and 0...600 kg/hr. These have a fast response time, high accuracy (up to ±0,1% FS plus 0,2% of reading), IP65 housing with optional ATEX Zone 2 approval.

Accuracy : 1% Of Actual For Ek-1 To Ek-4 & 3% Of Actual

Line Size : 3/4 to 6 Inch

Material : Carbon Steel

End Connections : ANSI B 16.5

Ball type flow indicator is ideal for use in either air or fluid flow applications. The absence of wear components assures high reliability in installations unsuitable for indicators using bearings with a rotating wheel or turbine. The indicator is easily seen from elevated positions. The domed sight glass allows full 360° visibility from above. The ball is easily seen from even large.
