Fabri-tek Equipments Pvt. Ltd. Bhosari, Pune, Maharashtra

Material : Metal

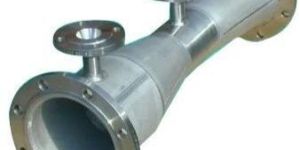

venturi tubes Machined venturi is manufactured by machining the required profile from a solid forged bar. The sizing and dimensional guidelines are mentioned in ISO-5167 part IV. Depending upon the customer requirement, the end connection can be either BWE or Flanged.

Application : Industrial, Laboratory

Number Of Flower : Cast Convergent Section

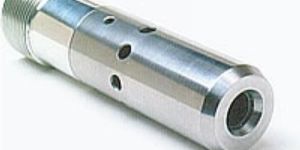

venturi nozzle To cater growing customer needs and to develop better infrastructure, we established a Private Limited company. We are Manufacturer, Exporter & Supplier and majorly we serve our customers from Gulf, African & Asian countries

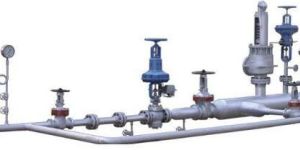

steam desuperheaters Desuperheater is a device which is sprays the high pressure water in the steam line thereby reducing the steam temperature to a point at or nearly at saturation temperature. An attemperator controls steam temperature while a desuperheater removes whatever superheat there is in steam.

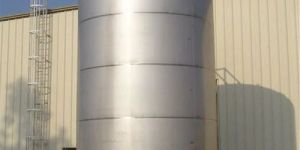

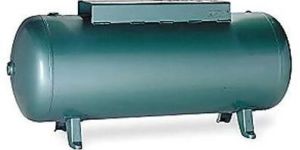

We provide an exclusive range of Pressure Vessels which are manufactured using premium quality material. Keeping in mind the specific requirements of the end users, our range of pressure vessels are highly capable of holding gases or liquids at a pressure different from the ambient pressure. As a prominent company, we are occupied in manufacturing and supplying a wide assortment of Pressure Vessel. This vessel is extremely capable of holding liquids or gases at a pressure different from the ambient pressure. Offered vessel finds its broad applications in fertilizers, oil, petrochemical and paper industries. This vessel is remarkably commended by our clients for its outstanding features.

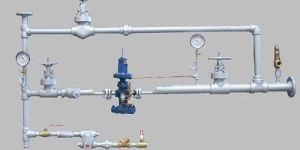

Pressure reducing station, The system wherein the pressure is reduced called as PRS. i.e. pressure reducing station. The PRS station contains the steam line, PCV, isolation valves, SRV & instruments. The typical arrangement of PRS station is as shown in below P&ID.

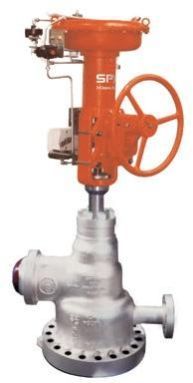

prds valve is the one wherein both the pressure reduction & temperature control is achieved in a single Unit.

An orifice plate is a thin plate with a hole in the middle. It is usually placed in a pipe in which fluid flows. When the fluid reaches the orifice plate, with the hole in the middle, the fluid is forced to converge to go through the small hole; the point of maximum convergence actually occurs shortly downstream of the physical orifice, at the so-called vena contracta point. As it does so, the velocity and the pressure changes. Beyond the vena contracta, the fluid expands and the velocity and pressure change once again. By measuring the difference in fluid pressure between the normal pipe section and at some specific point after orifice plate, the volumetric and mass flow rates can be obtained from Bernoulli's equation.

Material : Mild Steel

Capacity : 500-1000 L

Max Design Pressure : 20-30 bar

Application : Hydraulic Pipe, Chemical Fertilizer Pipe, Gas Pipe

Material : AISI 316

Availability : 4.6 kg

Material : SS

Country of Origin : 380 V

Material : SS

Power : 15- 25 kW

Material : Alloy

Power : Pneumatic

Condensate pot & seal pot are the same based on the shape & construction. Based on the application, they are classified as mentioned under. Condensate Pots are used to collect and accumulate condensate and extrinsic particles. Condensate chambers aid in protecting delicate instruments with smaller orifices from becoming damaged or clogged by foreign debris. The bottom connection is used as a drain port to remove condensate. Condensate chambers can also be used to cool very high temperature liquids. Seal pots are used to provide a liquid seal between the process instrument and gases such as steam. Its function is to keep the liquid level constant in the impulse tubes (sensing lines), while preventing stem or corrosive liquids from reaching the instrument. Condensate Chambers & Seal Pots are fabricated from seamless pipe. A variety of materials and wall thicknesses are available to meet a customer's design pressure and temperature.

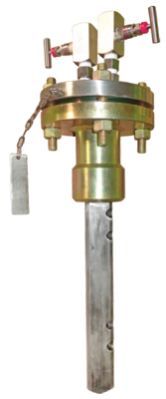

averaging pitot tube Averaging Pitot Tube is suitable for clean liquid, gas flow measurement • Accuracy ± 2 % of actual flow rate • Repeatability of measurement ± 0.2 % • Flow rate turndown typically 4:1 • Short upstream and downstream straight pipe lengths • Long term accuracy unaffected by wear • Less pressure loss
