SpecialitiesHigh-speed Suction Head, Rotary Feeder, Rotary Scoring Attachment, Belt Drive, Thick End Plates, Caliper Settings, Jogging Mode, Display Panel
Feed TypeVaccum Feed
Fold TypesSix Parallel Folds
SpeedUp To 23,000 A4 Single Fold Sheets Per Hour
Specifications6,5,350 X 600 Mm,70 X 110 Mm,18 Mm,47 Gsm To 130 Gsm,440V, 3-phase, 2 KW,Maintenance-free AC Drive

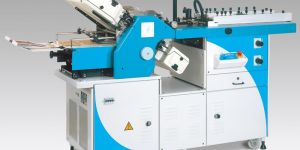

We offer automatic paper folding machine ( vaccum feed). The range of six parallel fold machines are provided with a high-speed suction head fitted with a rotary feeder and rotary scoring attachment, enabling it to deliver maximum output easily and effectively.
the suction head can take in only a single paper at a time. It is the only machine capable of delivering different types and styles of folds. The machine handles as many as 23000 a-4 single fold sheets per hour. Apart from this we also offer pharma insert folding machine.
the belt drive and thick end plates ensures the smooth and noise free operation. The caliper settings and jogging mode enhances the tedious task of folding paper. The display panel indicates the folded sheets, batch count and productivity information about an ongoing job. The packaging machine is used for packaging industry with slight variation. Specifications of the machine are as follows:
6 folding pockets & 5 deflectors
max. Format: 350*600 mm
min. Format: 70 x 110 mm
min. Folding: 18 mm
paper gsm: 47 gsm to 130 gsm
power: 440 v, 3 ph, 2 kw
with maintenance free ac drive
