Graphica Gauges and Tools Wadgaon Sheri, Pune, Maharashtra

We are ranked amongst the credible Manufacturers, Exporters & Suppliers of UNJ Thread Ring Gauges from Maharashtra, India. Our UNJ Thread Ring Gauges are noted for their good dimensional stability, high quality, reliable performance and requirement of low maintenance. Owing to our efficient distribution network, customers can count on us for delivering small or bulk orders of UNJ Thread Ring Gauges within the allocated time.   Specification : BS 4084-1996 OR ISO 3161-1999 & ISO 15872-2002.Manufacturing Range : Thread Plug Gauges & Thread Ring Gauges from No.4 (0.112") to 6" Diameter & TPI 48 to 4 TPI.

Size : 2inch, 4inch, 6inch, 8inch

Number Of Flower : Thread Ring Gauge

Material : Brass

Diameter : 20-40mm, 40-60mm, 80-100mm

Shape : Round

Certification : ISI Certified

Application : Industrial Use

Display Type : Analog

Located in Maharashtra, India, we are actively functioning as a reliable Manufacturer, Exporter and Supplier of UNJ Thread Plug Gauges all across the globe. The UNJ Thread Plug Gauges that we deal in are extensively used in Aeronautic Industry for Imperial system of units. The Thread Plug Gauges that we offer are designed in accordance with the stated international quality norms. You can place small as well as bulk orders with us.   Specification : BS 4084-1996 OR ISO 3161-1999 & ISO 15872-2002. Manufacturing Range : Thread Plug Gauges & Thread Ring Gauges from No.4 (0.112") to 6" Diameter & TPI 48 to 4 TPI.

Size : 2inch, 4inch, 6inch

Number Of Flower : Thread Plug Gauges

Material : Brass

Diameter : 20-40mm, 40-60mm, 60-80mm

Certification : ISI Certified

Application : Industrial Use

Feature : Accuracy, Easy To Fit, Measure Fast Reading, Robust Construction, Rust Proof

We are offering superior grade Unified Thread Ring Gauges for various general purpose fastening applications in a number of industries. We are equipped with the latest machinery for fabricating precise Thread Ring Gauges. We offer an assortment of Ring Gauges at affordable rates. We are celebrated as the Manufacturer, Exporter & Supplier of Unified Thread Ring Gauges from Maharashtra, India and proficient in timely delivery around the world.   Specification of Unified Ring Gauges : ANSI/ASME B 1.2-1983. Unified Gauges Basic Dimensions as per BS 1580 Part 1 & 2 - 2007 & Gauging Practice as per BS 919 Part 1-2007 are manufactured if requested by customers. Manufacturing Range of Unified Ring Gauges : Thread Plug & Ring Gauges from No. 4 (0.112") to 14"

Size : 2inch, 4inch, 6inch, 8inch

Number Of Flower : Thread Ring Gauge

Material : Brass

Diameter : 20-40mm, 40-60mm, 60-80mm, 80-100mm

Shape : Round

Certification : ISI Certified

Application : Industrial Use

Feature : Accuracy, Easy To Fit, Measure Fast Reading, Perfect Strength

We are a top-notch Manufacturer, Exporter and Supplier of Unified Thread Plug Gauges from Maharashtra, India. We are supported by a team of dexterous professionals having year of experience. The Unified Thread Plug Gauges are intended to be used for fastening applications for Imperial system of units. Feel completely free to place small as well as bulk orders of Unified Thread Plug Gauges with us and we will deliver them on time for sure.   Specification of Unified Gauge : ANSI/ASME B 1.2-1983. Unfied Gauges Basic Dimensions as per BS 1580 Part 1 & 2 - 2007 & Gauging Practice as per BS 919 Part 1-2007 are manufactured if requested by customers. Manufacturing Range of Unified Gauge : Thread Plug & Ring Gauges from No. 4 (0.112") to 14"

Size : 2inch, 6inch, 8inch

Certification : ISI Certified

Application : Industrial Use, Measuring

Feature : Easy To Fit, Measure Fast Reading, Rust Proof

Material : Stainless Steel

We are enlisted amidst the most dependable Unified Gauge Manufacturers and Suppliers in India. The unmatched quality and inexplicable performance has attracted various national as well as international clients to place bulk orders for Unified Gauge. Additionally, the use of optimum quality materials in the manufacturing of the Unified Gauge ensures high durability, strength and resistivity to adverse conditions. Features Available in different diameter, thickness and lengthRust free

The Trapezoidal Thread Plug Gauges are comprehensively used for translation motion in machine tools like in screw jacks, where load to be shared is more lead screws, or where rapid movement is required. We are a credible Manufacturer, Exporter and Supplier of Trapezoidal Thread Plug Gauges from Maharashtra, India. As far as the cost is concerned, The Plug Gauges are offered at the rock bottom prices.   Specification of Trapezoidal Gauge : ISO Specifications: Basic Dimensions - ISO 2903 - 1993, ISO 2904 - 1977 & Gauging Practice - DIN 103(9)-1985. IS Specifications: Basic Dimensions - IS 7008-1988, IS 7008(4)- 1999 & Gauging Practice - DIN 103(9)-1985. Manufacturing Range of Trapezoidal Gauge : Thread Plugs, Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 8 mm to 355 mm and pitches from 1.5 mm to 12 mm.

Number Of Flower : Thread Plug Gauges

Certification : ISI Certified

Application : Industrial Use

Feature : Accuracy, Easy To Fit, Perfect Strength, Robust Construction, Rust Proof

Packaging Type : Box

Material : Gcr15 Steel

Our company is recognized as a distinguished Manufacturer, Exporter & Supplier of Trapezoidal Ring Gauges based in Maharashtra, India. The Ring Gauges are used in various industries for translation motion in machine tools. We stock the Trapezoidal Gauges in our state-of-the-art warehouse to cater to the bulk requirement of buyers with ease. We are offering Trapezoidal Ring Gauges to buyers at industry leading prices.   Specification of Trapezoidal Ring Gauges : ISO Specifications: Basic Dimensions - ISO 2903 - 1993, ISO 2904 - 1977 & Gauging Practice - DIN 103(9)-1985. IS Specifications: Basic Dimensions - IS 7008-1988, IS 7008(4)-1999 & Gauging Practice - DIN 103(9)-1985. Manufacturing Range of Trapezoidal Ring Gauges : Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 8 mm to 355 mm and pitches from 1.5 mm to 12 mm.

Size : 2inch, 6inch, 8inch

Number Of Flower : Trapezoidal Gauge

Material : Mild Steel

Diameter : 20-40mm, 80-100mm

Shape : Round

Certification : ISI Certified

Application : Liquid Pressure, Measuring Gas

Pressure : 10000-15000psi, 15000-20000psi

Our company is renowned as one of the most dependable Trapezoidal Gauge Exporters from India. Trapezoidal Ring Gauge offered by us is widely demanded by the international clients due to the inexplicable performance on respective application. Moreover, the Trapezoidal Ring Gauge is also available in the assortment to meet the specific requirements of the clients.

We are listed at the apex in the list of the most dependable Thread Ring Gauges Manufacturers in India. Various national as well as international clients are placing bulk orders for the Thread Ring Gauges due to the notable features i.e. high durability and resistivity to various adverse conditions. High tensile strength has also made Thread Ring Gauges ideal for various industrial applications. The array includes Metric Gauge, Unified Gauge, Taper Thread Ring Gauges, Trapezoidal Gauge, Acme Gauge and Parallel Thread Ring Gauges that confirm to IS, BS, DIN and American standards. Additionally, the Thread Ring Gauges are available in various dimensions ranging from 3- 260 mm in diameter and 1:16 taper.

Brand Name : graphica

Shape : Round

Application : Industrial Use

Size : 2inch

We have carved a niche in the industry as the Manufacturer, Exporter & Supplier of Thread Measuring Wires from Maharashtra, India. Our offered Thread Measuring Wires is used for checking the diameter of thread gauges in various industries. Our skilled professionals make use of high-grade metals and latest technological advancements for fabricating the Measuring Wires. We offer Thread Measuring Wires to our buyers’ at most reasonable rates.

Material : Metal

We are identified as one of the most reputed thread measuring wires exporters from india. The precision thread measuring wires offered by us are widely demanded in the international market due to the unmatched quality and inexplicable performance in respective applications. Moreover, the calibrated thread measuring wires are used to check effective diameter of thread gauges, taps and any other threads and customers are also eased with the availability of the standard set consisting 16 sizes.

Material : Metal

Shape : Round

Application : Industrial

Surface Treatment : Polished

Certificate : ISI Certified

Number Of Flower : White

WE ARE MANUFACTUREDS AND EXPORTERS OF THREAD RING GAUGES , THREA D PLUG GAUGES , NPT GAUGES , BSW GAUGES PLAIN RING GAGES, PLAIN PLUG GAUGES

We are identified as one of the most renowned Taper Gauge Manufacturers in India. the materials used in the manufacturing of the Taper Gauge are of optimum quality that ensures notable features as high durability, tensile strength and resistivity to various adverse conditions. Additionally, the Internal Taper Gauge and Cone Taper Gauge are also available in the array to meet specifications of applications.

We hold expertise in manufacturing, exporting & supplying of Stub Acme Thread Ring Gauges from Maharashtra, India. Used majorly for thin walled applications, our Thread Ring Gauges has gained great appreciation in various industries. We stock a large number of Stub Acme Thread Ring Gauges in our spacious warehouse to cater to bulk requirement of buyers across the globe with ease.   Specification : American Specifications - ANSI/ ASME B1.8 - 1988.Manufacturing Range : Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/4" to 14" and TPI from 16 to 2.

Size : 2inch, 4inch, 6inch, 8inch

Number Of Flower : Thread Ring Gauge

Material : Brass, Mild Steel, Stainless Steel

Diameter : 20-40mm, 40-60mm, 60-80mm

Shape : Round

Application : Industrial Use

Feature : Accuracy, Easy To Fit, Measure Fast Reading

We are a trustworthy Manufacturer, Exporter and Supplier of Stub Acme Thread Plug Gauges from Maharashtra, India. We are backed by a team of skilled and experienced personnel who makes use of sophisticated machines for their production. The Gauges are fabricated in compliance with the stated international quality standards. The Stub Acme Thread Plug Gauges are intended to be used for thin walled applications. Rely on us!   Specification : American Specifications - ANSI/ ASME B1.8 - 1988.Manufacturing Range : Thread Plugs , Thread Rings, Check Plugs & Wear Check Plugs of Diameter from 1/4" to 14" and TPI from 16 to 2.

Application : Industrial Use

Feature : Accuracy, Easy To Fit, Measure Fast Reading

Packaging Type : Box

Material : Gcr15 Steel

We are identified as one of the most Reputed Snap Gauges Manufacturers and Suppliers in India. The materials used in the manufacturing of the Adjustable Snap Gauges are of optimum quality that ensures notable features as high durability and resistivity to various adverse conditions. Additionally, high tensile strength has also made the Precision Snap Gauges ideal for various industrial applications. Customers are also eased with the availability of the Snap Gauges in various sizes and dimensions.

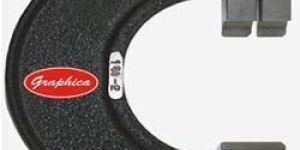

We are engaged in manufacturing, exporting & supplying Snap Gauges from Maharashtra, India. Our Snap Gauges are preferred by customers for their precise design, unmatched strength and long service life. To ensure customer satisfaction, we check the Snap Gauges on stringent quality parameters before approving them for delivery. Customers can rely on us for timely delivering Snap Gauges to various domestic and international markets. Details : Snap Gauges are used for attribute inspection of external diameter. Snap Gauges offered by us are used where external measurement of diameter/width of a part is required Our snap gauges are faster and more accurate in usage and feature a stronger contact pressure than most gauges as well as also cover larger contact area The contacts have carbide inserts, these provide for better wear resistance as well as to allow flat and parallel lapping These also come with adjustable back stops that help in stopping the gage at maximum diameter of the part.   Features of Snap Gauges : Shockproof with provision of providing instant reading Delivering optimum measuring accuracy Adjustment is simple Comes with anvils that are made of carbide, thus providing for lasting performance Specifications of Snap Gauges : Basic Dimensions: ISO 286 Part 1 & 2 - 2010/ IS 919 Part 1 & 2 1993. Gauging Practice: DIN 7164 - 1966 & IS 3455-1971 / IS 7876-1975. Manufacturing Range of Snap Gauges : Single end Prograssive Type - Diameter 3mm to 160 mm. Double Ended (Separate Go & Nogo) - Diameter 3mm to 100 mm. Double ended I Type Snap Gauge - Diameter 100mm - 300 mm.

Size : 2inch, 4inch, 6inch, 8inch

Number Of Flower : Snap Gauge

Material : Mild Steel

Diameter : 20-40mm, 40-60mm, 60-80mm, 80-100mm

Certification : ISI Certified

Application : Measuring Gas

Pressure : 10000-15000psi, 15000-20000psi

Feature : Accuracy, Easy To Fit

We are identified as one of the most reputed snap gauges manufacturers and suppliers in india. The materials used in the manufacturing of the adjustable snap gauges are of optimum quality that ensures notable features as high durability and resistivity to various adverse conditions. Additionally, high tensile strength has also made the precision snap gauges ideal for various industrial applications. Customers are also eased with the availability of the snap gauges in various sizes and dimensions.

Our company is recognized as one of the most prominent Setting Master Exporters from India. The unmatched quality and inexplicable performance in respective application has attracted various national as well as international clients to place bulk orders for the Setting Master. The use of optimum quality materials in the manufacturing of the Setting Master ensure notable features as high durability, tensile strength and resistivity to advserse conditions. Moreover, the Metal Setting Master is also available in varied dimensions to meet the specifications provided by the clients.

Material : Ohns

Shape : Round

Application : Calibration Of Industrial Quality Pressure Gauges

Size : As per your requirement

Certification : ISI Certified

Feature : Accuracy

Purchase from us our qualitative range of Setting Master at modest rates. Used as reference standard for setting up various industrial equipment, the Setting Master offered by us is noted for its sturdy build and accurate measurement. We have gained prominence as the Manufacturer, Exporter & Supplier from Maharashtra, India and proficient in swiftly delivering any order of Setting Master to buyers all over the world.   Specification of Setting Master : DIN 7164 - 1966. Manufacturing Range of Setting Master : Diameter 1 mm - 300 mm

Material : Stainless Steel

We are offering Precision Collets to meet the variegated demands of the buyers in various industries. The wide array of Precision Collets we offer is known for being lightweight, accurate, smoothly polished and having good tolerance. We are capable of handling bulk and retail orders of the collets. We are a well-known Manufacturer, Exporter & Supplier of Precision Collets from Maharashtra, India and known for our fair pricing policy.

Accuracy : 0.0006 Tir

Application : Industrial

Material : Ss

We are counted amongst the most reliable Plain Plug Gauges Manufacturers in India. Various national as well as international clients are placing bulk orders for the Carbide Plain Plug Gauges due to the unmatched quality and inexplicable performance exhibited in respective applications. The use of optimum quality materials in the manufacturing of the Steel Plain Plug Gauges ensure notable features like high durability, tensile strength and resistivity to various non-supportive conditions. Customers are also eased with the availability of the Plain Plug Gauges in varied sizes and specification. We provide customized solutions to our customers on the basis of: Concentricity

With an experience of nearly 18 years, we are regarded as a premium Manufacturer, Exporter & Supplier of Plain Plug Gauges based in Maharashtra, India. We are backed by a team of competent professionals who adhere to the international quality standards for fabricating the gauges. We have developed a dependable logistics network to ensure customers across the world receive their order of Plain Plug Gauges within the postulated time.   Specifications of Plain Plug Gauge : Basic Dimensions: ISO 286 Part 1 & 2 - 2010, Gauging Practice: DIN 7164 - 1966 & IS 7859-1975.Manufacturing Range of Plain Plug Gauge : Diameter 0.5 mm - 10mm are supplied in reversible pin type Design. Diameter 10 mm - 40 mm are supplied in Taperlock Design. Diameter 40 mm - 100 mm are supplied in Trilock Design. Diameter 100mm - 300mm are supplied in Plate type design. We provide customized solutions to our customers on the basis of : Ead depth Concentricity Squareness

Size : 2inch, 4inch, 6inch, 8inch

Number Of Flower : Thread Plug Gauges

Material : Brass

Diameter : 20-40mm, 40-60mm, 60-80mm

Certification : ISI Certified

Application : Industrial Use

Feature : Accuracy, Easy To Fit, Measure Fast Reading, Rust Proof

We are counted amongst the most reliable plain plug gauges manufacturers in india. Various national as well as international clients are placing bulk orders for the carbide plain plug gauges due to the unmatched quality and inexplicable performance exhibited in respective applications. The use of optimum quality materials in the manufacturing of the steel plain plug gauges ensure notable features like high durability, tensile strength and resistivity to various non-supportive conditions. Customers are also eased with the availability of the plain plug gauges in varied sizes and specification. we provide customized solutions to our customers on the basis of: concentricity

Material : Carbide

Shape : Round

Color : Black

Application : Measuring

Size : Customised

Certification : ISI Certified

Feature : Accuracy
