Isolation Transformers Dealers in Pune

Backed by state-of-the-art manufacturing processes, manned by the team of experienced professionals, we are engaged in offering a wide range of Control Transformer. The offered range of products is manufactured using optimum grade components and sophisticated technology in synchronization with international standards. In order to ensure quality, the entire range is rigorously tested on various parameters by our quality experts. Keeping in mind the diverse requirements of our clients, we provide the entire range in various sizes and specifications. Features: Excellent voltage regulation High performance Durable frequency

We have specialized in manufacturing optimum quality distribution transformers. The distribution transformers offered by us are capable of handling 2000kva and 33kv range. Designed by experts, these distribution transformers are made following is standards meeting specifications laid by tata electricity board. We can also produce distribution transformers as per specifications laid by the clients.

The output ratings for continuous duty are for the maximum output voltage. For lower voltage taps the permissible output with constant current must be correspondingly reduced. The output supply for an ambient temperature of maximum 45°C & altitudes upto 1000 meters above sea level. In case of continuous duty with short time loads, Control Circuit Transformers can be subjected to upto 300 contactor operations per hour with the short time loads in excess of the continuous ratings. The restaurant drop of the on - load output voltage will not exceed 5%..

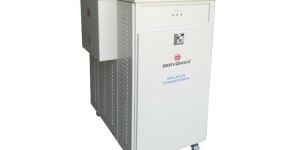

Manufacturer & Supplier of Single Phase Isolation Transformer. Our product range also comprises of X-Ray Transformer and Three Phase Isolation Transformer.   Single Phase Isolation Transformer Single Phase Isolation Transformer product of ours is a better option for our clients as these isolate the equipments from noisy power line. They eliminate the Power Line Noise, Surges, Spikes and Transients. It also provides high insulation resistance and provides complete Electromagnetic and Electrostatic Shielding. Our Transformers are Core Type Transformers ranging 500 VA on-wards with insulation class 'B' or 'F'.

Capacity range upto 200 KVA 3Ph   ParticularStandards System Connections Delta/Star Input Voltage 415V 3Phase Ratios 1:1 and 2:1 Regulation Better than 3.5% Output Voltage 415V or 200,220V 3Phase Di-Electric strength 3KV for 60 Sec Insulation Resistance Better than 1000 Mega Ohms Power Factor 0.75 Lead to 0.75 Lag Construction Standard as per IS 20126 Part I & II, IS 11171 Comman Mode Attenuation 100 db/120 db Coupling Capacitance 0.1 PF for 80db Leakage Current Less than 20 Micro Amps Type of Execution Closed Type Operating Temp. 0 degree celcius to 45 degree celcius Type of cooling Natural Air/ Forced Air Oil Cooled (Optional)   • Eliminates stresses that come from normal electrical transients.• Meet stringent clean power requirements of the sophisticated / sensitive equipments.• Reduces the effects of power line problems like Noise, Spikes, Surges, Transients and Neutral to minimum.

We are counted among the top companies, which are engaged in supplying Distribution Transformers from Maharashtra, India. We come up with well-tested Distribution Transformers that deliver optimum performance. When it comes to packing Distribution Transformers, we use high quality packaging material that ensures their safety during transit. One can place retail as well as bulk orders for Distribution Transformers with us.

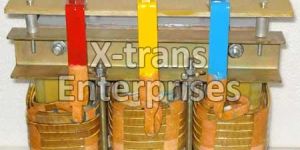

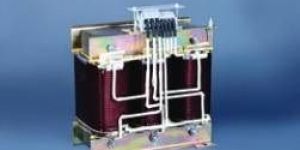

Isolation Transformers, which often has symmetrical windings, is used to decouple two circuits. An isolation transformer allows an AC signal or power to be taken from one device and fed into another without electrically connecting the two circuits. Isolation transformers can be used to block transmission of DC signals from one circuit to the other, but allow AC signals to pass. They will also block interference caused by ground loops. Isolation transformers with electrostatic shields are used for power supplies for sensitive equipment such as computers or laboratory instruments. A 3 phase transformer, there is a three-legged iron core as shown below. Each leg has a respective primary and secondary winding. Thus a 3 phase isolation transformers is a 3 phase transformer which has isolated primary and secondary windings to allow the power input to be isolated from the power output. Isolation Transformers have primary and secondary windings that are kept physically separate. Sometimes isolation transformers are called "insulated transformers". This is because the primary and secondary windings are insulated from each other.

ADVANTAGES Isolate primary winding and secondary windings. Provides isolated neutral. It protects micro processor based equipment from dangerous noises and reduces drive failures. It can be useful where machine earth can’t be used. By Providing Delta star isolation transformer, where there is problem of earth or neutral in the input side is taken care for the safety operation of the load by this Isolation transformer. It arrest the noises of high frequency and noises generated by the usage of high current MCB,ACB, Induction furnace or other electromagnetic noises.

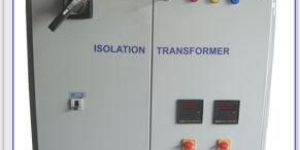

SPECIFICATIONS Type Shielded Isolation Transformer Capacities From 5 KVA to 1000 KVA Voltage Class Up to 6.6 KV Phases Three Phase & Single Phase Frequency 50 Hz 60 Hz. Typical Voltage Configurations in Three Phase (Other Voltage configurations available as per customer requirements) 6.6 V 433 V; 6.6 V 415 V; 6.6 V 230 V; 433 V 6.6 V; 433 V 433 V; 433 V 415 V; 433 230 V; 415 V 6.6 V ; 415 V 415 V; 415 V 230 V. Insulation Class F Class H Winding Material Copper Magnetic Core Prime Grade Virgin C.R.G.O Shielding Material 0.2 mm Electrolytic copper foil Insulation Increased level of insulation using Vacuum Pressure Impregnation. SPECIAL FEATURES Service Designed for long life and trouble free performance Losses Designed for lower losses and greater efficiencies Test Standards Designed for IS 2026 11171 & I.E.C 60076. Value Designed for cost effectiveness and high reliability Installation Designed for installation closer to load Safety Designed for protection against harsh environmental conditions. Isolation Electrostatic Isolation between Primary & Secondary to suppress Electrical noises.

These are custom design control transformers rating from 50VA to 100KVA designed for various voltage ratings matching different standards. These transformers are mounted with Phoenix connectors. Typical Features: 1. Input Volatge Rating: 120V-240V-380V-415V-440V 2. Output Voltage: 12V-24V-120V-208V-230V 3. Frequency: 50/60Hz 4. Temperature Class: Class F -155 Deg C 5. VA Rating: 50VA – 100KVA

Distribution Transformers It is the transformer which brings final voltage down and distributes the electrical power to the power lines through distribution poles. It helps the electricity to reach our home. This kind of power distribution requires various transformers with different sizes and proficiencies. So People select as per their budget and requirements.

Our products have the largest satisfied customer base. Dedicated to providing environment friendly quality solutions and commitment to delight customers with unique value propositions.

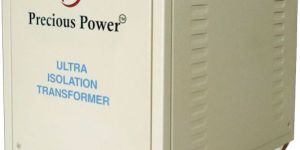

Isolation Transformer generally means 1:1 ratio Transformers i.e. its purpose is to provide isolation between source and load usually with step up or step down requirements. These are used in industrial machines to meet their power  needs.       Power Range: 1 Ph or 3 Ph from 1 KVA up to 200 KVA Conductor: Electrolytic grade Copper Strips/Wires or Aluminum Core: CRGO or CRNGO type EI or strip Insulation Class: Class H or Class F Input and out are terminated using bus bars or connectors on board Transformers available with Cubicles upon request ​K-Rated Transformer can be designed as needed. Ultra-Isolation Transformer can be designed as needed. Features: Use of high insulating materials and special shielding techniques results in attenuating common mode and minimizing transverse mode noise The core and its magnetic properties are properly selected to provide sufficient leakage inductance. This will give the greatest attenuation of normal mode power line noise possible, consistent with the transfer of fundamental power frequency, while all higher frequencies are blocked Designed with split winding constructions and bifilar connections to reduce overall capacitance of the winding Due to better regulation, it does not generate common mode impedance coupling effect Protect against strong lightening, bus short-circuit, accidental discharge of capacitors etc Protect the Micro processor based machines and equipments from damage due to electrical noise, spikes etc.

We have a well-developed all the in-house storage facility, laced with all the modern facilities. Also, we have hired a team of professionals who efficiently manage and maintain it. Highly praised for presenting high-grade quality Isolation Transformers, we are a celebrated Supplier in the market.
