This board allows you to develop easy Ethernet connectivity application. It have everything you normally would need for such activity: power relays which you can command through web interface. LCD display which will display messages you fill in web forms, analogue inputs for connection to sensors, digital opto isolated inputs, trimmer potentiometer, temperature sensor, Ethernet connector. With this board you can easy automate your home and then control and monitor it from any point in the world via Internet. The extension connector is available so you can connect your custom made hardware hassle free. The PIC18F97J60 have 128KB Flash programming memory and there is external 1Mbit (128KB) flash memory for data storage. The on board DC/DC converter make this board to be very tolerant to the external power supply which could be in 9-25V DC or 7-18V AC range, the bridge rectifier on the input allow AC and DC adapters to be used and makes power supply polarity problems go away. FEATURES: PIC18F97J60 microcontroller with embedded Ethernet MAC and PHY and 128KB Flash programming space 1Mbit on board serial flash for web pages storage ICSP/ICD connector for programming and debugging with PIC-ICD2 and PIC-ICD2-POCKET. Temperature sensor, Trimmer potentiometer connected to analogue input Two relays 10A/250VAC, Four opto isolated digital inputs Twelve analogue inputs on terminal block, Two buttons, LCD16x2 with backlight RS232 interface, Ethernet interface Complete web server and TCP-IP stack support as per Microchip's open source TCP-IP stack Terminal block for power supply works with 9-25 VDC power supply Extension header to connect to other boards, Dimensions 120x108 mm (4.72x4.25")

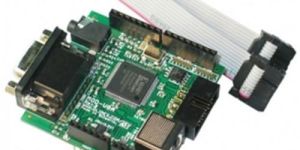

MOD-VGA is based on the popular Gameduino design. The little changes we made were to add a PS2 keyboard, a UEXT connector which allows all of our boards with a UEXT to connect to MOD-VGA and audio output. Also, we made a version with 32MB of SDRAM which allows higher resolutions than the original Gameduino design.   FEATURES XILINX Spartan XC3S200A PS2 Keyboard connector Audio connector VGA connector Male UEXT connector plus 10 pin cable for it Ready Arduino software support Mounted Arduino headers FR-4, 1.5 mm, green soldermask, white print PCB dimensions: 55.88 x 53.34 mm (2.2 x 2.1")

Interface: USB 2.0 Type A RS-232 (9-pin) Male Supports RS232 serial interface DB9 FT232 based 3 wired Design Install as a standard Windows COM port, Six Months Replacement Warranty

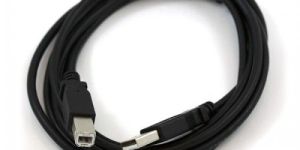

This is a standard issue USB 2.0 cable. This is the most common A to B Male/Male type peripheral cable, the kind that’s usually used for printers. Compatible with most SFE designed USB boards as well as USB Arduino boards like the Uno, ARM-USB-OCD and other Embedded Boards & Tools

Length : 1.5 Meter approx

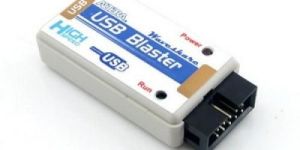

The USB Blaster Download Cable interfaces a USB port on a host computer to an Altera® FPGA mounted on a printed circuit board. The cable sends configuration data from the PC to a standard 10-pin header connected to the FPGA. You can use the USB Blaster cable to iteratively download configuration data to a system during prototyping or to program data into the system during production. It surpports the ALTERA total series FPGA/CPLD devices, Active Serial Configuration Devices, Enhanced Configuration Devices, and supports AS, PS, JTAG three download modes. Key Features Performance Supports ALTERA total series FPGA/CPLD devices. Supports ALTERA total series Active Serial Configuration Devices. Supports ALTERA total series Enhanced Configuration Devices. Supports AS, PS, JTAG three download modes. High-speed, stable, and internal FT245R+CPLD designed. Supports 1.2-5V programming voltage. Supports SignalTap II embedded logic analyzer. Supports Nios II of embedded processor communication and debugging. Supported Softwares Quartus II integrated development environment. NIOS II IDE integrated development environment. NIOS II EDS integrated development environment. Supported Devices CPLD: MAX3000, MAX7000A/B/S, MAX9000 and MAX II etc. FPGA: Stratix, Stratix II, Cyclone, Cyclone II, CycloneIII, ACEX 1K, APEX 20K and FLEX 10K etc. Active Serial Configuration Devices including: EPCS1, EPCS4, EPCS16 etc. Enhanced Configuration Devices including: EPC1, EPC4 etc. Other Features High download speed: FT245+CPLD+244, close to the original ALTERA USB Blaster. Download speed 1-3 times faster than other schemes, such as 68013 or C8051F. Connects to PC Computer connection via USB 2.0 interface. Connects to target board Target board connection via JTAG, AS, PS interfaces. The figure 1, 2,and 3 below shows the header pinouts of different interfaces.

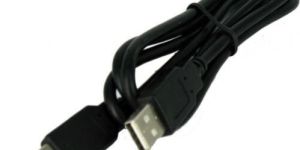

USB 2.0 A Male to USB A Male Cable With high speed USB 2.0 devices such as Raspberry Pi, BBB boards, other Embedded boards, scanners, digital cameras, MP3 players, and portable hard drives and CD-RW drives hitting the market, customers need cables to connect the devices to their computers. Features : 1. Excellent Quality Black in Colour. 2. Easy to operate, bring you great convenience. 3. This product is made of high-quality Material. 4. USB 2.0 A Male to A Male Cable.      Package Included: USB 2.0 Type A Male to A Male Cable

The UART TO ETH module provides an easy way to communicate between UART and Ethernet, it can be configured via web page.   Features M0 series 32-bit ARM processor, fast speed, high efficiency 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable Auto-reconnecting, provides a reliable TCP connection Supports time-out reboot (no-data reboot), configurable reboot time Flexible serial port data framing, allows kinds of customized packeting Baudrate configurable, from 600bps up to 460800bps, supports five parity check options: None, Odd, Even, Mark, Space Supports customized heartbeat packets, make sure the connection is truthful Supports customized registration packets, detect the connection status, customizable packet header, make the register packets with selected MAC address Supports customized web page, allows user to customize the module configuration page Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change Supports DNS domain name resolution, configurable DNS server Supports DHCP, auto-obtained IP or static IP Firmware is upgradable via the network Restore to factory settings via software and/or hardware Comes with default MAC address, which is customizable Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client Supported protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client Configurable via web page, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Storage Condition : -40

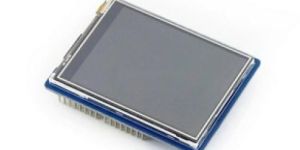

Features Resistive touch screen TFT LCD, 2.8 inch, 320×240 resolution Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control Micro SD slot, provides an easy way to store photos for displaying Controlled via SPI, only a few Arduino pins are used Backlight adjustable by program, lower power consumption

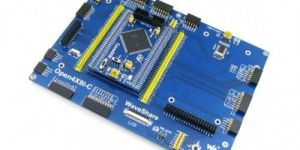

STM32 development board designed for STM32F429I, features the STM32F429IGT6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions. Overview Open429I-C is an STM32 development board designed for the STM32F429IGT6 microcontroller, consists of the mother board and the MCU core board Core429I. The Open429I-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.   MCU core board connector: for easily connecting the Core429I USART3 interface: easily connects to RS232, RS485, USB TO 232, etc. DCMI interface: for connecting camera Capacitive touch panel interface: for connecting capacitive touch panel CAN2 interface: for connecting CAN modules CAN1 interface: for connecting CAN modules SDIO interface: for connecting Micro SD module, features much faster access speed rather than SPI ULPI interface: for connecting high-speed USB peripheral (the STM32F429I integrates USB HS controller without any PHY device) LCD interface 1: for connecting 7inch LCD ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc. LCD interface 2: for connecting 4.3inch LCD I2C2/I2C3 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc. SAI1 interface: for connecting audio modules like UDA1380 module Ethernet interface: for connecting Ethernet modules USB connector: USB to UART via the onboard convertor PL2303 SPI1/SPI2 interfaces: easily connects to SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3 module, etc. easily connects to AD/DA modules (SPI1 features AD/DA alternative function) I2S2/I2S3/I2C1 interface: easily connects to I2S peripherals such as audio module, etc. 8-bit FMC interface: easily connects to peripherals such as NandFlash 5V DC jack 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion PL2303: USB to UART convertor LEDs: convenient for indicating I/O status and/or program running state PL2303 TX-LED / RX-LED 12MHz crystal: for PL2303 Joystick: five positions WAKE UP button: used as regular button, and/or wake up the STM32 MCU from sleep USB to UART jumper LED jumper short the jumper to connect to default I/Os used in example code open the jumper to connect to custom I/Os via jumper wires Button/Joystick jumper short the jumper to connect to default I/Os used in example code open the jumper to connect to custom I/Os via jumper wires

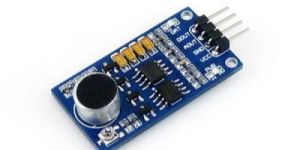

Overview Onboard audio power amplifier LM386 Audio signal gain up to 200 Signal output indicator   Applications Ambient sound detection Sound level detection   How to Use In the case of working with a MCU: VCC ↔ 3.3V ~ 5.3V GND ↔ power supply ground AOUT ↔ MCU.IO (analog output) DOUT ↔ MCU.IO (digital output)

Power : 3.3V

12V/2A SMPS Adaptor:  Input - 110-270VAC/0.8A 50-60Hz Output: 12V/2A max Normal Jack- DC05 2mm PJ connector

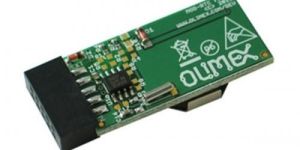

MOD-RTC add real time clock feature to boards with UEXT connector . The time keeping accuracy is tuned to 2 seconds per day, more accurate tuning is possible by adjusting the internal PCF8536 registers. FEATURES: PCF8536 Real time clock Lithium 3V battery connector UEXT connector FR-4, 1.5 mm, soldermask, component print Dimensions: 40x19mm (1.57 x 0.75")

Overview An accessories Pack (type D) to be used with Raspberry Pi. It consists of expansion board ARPI600, various sensors, and features Arduino connectivity support. Supported Pi Raspberry Pi 1 Model A+ Raspberry Pi 1 Model B+ Raspberry Pi 2 Model B ARPI600 Features Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields XBee connector for connecting various XBee modules Sensor interface for connecting various sensors Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors) Onboard RTC

Features: Raspberry Pi Camera, supports all revisions of the Pi Fisheye Lens, offers wider field of view Comes with infrared LED, supports night vision 5 megapixel OV5647 sensor Camera specifications CCD size : 1/4inch Aperture (F) : 2.35 Focal Length : adjustable Field of View : 160 degree (while other normal cameras are typically 72 degree) Diagonal angle : 160 degree Horizontal angle : 120 degree Sensor best resolution : 1080p 4 screw holes Used for attachment Provides 3.3V power output Supports connecting infrared LED and/or fill flash LED Dimension: 25mm x 24mm

Arduino is a massive ecosystem, if there's a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this. What's more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project. Supported Pi Raspberry Pi 1 Model A+ Raspberry Pi 1 Model B+ Raspberry Pi 2 Model B ARPI600 Features Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields XBee connector for connecting various XBee modules Sensor interface for connecting various sensors Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors) Onboard RTC     Arduino connector : for connecting Arduino shields ICSP interface : Arduino ICSP XBee connector : for connecting XBee communication modules Sensor interface : for connecting sensors Raspberry Pi connector : for connecting Raspberry Pi USB TO UART TLC1543 : AD converter PCF8563 : RTC CP2102 32.768KHz crystal : for RTC Power indicator XBee state LED XBee and Arduino interface RESET button XBee EASYLINK button RTC battery holder : for CR1220 button battery TLC1543 reference voltage configuration jumper RTC jumper UART jumper when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port Arduino AD selection jumper short 2 and 3 : Arduino A0-A5 as AD input short 1 and 2 : Arduino A0-A5 as digital control Arduino I2C selection jumper short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened) Arduino SPI selection jumper short 1 and 2 : Arduino D11-D13 as SPI control (default) short 2 and 3 : Arduino D11-D13 as digital control

MOD-LTR501ALS provides a linear response from 0.01 to 64000 Lux in the visible spectrum. The proximity sensor is configurable and can work with up to 10 cm distance.

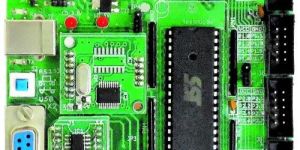

LGS PR51 is Project Development board for students & professional, ready to use On board 89V51RD2/SST   8051 Core Device MCU@11.059Mhz All Port pins are available to user on 10pins  x 4nos Polarised FRC Connectors UEXT- (Tx, Rx, SPI, I2C) Connector – 10 Pin FRC RS232C Serial Port In Systems Programming Through RS232C  and USB Onboard Max232C and USB converter Modules and selection through switch Reset switch Universal Power supply Input 12 V to 35V/1A On board LT2576 Voltage regulator with 5V output Dual Power-  Through Adaptor & Through USB Onboard Power On/OFF switch Interfacing Modules for I2C based RTC, EEPROM, ADC/DAC, 16x2 LCD, 128x64 GLC, 4x4 Keypad with 7 Segment display, DC and Stepper Motor etc. Size- 100mm x 90mm   Package Contains: PR51 Development Board USB Cable CD with Development Resources Mounting Hex nuts x 4

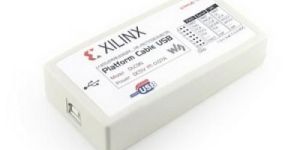

Description The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB. Key Features Performance Using CY7C68013A+XC2C256 solution, fully compatible with the original XILINX Platform Cable USB Supports all Xilinx devices, FPGA configuration and PROM/CPLD programming Supports JTAG, Slave-Serial and SPI Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V Selectable target clock frequency, supports software automatic frequency adjustment Supported Software Xilinx ISE iMPACT ChipScope Supported Devices All Xilinx devices, FPGA configuration and PROM/CPLD programming Connects to PC Computer connection via USB interface Connects to target board Target board connection via JTAG, Slave Serial, SPI interfaces. The figure below shows the header pinouts of

The LGS PIC-DVK allows you to have a well known and documented hardware both under electronic and under software point of view. This kit/ Development board can be use for simple experiments, to advance experiments Features: Experimental board for Microchip’s PIC 16 & 18 Family of microcontrollers supplied with PIC18F4520 (Any 40pin PIC Microcontroller is compatible) 40 pin ZIF socket for Microcontroller ICSP Programming (ISP) facility through on board PIC PIC KIT3/PIC KIT2 Provision through USB port prog. Crystal frequency: 16Mhz 10pin x 5 polarized FRC header with Gnd & VCC On-board RS232 Serial Interface x 1 nos. terminated in a 9-Pin ‘DB9’ male connector  10pin UEXT connector for easy I2C, SPI and serial device interface On Board L293 Stepper Driver & DC motor Driver  (Stepper Motor and DC motor have to buy separately) 4x4 Keyboard, 16x2 LCD interface I2C EEPROM (24Cxx) – External Memory for Users Onboard PWM Output for user interface SPI EEPROM 25Cxxx and RTC DS1307 On board Relay, Buzzer & LED’s (5nos.) On board 8 LED for study of IO interface Onboard ADC Output to check actual value of the  ADC with soft potentiometer On board DAC Interface Onboard Reset Circuit to reset the MCU with reset monitoring 16x2 LCD display with 4 bit & 8 bit selection 4 digit 7 segment display 32Khz Crystal for on chip RTC with Battery Dual power option ie through USB or 9-12V AC-DC adaptor Optional Interfacing study cards available: Blue Tooth, IR interface, Zigbee etc. Kit Includes LGS PIC DVK Development board with Boot Loader programming onboard Power Adaptor 10 Pin FRC X 4 nos. Serial & USB cable

This is the new Arduino Uno R3. In addition to all the features of the previous board, the Uno now uses an ATmega16U2 instead of the 8U2 found on the Uno (or the FTDI found on previous generations). This allows for faster transfer rates and more memory. No drivers needed for Linux or Mac (inf file for Windows is needed and included in the Arduino IDE), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc. The Uno R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Uno R3 works with all existing shields but can adapt to new shields which use these additional pins. Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements theProcessing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux). Note: The Arduino Uno R3 requires the Arduino 1.0 drivers folder in order to install properly on some computers. We have tested and confirmed that the R3 can be programmed in older versions of the IDE. However, the first time using the R3 on a new computer, you will need to have Arduino 1.0 installed on that machine. If you are interested in reading more about the changes to the IDE, check out the officialArduino 1.0 Release notes!   Features: ATmega328 microcontroller Input voltage - 7-12V 14 Digital I/O Pins (6 PWM outputs) 6 Analog Inputs 32k Flash Memory 16Mhz Clock Speed

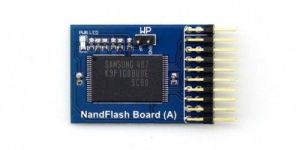

A development solution for NandFlash Overview The NandFlash Board (A) is a development solution for NandFlash memory. It provides your application with extra 1G Bit (128M x 8 Bit) memory.   Features K9F1G08U0E, control interface   Package Contains: NandFlash Board (A) × 1

Motor Control Shield is capable of driving 4 DC motors or 2 stepping motors at one time.   Features Configurable motor power supply via onboard jumper when using 5V motor power supply : drives four 5V DC motors at one time when using adjustable motor power supply : drives two 1.25V-6.45V DC motors at one time (9V external power supply is required) Onboard dual H-bridge driver L293D x 2 each L293D can drive 2 DC motors or 1 stepping motor at one time totally 4 channel H-bridge, with 600mA output current (peak 1.2A) per single bridge ESD protection External power supply jack Power input/output pinheader Stepping motor interface DC motor interface M_PWR configuration : connects M_PWR (motor power) to 5V or ADJ Power selection switch Power indicator AMS1117-ADJ : onboard linear regulator with adjustable output Adjustable potentiometer : for adjusting the output voltage of ADJ (adjustable motor power) L293D : dual H-bridge driver LM2596-5.0 : onboard linear switching regulator with 5V output Note : when in operation, it's normal that the onboard motor drivers and regulators generate lots of heat.

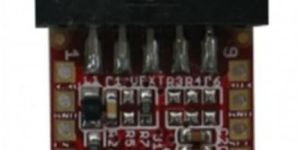

The L3GD20 is a low-power three-axis angular rate sensor. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface. The board made by Olimex has I2C on the UEXT connector for easier connection with host boards.   FEATURES MEMS motion sensor: three-axis digital output gyroscope L3GD20 made by ST Microelectronics Three selectable full scales (250/500/2000 dps) UEXT connector I2C interface located on the UEXT connector SPI interface led to easy-to-access pin holes 16 bit-rate value data output 8-bit temperature data output Two digital output lines (interrupt and data ready) Integrated low- and high-pass filters with use selectable bandwidth Wide supply voltage: 2.4 V to 3.6 V Low voltage-compatible IOs (1.8 V) Embedded power-down and sleep mode Embedded temperature sensor Embedded FIFO High shock survivability Extended operating temperature range (-40°C to +85°C) Dimensions: 25.3x30.5mm (1.00x1.20)'' - maximum dimension including the connector
