Accuracy±0.5 % +-(1mm/sec) Of Actual Flow Rate Between 100 % To 10 % Of Calibrated Range
Liner MaterialHR, PTFE, PFA, Neoprene
Electrode MOCSS316, Hastalloy C, TAN, TI
Flange StandardANSI / DIN / BS 10 E/BS 10 F/ IS
Flange / Coil Housing MOCMS / CS / SS 316 / SS 304
Operating PressureUp to DN 80 – PN 40, From DN 100 to DN 200 – PN 16, From DN 250 to DN 350 – PN 10
Transmitter MountingRemote / Integral
Types of TransmittersSR1000A / SR1000AP
CommunicationRS 485(default) / RS 232(optional) available in SR1000AP
Data Logging5850 number of readings can be logged in SR1000AP

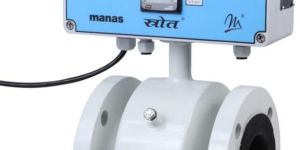

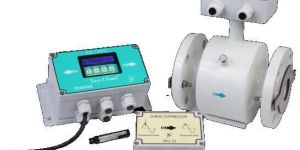

Manas Electromagnetic flow meters are designed to meet diverse application requirements, offering exceptional performance and accuracy. The flow meters are equipped with various liners to ensure compatibility with different liquids and conditions.
For high-temperature liquid measurement applications up to 150°C, PTFE liners are utilized. These liners are also suitable for handling toxic liquids such as strong acids or corrosive substances. When dealing with extremely high temperatures up to 200°C and abrasive slurries, PFA liners with appropriate hardness are employed.
In scenarios involving raw water containing sand and quartz particles, Hard Rubber liners are the preferred choice. These liners, when selected with the proper hardness, exhibit minimal wear and tear. Neoprene rubber liners, on the other hand, are commonly used for potable or purified drinking water applications.
The construction of Manas Electromagnetic flow meters follows the full bore type, resulting in negligible pressure drop. By incorporating proper upstream and downstream lengths of pipe during installation, these flow meters can deliver precise flow measurements with uncertainties as low as 0.3%.
Experience the reliability and accuracy of Manas Electromagnetic flow meters for your flow measurement needs.
Manas Electromagnetic flow meters are designed to meet diverse application requirements, offering exceptional performance and accuracy. The flow meters are equipped with various liners to ensure compatibility with different liquids and conditions.
For high-temperature liquid measurement applications up to 150°C, PTFE liners are utilized. These liners are also suitable for handling toxic liquids such as strong acids or corrosive substances. When dealing with extremely high temperatures up to 200°C and abrasive slurries, PFA liners with appropriate hardness are employed.
In scenarios involving raw water containing sand and quartz particles, Hard Rubber liners are the preferred choice. These liners, when selected with the proper hardness, exhibit minimal wear and tear. Neoprene rubber liners, on the other hand, are commonly used for potable or purified drinking water applications.
The construction of Manas Electromagnetic flow meters follows the full bore type, resulting in negligible pressure drop. By incorporating proper upstream and downstream lengths of pipe during installation, these flow meters can deliver precise flow measurements with uncertainties as low as 0.3%.
Experience the reliability and accuracy of Manas Electromagnetic flow meters for your flow measurement needs.
Isolated 4 20 mA d.c. proportional to flow rate24 V D.C @30 mA suitable to power one two-wire Transmitter

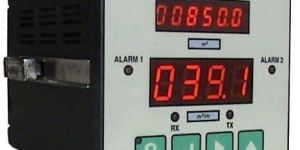

±0.25% of F.S. for flow rate as well as totalisation.1) 4-digit,7 segment,0.5” LED display for instantaneous
flow rate. And 6 digits, 7 segment, 0.3” LED display for
totalisation with programmable decimal point &
adjustable count rate, Facility to view additional 2 digits of
totalised flow a
Manas Microsystems Pvt. Ltd. is one of the best Digital Flow Meter manufacturers. Amongst leading Digital Flow Meter supplier companies, Manas is considered to be a trustworthy brand. We make many types of Digital Flowmeters including Thermal Mass Flow Meter, Electromagnetic Flow Meter and Ultrasonic Flow Meter. The Electromagnetic Flow Meter is one of the most popular type of Digital Flow Meter.
Features
Accuracy ±0.5% of actual flow rate between 100% to 10% of calibrated range.
Various types of Liners like PTFE liners, PFA liners, Hard Rubber and Neoprene & Electrode materials are available as per application requirements.
The construction is full bore type; hence the pressure drop is negligible.
Upstream and downstream lengths of pipe, if used properly while installing, can deliver the flow with uncertainties as low as 0.3%
Empty tube detection is also provided.
Computer/Printer Interfacing with RS 232 / RS485 port.
Applications
Sewage Treatment
Effluent Treatment
Industrial Utility Management
Water Supply Schemes
Sugar Industries & Distilleries
Automobile Industries,
Chemical Industries
Food & Beverages
Power plants
Boiler Feed Water Measurement Plant
Manas Microsystems Pvt. Ltd. is one of the best Digital Flow Meter manufacturers. Amongst leading Digital Flow Meter supplier companies, Manas is considered to be a trustworthy brand. We make many types of Digital Flowmeters including Thermal Mass Flow Meter, Electromagnetic Flow Meter and Ultrasonic Flow Meter. The Electromagnetic Flow Meter is one of the most popular type of Digital Flow Meter.
Features
Accuracy ±0.5% of actual flow rate between 100% to 10% of calibrated range.
Various types of Liners like PTFE liners, PFA liners, Hard Rubber and Neoprene & Electrode materials are available as per application requirements.
The construction is full bore type; hence the pressure drop is negligible.
Upstream and downstream lengths of pipe, if used properly while installing, can deliver the flow with uncertainties as low as 0.3%
Empty tube detection is also provided.
Computer/Printer Interfacing with RS 232 / RS485 port.
Applications
Sewage Treatment
Effluent Treatment
Industrial Utility Management
Water Supply Schemes
Sugar Industries & Distilleries
Automobile Industries,
Chemical Industries
Food & Beverages
Power plants
Boiler Feed Water Measurement Plant
