Electromagnetic Flow Meter Dealers in Pune

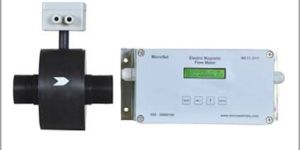

Electro Magnetic Flow Meters MS FL 0117 - HDPE Body   FEATURE : Full Bore Type Simple & cost effective construction Provides wide flow ranges Outstanding accuracy Operates over wide ranges of temperature & pressure Easy maintenance as no moving parts Pulsed DC coil excitation Integral grounding Remote Electronics Specification Media : Liquids Viscosity : 200 cp max Conductivity : Minimum 10 μS/cm Line Size : 25~ 150 mm NB Excitation : Pulsed DC coil Type of Output : 4~20 mA DC Isolated Calibration Range : As per requirement (Factory Calibrated) Accuracy : ±0.5% FS Linearity : ±0.5% Repeatability : ±1% Process Temperature : 60°C max Process Pressure : 5 kg/cm2 Material of Construction of Sensor : Hastelloy C / SS 316L Body : HDPE Wetted Parts : HDPE Power Supply : 230 VAC, 50Hz ±10% Power Consumption :

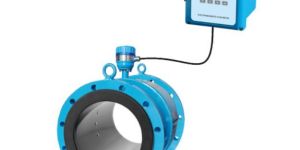

 Electromagnetic Flow Meters are based on FARADAY'S LAW OF INDUCTION. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The meter features flanged construction and is available with choice of liner and electrode material. All meters consist of a sensor and a converter that may be mounted integral to the sensor or remotely either with a field mount kit. These meters are also called as Magflow or, EM Flow Meters. These meters has no any moving parts in it, so these very well recommended for food grade applications like Juices, Milk, Municipal or Industrial Water etc. These meters are also suitable for liquids were there are lot of suspended particles like Sewage, Waste Water, Chemicals, Slurries etc.  PRODUCT DESCRIPTION : Electronet series ELMAG™ - 200 are micro-controller based full bore type electromagnetic flow meters specially used for various industrial applications. These flow meters accurately measure the flow rate of conductive liquids & slurries in closed pipes. Due to its simple and rigid design, the flow meter is an obstruction-less and maintenance-free instrument in place of conventional mechanical flow measuring devices. The use of 'Pulsed DC' technology offers highest ability and better measuring accuracy in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring flow range. Electronet Flowmeters are calibrated at our own Water Flow Calibration Facility. It uses the primary method of measuring the water flow by gravimetric principle. The facility is designed for calibration of flowmeters under controlled and stable flow conditions.
