Electromagnetic Flow Meter Dealers in Thane

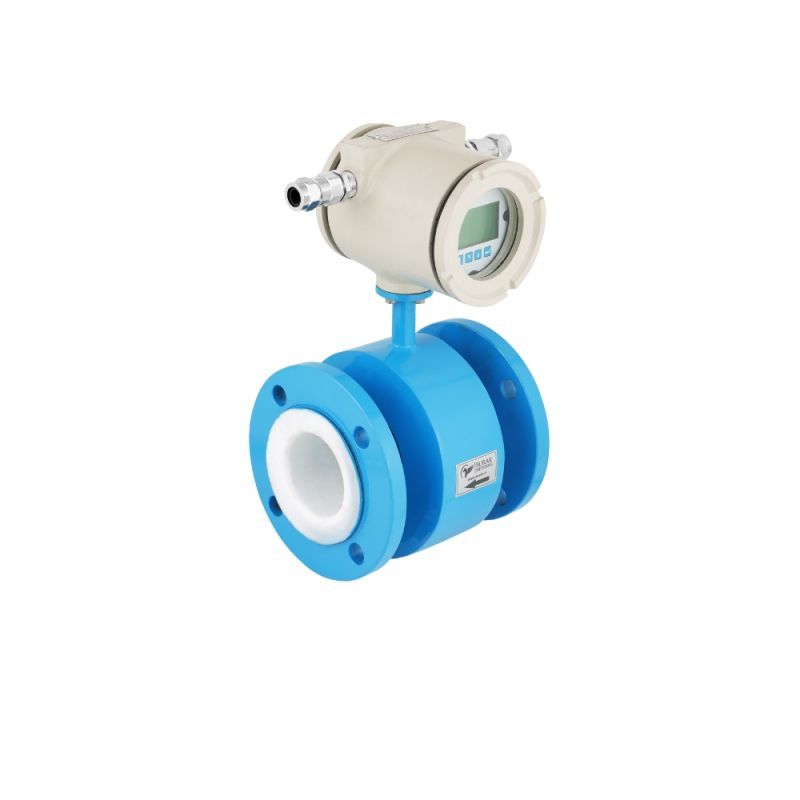

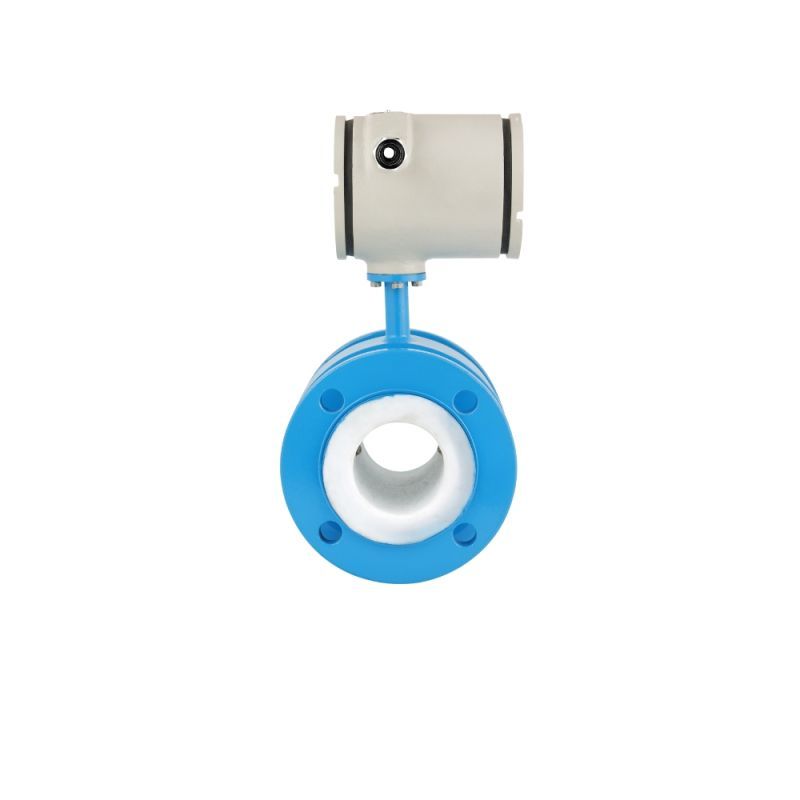

The electromagnetic flow meter accurately measures the flow rate of any conducting liquid or slurry that is flowing in closed pipes. It is obstruction less and hence offers no pressure drop in the process. Absence of moving parts ensures that there is no need for maintenance. The performance of the instrument is not affected by the properties of the material such as corrosiveness, viscosity, density, acidity and alkalinity. It can measure the flow of liquids, pastes and slurries in water, wastewater. Suitable for chemical, fertilizer, paper, dairy, sugar, food and beverage industries.

Under volumetric flow measurement, electro-magnetic flow meter are used for fluid flow measurement of any conducting liquid like water or slurry that is flowing in closed pipes. Unlike turbine flow meters, it is obstruction less and hence no drop in pressure is observed in the process line. Since there are no moving parts hence maintenance is very less.

Electromagnetic flow meter is ideal for conductive liquids such as Raw Water, Chilled water, effluents, Potable water etc. Using time proven electromagnetic flow metering principle, the meter achieves a flow meter for pipes from 15mm to 600mm. Since there are no moving parts, the flow meter gives years of maintenance free service. Flow-head can be supplied in Teflon lining or Hard Rubber lining is available with all the features required in a field mounted

We offer Electromagnetic Type Flow Meter. Service: all type of conductive liquids. (minimum conductivity 5 µs/cm)working principle : faraday's law of electromagnetic induction. range : 5 to 10000 lpmpipeline size : 10 mm up to 350 mm in full bore type and insertion type for line size above 350 mmaccuracy : 0.5% of the reading in case of full bore type and 2% of the reading in case of insertion type.min. Velocity : 0.5 meter per secondflow indication : digitaltransmitter unit : integral or remote mounted indicator unit : integral or panel mountedenclosure : water proof (ip 65) or flameproof max. Working temperature : 120 degree cmax. Working pressure : 40 bar in full bore type and 15 bar in insertion type.power supply : 230 v ac)applications : indication of flow rate passing through the pipeline.

Coil Housing SS-304 M.O.C. Of flow tube SS-304 M.O.C. Of flange M.S. (std) SS304 & SS316 (Optional) Flange connection ASA 150# Flanged as per B 16.5. Electrode SS 316 SS 316L Hasteloy C Titanium (other on request) Electrode type Round head electrodes (bullet nose) Liner PTFE PFA (other on request) Electrical conductivity 10 Scm (5 Scm for many liquids) Accuracy + 0.5- 0.2 % of F.S. Operating pressure 10Kgcm2 (more on request) Operating temp. 80 oC (More on request) upto 250 oC. Mains voltage 230 Vac, 50 Hz 440 Vac, 50Hz (Optional) 24 V DC Battery Operated (Optional) Power consumption Up to 20 VA Input Impedance 1000 M Ohms Type Pulsed DC excitation Enclosure Cast aluminium Ip65 flammeproof CMRI IIA IIB signal Amplifier Box Enclosure Painting Ip 67 Corrosive resistant two component coating (Ip 68 optional) Signal convertor Head mount or remote. Display 16 x 2 LCD Computer interface RS-485RS 232 (Optional) Flow unit Selectable Cable Entry 2 off, suitable for 8mm diameter cable Test pressure 1.5 x Rated pressure Output 4-20 mAfreq. pulse (Optional Empty pipe detection Available Low cutt off Available Batching Available (Optional) Damping Available (Optional) Direction Suitable for bi directional Programming Through Key Keypad on front facia. Shock hazard protected screw less terminals. Interchange ability Fully interchangeable with all sizes of flow sensors. Power failure mode Provision of RAMPROM to store parameter entered and measured flow data during power failure
