Metal Cutting Machine Dealers in Pune

we are renowned as one of the reliable industrial plasma cutting machine suppliers in india. Various industrial sectors are placing bulk orders for the plasma cutting machine as no alternative is available in terms of quality and performance. The use of high-grade materials and advanced technology in the manufacturing ensures high durability, robust structure, resistivity to adverse conditions and low maintenance cost. Moreover, customers are eased with the availability of the below mentioned types of plasma arc cutting machine.

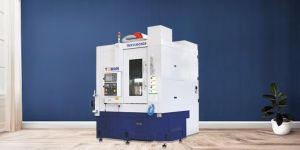

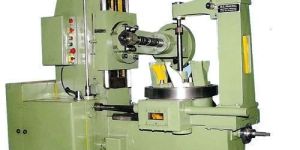

RETROFITTED HOBBING MACHINES Our Retrofitted Hobbing Machines with Sinumerik CNC come with the following features EGB (Electronic Gear Box) Synchronization of Hob Spindle and Table Axis (C) Emergency retraction of Radial Slide (X Axis) UPS and battery for temporary back-up Absolute ENCODER for Table and Hob Scales for X, Y, Z, Axis User Screens with Dialog Programming

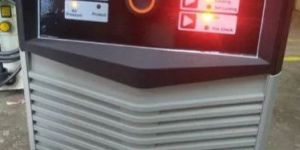

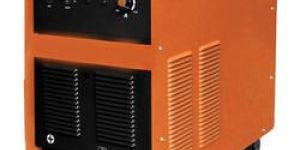

We Provide High Technology Air Plasma Cutting Machine that is Widely Used to Cut Metal with High Precision. Our Air Plasma Cutter Machine is Perfect to Cut the Metal from Gauge Thickness to 40 Mm Thick Plate and Up to 10 Mm Plate. Uses Nu- Tecsys Usa Npt 12. for Perfect Centering of the Electrode and Cutting Trip, Our Air Plasma Cutter Machine is Available with An Air Plasma-cutting Torch. Our Air Plasma Cutter Machine Consumes Less Energy that Assures Low Operating Cost with Maximum Performance. We are Well Reckoned as One of the Overriding Plasma Air Cutting Machine Exporters Based in India. model : Pac - 50/100/150 features high Speed Manual or Mechanized Cutting of Any Metal from Guage Thickness to 40 Mm Thick Plate, Pierce Up to 10 Mm Plate - Greater Productivity. uses Nu- Tecsys Usa Npt 12. a Air Plasma Cutting Torch Provides Perfect Centering of Electrode and Cutting Tip Resulting in Longer Tip Life. fixed Output Simplifies Setup and Operation Requires Less Operator Skill. power Factor Corrected - Low Operating Cost Due to Lower Input Draw. pressure Switch - Prevents Touch Damage When Air Supply is Insufficient Providing Lower Maintenance Cost.

Is Manufacturing of Air Plasma cutting machines range start from 1mm to 100mm a process that is used to cut steel and other metals using a plasma torch. In this process, an inert gas (in some cases, compressed air) is blown at high speed out of a nozzle; at the same time an electrical arc is formed through that gas from the nozzle to the surface being cut, turning some of that gas to plasma. The plasma is sufficiently hot to melt the metal being cut and moves sufficiently fast to blow molten metal away from the cut. Plasma is an effective means of cutting thick materials from 1mm to 100mm SSMS.

cnc plasma cutting machine is capable of cutting material much faster than oxy fuel, but plasma is only capable of piercing material up to 50mm thick. Plasma is also able to cut a larger range of material and transfers much less heat into material than oxy fuel. Often plasma cutting torches and oxy fuel cutting torches are mounted on the same cnc cutting machine to give the machine a larger range of processing thicknesses, for example 3mm – 150+mm. For most work plasma is more efficient than oxy fuel as 90% of steel cut is less than 50mm thick and if you were to compare some suitable plasma cutting system to an oxy fuel system it would process 50mm mild steel more than twice as fast. this machine is the heavy gantry in the standard mass cutting systems product line. The mhg series is designed for use with the latest technology in today’s precision plasma cutting systems as well as multi-head oxy-fuel applications. The high stiffness, precise linear guides in the transverse axis and heavy duty tracks guarantee the very best quality and a long duration of life. The leading edge of machine technology, incorporating the industry’s most reliable digital servo amplifiers, ac brushless motors, precision gearboxes equipped with machine, easily becomes the most productive part of your cutting operation. Fast oxy fuel cutting with integrated height sensing and ignition. Large structural steel tubing is welded together to form the end trucks and cross axis beam. Mating assembly surfaces are precision machined and ground for maximum accuracy. Precision gear rack insures repeatability and accuracy throughout the entire cutting process.

Strong steel construction designed for high speeds Fume extraction table with pheunomatic switch control – exchangeable grills – dross collecting system which gives clean and healty working atmosphere by sucking dust and fume which raises at plasma cutting operation. High precious positioning possibility with linear sledge system in all axis Syncronised drive gives smooth and without vibration motion Brushless AC Servo motors ( In all axis ) Pinion and gearrack drive system which gives smooth and fast motion. +0,01 mm precision of the positioning Automatic Height Control and Automatic ignition torch system Torch collision protection Windows based CNC Control Unit Remnant plate stock management database with optional Auto-Nesting ( Automatic Nesting) program which provides economy in time and material Compare to laser cutting, plasma cutting decreases the cost of the working  and investment  in the ratio of  ¼ .With comparable quality, plasma is alternative to laser cutting. Cutting surface is close to the 90º and vertical roughness tolerance is in miimum level. PLASMA POWER SOURCEHYPERTHERM HPR 400 ( AMERICA )HYPERTHERM HPR 260 ( AMERICA )Virtually dross-free production cutting capacity ( mild steel ) : 32 mmMaximum piercing capacity ( mild steel ) : 32 mmMaximum cutting capacity - edge start ( mild steel ) : 64 mm

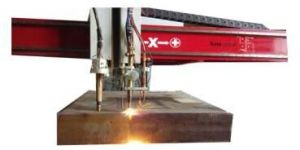

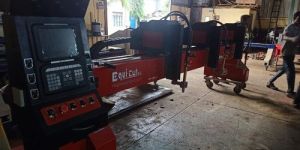

Oxy-fuel cutting is a chemical reaction between pure oxygen and steel to form iron oxide. It can be described as rapid, controlled rusting. HOW DOES OXY FUEL CUTTING WORK? Preheat flames are used to heat up the surface of the steel to approximately 1000�C (1800�F � bright red color) but below the metal's melting point. A jet of pure oxygen is then directed toward the heated area in a fine, high pressure stream. A vigorous exothermic chemical reaction takes place between the oxygen and metal forming an aluminum or iron oxide or rust. The pressure of the jet of oxygen blows away the slag or oxide forming a cavity. The preheat and oxygen stream are moved at constant speed to form a continuous cut.   WHICH ARE THE MAIN ELEMENTS OF OXY-FUEL CUTTING? The Main Terminology relevant to Oxy-Fuel Cutting is the following: Preheat Flame Oxygen Stream Torch and Cutting Nozzle Cutting Speed Material Being Cut CAN OXY-FUEL METHOD BE USED TO CUT ANY METAL? The answer is that it cannot! This depends on the melting point of the individual metals oxides. Only metals whose oxides have a lower melting point than the base metal itself (low carbon steel and some low alloys) can be cut with this process. Otherwise as soon as the metal oxidizes it terminates the oxidation by forming a protective layer. WHAT KINDS OF GASES ARE USED IN OXY-FUEL CUTTING? The Oxy-fuel gases used include oxygen, acetylene or liquefied petroleum gas (LPG); last two provide the high temperature Preheat flame.

RoboPlazma 3D Sheet Metal cutting machine combined with Coherent Plazma is a revolutionary new technology, delivering a precious quantum of cutting energy for a high quality cut, even 0.5mm thin sheet metal. This 3D Sheet Metal cutting machine beam is focused with overall Kw energy much lower that conventional plasmas. Now laser like cutting is possible at a fraction of the operating and capital costs of a laser. 3D Sheet Metal cutting machine Combined with Roboplazma, Coherent Plasma is capable of 3D cutting of sheet metal components, Pressed Components Trimmingwhich results in huge savings, increased productivity and rapid prototyping. Roboplazma3D Sheet Metal cutting machine provides flexibility to batch manufacturing. Organizations now can become highly competitive by providing JIT batches of assemblies.

Preheat flames are used to heat up the surface of the steel to approximately 1000�C (1800�F � bright red color) but below the metal's melting point. A jet of pure oxygen is then directed toward the heated area in a fine, high pressure stream. A vigorous exothermic chemical reaction takes place between the oxygen and metal forming an aluminum or iron oxide or rust. The pressure of the jet of oxygen blows away the slag or oxide forming a cavity. The preheat and oxygen stream are moved at constant speed to form a continuous cut.

Owing to our reliable transportation facilities, we are able to deliver the orders at the desired destination and on promised time. Raw materials are essential for the production of the finished goods and thus our panel of experts strictly checks the entire lot of inputs before procuring it from the vendors.

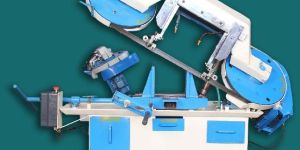

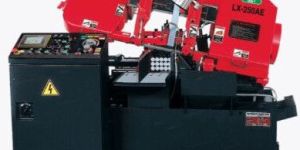

We are offering metal cutting bandsaw machine. Leveraging on our vast manufacturing facilities, we are able to offer a wide range of metal cutting bandsaw machine that is ideal for all type of sawing processes. Designed in compliance with the international standards of quality, these machines are easy to operate and optimum in performance.

CNC plasma cutter Supplier & Trader of CNC Laser Cutting Machines. Our product range also comprises of CNC Profile Cutting Machines, Plasma Power Source and Strip Cutting Torches. Prominent & Leading Supplier and Trader from Pune, we offer Auto Bevels such as Auto Oxy-Fuel Bevel, Auto Plasma Bevel and Auto Triple Oxy-Fuel Bevel.

Leveraging on our vast manufacturing facilities, we are able to offer a wide range of metal cutting band saw machines that is ideal for all type of sawing processes. Designed in compliance with the international standards of quality, these machines are easy to operate and optimum in performance. Further, to suit the specific requirements of our clients, we offer these machines in various customized sizes and dimensions.

MACHINE DESIGN: Central unit is fashional design. With such a beautiful machine, cutting process is a hobby, not a job.Portable equipment and easy installation. Machine is not limited to certain sitesA cover is designed on the top. All componentscan be seen, easy for maintenance.CNC CONTROLLER- HG612: HG612 provides professional CNC functions, 7” screen and languages of English, Russian, Spanish, Portuguese, French, Denish, Korean, Chinese.Motion software built in HG612 support both flame and plasma cutting model.many standby functions to improve cutting quality and speed, such as Scale, rotation, mirror,break point memory, Etc.NESTING SOFTWARE-FASTCAM Fast CAM is from Australia and is very experienced in flame and plasma cutting process.It works in Windows98/2000/NT/XP and has Chinese, English, German, Franch, Spanish, Polish, Czech, Russian etc.Fast CAM provides Fast CAM drawing, Fast NEST auto Nesting, Fast PATH auto pathing and Fast PLOT verification.Fast CAM reads and edits DXF/DWG drawings, Fast NEST supports AUTO nesting. Fast PATH supports auto pathing.Fast PLOT transfer NC codes between drawings automatically. NC codes are easily to be imported into HG612.Cutting functions: Kerf compensation, plasma bridge, common line cutting, corners, CAD layers, word label, Etc.USB PORT A USB port is mounted on machine front for input and output NC codes(cutting programs)PLASMA SINGNAL CONNECTOR INTECUT is easy to change from flame cutting to plasma cutting. Plasma connector is easy to handle.RAIL ONLY Rail is one piece design. Linear guide rail contributes smooth and high precision moving.FLAME CUTTING TORCH Flame torch gas hoses are with metal skin. Suits work in tough environment.GAS VALVE Three electromagnetic valves are used for CNC control easy for fire adjustment and remote control.TORCH HOLDER: Torch holder is designed for holding flame or plasma torch.MOTOR SYSTEM Stronger motor with 8mm motor axles. X,Y axles used the same motorTORCH HEIGHT CONTROLLER Machine includes Automatic Electric motor to adjustment flame and Plasma torch height.STANDARD PACKAGE: Central unit, Rail on Y, Transverse arm,Rail feet, Flame troch assembly, Plasma Power Source with Plasma Torch Assembly, Electrical motor THC, Torch holder, FastCAM nesting software, Manual and video, power supply cable, Tool kit, Nozzle kits, Nozzle cleaner   Features   FastCAM is very experienced in flame and plasma cutting process. FastCAM has Chinese,English,German,French,Spanish,Russian etc. FastCAM provides FastCAM drawing, FastNEST auto Nesting. FastPATH auto pathing and FastPLOT verification. FastCAM reads and edits DXF/DWG drawings. FastNEST supports AUTO nesting, Fast PATH supports auto pathing. Fast PLOT transfer NC codes between drawings automatically. NC codes are easily to be imported into HG612. Cutting functions: Kerf compensation, plasma bridge, common line cutting, corners, CAD layers, word label, Etc.
