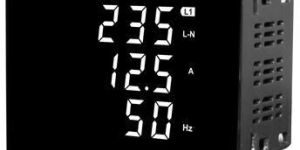

digital multi function meter
1,600 - 6,000 Per Piece
1 No (MOQ)
Power Source : Electric
Power Input : 240 VAC, ± 20%
Electrical Connections : 3Ø–4W, 3Ø-3W, 2Ø–3W, 1Ø–2W
Display : Customized Display
Mounting : Panel Mount
Housing : Back Cover: ABS Plastic Front Cover: Polycarbonate
Communication : RS485
Measurement Type Voltage L-L, L-N (Individual/Average) Current (Individual / Average) Frequency Power Factor (Individual/Average) Active, Reactive & Apparent Power (Individual/Total) Active, Reactive & Apparent Energy (Total) Measuring Range Input Rated Voltage: 11 to 300 VAC(L-N) Input Rated Current: 19 to 519 VAC (L-L) CT Primary: Nominal 5A AC CT Secondary: 5A PT Primary: 100V to 500kV PT Secondary: 100 to 500V AC(L-L) Resolution Energy - 0.01k, 0.1k, 0.01M, .01M, 1M (Depending upon CT ratio and PT ratio) - 0.1 Current, Voltage, Power - Auto Resolution Power Factor - 0.001 Accuracy Voltage & Current - ± 0.5% of Range Frequency - ± 0.15% of mid Frequency Power (Active, Reactive, Apparent - ± 0.5% of Range) Energy (Active, Reactive, Apparent - ± 0.5% of Range) Power Factor - ± 0.5% of Unity
Multifunction Meter
Get Price Quote
Our packing system is systematized in such a manner that we can handle even bulk packaging with ease. Moreover, our packing experts take care of the customized as well as standard packing demands of the clients. With our up-to-date transit facilities and speedy services, timely and safe deliveries are guaranteed.
Best Deals from Multifunction Meter
Multifunction Energy Meter
Get Price Quote
Multifunction Energy Meter and Power Analyzer – PM130 EH Plus / PM175 Major Features Bright 3-row LED display enabling easy reading Standard RS-485 communication port and an additional plug-in RS-232/RS-422/RS-485, Ethernet, Profibus, GPRS module True RMS Volts, amps, power, power factor, frequency, Power, Energies in all 4 quadrant with 128 samples/cycle. KWH Imp/Exp, KVARH, KVAH, MD measurements 25/50/60/400 Hz measurement capabilities Class 0.5S and 0.2 S IEC 62053-22 four-quadrant active and reactive energy meter Voltage and current THD, current TDD and K-Factor, up to 50th order harmonic Real-time waveform monitoring capability Add on TOU, RTC, DI/DO modules EN50160 compliance statistics, harmonic survey statistics IEEE519 & IEEE 1159 measurement compliance, IEC 61000 Flicker CBEMA/ITIC, IEC 6100-4-7 Harmonics
digital multifunction meter
2,050 Per
1 Piece (MOQ)
Application : Industrial Use
Display Type : Digital
Phase : 3 Phase
Mounting Type : Panel Mounted
Condition : New
Brand : Multispan
Usage : Industrial
Model : AVH 14N
Power Supply : Auxillary
Measurement Lines : 6 digit
Multifunction Meter
Get Price Quote
Monitoring of 3 Phase devices showing R-Y, Y-B, B-R voltages, P-N voltage of each phase, current on 3 Phase, 3 phase Frequencies and KWH parameters. Scrolling display parameter indication by LED. On site selection of CT ratio to add or delete any CT ratio multiple of 5.
DIGITAL MULTIFUNCTION POWER METER
Get Price Quote
Measurement of Current, Voltage, Active Power, Reactive Power and Apparent Power, Power Factor etc. : • High – brightness RED LED display.
• High accuracy upto 0.5% : • Programmable adjustment for current and voltage transformers ratio ( CT / PT ) ratio
• With RS485 output (optional) : • Indication of maximum and minimum value of Voltage and Current
• Indication of Maximum demand current and power : • High-brightness RED LED display.
MODEL KM 5400 DIGITAL MULTIFUNCTION POWER METER KM 5400 Multifunction Power Meter is a special instrument for measuring electrical network parameters. The measured parameters are displayed on 5 rows of display, which can measure and manage more than 50 electrical networks parameters at the same time, KM 5400 provides the line voltage, phase voltage, active power, reactive power, apparent power, active kilowatt hour, reactive kilowatt hour and so on electrical network Parameters, at the same time, it provides the demand value of phase current, total current, total active power, reactive power and apparent power, KM 5400 has 485 communication interface, adjustable voltage, current transformer ratio and various voltages input mode to enable it to adapt to the electricity usage situation of many kinds of different voltages specification
digital multifunction meter
4,000 Per Piece
Phase : Three phase
Voltage : 415
Type : Digital type
Country of Origin : Made in India
Model Name/Number : I.KW
Usage/Application : Industrial
Brand : SOFTHARD
digital multifunction meters
Get Price Quote
Features of VIPS 999P Available in 96x96 and 96x48 sizes 1 Line of 4 digits LED Display Site Programmable CT & PT Ratio True RMS Measurement Password Protection: Harmonic Measurement (Total & Individual) for Voltage RS485 Computer Interface Auto ranging Universal Auxiliary Specifications Of VIPS 999P Display : 4 digits 7 segment LED display of 1 row Digit: 4 Digit Height: 0.56” Display Scrolling: Automatic/ Manual Electrical Connection: 1Φ-2 wire Input Voltage Range: 0-500 V AC (L-L) Auxiliary supply: 90-270 V AC/DC P.T. Ratio: Up to 132 kV Temperature(Operating): 10 deg to 55 deg C
digital multifunction meter
4,000 Per Piece
Voltage : 415 V
Type : Digital
Country of Origin : Made in India
Phase : Three
Brand : SOFTHARD
Model Name/Number : I.KW
Usage/Application : Industrial
Multifunction Meter
Get Price Quote
Power Supply : 45 - 300 V AC/DC, 18- 60 V DC
Input Voltage : 0 - 120% of the selected range (110 or 415 V User Selectable)
offers multifunction meter F3MFM1 to 4 for simultaneous measurement of various Electrical Parameters of 3 Phase 3 Wire or 4 Wire electric power system. The Meters are widely used in application areas where accurate and reliable monitoring of Power Line parameters is essential.Wide range of Auxiliary Power Supply 45 to 300 V (Self Powered also available),Communication with PC, DCS, PLC through RS 232 or RS 485 Port.
Multifunction Meter
5,150 Per Number
1 Number (MOQ)
Display Type : 7 SEGMENT
Model Name/Number : EMMS7-96
Phase : 3 PHASE,1 PHASE
Usage/Application : Industrial
Brand Name : Mitsubishi
Multifunction Meter
Get Price Quote
Multifunction Meter, motor protection unit, Power Factor Controller
multi function meter
Get Price Quote
multi function meter, solar installation
Multifunction Power Meter CPM-20
Get Price Quote
Multifunction Power Meter CPM-20, C&S Multifunction Meter CSM-M3-S3
Multifunction Energy Meter
Get Price Quote
Multifunction Energy Meter, engine control system, Engine Safety Unit
multi function energy meters
Get Price Quote
multi function energy meters, Energy Management System, Dc Energy Meter
Multifunction Meters
Get Price Quote
Multifunction Meters, Energy Meters, tri vector meters
