BTU Meter Dealers in Pune

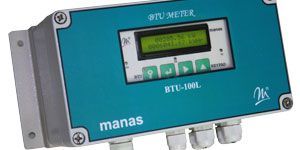

Ruggedised, compact, State-of-the-art Micro-controller based system. 16 x 2 LCD Display. Accepts 4-20mA Inputs for Flow, Inlet Temperature and Outlet Temperature. LED Indications for Serial Communication. Programmable Flow Rate Span and Serial Rs485 parameters from keyboard. Password protection for programming. RS485 with Modbus RTU protocol. Calculate and Displays Instantaneous Net Heat, Temperatures and Flow. Totaliser Display for Net Heat and Volumetric Flow.

We are dealing in btu meter, Based on calculations of thermal power & energy consumed through measurement of flow, temperature difference of inlet & outlet of the medium. 4-20 mA output proportional to power output 16x2 LCD, 9 digits for total energy & 5 digits for instantaneous power. The engineering unit can be selected as either KW & KWHr or BTUHr & BTU. Communication port RS 232485 is available with MODBUS RTU. Backup of totaliser on power failure in non volatile memory Logging history can be viewed on the screen Ingress Protection: IP65 Equivalent

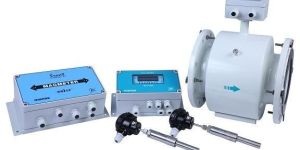

Manas make BTU meters comprises of accurately calibrated Electromagnetic Flowmeter, Pair of temperature sensors and Flow Transmitter with integral Energy computing capability unit to calculate Net Heat consumed. We offer our BTU Meters for wide range of applications. Example- In Air handling Units, chilled water, HVAC applications. It is used in centralized air conditioning systems for both commercial and industrial buildings. Similarly for Hot Water & Thermic fluid applications our Heat meter (HET100L) also perfomed well.

This involves the measurement of flow of the cooling medium, the inlet and outlet temperature and then using temperature difference to calculate the Net Heat transferred.
