BTU Meter Dealers

BTU meter very useful to know the energy consumption and to know the machine efficiency. Available for Chilled water hot water Thermic fluid application.

BTU 100 L is a versatile compact energy totalizer extremely useful for measurement of energy conversion. It measures the thermal energy required for air conditioning. It accepts 3 inputs, each one from a flow meter for chilled water, inlet temperature sensor and the outlet temperature sensor. From this it calculates the thermal power and energy consumed in maintaining the temperature at given level. 9 digits are available for total energy and four digits are available for instantaneous power reading. The engg. Unit can be selected by user, either as KW & KWH Or BTU / Hr & BTU Advantages : • Compact Wall mounting design with IP 65 Enclosure.• 16x2 LCD for total energy as well as instantaneous power.• Display of chilled water flow, power temperature available.• Choice of mounting either on inlet or on outlet as per site conditions.• Choice of Engg. Units : KW or BTU.• Data storage up to 1 year with hourly storage facility with real time.• Storage can be viewed by scrolling keys.• Serial Interface with computer through MODBUS RTU.     BTU Meter For heat transfer application, SERIES : HET-100L • Suitable for Thermic fluids like HYTHERM 500, HYTHERM 600, DOWTHERM A,    DOWTHERM T etc. • Output in terms of 4-20mA which is proportional to Power obtained. • Communication Port (supports MODBUS-RTU) & Data Logging facility. • Password protection on all programming modes (except display mode) to avoid   wrong programming by an unauthorized person. • Display of 16 x 2 Big Characters LCD with BLUE Backlight. • Buzzer indication for faults/Error with blinking LED (Programmable). • Fault Conditions - Indicated by different Error Codes. • Accuracy of ± 0.25 % of Full Scale. • Ingress Protection: IP65 Equivalent

Our rise to recognition in this industry has been primarily triggered by the shooting popularity of our offered range of BTU Meter. Our offered range serves an extended range of applications in measuring performance of energy saving systems or the loss of efficiency which is directly tied to loss of revenue. The offered range is manufactured using cutting-edge technology and quality-proven raw material. Moreover, we lay special emphasis on the overall quality and optimum performance of our offered range while the manufacturing is in process. Features: Accuracy Non-interrupted performance Durability Specifications: BTU Measurement System is used to measure individual energy consumption in any liquid heatingcooling system such as apartment, commercial office, and condominiums. This system is also used to measure performance of energy saving systems or the loss of efficiency which is directly tied to loss of revenue. The system real-time detects the temperature of supply and return pipe, monitors the instantaneous flow rate, according to Heat Exchange of thermodynamic principle the BTU meter accumulates each user’s heat energy consumption and transfer the data to up-PC, finally as per rated unit price (DollarsMW) to calculate the total fee of them.

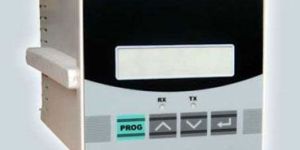

Ruggedised, compact, State-of-the-art Micro-controller based system. 16 x 2 LCD Display. Accepts 4-20mA Inputs for Flow, Inlet Temperature and Outlet Temperature. LED Indications for Serial Communication. Programmable Flow Rate Span and Serial Rs485 parameters from keyboard. Password protection for programming. RS485 with Modbus RTU protocol. Calculate and Displays Instantaneous Net Heat, Temperatures and Flow. Totaliser Display for Net Heat and Volumetric Flow.

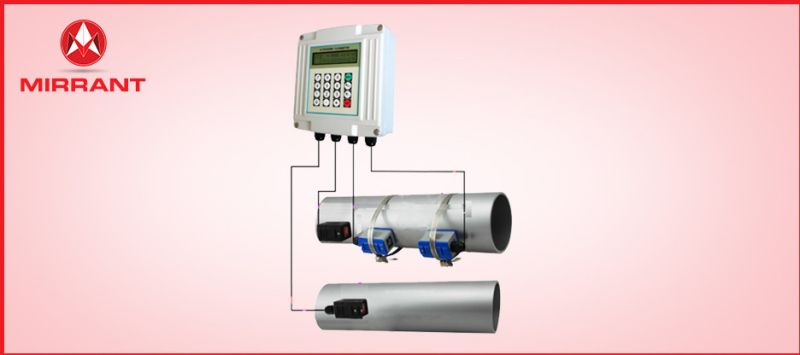

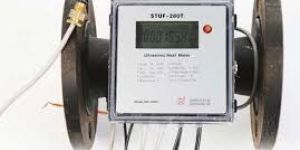

BTU meters are used on chiller lines to measure the energy consumed by the chillers in the cooling process. Our BTU meters are constantly used in projects and recommended by various consultants and BMS providers across the country. Shenitech ST-280T BTU meters are based on Ultrasonic Transit Time Technology. These BTU meters assure Class-2 accuracy and have a tamper-proof model as per the energy norms in various countries.   These BTU meters have an in-built battery i.e. no hassles of power supply on the site. Battery back-up lasts for 6 years. Since there is no moving part in the sensor assembly these meters are maintenance free and hence has high reliability.   We have an entire range of ultrasonic flowmeter from 15mm to Line sizes more than 700mm and customized for higher line sizes as per your requirements.   Our meters can detect a very high capacity of flow. Because of the high flow capacity, we need a lower size meter for a certain flow rate. – For example: 100mm line size might require our 65mm flow meter. This enables cost saving and also proper sizing of the meter.   All our meters are wet calibrated where the temperature and flow sensor are calibrated together and we give a calibration certificate with each and every meter.   All our meters have an inbuilt battery backup – guaranteed for a minimum of 6 years.Hence no hassels of giving rthe power supply and spending unnecessary cabling and cable laying cost.   No reflector used for detection of flow. This ensure that meters are very robust and don’t have any problems even after years of operation. This ensures efficiency of meter and maintenance free years of operation.   Single point source for meters, hardware for interconnectivity (M-Bus) and software for billing and meter reading. This ensures zero dependence on a third party. Also we ensure that the system is up and running at all times.   mper proof design—ensures no tampering in the final bill   2 years international warranty on all the products

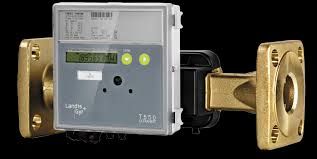

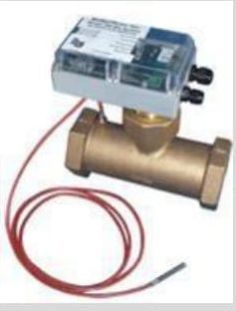

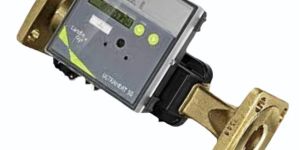

Ultrasonic technology (no mechanical moving parts), Accuracy class 2 acc. EN 1434, Manufacturer approval H1 acc. MID (European Measurement Instrument Directive), Energy meter consist of flow part, calculator and temperature sensor, The energy meter shall be calibrated as one unit acc. EN1434, flow sensor for cooling application in IP65 (protected US sensors), max flow rate shall be 2x nominal flow rate (permanent).

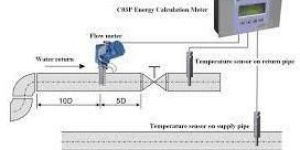

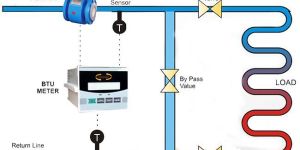

This involves the measurement of flow of the cooling medium, the inlet and outlet temperature and then using temperature difference to calculate the Net Heat transferred.

Omicron’s BTU meters, also referred to as energy meters, are ideal for all sub-metering and performance verification applications. Several different types and models are available to fit almost any application, including hydronic heating and/or cooling, solar thermal, geothermal, water-source heat pump and co-generation.     BTU Meters Product Range :   Inline BTU Meters Clamp On BTU Meters

Acorn Controls is one of the leading Electromagnetic Flow meter manufacturer in India and our meters can fulfil the requirements of any customer who requires Electromagnetic Flow meter, Water Flow meter, Waste water Flow meter, Sanitary Grade Flow meter, Industrial Flow meter, Chiller Flow meter, Chemical Flow meter, Full bore Flow meter, Wafer Type Flow meter, Insertion Flow meter, Insertion type Electromagnetic Flow meter, Irrigation Flow meter, Juice Flow meter, Milk Flow meter, ETP Flow meter, BTU meter and etc.

BTU meters measure the energy content of liquid flow in British thermal units (BTU), a basic measure of thermal energy. BTU meters are used in chilled

CBRO make BTU-250 is a versatile compact energy totalizer extremely useful for measurement of energy convertion. It measures the thermal energy required for air conditioning. It accepts 3 inputs, each one from a flow meter for Chilled water, inlet temperature sensor and outlet temperature sensor. From this it calculates the thermal power and energy consumed in maintaining the temperature at given level. 9 digits are available for total energy and 4 digits Are available for instantaneous power reading. The engg. unit can be easily selectable by user, either as KW & KWH or BTU / HR & BTU   * Compact Wall Mounting Design with IP 65 Enclosure. *16 X 2 LCD Display For Total Energy As Well Instantaneous Power. * Display of Chilled Water Flow, Power Temperature Available. * Choice of Mounting Either on Inlet or Outlet As Per Site Conditions. * Choice of Engineering Units : KW or BU * Data Storage Upto 1 year With Hourly Storage facility With Realtime. * Storage Can Be Viewed By Scrolling Keys. * Serial Interface With Computer Through MODBUS RTU

BTU meters are used on chiller lines to measure the energy consumed by the chillers in the cooling process. Our BTU meters are constantly used in projects and recommended by various consultants and BMS providers across the country. Shenitech ST-280T BTU meters are based on Ultrasonic Transit Time Technology. These BTU meters assure Class-2 accuracy and have a tamper-proof model as per the energy norms in various countries.These BTU meters have an in-built battery i.e. no hassles of power supply on the site. Battery back-up lasts for 6 years. Since there is no moving part in the sensor assembly these meters are maintenance free and hence has high reliability. Unmatched Advatages of Shenitech BTU meters   We have an entire range of ultrasonic flowmeter from 15mm to Line sizes more than 700mm and customized for higher line sizes as per your requirements. Our meters can detect a very high capacity of flow. Because of the high flow capacity, we need a lower size meter for a certain flow rate.   - For example: 100mm line size might require our 65mm flow meter.   This enables cost saving and also proper sizing of the meter. All our meters are wet calibrated where the temperature and flow sensor are calibrated together and we give a calibration certificate with each and every meter. All our meters have an inbuilt battery backup – guaranteed for a minimum of 6 years.Hence no hassels of giving rthe power supply and spending unnecessary cabling and cable laying cost. No reflector used for detection of flow. This ensure that meters are very robust and don’t have any problems even after years of operation. This ensures efficiency of meter and maintenance free years of operation. Single point source for meters, hardware for interconnectivity (M-Bus) and software for billing and meter reading. This ensures zero dependence on a third party. Also we ensure that the system is up and running at all times. Tamper proof design---ensures no tampering in the final bill 2 years international warranty on all the products

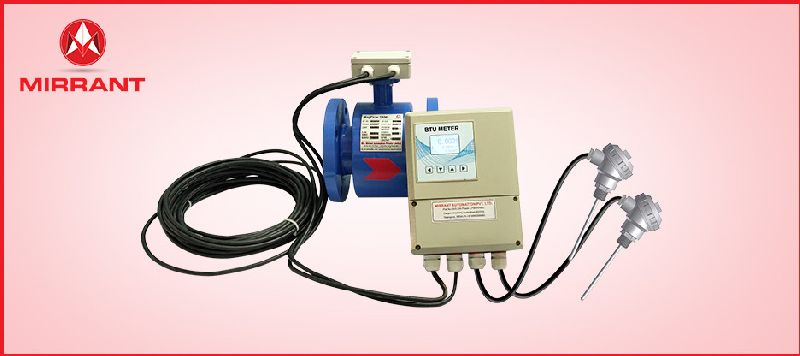

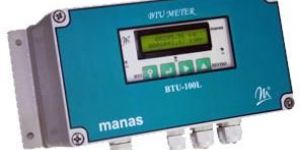

Manas make BTU meters comprises of accurately calibrated Electromagnetic Flowmeter, Pair of temperature sensors and Flow Transmitter with integral Energy computing capability unit to calculate Net Heat consumed. We offer our BTU Meters for wide range of applications. Example- In Air handling Units, chilled water, HVAC applications. It is used in centralized air conditioning systems for both commercial and industrial buildings. Similarly for Hot Water & Thermic fluid applications our Heat meter (HET100L) also perfomed well.

We are offering btu meter on line heat calculator 15mm-100mm on line along with ultrasonic flow meter and heat meter inbuilt accuracy : +/-0.5% 100mm-2000mm panel mounted heat calculator with electromagnetic or ultrasonic flow meter optional.

Large residential, retail and office buildings are the face of economic growth and development today and house a large segment of the urban population. Such setups require huge air-conditioning and ventilation systems that are run by centralized cooling plants. The cooling energy is a centralized resource but is generally shared by a number of occupants in the building. It is understood that they have diverse patterns of usageand so it becomes important to monitor and measure cooling energy with the help of fool proof BTU metering and automated meter reading systems. By providing these we facilitatedevelopers to measure & bill occupants accurately as per their individual energy usage and to recover the costs of generating and distributing the same in a fair manner to all parties involved.
