LanguageEnglish, Spanish, Russian, etc.; minor languages can be customized.
Totaliser Back-UpBackup for Total Energy provide on power failure for 21/2 year
Log ViewPossible by scrolling of keys(Optional)
CommunicationRS232 / 485 Modbus Protocol
Wireless CommunicationGPRS / WIFI / BACnet IP Protocol for BMS (Building Management System )

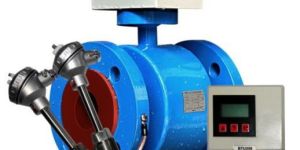

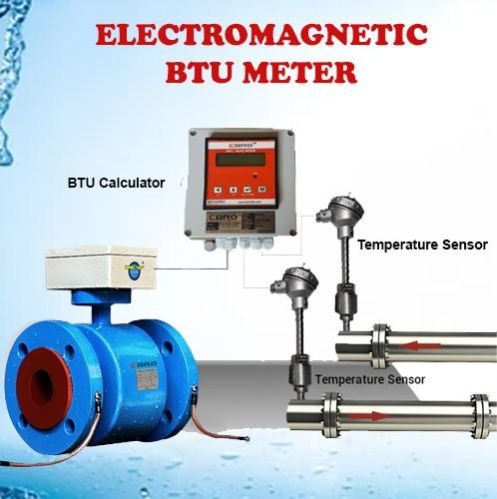

CBRO make Electromagnetic BTU meter [BTU-250] is designed to accurately measure the heat or cold energy of a water heating/cooling circuit. It is consisted of three parts, an electromagnetic flow sensor, a pair of temperature sensors and a main unit. The main unit is a powerful console which combines high accurancy flow measurement, temperature measurement and BTU Calculation. From this it calculates the thermal power and energy consumed in maintaning the temperature at given level. 9 digits are available for total energy and 4 digits are available for instantaneous power reading. The engg. unit can be easily selectable by user, either as KW & KWH or BTU / HR & BTU
Applications :
Chilled Water HVAC
Hot Water HVAC
Condensate And Heating Water Circuits
Boiler Feed Water
Thermal Storage, Geothermal System, Solar Hot-water System
District Energy Management And Billing
Commercial Building Tenant Billing
Leed / Green Building Verification,Green Credit Application
Energy Consulting
Power Plant Efficiency Monitoring
Facility Management In Shopping Malls, Campus, Industial Parks, Hospitals, Commercial Buildings,
Government Buildings, Airports And More

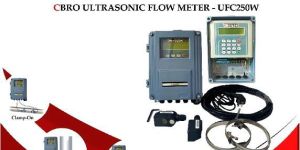

Ultrasonic technology (no mechanical moving parts), Accuracy class 2 acc. EN 1434, Manufacturer approval H1 acc. MID (European Measurement Instrument Directive), Energy meter consist of flow part, calculator and temperature sensor, The energy meter shall be calibrated as one unit acc. EN1434, flow sensor for cooling application in IP65 (protected US sensors), max flow rate shall be 2x nominal flow rate (permanent).
CBRO make BTU-250 is a versatile compact energy totalizer extremely useful for measurement of energy convertion. It measures the thermal energy required for air conditioning. It accepts 3 inputs, each one from a flow meter for Chilled water, inlet temperature sensor and outlet temperature sensor. From this it calculates the thermal power and energy consumed in maintaining the temperature at given level. 9 digits are available for total energy and 4 digits Are available for instantaneous power reading. The engg. unit can be easily selectable by user, either as KW & KWH or BTU / HR & BTU
* Compact Wall Mounting Design with IP 65 Enclosure.
*16 X 2 LCD Display For Total Energy As Well Instantaneous Power.
* Display of Chilled Water Flow, Power Temperature Available.
* Choice of Mounting Either on Inlet or Outlet As Per Site Conditions.
* Choice of Engineering Units : KW or BU
* Data Storage Upto 1 year With Hourly Storage facility With Realtime.
* Storage Can Be Viewed By Scrolling Keys.
* Serial Interface With Computer Through MODBUS RTU
