Nivam Instruments Pvt. Ltd. Parvati, Pune, Maharashtra

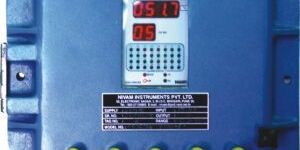

Universal Input: 8 / 16 / 24 / 32 Channels. Process Scanners Fully configurable through front keypad Accuracy better than ± 0.25% FSD 2 Programmable Alarm contacts common to all channels Individual Alarm Contacts (Optional) PC Communication – RS 232 / RS485 MODBUS RTU Protocol 4 – digit display for Process Value & 2 – digit for Channel Number Settable Display Update time (1 – 99 Sec.) Auto / Manual facility available for scanning. Motor – Winding – Bearing application Available in 92 X 138 or 138 X 138 cutout

Universal Input Process Indicators PC Communication – RS232 / RS485 MODBUS RTU Protocol(Optional) Available in 3 / 4 / 5 digits 3” / 0.5”/ 1”/ 2”/ 4” 7 – segment RED display Accuracy better than ± 0.25% FSD 24V DC Transmitter Power Supply Retransmission output (Optional) 2 / 4 programmable Alarm contacts Fully configurable through front keypad

4 – 20 mA Input Loop Powered Indicators Intrinsically safe – Approved Voltage drop less than 1V – Typical Range settable Easy calibration, Span – Zero adjustable 3½ – digit 0.5” or 1” LCD or Available in 4½ Digit 0.43” LCD Available in Ex-Proof Enclosure

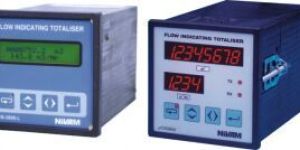

4 – 20 mA Input Flow Indicating Totalizer Fully configurable through front keypad Accuracy better than ± 0.25% FSD 24 V DC Transmitter Power Supply Retransmission output (Optional) 2 programmable Alarm contacts for batching PC Communication – RS232 / RS485 MODBUS RTU Protocol (Optional) Available in 6 / 8 / digits totalizer LED / LCD display Selectable Operation: Linear / Square Root Enthalpy / Mass flow versions Available in 92 X 92 or 68 X 138 mm Cutout
