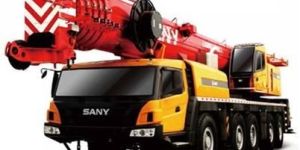

Terrain Crane

Get Latest Price

Brand NameSany
Crane TypeAll Terrain Crane
Max Crane Boom Length62 m
Max.Fixed Jib Combination97 m
Travel SpeedMax 81 km/h
Model Name/NumberSAC1800C
Max.Lifting Capacity180 Ton
Slewing Speed1.8 r/min
Rated Power390kW/1800rpm
Extension/Retraction Time of Boom550s/550s
Overall Dimension15530 x 3000 x 4000 mm (L x W x H)
Overall Weight60000 kg
Rated Torque2400 N.m/ 1100 rpm
Turning Radius10 m (Min),11 m (Boom head)
Wheel Formula10 x 8
Min Ground Clearance325 mm
Approach Angle20 deg
Departure Angle17 deg
Max Gradeability58%
Fuel ConsumptionLess than or equal to 72 L (per 100 km)
Temperature Range- 20
Min Rated Range3 m
Tail Slewing Radius of Swingtable4.75 m
Boom Section6
Boom ShapeU-shaped
Outrigger Span9.0 x 8.5 m (LongitudinalxTransversal)
Jib Offset0 - 40 deg
Max Single Rope Lifting Speed130 m/min (main winch,auxiliary winch)
Axle Load12000 Kg (Load 1,2,3,4,5)

...more
Terrain Crane

Request for Price

Brand Name : Sany

Get Best Price

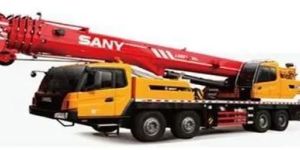

Sany Truck Crane

Get Latest Price

Maximum Lifting Capacity60 Ton
Boom Length11.3 m (base boom),43.5 m (Full-extend boom),59.5 m (Full-extend boom+jib)
Max Height3750 mm
Crane TypeTruck crane
Model Name/NumberSTC600S
Max Travel Speed50 km/h
BrandSany
Overall Length13700 mm
Overall Width2750 mm
Axle Distance1450 mm,4200 mm,1350 mm
Overall Weight42000 kg
Axle Load16000 kg (Front),26000 kg (Rear)
Rated Power264 kW/ 2100 rpm
Rated Torque1500 N.m/ 1500 rpm
Minimum Turning Radius11 m,14 m (boom head)
Drive Train8 x 4
Minimum Ground Clearance295 mm
Approach Angle19 Degree
Departure Angle14 Degree
Maximum Gradeability42%
Fuel ConsumptionLess than equal to 43 L per 100km
Minimum Lifting Radius3 m
Tail Swing Radius of Superstructure4.065 m
Boom Section5
Boom ShapeU-Shaped
Maximum Lifting Moment2009 kN.m (base boom),1050.6 kN.m (Full-extend boom),521.1 kN.m (Full-extend boom+jib)
Outrigger Span6 x 7.2 m (Longitudinal/Transversal)
Jib Offset0 Degree,15 Degree,30 Degree
Maximum Single Rope Lifting Speed125 m/min (of main winch no load),125 m/min (auxiliary winch no load)
Full Extend/Retract Time of Boom100 / 120 s
Full Raise/Lower Time of Boom60 / 80 s
Swing Speed0-2 r/min
HVAC In CabCooling (up),Heating/Cooling (low)
Temperature Range-20 to 40 Deg

...more
Sany Truck Crane

Request for Price

Get Best Price
SANY Excavator

Get Latest Price

Fuel Tank40 L
Arm Digging Force18.2 kN
Bucket Digging Force30.4 kN
Radiator6.5 L
Operating Weight3780 Kg
Maximum Engine Power28HP @ 2200 rpm
Maximum Bucket Capacity0.12 Cum/Trench Bucket
BrandSANY
Model Name/NumberSY35U
Engine Type3 Cylinder, Inline, Water Cooled Diesel
Boom Length2540 mm
Arm Length1400 mm
Max. Torque106 N.m @ 1200 rpm
Swing Speed9 rpm
Gradeability58% / 30 Deg
Engine Oil6.7 L
Displacement1.642 L
Hydraulic Tank40 L
Undercarriage Overall Length2155 mm
Engine ModelYanmar 3TNV88-BSSY
Ground Pressure Kpa32 kPa
Lower Rollers4 (Each Side)
Track Gauge1420 mm
Travel Circuit Mpa24.5 MPa
Pilot Circuit3.5 MPa
Tumbler Distance1670 mm
Swing Motor1 Axial piston motor
Upper Rollers1 (Each Side)
Battery1x12 V
Main Hydraulic Pump SystemVariable Displacement Pump
Max. Flow88 lpm
Travel Motor2 Axial piston motor with parking brake
Implement Circuit24.5 MPa
Swing Circuit20.6 MPa
Track Shoes44 (Each Side)
Track Guard1 (Each Side)
Std. Track3000 mm
Max. Travel Speed4.4/2.4 Km/h (High/Low)
Max. Tracking Force36.8 kN
Travel Device2x0.7 L
Overall Dimension4915x1720x2515 mm (LxWxH)
Upper Width1550 mm
Blade Height350 mm
Std. Track Shoe Width300 mm
Min. Ground Clearance295 mm
Rear - End Swing Radius860 mm

...more
SANY Excavator

Request for Price

Fuel Tank : 40 L
Arm Digging Force : 18.2 kN
Bucket Digging Force : 30.4 kN
Radiator : 6.5 L
...more
Get Best Price
Rotary Drilling Rig

Get Latest Price

Usage/ApplicationSuitable for hard soil and rock drilling, widely used in pile foundation of civil engineering, expressway, bridge, high-rise buildings etc.
BrandSany
Model Name/NumberSR285R
Engine Power300 kW at 1800 rpm
Maximum Pile Diameter2,300 mm
Maximum Pile Depth94/61 m
Maximum Output Torque285 kN.m
Speed of Rotation5-24 rpm
Crowd Force260 kN
Stroke6000 mm
Line Pull253 kN (Crowd System),330 kN (Main Winch),90 kN (Auxiliary Winch)
Rope Diameter36 mm (Main Winch),20 mm (Auxiliary Winch)
Maximum Line Speed72m/min (Main Winch),70m/min (Auxiliary Winch)
Machine Height25423 mm
Machine Weight100 Ton
Transport Width3524 mm
Transport Height3706 mm
Chasis Length7473 mm
Extended Width4700 mm
Track Shoe Width800 mm
Swing Radius4530 mm
Mast Inclination5/90 degree (forward/backward),+/-4 degree (Lateral)
Engine Brand / ModelISUZU 6WG1X
Emission RegulationCOM III / R96

...more
Rotary Drilling Rig

Request for Price

Get Best Price
Portable Mini Excavator

Get Latest Price

Operating Weight2680 Kg
Engine Type3 Cylinder, Inline, Water Cooled Diesel
Maximum Engine Power20.4HP @ 2500 rpm
Maximum Bucket Capacity0.08 Cum/Trench Bucket
BrandSANY
Model Name/NumberSY27U
Boom Length2100 mm
Arm Length1300 mm
Travel Speed4.5 / 2.4 Km/h (Max. High/ Low)
Max. Torque64.7 N.m@1800 rpm
Fuel Tank35 L
Swing Speed10.6 rpm
Gradeability58% / 30 Deg
Engine Oil3.4 L
Displacement1.267 L
Hydraulic Tank30 L
Max. Digging Reach4850 mm
Undercarriage Overall Length2005 mm
Engine ModelYanmar 3TNV80F
Arm Digging Force14.2 kN
Ground Pressure Kpa25.5 kPa
Lower Rollers3 (Each Side)
Track Gauge1250 mm
Travel Circuit Mpa24.5 MPa
Pilot Circuit3.5 MPa
Tumbler Distance1560 mm
Swing Motor1 Axial piston motor
Upper Rollers1 (Each Side)
Battery1x12 V
Hydraulic System Main PumpVariable Displacement Pump
Max. Flow72 lpm
Hydraulic System Travel Motor2 Axial piston motor with parking brake
Implement Circuit24.5 MPa
Swing Circuit20.6 MPa
Track Shoes (Each Side)39
Std. Track300 mm
Max. Tracking Force20 kN
Bucket Digging Force24.1 kN
Radiator4.1 L
Travel Device2x0.7 L
Overall Dimension4270x1550x2430 mm (LxWxH)
Upper Width1380 mm
Blade Height300 mm
Std. Track Shoe Width250 mm
Min. Ground Clearance290 mm
Rear - End Swing Radius775 mm
Maximum Cutting Height4435 mm
Max. Dumping Height3110 mm
Max. Digging Depth2825 mm
Vertical Digging Depth2585 mm
Min. Swing Radius2145 mm
Max. Height At Min. Swing Radius3210 mm

...more
Portable Mini Excavator

Request for Price

Operating Weight : 2680 Kg
Engine Type : 3 Cylinder, Inline, Water Cooled Diesel

Get Best Price

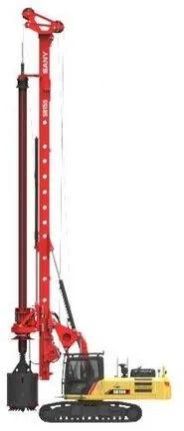

Piling Rig

Get Latest Price

BrandSany
Model Name/NumberSR155
Engine Power147 kW at 2000 rpm
Maximum Pile Diameter1500 mm
Maximum Pile Depth56/44 m
Maximum Output Torque155 kN.m
Speed of Rotation5-35 rpm
Crowd Force155 kN
Stroke4200 mm
Line Pull160 kN (Crowd System),160 kN (Main Winch),60 kN (Auxiliary Winch)
Rope Diameter26 mm (Main Winch),14 mm (Auxiliary Winch)
Maximum Line Speed80m/min (Main Winch),75m/min (Auxiliary Winch)
Machine Height18592 mm
Machine Weight48 Ton
Transport Width3140 mm
Transport Height3262 mm
Chasis Length5972 mm
Extended Width4100 mm
Track Shoe Width700 mm
Swing Radius3717 mm
Mast Inclination5/90 degree (Forward/Backward),+/-3 (Lateral)
Engine EmissionCOM III / R96
Engine Brand / ModelMitsubishi D06FRC-TAA
Main Winch Speed80 m/min

...more
Piling Rig

Request for Price

Get Best Price
Long Reach Excavator

Get Latest Price

Operating Weight24150 kg
Maximum Engine Power140HP at 2000 RPM
Maximum Bucket Capacity0.45Cum
Max Digging Depth11970 mm (39.3 ft)
BrandSANY
Model Name/NumberSY210C-9 LR
Max. Digging Reach15030 mm (49.3 ft)

...more
Long Reach Excavator

Request for Price

Get Best Price

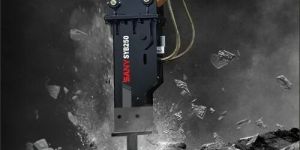

Hydraulic Rock Breaker

Get Latest Price

BrandSany
Model Name/NumberSYB250
Warranty1 year
Suitable excavator weight class18-26 tons
Total weight1825 kg
Total Length2828 mm
Operating Pressure160-180 Bar
Impact rate350-600 bpm
Impact Energy4200 joules
Chisel Diameter140 mm
hydraulic oil flow range120-180 lpm

...more
Hydraulic Rock Breaker

Request for Price

Brand : Sany

Get Best Price

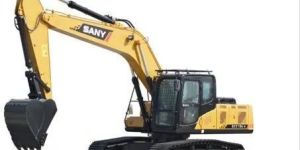

Hydraulic Crawler Medium Excavator

Get Latest Price

Brand NameSANY
Engine Oil14 L
Maximum Engine Power140 HP
Operating Weight20900 Kg
Fuel Tank340 L
Boom Length5700 mm
Max. Torque571 N.m

...more
Hydraulic Crawler Medium Excavator

Request for Price

Brand Name : SANY
Engine Oil : 14 L
Maximum Engine Power : 140 HP
Operating Weight : 20900 Kg
Fuel Tank : 340 L
Boom Length : 5700 mm
Max. Torque : 571 N.m
...more
Get Best Price
Hammerhead Tower Crane

Get Latest Price

BrandSany
Jib Length65 m
Max Lifting Capacity8 Ton
Model Name/NumberSYT125E (T6515-8)
Max Lifting Moment125 t.m
Tip Load1.5 Ton
Free Standing Height46 m
Mast Section1+15
Number of Standard Mast15
Standard Mast Dimension1.8x1.8x2.8 m
Lifting Power37/37 kW
Slewing Power2x5.5 kW
Trolleying Power4 kW
Lifting Speed100/50 m/min
Rope Capacity500 m

...more
Hammerhead Tower Crane

Request for Price

Get Best Price
93 Ton Off-Highway Mining Truck

Get Latest Price

WeightNet 67000 kg (147000 lb)
Model Name/NumberSRT95C
BrandSany
Turning DiameterMin 24000 mm
No Of Cylinders12
Fuel Tank Capacity1130 L
Tyre Specification27 R49E-4
Engine ModelCummins QST30-C1050
Displacement30.5 L
Gear BoxAllison H8610AR
Minimum Turning Radius12000 mm
Gross Operating Weight160000 kg
Bore Stroke140 x 165 mm (5.51 x 6.49 inch)
Front BrakeOil cooled disc brake
Disc Diameter965 mm (38 inch)
Pressure115 bar (1660 lbf/in2)
Thickness20 mm (Floor),10 mm (Side),10 mm (Front)
Body Volume42 m3 (Struck),60 m3 (Heaped)
Max Strut Stroke345 mm (Front),200 mm (Rear)
Max Rear Axle Oscillation+/- 7 deg
Gross Vehicle WeightMax 160000 Kg (352000 lb)
Cooling System Capacity300 L
Hydraulic Tank Capacity280 L
Rated Payload93000 Kg (205000 lb)
Gross Power783KW (1050hp)/2100rpm
Max. Torque4629 Nm (3415lb.ft)/1300rpm

...more
93 Ton Off-Highway Mining Truck

Request for Price

Weight : Net 67000 kg (147000 lb)

Get Best Price

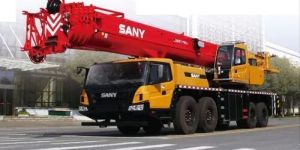

80 Ton Truck Crane

Get Latest Price

Max Lifting Capacity80 Ton
BrandSany
Model Name/NumberSTC800
Max Travel Speed80 km/h
Boom Length12.96 m (Min.), 50 m (Max.), 67.5 m (Max.+Jib)
Overall Width2800 mm
Overall Height3880 mm
Overall Weight50000 kg
Front Axle Load24000 Kg
Rear Axle Load26000 kg
Rated Power276 kW/1900 rpm
Rated Torque1800 N.m/1000-1400 rpm
Turning Radius12 m
Overall Length15290 mm
Approach AngleMore than equal to 10 degree
Departure AngleMore than equal to 14 degree
Fuel ConsumptionLess than equal to 44 L/ Hundread Km
Max. Gradient44%
Max. Turntable Swing Radius4.385 m
Max. Lifting Torque3293 kN.m (Min.), 1803 kN.m (Max.) Boom Length
Outrigger Span8 x 6.43 m (Transverse x Longitudinal)
Max. Speed Single Line No Load130 m/min (Main Hoist), 130 m/min (Aux.Hoist)
Boom Full Extending/Retracting Time140/160 s
Boom Full Raising/Lowering Time65/90 s
Swing Speed0 - 1.8 r/min

...more
80 Ton Truck Crane

Request for Price

Get Best Price
40 Ton Crawler Crane

Get Latest Price

BrandSany
Model Name/NumberSCT400
Max.Lifting Capacity40 Ton
Luffing Angle2-78 Degree
Rated Power133kW/2000rpm
Full Extend Boom + Jib Length43 + 16m
Overall Dimension14200x3300x4600(2990) mm (LxHxW)
Center Distance of Driving And Engaged Wheels4898 mm
Track Shoe Width700 mm
Main Boom Length11 - 43 m
Main Boom Angle-2 to 78 Deg
Max. Rated Lifting Moment150 T.M
Included Angle Between Main Boom And Jib0, 15 and 30 Deg
Main/ Aux. Load Hoist Rope Speed0 - 140 m/min
Time To Fully Boom35/45 s Up/Down
Time To Fully Extend/Retract Down90/100 s
Slewing Speed0-2 rpm
No Load Travelling Speed0-3.0 Km/h
Engine ModelISuzu 4 HK1XKSC
Wire Rope Diameter16 mm
Machine Weight48 Ton
Transportataion Dimension14200x2990x3250 mm (LxWxH)
Average Ground Bearing Pressure0.07 MPa
Min. Swing Radius3660 mm

...more
40 Ton Crawler Crane

Request for Price

Get Best Price
