SARA MECHATRONIX Akurdi, Pune, Maharashtra

Wrist straps and ESD footwears are the first lines of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time, the wrist strap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/footwear regularly.In order to protect sensitive electronic components, the maximum wrist strap resistance should not be more than 10 meg ohms and footwear resistance should not be more than 35 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow. The wrist strap and the footwear tester checks these parameters under actual operating conditions with the strap on the wrist or footwear to the foot. It clearly indicates whether or not the wrist strap/footwear system is safe to use.

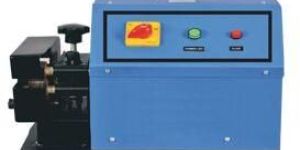

  The wire stripper machine with a brush will strip flat and round enamel wires with any of film, insulation and varnish. The wire enamel brushes with high r.p.m. remove the insulation without damaging the wire conductor. This machine can strip multiple wires at a time. This machine is ideal for the production and repair of stripping of the armature, coils, chokes, transformers, relays... etc. USAGE : This equipment can be used for continuous Production

Automatic Grade : Automatic

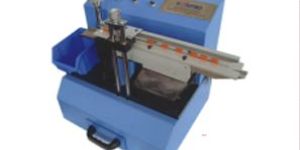

Category : Component pre-forming machines FEATURES : Manual Operation • Versatile machine with variety of tool option • Suitable for loose axial and radial components • Easy adjustments • Hardened steel tooling • Ideal for low to medium volume production

Availability : 1.2 Kg

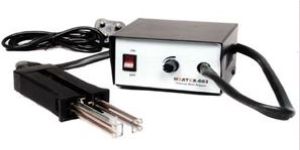

  FEATURES : The Insulation Remover manufactured by us effectively removes insulation from wires that can later be employed for a variety of purposes. Our Insulation Remover neatly strips the wire without leaving any residue material on the wire. The Insulation Remover has been designed by in-house experts to provide unmatched, error-free performance for a long time. • Control Unit - L 125x W 90 x H 70mm Weight 1.9 kg. • Stripper Handle - D 20 x L 185mm Weight: 200 grams. Without cable   FEATURES ESD SAFE BY DESIGN : • FLAT BLADES: Nichrome Super Heat flat blades for long life. • Element: Nichrome heating element for quick and Easy removal of a sleeve. • Temperature: Variable Temperature 300°C to 650°C.   OPTIONAL WIRE BLADES : Operation : Handle will operate on the principle of crocodile Clip, i.e., by pressing the rear side of the handle the front side element holder will wide open. Lock : Elements fixed on the studs will get hooked each other in a loop such that the wire will get locked in between the loop to strip the sleeve.

This is an ultra wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any flat surface. In the circuit industry, products such as packaging materials, component storage bags and trays, workbench surfaces, table and floor mats, conveyor belts, etc., have resistance values which need to conform to stringent specifications. Moreover, these values are expected to fall within specified limits. The Surface Resistivity meter can play a vital role in monitoring and checking the resistivity characteristic of the above items.It also has a unique additional feature of surface-to-ground measurement capability wherein the resistivity differential between any surface and any chosen ground can be determined.The surface resistivity is conveniently indicated by a row of LEDs covering a total of 10 decades from 10^3 to 10^13 ohms/square.

Total Carbohydrate : 12 months

Size : 24 X 36 & 26 X 45 Inches

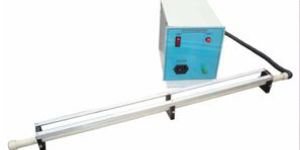

The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries and processes. For example, static charges can lead to sticking and crumpling of polyester films while being processed on the machines. Collection of dust and other particulate contaminants on surfaces due to static is another example. The discharge bars and the power supply are used primarily in cases where disruptive static charges on fast moving material webs impair production processes and need to be eliminated. How it worksThis static eliminator works on the principle of high voltage corona discharge, to produce the neutralising ions. This Static eliminator system is designed to neutralize the charges by the “Ion showering” process wherein the surface charges present are neutralised. It is designed for continuous use and the unique “Shockless bars” ensure total safety even if the electrodes are accidently touched. APPLICATION AREAS Plastic film and paper industries, Glass related industries Textile Industries, Pharmaceutical industry, Clean rooms.

Total Carbohydrate : 12 months

This is designed to safely drain away any static charges present on a Human body before entering an ESD safe area. A 1 megohm resistor is provided in the ground cord as aprecaution against the risk of shock.Ground the stand to a suitable ESD ground point by means of the cord. Stand on the Base Plate while wearing the Conductive / Static Dissipative Footwear and also touch the top plate. Any static present on the body will get drained away.Note: For outstation supplies to facilitate transport, the Stand will be sent in a dismantled condition. The 3 parts namely the top touch plate, base and the vertical rod have to be re-assembled and secured by means of the appropriate bolts and fasteners supplied.

Material : Stainless steel & Block board

Availability : 4.75 Kg

The Grounding PALMPLATE is a convenient and quick solution to ensuring that there is no charge on the Human Body before entering any ESD safe area. It has a conductive Stainless Steel electrode plate mounted onto an acrylic backing.The plate can be mounted on the wall at a convenient height and the personnel have to just touch the plate to drain any charge from the body.The Plate is supplied with a Grounding cord which needs to be connected to any ESD earth point. A 2.2 megohm resistor is provided in the ground cord as a precaution against the risk of shock.

Material : Stainless steel on Acrylic backing

Availability : 500 gms

Availability : 2.75 kgs

• Homogenous wear layer • Low heat generating surface • Reduced frictional burns • Good grip • 10 colours available

Material : Plastic

Size : Free

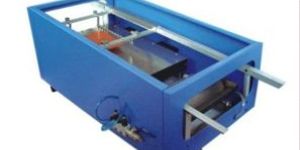

DESCRIPTION : We are involved in the offering of high quality Digital Soldering Pot that come from premium quality raw materials laid out by our trusted vendors and suppliers. Our assortment has seen extremely high demand owing to its high quality output and reasonable pricing. TECHNICAL SPECIFICATIONS : • Input Voltage : 250W, 230V AC ±10% 50Hz • Temp Range : 150-450°C • Temp stability : +/- 10 °C • Bath Capacity : Up to 1 Kg. approx.   MECHANICAL DIMENSIONS : Pot dimensions : 45Dia x 45mm Depth Weight: 300grms.   FEATURES : • Temperature is adjustable with digital control. • PID Control accurate and precise temperature • Temperature can be adjusted by just turning push buttons each digit

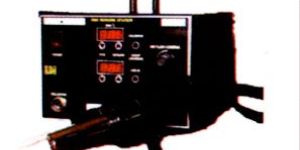

FEATURES : • PID Control for accurate and precise temperature • Hot air gun for safe and-contact SMT component removal or replacement. • Self-contained diaphragm Air pump • Bright display for clear visibility • Auto tune systems control • Closed loop temperature control • Soft On/Off Power switch • Modular and compact design • Integrating the functions of hot air and soldering iron, more convenient for use and covering less workspace. • Self-contained Air Pump, with air flow quantity, can be adjusted softly. • Easy to handle. Different Sized Bits & Nozzles are available. • Monitor Bit & Nozzle temperature intelligently with perfect temperature offset to ensure soldering Quality.   SYSTEMS INCLUDE : • Power base with built in air pump & PID based power control channel with digital display • Hot air gun for non-contact soldering and de-soldering of SMD’s with single hole nozzle • Side attachment for Hot air gun stand

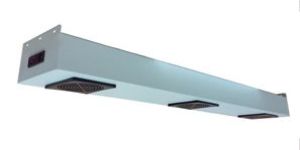

The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries, work areas & laboratories. For instance, static charges can cause havoc in the electronic assembly shopfloor. This OVERHEAD unit can be conveniently hung over the work area for a large coverage to neutralise the charges on personnel or on any item entering an ESD sensitive area. This is achieved with a stream of ionized air. "Ion showering" is the only effective method of removing static charges from non-conductive objects and surfaces. The unique high-efficiency pulse circuitry provides fast discharge with limited air flow. It works on the principle of high-voltage corona discharge to produce the neutralising ions.Ion Balance is maintained irrespective of supply voltage and even if the discharge electrodes are dirty. Balanced output is essential when used in critical ESD sensitive areas. APPLICATION AREAS ESD sensitive work areas and assembly units.Plastic and paper industriesIT & Computer industryClean rooms.

Total Carbohydrate : 1 year.

Features : • Accurately crafted • Precise finishing • Durability

Feature : Powder Coated, Matt Finsh

Power : 220V AC, 1 Phase, 50 Hz

Application : In hospitals

Material : Steel, MS

Material : Non Woven

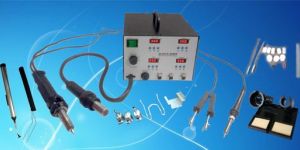

The HEATEX-845CR Multifunctional Rework station was developed to meet the present and future needs of the electronic industry, Service / R&D engineers and the hobbyist. The multiplication ability of this station makes it ideal for use in situations where the maximum amount of flexibility is required. The station has an inbuilt pump to provide the air movement for the hot air gun and the vacuum for the desoldering tool and can be used to rework both surface mounted and through hole components. The 845CR control unit is the base a microprocessor controlled system to regulate the solder processes. SYSTEMS INCLUDES : • Power base with built in Air Pump & Microprocessor Based Power • control channel with digital display • Soldering iron • De-Soldering iron • Hot Air gun • SMD Tweezers • Stands with cleaning sponge • Power cord • Vacuum Placer • IC lifter • Complete Tool Box, Replacement soldering & Desoldering • Bits, Cleaning springs & sponges, Ex….

Usage/Application : Industrial

Brand Name : SARA

Material : SS, MS

Condition : New

Features : • Sturdy Construction • Strong Blower • Energy Competent

Power Source : Electric

Application : In laboratory

Material : SS, MS

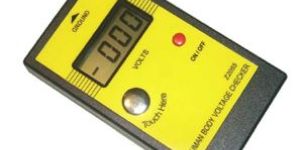

This instrument is designed to measure the Static Voltages carried on a human body. It is a good auditing tool to verify whether Personnel entering an ESD safe area are carrying any hazardous charges on themselves. It can also serve to verify whether all the ESD protection measures which have been taken to make a particular area ESD safe are effective. By such measures, we mean conductive flooring, antistatic table mats, wrist straps, static shielding bags, ionizing equipment, conductive containers and bins etc.It is very simple to use and only requires the personnel under test to touch the Button on the instrument and directly read the charge level in volts on the meter.

Accuracy : ± 15%

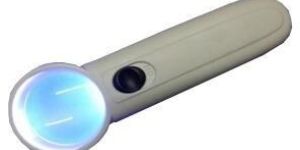

APPLICATION RANGE : • Industrial Purpose • Circuit board and printing industry • Medical science • Geography • Coin & Stamp • Education • Home & Office • Two LED Light • ON/OFF Switch for Light • Batteries Required for Light – 3AAA

FEATURES : • Reliable sterilization of garments • Fitted with ultraviolet lamp • Spacious

Capacity : 10 No. of Apron

Material : Stainless Steel, MS
