Saurabh Flexioack System Pvt.Ltd. Haveli, Pune, Maharashtra

This conveyor is used for feeding conveying the product material to be packed from floor level to packaging machines hopper. This ensures complete protection of product from breakage, from effect of atmosphere, dust, insects etc.

Belt Widths 200mm, 250mm, 300mm (Optional). Belt Type PVC Flat Belt With Slats or Grooved Flat Belt. Conveyor Length 1200mm. Conveying Speed According to packaging machine speed. Speed Control Through VFD Or DC Drive. Motor Wormed Gear Motor.

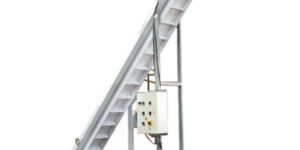

The belts used is food grade plastic moulded slat belt with side wall to protect spillage of material. It is smooth and noiseless.

Head Options : 1 Head, 2 Head, 3 Head, 4 Head, 6 Head. Packaging material Any ready pouches Jar, Bags, Containers etc. Power Requirement 220V AC 1 Phase, 50 Hz. Compressed Air Required 5 kgfsq.cm.

Maximum Box Size 200 mm X 200 mm Box Loading Manually After Three Folds Glueing System Hot Melt Or Cold Glue System Operation Mechanical, Pneumatic, PLC Controlled

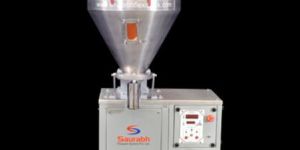

Operation: Mechanical Control: Electronically or PLC controlled. Auger screw operating system: CBC driven or servo driven. Packaging material Any ready pouches, jar, containers etc.

Capacity From 2 kgmin to 200 kgmin. Power Requirement 220 V AC 1 Phase or 420 V AC 3 phase optional variable frequency drive.

This is highly sophasticated machine with touch panel to make it user friendly. It is very high speed and can give upto 250 pouchesmin.

Output : 4.5 mtrmin to 20 mtrmin. Power Requirement : 220 V AC 1 Ph or 420 V AC 3 ph. Logo Engraving Attachment : To engrave your logo, Company Name, Packing date, etc. in sealing area.

Capacity 3. Blendor available in different capacity 25kg, 50kg, 60kg, 75kg, 100kg, 200kg, 500kg, 1000kg etc. Power Requirement 230V AC 1 Phase, (up to 75 kg capacity) 420 V AC 3 phase (from 100 kg & above)

Roto is the machine to pack any material in any type or shape of products. This machine picks the pouch from the stack of pouches and then pouch holder holds the pouch for Batch Coding, Pouch Opening, Guzzett Zipper and Stand Up Opening, Material Filling, Zipper Closing and Sealing with Nitrogen Flushing.
