Packaging Machine Dealers in Pune

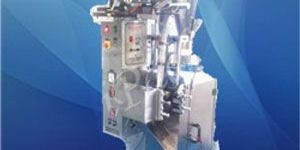

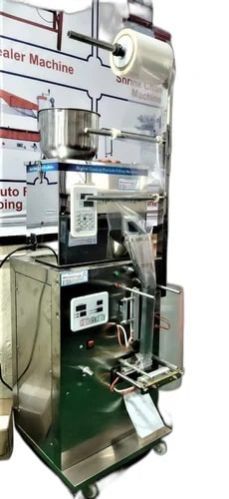

We offer you spacious ambit of Granules Packing Machines that is accessible in different configurations and volumes. A vertical form-fill-seal intermittent machine suitable for the packaging of tea, souf, snuff, tobacco, pan masala, spices etc. It can pack around 30 to 60 pouches per minute or it depends upon the material which needs to be packed. We are one of the prime Manufacturers and Suppliers of Automatic Granules Packaging Machines. Highlighting FeaturesMechanical cam driven operation with fixed speedEquipped with motorized batch printing & eye mark sensorExcellent perforation system to produce chain of pouchesMotorized film roll unwinding mechanism Suitable forGranulesSugarPulsesSpicesDetergentsSouf All types of free flow powders SpecificationsBody of Machine : Machine fabricated in M.S & thoroughly painted. All contact parts are of S.S.304Change Part : Cup Set & Former setPacking Material : Any heat Seal able laminate film such as pet/poly or Pet /metpet /poly/ aluminum foilSealing Type : Center/Side sealing pillow pouch.Out Put : 30-60 Packs/Min. The out-put depends upon product characteristics, packing material qualityFilling of material : Volumetric cupsElectric : 230 volt, Single PhaseMoter : 1 H.P.Single PhaseOther : Available in Mechanical & Pneumatic version

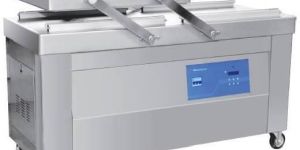

* microprocessor based. * sensor based system for accuracy. * double productivity. * sturdy and heavy gauge design * four preset programs * dome type lid. * cycle counter. * digital display. * stainless steel * emergency stop button * electrical protection systems * initial fresh air flushing for pouch protection * independent control for individual set of jaws * power failure air intake system

Cjd1000k quantitative ton bag packaging machine adopts high accuracy sensors (0.02%) and high-resolution control instruments to constitute the metering control system with high accuracy and good stability. The feeding mechanism adopts gate valves of two diameters to control 3 levels of feeding: fast, slow and precision feeding and is suitable for materials of various properties and states. The machine has wide packaging range, adjustable in the range of 500~1200kg. It is suitable for packaging of big packaging bag. Parameter setting and weighing calibration are simple and easy to understand and the operation is convenient. technical parameters: model form of packaging feeding range metering accuracy packaging speed cj1000k ton-bag 500~1200kg 0.1ú.oimlⅲ 0.3% static accuracy 0.1ú. Oiml level iii, dynamic accuracy 0.3% feeding starting to feeding end, 4~6 tonshour

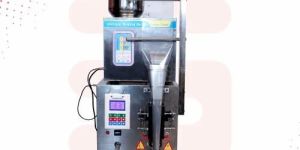

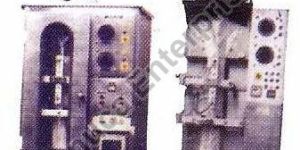

We are offering fully automatic pouch packing machine etc. Fully automatic form, fill & seal machine with gravity filter system to pack various free flow liquids like milk, mineral water, butter milk, juices, liquor etc. In polyethylene pouches features: high accuracy easy to operate low power consumption filling range : 200ml to 1000ml speed mechanical model : 1200 to 2100pouches / hour pneumatic model : 2500 to 5000 pouches / hour packing material: polyethylene film

Packaging machines for milk, dairy products and other liquids offer reliable, hygienic, efficient and accurate liquid packaging solutions. Equipped with advanced servo technology and continuous mechanical filler, Nichrome’s Filpack Servo 10 is a milk packaging machine that offers versatile milk packaging solutions. Nichrome also offers a flexible and wide-range of liquid filling machines products.

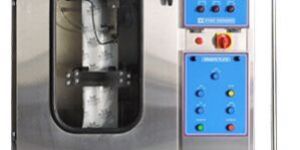

Fully automatic pneumatically operated vertical pouch form,fill and seal machine to pack viscous and oils with piston with volumetric piston op-erated filling systems.Application For viscous liquids such as edible oil,ghee honey, automobile industrialoil paints, pharmaciticals, syrups,warmish, shampoos,resins etc. Technical Specification :Production Speed : 10-25 pouches/min (depending on product)Packing Range : 200 grams to 1000 gramsPower Requirement: : single/3 phase,230/415V,50Hz plus NeutralMachine Dimensions : 2500( H) x 800 (W) x 800 (depth)Net Weight : 750 (approx)

We offer most advanced features in packaging technology for free flowing liquids in pillow type flexible pouches. These machines are available in single head and double head with various outputs and filling capacities. The packaging range varies from 100 ml/gm to 1000 ml/gm to cater customer specific. We offer the best quality packaging machines to the customers that are highly appreciated by them due to their durability, optimum performance and high productivity. The competitive prices that we offer and the timely delivery we assure have gained us the client satisfaction.

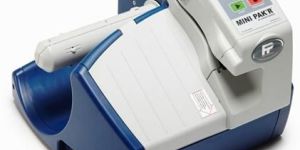

We are the All India Distributor of MiniPak’r Air Pad Machine & Packaging Machine. Our product also comprises of Air Cushion Machines, Air Pad Machine, Air Pillow Machine, Air Bag Machine and Packaging Material. In Mini PAK’R Air Pad Machine. There are 5 different types of cushions Size available in the Mini PAK’R Program, the machine can produce all five types of air cushions and you only need to swap the roll in order to produce another air cushion type.

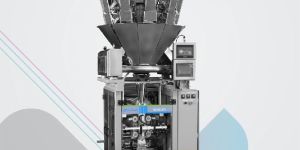

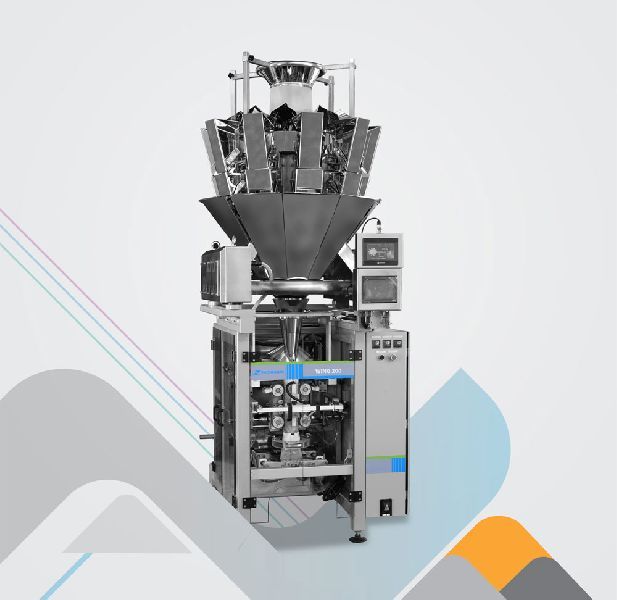

We are offering weigh matric packing machines. Machines suitable for snack food items like namkeen , potato chips, 3d plates , dry fruits, cheezlings.

Logical card with Operator interface is used for Basic Packaging Machine controller. In Basic MC controller all outputs [e.g. Clamp, seal, filler, Knife, Paper Pull etc] are controlled and synchronized with set delays and related inputs. Basic MC is used with filler [Weigher, Auger, Cup etc]. Various time delays [e.g. clamp on delay, seal time, knife time etc.] Can be Programmed User Friendly operator interface with Keys, display and Indication LEDs. Program Lock. ERROR Operation stop safety In Cycle. Input Output Test Mode Paper Pull available Modes by Time base or Encoder with without Photo eye. Modes available Auto Manual. Door lock, heater ON etc. interlocks available for safety. Independent Fill cycle, Paper Pull can be possible.

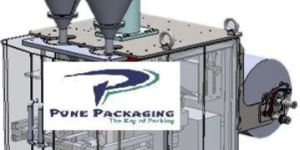

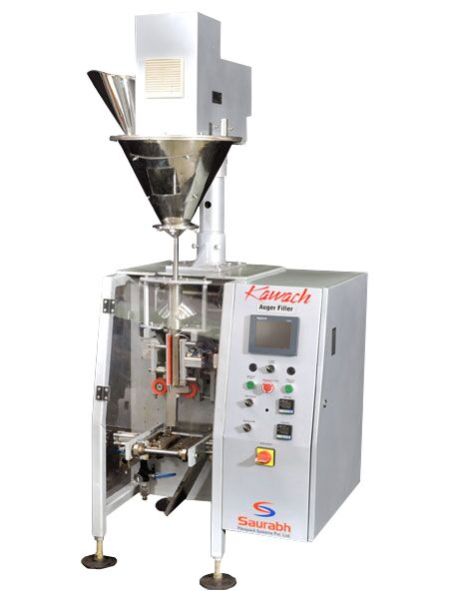

Applications:   Powders (Free and Non-free flowing), such as Spices, Soup Mixes, Detergents, Yeast, Desserts, Pharmaceutical and Agricultural Powders, Flour (Atta), Cocoa Powder, Drinking Chocolate, Coffee, Sugar. Filling Range: 50 gms to 2500 gms. Depending upon bulk density of products. General Information A vertical form, fill and seal machine for producing centre sealed pouches handling all types of free flowing/non-free flowing powders. The model AF-1000 handles a single reel film stock. Max. reel dia. is 530 mm on 76 mm core. The machine has the facility to be provided with a variety of filling heads. Draw down of the film is through draw down belts controlled through a Variable Frequency Drive. The length of the bag is controlled by print registration system which is PLC based. For unprinted film, the bag length can be adjusted from the single touch key pad provided on the front panel. Special Features   • PLC controls with HMI • Draw-Dawn Belts Driven by Variable Frequency Drive. • Adjustable draw down belts • PC uplink facility (optional) • Password protection for settings (optional) • Facility of production count. Attachments: Infeed conveyor. Outfeed conveyor, Batch coding machine, Static charge removal system, N2 Flushing, Air removal system, Batch cutting attachment, Different sealing patterns, Different Pouch Cutting Attachments.

Salient Features:  Easy and simple to install machine User friendly, high-tech machine (only machine with touch screen control) Designed for compliance to CE forms Machine with servo motor for bag pulling operation * Saves substantial energy * Ease of maintenance (Maintenance of any one head is possible without stopping other) PLC based control system provides advantages such as- Machine Parameters setting on touch screen Automatic faults recognition protocol The machine speed per minute can be easly set on touch screen One touch change over system Other Features :  Machine Output: upto 3500 pouches per hour Operation of indiviual filling head with different filled volumes UV sterillization of packing material Provision to connect cleaning in place system Mechanical machine with minimum noise level Servo system for paper pulling Export quality machines Optional Accesories :  Lnk date coding device Optical scanner for panel printed packaging material Date embossing attachment   Product Application :  Liquiid Milk Drinking Water Edible Oil Ghee Lassi Curd & Other Liquid Products
