Smart Sensors And Automations SMARTsaa Bhosari, Pune, Maharashtra

Material : Cast Al

Country of Origin : Made in India

IP Protection Class : IP67

Measuring Level : 0-5m

Process Temperature : -10 to 60 Degree C

Housing Material : Plastic

Probe Material : Stainless Steel

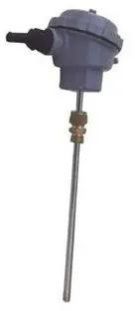

Temperature Range : -40 to 450 deg C

Accuracy : Class B

Sensor Connection Wiring : 2 Wire

Application : Industrial

Termination Type : Terminal Head Assembly

Country of Origin : Made in India

Mounting Options : Side Mount

Current Rating : 2 Amp

Switch Type : Side Mounted Level Switch

Media Type : Liquid

Measuring Range : Point Level Switch

Frequency : 50 - 60 Hz

Country of Origin : 220 - 240 V

Country of Origin : Made in India

Display Type : Digital

Material : Stainless Steel

Mounting Options : Side Mount, Top Mount, Bottom Mount

Switch Type : SPDT

Media Type : Liquid

Mounting Options : Top Mount

Switch Type : Magnetic Float Type

Country of Origin : Made in India

Media Type : Liquid

Current Rating : 2 Amp at 24 V DC

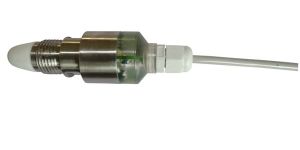

SMARTsaa offers mini point level switch for effective sensing of plastic granules in hopper. This switch is provided with coat guard circuit which makes it immune for sticky deposition on the sensor face. This unique feature is first time added in small housing of capacitive proximity switch. Switch provided with teach function. User can teach the switch not to sense when small dust is deposited on the sensing face. Same sensor can be used for sensing level of liquid, powder, plastic granules The switch works on capacitance principle. When material comes in front of the switch, the dielectric constant changes and when specific level reaches, the switch operates and output signal is produced. Specification: Series : SMARTsaaMCPS Power Supply : 10-30 V DC, three wire type OP : PNP or NPN Load Current : 100 mA Repeatability : + - 2 mm Enclosure : Stainless Steel Operating Temp : 60 Degree Cent Various enclosures are available considering specific requirement, please consult factory

Country of Origin : India

Brand Name : SMARTsaa

Process Temperature : 300 Degree C

Mounting Options : Side Mount

Frequency : 50-60 Hz

Output : Analog Sensor

Material : Stainless Steel

Country of Origin : 5-24 V DC

Material : ABS Plastic / Cast Al

Country of Origin : Made in India

Brand Name : SMARTsaa

Current Rating : 2 Amp at 230 V AC

Shape : Square

Sensing Distance : up to 40 mm depends on strength of magnet

Cable Length : 2 Mtr

Brand Name : SMARTsaa

Accuracy : 0.5%

Switch Type : Inductive

Material : Stainless Steel

Sensing Distance : 5 - 12 mm

Smartsaa offers hall effect proximity switches with high response speed. These switches are used for sensing speed of turbine, motors and high speed equipment. The hall effect sensor senses geared teeth and gives switching output. Application: speed sensing of turbine, motors, compressors and rotating equipments specification : supply : 10-30 v dc op : pnp or npn load current : 200 ma size : m 12 m 18 sensing distance : 1-2 mm object sensed : teeth of geared wheel max operating frequency : 100 k hz enclosure : ni cr plated brass, ip 67 operating temp : 70 degree cent

Material : Ni Cr Plated Brass Tube

Power : 24 V DC

Application : Industrial Use

Operating Temperature : Upto 70 Degree Cent

Shape : Rectangular, Round

Feature : Flameproof

Material : Aluminium Die Cast

IP Rating : IP40

Material : ABS

Display Type : Digital

Brand : SMARTsaa

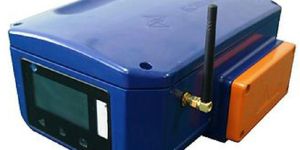

Smartsaa and ecrystal coprporation offers totally new concept of level measurement of coal ash in esp hoppers. It eliminates use of rf level switches which fails at site and 3 d radars which are costly and non affordable. By using this product the operating efficiency of esp hoppers improves drastically as proper level management for effective removing of as is now possible. Special models with wireless remote and control unit make it easy for centralized data collection of plant hoppers at one place. Nogs (naturally occurring gamma-ray sensor), a new-type, secure gamma ray detection technology, widely applied in the level measurement of esp fly ash in the hopper. coal ash sensor, with its built-in processor, can effectively translate the gamma ray intensity of fly ash to precise material level figures by random signal recognition technology no radioactive source coal ash sensor: for fly ash level measurement of esp hopper naturally occurring gamma-ray sensor (nogs) technology do not require use of an artificial radiation source non-contact solution for fly ash level detection unique design that withstands harsh environments positioned completely outside the hopper unit having absolutely no contact with the coal ash materials easy to install, no need to drill a hole in the hopper or pressure tank long lasting, the sensor will not be damaged by falling ash accurate level measurement , do not get affected by ash built up on the wall or high temperatures installation and maintenance can be performed during regular plant operation so no shut down time required specifications: model no : smartsaacas supply : 85 -260 v ac enclosure : control unit, cast al ip 65 mounting : to be mounted outside the hopper simply with bracket op : 2 co relay contact rated for 5 amp at 230 v ac max temp : -45 to 75 degree cent for control unit

Brand Name : SMARTsaa Ecrystal

Total Carbohydrate : 1 Year

Country of Origin : Pune

Application : Level Sensing

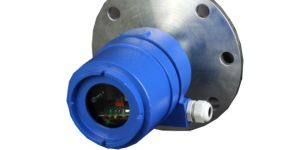

Smartsaal make rf admittance type level switch with disc probe is basically used for sensing the chute blockage in the hopper. It senses jammed condition of the hopper due to clogging at the discharge points. Switch is used for sensing chute jamming of iron ore, cement, lime, food stuff, milk powder, flour, salt & plastic granules. The sensor is to be mounted in the hopper with the help of flange. The heavy duty rugged design makes it ideal for sensing material clogging of hoppers of iron ore, sand, cement and food grains. The disc probe is fabricated out of ss material and provided with uhdmwpe teflon insulation. The heavy duty ss probe withstands the abrasion of material & provides effective sensing. It is designed with special sensing probe using special coat guard circuit, which will ignore effects of deposition on the probe. Control circuit can be integral with sensor probe or it can be mounted remotely if temperature at the product is higher than 100 degree cent. When the electronic circuit is integral with probe, control circuit is housed in cast al, ip 65 enclosure fitted on the sensor itself. The control circuit can also be mounted at remote if the process temp is more than 100 degree cent. Control supply can be 230 v ac; 50 hz (standard) .other voltages like 110 v ac, 24 v dc are available on request. The output is in the form of 2 co potential free relay contact. 5 amp resistive at 230 vac. Switch has facility of built in on and off nuisance delays of 2 to 20 sec. The switch can be programmed at site for top or bottom level monitoring with the help of selector switch. Specifications: model no : smartsaacpls supply : 24 v dc 110 v ac 230 v ac enclosure : control unit , cast al ip 65 mounting : flange mounting, 100 nb, class 150, moc: ci, optional ss flange available op : 2 co relay contact, insulation : uhdmwpe teflon

Length : 68.5mm

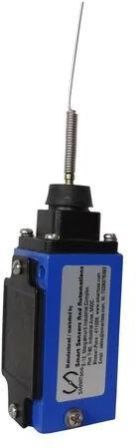

Switch Type : Micro Limit Switch

Ambient Operating Temperature : +85 Degree C

Material : Die Cast Zinc
