Steam Generators
Get Price Quote
We are renowned as one of the most eminent Steam Generators Manufacturers in India. The materials used in the manufacturing of the Steam Electric Generators are of optimum quality that ensures high durability and resistivity to varied adverse conditions. Moreover, customers are eased with the availability of the Industrial Steam Generators with varied ranges to meet the requirements of the applications.
Construction & Functioning

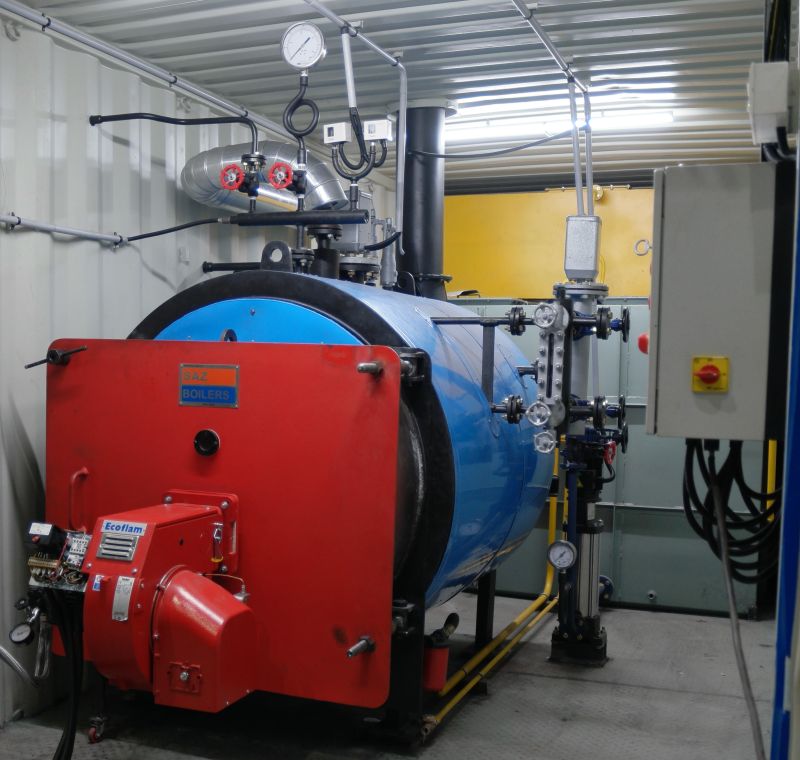

This stem generator is a three pass horizantal smoke tube economic shell type boiler. This boiler is Designed ans fabricated in accordence with India boiler regulations (IBR) 1950, and stage inspected to hydraulically shop tested and certified by director steam boilers of Maharashtra. The Boiler is of wet back construction having very good heat absorption in the Radiant heating zone. The outlet flue gas temperaturers are optimum such that the thermal efficiency is highest and problem due to H2 SO3 consdensation are not observed.(Due to high sulpher content in the furnace oil.)
The furnace is provided with a large radient heating surface thus maintaining safe furnace wall temperatures much below its safer limits.
The furnace volumes are liberally selected. This ensures complete combustion & highest combustion efficiency. The steam and water space is quite large and hence it provides ability to respond to fluctuating loads effectively.
This boiler is provided with a fully automatic low, On-off modulations or contineous step less modulation. This burner is self igniting and able to maintain clean and smokeless combustion all throughout the operarion. The safties like low water level cut out. Flame failure lock out steam safety valve, Back fire pressure relief, fusible plug etc. are provided to ensure safety of the entire unit. The burner function is suitably inter grated with the control panel such that in case of ant abnormal condition arising, the burner shall cut off safety & shall go to safety lockout condition by giving audio visible annunciation & alarm.
Our design and performance advantages
High Thermal efficiency of 88% N.C.V. Over entire operating range.
Water and steam side design
High steam space in the boiler & large steam release area on water surface gives better quality of dry steam. Priming & foaming tendencies are totally eleminated. This means the steam pope line will have long life& will never have deposites inside. Also the plant will have highest integrated steam/ circuit efficiency.
Combustion and Heat Transfer
High furnace volume means long furnace residence time & complete combustion of fuel at low excess air. This gives better combustion efficiency with soot free combustion. Co2% Highest percentage is guaranteed. Moderate Heat release rate/ heat flux ensure low thermal stresses & safe furnace metal temperature.
Optional
To achieve the highest fuel saving. The provision is made to incorporate the air preheater. This preheats the air before fed to combustion, The additional 5% of thermal efficiency can be archived by this feature. High furnace volume & large radiation surface gives very high heat absorption in furnace & also simultaneously keep moderate heat flux & heat release rates. (Heat Flux + Heat released Heat released per m2 of furnace area & heat release rate + Heat release per m3 of furnace volume.
...more
