Swastik Industries Budhwar Peth, Pune, Maharashtra

Swastik Industries Cast Steel Check Valves have been designed to meet the requirements of BS 1868 /ASME B 16.34/API 6D-ISO14313. Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / DIN End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN Butt weld end dimensions conform to ASME B 16.25 The Seat-rings are cylindrical bottom seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. In case of SS valves the Seat-rings are integral to Body. The Body to Bonnet joint is a male & female in ASME 150#, 300# & 600# valves and ring joint is used in higher classes. Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312

In our extensive product range, we are highly engaged to provide a quality approved range of Steam Trap. Our professionals use utmost-grade material for manufacturing these steam traps in accordance with set norms. Furthermore, these steam traps are used regularly for heating or as a driving force for mechanical power. Clients can avail these steam traps from us affordable rate.. Features Sturdy design Abrasion resistance Hassle free functionality

Type : Steam Traps

Material : Utmost-grade Material

Application : Heating, Driving Force For Mechanical Power

Feature : Sturdy Design,Abrasion Resistance

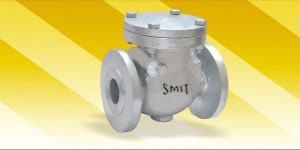

Features SMIT Cast Steel Check Valves have been designed to meet the requirements of BS 1868 /ASME B 16.34/API 6D-ISO14313. Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / DIN End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN Butt weld end dimensions conform to ASME B 16.25 The Seat-rings are cylindrical bottom seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. In case of SS valves the Seat-rings are integral to Body. The Body to Bonnet joint is a male & female in ASME 150#, 300# & 600# valves and ring joint is used in higher classes.

Material : Cast Steel

Pressure Rating : ASME 150#, 300#, 600#

End Connection : Flanged, Butt Weld

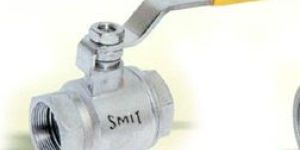

We provide high-quality Smit Ball Valves 1PC (Screw End) designed for both fire and non-fire safe applications. Compliant with BS-5146 testing standard, these ball valves feature a floating ball design for optimal performance. Available in a 20mm variant, our ball valves offer reliable operation and meet face to face dimensions as per standard requirements. As a leading manufacturer, we ensure precision engineering and durability in every product, making them ideal for various industrial applications.

Type : Ball Valve

Design : Fire / Non Fire Safe

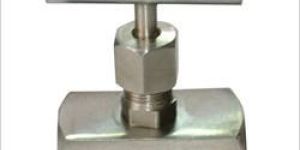

We have emerged as the prominent manufacturer, distributor and supplier of a qualitative array of Needle Valves. Our professionals use utmost-grade material for manufacturing these needle valves in accordance with set norms. Furthermore, these needle valves are used to reduce the rate of flow in a leg of a pneumatic circuit. Clients can avail these needle valves from us affordable rate.

Material : Utmost-grade Material

Type : Needle Valves

We have emerged as the prominent manufacturer, distributor and supplier of a qualitative array of Needle Valves. Our professionals use utmost-grade material for manufacturing these needle valves in accordance with set norms. Furthermore, these needle valves are used to reduce the rate of flow in a leg of a pneumatic circuit. Clients can avail these needle valves from us affordable rate. ---------------------------------------------------------------------------------------------------------------------------------------------------- Features Durability Rugged structure Leak resistance

Type : Needle Valves

Material : Utmost-grade Material

Structure : Rugged Structure

Globe valves are used generally, because of the comparatively small roughness between the sealing surface when open or closed. Also globe valves are durable, open height is small, manufacturing is easy and convenient maintenance, etc. It can be used not only in the low pressure but also high pressure. Globe valve closed depend on stem pressure, make the disc sealing surfaces and seat sealing surface tightly. To stop the flow of media, Globe Valves only allowed a one-way medium flowing direction, so globe valves are installed directional. Features Swastik Industries Cast Steel Globe Valves have been designed to meet the requirements BS 1873 /ASME B 16.34 Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / DIN End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN Butt weld end dimensions conform to ASME B 16.25 Anti-frictional Ball bearings are provided in higher sizes and classes. Outside screw and yoke construction All the valves provided with backseat arrangement The gland is of self aligning two piece type Deep stuffing box The Seat-rings are shoulder seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. In case of SS valves the Seat-rings are integral to Body The Body to Bonnet joint is a male & female in ASME 150#, 300# & 600# valves and ring joint is used in higher classes ---------------------------------------------------------------------------------------------------------------------------------------------------- Options Angle and Y type design available For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available Locking arrangement Gear, Electrical, Hydraulic or Pneumatic actuator available Regulating, guided and soft seated plugs available Bellow Seal for critical service and hazardous media

Type : Cast Steel Globe Valve

Gauge glass, The light ray entering the steam or gas space strikes the groove face at an angle of 45o, being thereby refracted into the opposite groove face from which it is reflected back in direction of observation. The steam or gas space thereby appears silver-white. The liquid space behind the reflex glass appears black.

Features Swastik Industries Forged Steel Valves have been designed to meet the requirements of API 602 / BS 5352 / ASME B 16.34 Socket weld ends dimensions conforms to ASME B 16.11 Screwed ends dimensions conforms to ASME B 1.20.1 Outside screw and yoke construction The gland is of two piece self aligning type Back seat arrangement for Gate and Globe Valves. Valves meet the requirements of fugitive emission level Shell Category B as per MESC SPE 77/312 ---------------------------------------------------------------------------------------------------------------------------------------------------- Options For low temperature and cryogenic services (cold box and non cold box) extended bonnet as per BS 6364 available Welded bonnet construction Locking arrangement Welded on flanges Bellow Seal for critical service and hazardous area

Type : Forged Steel Valves

We are a unique entity in the market, actively committed towards offering an optimum range of Disc Check Valve. Our offered check valves are demanded in industries for their hassle free performance. The offered check valves are designed using superb quality basic material and advanced tools in accordance with prevailing market standard. Moreover, these check valves are provided in safe temper proof packaging options in order to avoid any physical damage while transit. ---------------------------------------------------------------------------------------------------------------------------------------------------- Features Easy installation Flawless finish Less maintenance

Type : Check Valve

Material : Superb Quality Basic Material

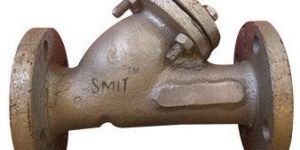

We offer a versatile Cast Steel Y-Type Flange End Valve suitable for various applications. Available in different sizes with standard pressure ratings, this Y-Type valve features a flanged end connection for easy installation. Designed for efficient performance, it can be operated manually or actuated as needed. Ideal for manufacturers seeking reliable valves for their industrial processes.

Type : Y-Type Flanged End Valve

Size : Various Sizes Available

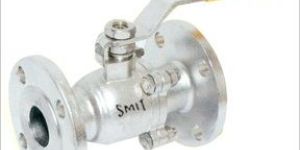

We provide a high-quality Cast Steel Ball Valve with Flange End, designed for bi-directional flow control. Our manual operation ball valve ensures leak-proof sealing, offering reliable performance in various industrial applications. Equipped with a user-friendly handle for easy operation, this product is ideal for manufacturers seeking durable and efficient flow control solutions.

Type : Ball Valve

We are largest valves manufacturers in India and metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows unrestricted passage. The valve may also be opened incrementally to regulate flow. There are different kinds of Butterfly Valves, each adapted for different pressures and different usage.When the butterfly valve is closed, the disc is turned so that it totally shut off the passageway. When the Butterfly Valves is fully open, the disc is rotated at a quarter turn so that it allows unrestricted passage. The butterfly valve may also be opened incrementally to regulate flow. There are different kinds of butterfly valves, that are adapted for different pressures and different usage. A Butterfly valve is a rotational motion valve with a quarter turn. It is used to stop, regulate, and start flow. Features Seat liner extending on to the contact faces ensures perfect sealing and eliminates the use of flanges gaskets. Unique triple sealing system for sheft sealing and prevents extemal substances from entering the stem bore. The thin profile, spherically machined hand polished disc provides a very high Cv and greater pressure recovery plus superior abrasion and erosion resistance in slurry or dry media applications. A fully universal body design ensure fitments of the valve between companion flanges of all standards (viz : ANSI, BS, DIN, JIS, IS etc.)

Type : Rotational Motion Valve

Usage : Stop, Regulate, And Start Flow

Features Swastik Industries Cast Steel Ball Valves have been designed to meet the requirements BS 5351/ASME B 16.34 / API 6D /API 608/MSS SP 72 Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 /API 6D/ DIN End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN Butt weld end dimensions conform to ASME B 16.25 Fire tested design to API 607/API 6FA/BS 6755-II Flexible lip seats compensate for wear and changes in pressure Blow out proof stem construction Antistatic devices ensure electrical continuity between ball, stem & body Triple stem sealing ISO 5211 top pad for simplified gear/actuator mounting Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312 ---------------------------------------------------------------------------------------------------------------------------------------------------- Options For low temperature and cryogenic services (cold box and non-cold box applications extended bonnet as per BS 6364 available. Locking arrangement Gear, Electrical, Hydraulic or Pneumatic actuator available Soft seats are recommended for service temperature up to 260°C and for higher temperatures a metal to metal seating offered can be supplied

Material : Cast Steel

We offer high-quality Stainless Steel Ball Valves with Socket End connection, designed as a One Piece for efficient performance. These ball valves are suitable for operating temperatures up to 200°C, making them ideal for various industrial applications. Trust our expertise as a leading Manufacturer to provide reliable and durable ball valves that meet your specific needs.

Type : Ball Valves

Material : Stainless Steel

End Connection : Socket End

Design : One Piece

Operating Temperature : Up To 200°C

Features Swastik Industries Cast Steel Ball Valves have been designed to meet the requirements BS 5351/ASME B 16.34 / API 6D / API 608 / MSS SP 72 Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / API 6D / DIN End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN Butt weld end dimensions conform to ASME B 16.25 Fire tested design to API 607 / API 6FA / BS 6755-II Flexible lip seats compensate for wear and changes in pressure Blow out proof stem construction Antistatic devices ensure electrical continuity between ball, stem & body Triple stem sealing ISO 5211 top pad for simplified gear/actuator mounting Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312 ---------------------------------------------------------------------------------------------------------------------------------------------------- Options One, two or three piece construction For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available Locking arrangement Gear, Electrical, Hydraulic or Pneumatic actuator available Soft seats are recommended for service temperature up to 260o C and for higher temperatures a metal to metal seating shall be offered

Type : Ball Valve
