Techno Flow (India) Mulshi, Pune, Maharashtra

Techno Flow U-Tube type primary standard manometer used for precision measurement of pressure, vacuum, differential pressure, and flow measurement in plants & labs where certain accuracy is required.

Full View Sight Flow Indicators are assembled with tubular Borosilicate glass. These indicators are simple in construction and used for checking flow from any direction where various values or pump might have to be operated based on the flow in the line. These are recommended where there is no mechanical strain in the pipe line. Inside diameter of the glass tube is as large as or larger than the nominal size of the flow indicators. It is designed for only a negligible pressure drop.

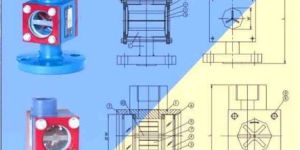

Rotary Type Rotary Type Sight Flow Indicators Are With Rotating Wheel Which Are Suitable For Installation In Any Position, But Are Particularly Adaptable To Lines Carrying Dark Opaque Solutions. The Rotation Of The Wheel Is Visible Through The Glass Window Which Helps To Observe The Flow Easily. The Rotor Is Normally Constructed Of Polypropylene. It Is Specially Designed To Withstand Frequent Jolts Or Vibration During Usage. The Indicators Are Generally Installed In Vertical Lines Where Flow Is Made From A Bottom To Top.

Condition : New

Country of Origin : India

Number Of Flower : Rotary Type Sight Flow Indicator

Material : Polypropylene

Application : Monitoring Flow In Lines

Inclined Manometers utilise expanded scales for unusual sensitivity for fast, easy reading of low pressure. draft of small differential pressure. They are available in simple standard Models as well as extreme precision inclined Manometer. Range In MM : • 0 - 5, 0 - 10, 0-20, 0-25, 0-50, 0-100, up to 0 -200.

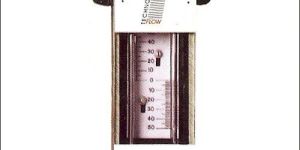

Product Description   We Are Engaged In Offering A Wide Range Of Absolute Pressure High Vacuum Manometers That Is Widely Used For Accurate Measurement Of Process Vacuum Is Its Last Stages. These Are Also Considered Useful In Place Of Vacuum Gauges And In That Process Where Accurate Vacuum Measurement Is Required. To Protect The Manometer From Dust And Moisture, We Have Equipped A Catch Pot To The Manometer. This Also Ensures Protection From Other Sediments In The Line Entering Into The Manometer. Our Quality Absolute Pressure High Vacuum Manometers Has Manometric Mercury That Stays Pure For Long Time. Further, Our Range Is Available In Below Mentioned Ranges:   50 - 0 - 50 Mm Hghg 100 -0 - 100 Mhghg 380 - 0 - 380mhghg

Condition : New

Application : Industrial Use,Accurate Measurement Of Process Vacuum In Its Last Stages

Feature : High Strength, Excellent Quality

Country of Origin : India

Number Of Flower : Manometers

Material : Glass

Ranges : 50 - 0 - 50 Mm HgHg,100 - 0 - 100 Mm HgHg,380 - 0 - 380 Mm HgHg

Product Dscription   Single Limb Well Type Direct Reading Manometer Techno Flow Single Limb Well Type Direct Reading Manometer is for the precision measurement of pressure, vacuum, differential pressure, flow and liquid level measurement. The well type single limb manometer is accurate & dependable as well as highly versatile for many applications. The Manometer is available as either single tube or multiple tube. All scales are graduated to correct for the drop in the well level.   Range in mm:0-200 / 0-300 / 0-500 / 0-800 / 0-1000 / 0-1250 / 0-1500 / 0-2000 / 0-2500 / 0-3000

Condition : New

Application : Industrial Use,Measuring Pressure In A System

Feature : Measure Fast Reading, Perfect Strength

Country of Origin : India

Number Of Flower : Manometer

Material : Glass

Accuracy : Typically +/- 1% Of Full Scale

Product Description   U Type Direct Reading Manometer   Techno Flow U-Tube type primary standard manometer is used for precision measurement of pressure, vacuum, differential pressure, and flow measurement in plants & labs where certain accuracy is required.   Range in mm: 50 - 0 - 50 100 - 0 - 100 150 - 0 - 150 250 - 0 - 250 400 - 0 - 400 500 - 0 - 500 600 - 0 - 600 750 - 0 - 750 1000 - 0 - 1000 1250 - 0 - 1250 1500 - 0 - 1500 2000 - 0 - 2000

Range : 50 - 2000 Mm

Material : Glass Acrylic

Number Of Flower : U Tube Manometer

Country of Origin : India,India

Feature : Accuracy, Measure Fast Reading, Perfect Strength

Application : Industrial Use, Precision Measurement Of Pressure,Vacuum,Differential Pressure,And Flow In Plants & Labs

Condition : New

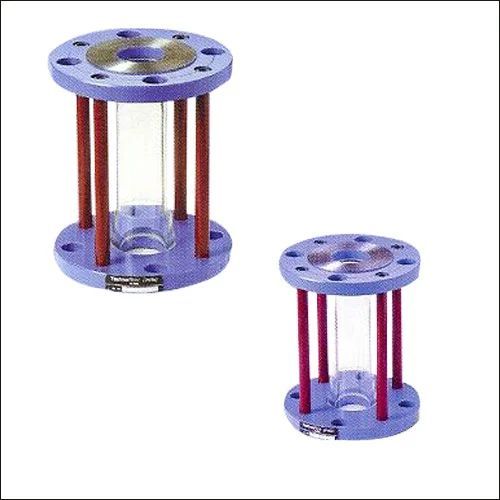

Full View Type Full View Flow indicators are assembled with tubular Borosilicate glass. These indicators are simple in construction and used for checking flow from any direction where various valves or pump might have to be operated based on the flow in the line. These are recommended where there is no mechanical strain in the pipe line. Inside diameter of the glass tube is as large as or larger than the nominal size of the flow indicators. It is designed for only a negligible pressure drop.   Standard Material for Full View Flange: Cast Iron, ASTM A 216 GRWCB, ASTM A 351 GR CF8, ASTM A 351 GR CF8, Brass, Gunmetal, Aluminium Glass Tube: Tempered Borosilicate Gaskets: PTFE, CAF, Neoprene, Viton, Nitrate Studs & Nuts: High Tensile, Mild Steel, SS304, SS316 Connections: Screwed: NPT, B.S.P., Flanged: B.S.10, Table ‘E’, ‘D’, ‘F’, ASA 150#, I.S., Din., etc.

Feature : Easy Maintenance., Smooth Finish And Robust Design

Country of Origin : India

Number Of Flower : Flow Indicators

Application : Checking Flow From Any Direction, Operating Valves Or Pumps Based On Flow, No Mechanical Strain In The Pipeline

Flapper Type Flapper Type Sight Flow Indicators Are Recommended For Horizontal And Vertical Pipe Lines Where A Positive Indication Of Flow Is Required. These Indicators Are Made From A Variety Of Materials Such As Stainless Steel, Mild Steel, Or Borosilicate Glass Or Glass. Position Of The Flapper Shows The Rate Of Flow. The Flapper Is Attached To Hinge Inside The Flow Indicator. Where A Downstream Valve May Remain Closed And There Is Almost No Flow In The Pipeline, The Flapper Indicates That Flow Is Not Present. When The Downstream Valve Is Open And Flow Starts, The Flapper Rotates. So, It Can Indicate Whether There Is Flow Or Not.

Condition : New

Country of Origin : India

Number Of Flower : Sight Flow Indicator

Application : Recommended For Horizontal And Vertical Pipe Lines To Indicate Flow Presence

Drip Type Drip Type Sight Flow Indicators Are Best Suited For Downward Flow. These Indicators Are Important For Indication Of Low Or Intermittent Flow Conditions In The Transparent Sight. They Are Designed With The Simple Operation Where The Intermittent Flow As Well As Full Flow.

Application : Indication Of Low Or Intermittent Flow Conditions

Number Of Flower : Sight Flow Indicator

Country of Origin : India

Feature : Durable, Smooth Finish And Robust Design

Condition : New

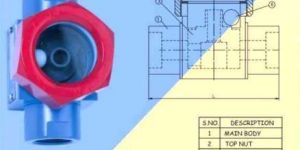

Ball Type Flow Indicator Techno Flow’s ball type flow indicator is ideal for use where visual observation of liquids in pipelines is required. This is a very simple and efficient indicator for general purpose application. These indicators provide a quick and easy way to observe flow presence or direction. It is recommended for application where spot indication is required, as it operates well in any position. The ball is generally made of Teflon or PTFE and is highly visible. The ball can be easily seen from even long distances.

Condition : New

Number Of Flower : Flow Indicators

Application : Ideal For Visual Observation Of Liquids In Pipelines,Spot Indication Where Visual Observation Of Flow Presence Or Direction Is Required

U Tube Manometers [acrylic Body]\\nTechnical Specification:\\n"U" Tube Type Primary Standard Manometer Used For Precision Measurement Of Pressure, Vacuum, Differential Pressure, And Flow Measurement In Plants And Labs Where Certain Accuracy Is Required.\\n \\nAvailable Sizes: In Wall Mounted & Stand Mounted.\\n \\nRanges In Mm:\\n50 - 0 - 50\\n250 - 0 - 250 Mm

Condition : New

Application : Industrial Use,Precision Measurement Of Pressure, Vacuum, Differential Pressure, And Flow

Feature : Accuracy, Measure Fast Reading

Country of Origin : India

Number Of Flower : Primary Standard Manometer

Material : Acrylic

Size : Wall Mounted & Stand Mounted

Range : 50-0-50 To 250-0-250 Mm

Single Limb Manometer [Acrylic Body]\\nTechnical Specification:\\nSingle Limb well type Direct Reading Manometer for the precision measurement of pressure, vacuum different pressure, flow and liquid level measurement.\\nSizes: In wall mounted and stand mounted.\\nRange:\\n0 - 100 to 0 - 500

Condition : New

Application : Industrial Use,Precision Measurement Of Pressure, Vacuum, Pressure Flow, Liquid Level

Feature : Measure Fast Reading, Perfect Strength

Country of Origin : India

Material : Acrylic

Number Of Flower : Single Limb Well Type Direct Reading Manometer

Range : 0-100 To 0-500

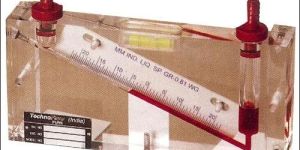

Inclined Manometers Technical Specification: Inclined Manometers utilise expanded scales for unusual sensitivity for fast, easy reading of low pressure, draft of small differential pressure. They are available in simple standard Models as well as extreme precision inclined Manometer.   Available Least count: 0.1 mm / 0.25 mm / 0.5 mm   Range in mm: -5 / 0 / 10 -5 / 0 / 20 -10 / 0 / 25 0 - 30 0 - 50 0 - 100 0 - 200

Condition : New

Application : Industrial Use,Measuring Pressure In Inclined Positions

Country of Origin : India

Number Of Flower : Manometer

Material : Acrylic

Accuracy : High Accuracy

Availability : Lightweight

Techno Flow range of Valve Manifolds offer a safe and economical method of installation to control and measure pressure of liquids and gaseous media. They are ruggedly manufactured and precision machined to the most exacting dimensional tolerance to ensure perfect installation and application Valve Manifolds are functionally installed to control, measure , isolate , equalize , calibrate, drain, vent or differentiate the pressure of liquids and gases.
