Vimson India Engineers Bhosari, Pune, Maharashtra

Capacity : 60L-500L

Application : Industrial

Material : ss

Phase : 3 phase

Material : SS

Country of Origin : Made in India

Material : 316L, 316, 304, 304L

Country of Origin : Made in India

Material : 316L, 304, 304L, MS

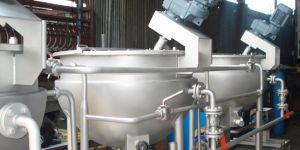

Our kettles have a unique design with a true hemispherical bottom, ideal for mixing and, with the help of an optional spiral jacket built in to the hemisphere, providing high efficiency heating and cooling. Capacities range from 50 Liters to 500 Liters. We stop at 500 Liters because the complexity of the half sphere bottom limits the functionality on anything above that. Technical Parameter: - Capacity: 50 Liters to 500 Liters - Mixing time: Continuous Process- Power: 0.75 KW-10 KW (Varies as per capacity) - Material: 316L, 304, 304L  Features - Two piece covers, either lift-off or hinged - Traditional high-polished sanitary finish- All stainless steel product contact parts - All of our kettles can be modified or custom built to your specificatio   Applications - Food

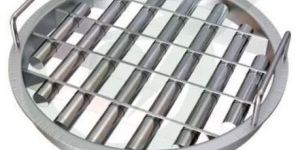

Application : Grill Use

Feature : Durable, High Quality

Country of Origin : Made In India

An agitator is a device or mechanism used to put something into motion by shaking or stirring. There are several types of agitation machines, including washing machine agitators and magnetic agitators. Agitators can come in many sizes and varieties, depending on the application. In general, agitators usually consist of an impeller and a shaft. An impeller is a rotor located within a tube or conduit attached to the shaft. It helps enhance the pressure in order for the flow of a fluid to be done. Technical Parameter: - Capacity: 100 Liters to 15000 Liters - Mixing time: 15-60mins- Power: 0.3 KW-30 KW (Varies as per capacity)- MOC: 316L, 304, 304L, Mild Steel Features - High performance- Long working life- Optimum strength- Ruggedness Application Depending Upon Agitator Types Paddle Agitators This is one of the most primary types of agitators with blades that reach up to the tank walls. Paddle agitators are used where uniform laminar flow of liquids is desired. Anchor Agitators This simple agitator consists of a shaft and an anchor type propeller and can be mounted centrally or at an angle. It is mainly used in reactors. Propeller Agitators A propeller agitator is shaped with blades tapering towards the shaft to minimize centrifugal force and produce maximum axial flow. Propeller agitators are popular for simple mixing jobs. Turbine Agitators Yet another type of process agitator is the turbine agitator. Turbine agitators can create a turbulent movement of the fluids due to the combination of centrifugal and rotational motion. Helical Agitators These agitators have blades with a twisted mechanism, just like the threads of a screw. The curves result in a vigorous motion of the fluids to be agitated. Helical agitators are most useful for mixing viscous liquids.

Horizontal ribbon Blender is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule. Under the driven of motor, the double ribbon agitator mix the material quickly. This ribbon mixer is characterized by high mixing effect, large productivity, and a very low failure rate. Since it is a batch type mixer, customer should choose the model according to the output per batch. Technical Parameter: Capacity: 25KG to 2000KG Mixing time: 30-60minspower: 0.7 5 KW-23 KW (varies as per capacity) Material: 316L, 304, 304L, Mild Steel Features - Blending with low RPM- Both Side walls are Sealed- Four Bearing Construction - Liquid Addition arrangemen Working Principle Blender consists of transmission parts, double ribbon agitators and U-shape cylinder. In the direction of rotation, the outer ribbon pushes materials from both ends to the middle, while the inner ribbon pushes materials from the middle to both ends. Ribbon wind with different angle direction carries the materials flowing in different directions. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly. Applications - Chemical- Food- Pharmaceutical- Fertilizer- Plastic- Animal Feed- Cosmetic

The need for manual inspection of the peeled potatoes varies depending on the season and quality of the incoming potatoes. This ensures that the potatoes turn and expose the entire surface to the staff at the inspection table. The speed of the rollers can be easily adjusted. The inspection table can be fitted with separate waste/trimming belts on each side (optional). The cut trimmings are collected in a container. The roller inspection table can also be supplied with individual cutting plates for each inspector (optional). Features Design as per your requirement Available in Tubular (O) and Trough (U) Cross section Without hanger bearing up to 5 meter length Technical Parameter: - Capacity: 1THP to 8THP - Power: 0.7 KW-3.8 KW- Material: 316L, 304, 304L, Mild Steel

Phase : Three Phase

Material : Mild Steel

Country of Origin : Made in India

Purity : Optimum finish, Longer service life, Easy installation

Application : Industrial

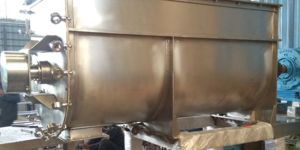

Dough Blender is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, & powder with granule. Under the driven of motor, the double ribbon agitator mix the material quickly. This ribbon mixer is characterized by high mixing effect, large productivity, and a very low failure rate. Since it is a batch type mixer, customer should choose the model according to the output per batch. Technical Parameter: - Capacity:100KG to 1000KG - Mixing time: 30-60mins- power: 3 KW-15 KW (Varies as per capacity) - Material: 316L, 304, 304L, Mild Steel Features - Blending with low RPM - Both Side walls are Sealed- Four Bearing Construction - Liquid Addition arrangement Applications - Chemical- Food- Pharmaceutical- Fertilizer- Plastic- Animal Feed- Cosmetic

Purity : Robustness, Durability, Easy installation

Country of Origin : Made in India
