Ribbon Blender Dealers in Pune

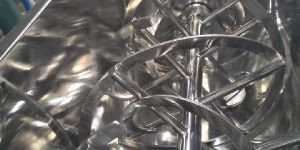

Padmaja Engineering offers best in class Ribbon Blenders to our valuable customers. Available with us at industry leading prices, these Ribbon Blenders are known for their energy efficient design and minimum maintenance. For the purpose of effective mixing various materials, these blenders are widely used. The optimum quality of the offered blenders is never compromised upon. We are top notch Manufacturer & Supplier of Ribbon Blenders. Our product range also comprises of Chiller System, Pressure Vessels and Natural Gas Plant Equipment. Features: Easy to use Longer functional life Robust design Specifications: Capacity: 50 to 10000 Liters Material: Stainless steel.

We are Pune(India) based entity and actively involved in offering nothing short of the best quality products in the market. We are the most promising name when it comes to Horizontal Ribbon Mixer.

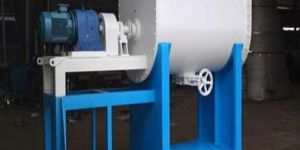

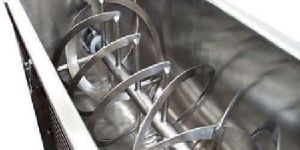

We are the prominent manufacturer of a wide range of Ribbon Blender. The offered range is manufactured using the finest grade raw material and latest techniques. Apart from this, these blenders are quality tested on well-defined parameters in order to ensure their flawlessness. Client can avail the offered blender from us at the most reasonable prices.   Features : • Rust and Heat Resistant • Easy Operation • Less mixing Time

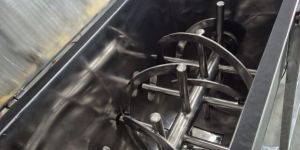

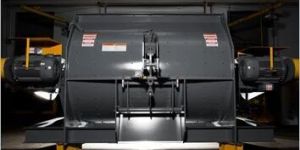

Horizontal ribbon Blender is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule. Under the driven of motor, the double ribbon agitator mix the material quickly. This ribbon mixer is characterized by high mixing effect, large productivity, and a very low failure rate. Since it is a batch type mixer, customer should choose the model according to the output per batch. Technical Parameter: Capacity: 25KG to 2000KG Mixing time: 30-60minspower: 0.7 5 KW-23 KW (varies as per capacity) Material: 316L, 304, 304L, Mild Steel Features - Blending with low RPM- Both Side walls are Sealed- Four Bearing Construction - Liquid Addition arrangemen Working Principle Blender consists of transmission parts, double ribbon agitators and U-shape cylinder. In the direction of rotation, the outer ribbon pushes materials from both ends to the middle, while the inner ribbon pushes materials from the middle to both ends. Ribbon wind with different angle direction carries the materials flowing in different directions. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly. Applications - Chemical- Food- Pharmaceutical- Fertilizer- Plastic- Animal Feed- Cosmetic

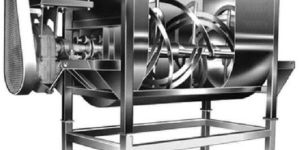

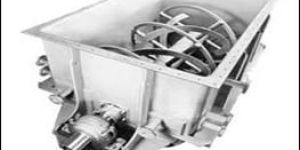

Ribbon Blender are mostly used by Chemicals, Plastic, Pharmaceutical, Paints and food industries. The Ribbon Blender does homogenous mixing of powder and semi-wet material of different densities. The ribbon blades of different designs are used to suit the need of different materials. The Blender consists of a Semi-cylindrical shell inside which rotates a Shaft fitted with spiral inner and outer ribbons.

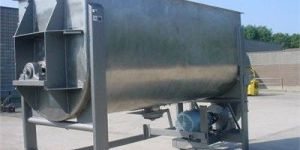

Dhruv Fabrotech manufacture and supply a premium quality range of Ribbon Blenders, that are used for blending of various materials in a fast and efficient manner.

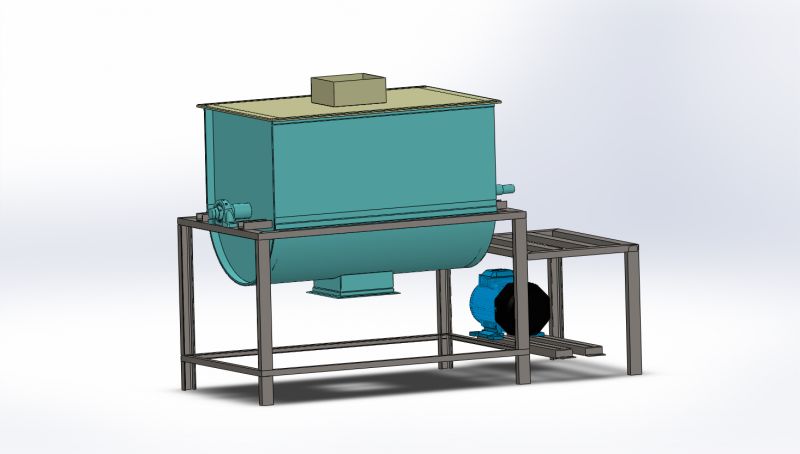

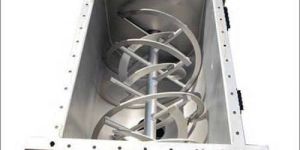

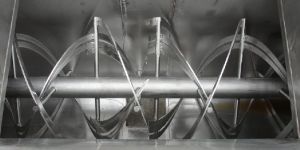

Ribbon Blenders consist of a U-shaped horizontal trough and a specially fabricated ribbon agitator. A ribbon agitator consists of a set of inner and outer helical agitators. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction. The ribbons rotate at approx. 300 fpm moves materials both radially and laterally to insure thorough blends in short cycle times. Ribbon agitators are used for blends that will be between 40 and 100% of the rated capacity of the blender.

Ribbon Blenders are best suited for mixing, granulation and homogenizing batch process. It handles a range of applications from all types of powders including free flowing to cohesive and moist powders, bulk dry materials to wet cakes and slurries.   Ribbon Blenders are very sturdy and robust. They consists of a conical Vessel with dished / flat head. The central agitator shaft is driven from top end with gear reducer.   A double helical ribbon agitator in the vessel moves the product upward along the outer wall and releases it downward into cavities developed in the middle, simultaneously material is horizontally distributed by the mixing arm and is optimally homogenized.   Mixing time is depending on the agitator speed. In general mixing time is three to four times shorter than the mixers working with a rotating screw.   The drive and bearings are kept outside of the vessel, no gears or seals in the product compartment. The rotating central agitator shaft does not have bottom bearing support there by eliminating any dead spots or difficult areas to clean and there is no danger of product contamination. Discharge of the product is fast and simple as full bore open.     Design Options :   • Models with single or double helix. • Net capacities for 20 to 25000 litres. • IVarious Material and surface treatment available depending upon product characteristics • Cutting rotors for breaking down of agglomerates • Liquid adding by ISP system. • Heating Cooling jackets with insulation

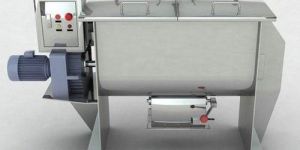

Ribbon Blender are mostly used by Chemicals, Plastic, Pharmaceutical, Paints and food industries. The Ribbon Blender does homogenous mixing of powder and semi-wet material of different densities. The ribbon blades of different designs are used to suit the need of different materials. The Blender consists of a Semi-cylindrical shell inside which rotates a Shaft fitted with spiral inner and outer ribbons. We offer industrial ribbon blenders, ribbon blade, ribbon blade in two parts etc. Our ribbon blenders are designed in such a manner so that even the smallest quantity of ingredient can be blended efficiently with large volumes. We manufacture a vast range of ribbon blenders which are kind of powder blending system, which is used to mix various powders with or without weighing. These are in wide demand among chemical, pharma, animal feed and agro industries.

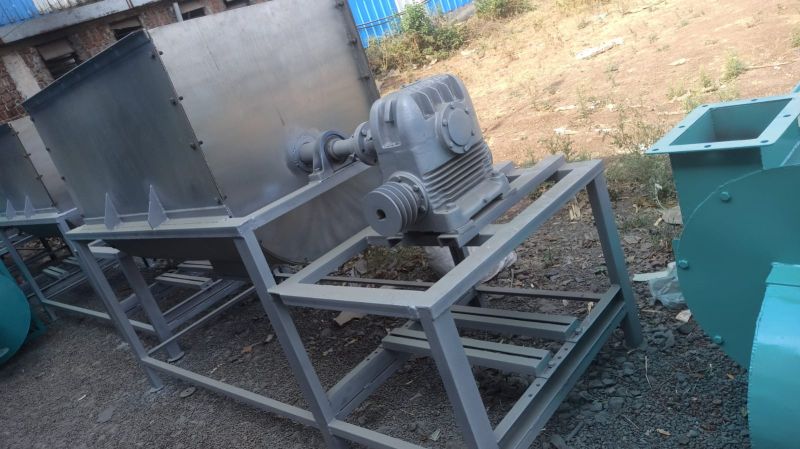

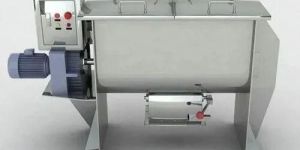

We are offering ribbon blenders, which are available in different speculations depend upon application. We are a renowned ribbon blender manufacturer, exporter, and supplier from india. Our ribbon blender is available with u-shaped horizontal trough and double helical ribbon for high speed and effective rotation. It blends powder in horizontally and vertically as well. Our ribbon blender is suitable for various cohesive powders and can easy handle different kind of densities. available in : liters : 100 to 5000 material : stainless steels (varied grade) model : gmp (optional) components : electrical motor worm reduction gear belt drive mixing stirrer discharge valve(centrally located) & top cover cooling or heating jacket( optional) applications : industrial mixers pharmaceutical mixers industrial pharmaceutical mixers
