volfram Warje, Pune, Maharashtra

Strainers are always recommended to be installed prior to the Reducing valve, to prevent any of the dirt particles / pipe muck from clogging the small orifices / openings of the Reducing Valve. Volfram Y - Type Strainers with Stainless Steel Screens having mm dia. perforations as standard. We also offer wide range of Strainers for various applications like Steam, water s condensate. The types of Strainers available are: Bucket Strainers In line Conical Strainers Other Applications: At inlet of Steam flow meters, Control valves etc. Available Sizes: From 15NB to 200NB.

Waste Heat Recovery Systems With day by day rising costs of fuel & in turn utility cost, recovering the waste energy is a basic need of any process industry. We offer complete customized package solution to recover energy from various waste heat sources in process plants.   In any process plant there are many heat sources available which are going to drain/ETP from which substantial amount of energy can be recovered like: Hot contaminated steam condensate, Vent Steam, Dye liquor from textile process, Process drain hot water, Boiler Blow down water & many more…. Benefits of Waste Heat Recovery Systems: Savings of substantial amount of Steam/Fuel. Reduced load on ETP as lower temperature effluent going to ETP. Reduced batch timings as in some cases hot water from the heat recovery system is used as input to the process. Boiler steam output increases as in some cases hot water from the heat recovery system is used as input to boiler feed water tank. Features of Waste Heat Recovery Systems: Compact design & skid mounted Design for ease of maintenance User friendly Performance monitoring tools provided Cost effective Safe in operation Recovering heat from the different sources needs different engineering of the complete system, which involves Selection & designing of: Waste Heat Recovery Systems The selected heat exchanger should be suitable for the particular application The design should be considering the maximum Waste Heat Recovery Systems

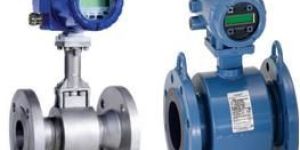

To have complete control of the utilities in the plant, it is very important to measure & monitor their consumptions. Steam being the one of the costly utilities in the process plant a proper measuring system must be in place. Unless & until we monitor, we cannot optimize its usage. We offer Vortex type flow meters for the steam measurement, Electromagnetic flow meters for the flow measurement of water, milk etc. Steam is energy medium, so measuring steam flow is actually measuring a flow of energy. In the same way that other energy flows are metered (e.g. gas, oil and electricity), measuring the steam flow to an entire factory allows trends in energy use to be established, making it easier to identify opportunities for cost and carbon savings Identifying areas where energy could be saved will enable companies to focus their efforts to reduce operating costs by using energy more efficiently. It helps to determine the direct efficiency of boiler. Vortex Flow Meter function on the Karman Vortex Shedding principle, which involves the generation of vortices in flow of fluids after impact on a bluff body placed in the flow path. The frequency of generation of these vortices is directly and linearly proportional to the velocity of flow Features of Vortex Flow Meter: Steam density changes with its pressure. The steam flow meters are provided with the density compensation to measure the steam flow accurately even at the fluctuating steam pressures. Very reliable PT1000 sensors are used to measure the temperature of the steam, from which the pressure & density is derived. Steam meters are constructed in complete SS body which ensures long life. Steam meters work with high turn down. Sensor used in the meter is capacitive type which is robust & highly reliable. It has no moving parts. Little resistance to flow.

The Volfram Tubular Heat Exchanger is used majorly in food and beverage industryfor chilling, heating as well as pasteurization application. The combination of straight as well as corrugated Tubular Heat Exchanger are used which gives the optimum efficiency and maximum output. Features of Tubular Heat Exchanger:   Every tubular heat exchanger is designed and customized based on the product used, its density, specific heat, thermal conductivity and viscosity. The complete heat exchanger module customized design offers easy dismantling and assembly. Every heat exchanger module is designed to suit the site conditions for installation. The hygienic design of tubular heat exchanger ensures the food safety norms. Material of Construction:   Shell Side: SS 304 (Media) Tube Side: SS 316 (Product) Frame: SS 304 Note: MOCs can be changed based on Application and user requirement. Tubular Heat Exchangers have various applications in following industries:   Confectionary Fruit Juice & Smoothies Dairy and dairy products Soups and sauces Fruit and Vegetable Purees and Concentrates Beverages Distillery Brewery Vegetable Oils Jams and jellies

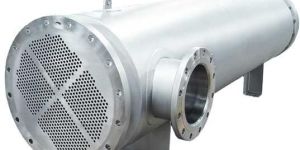

A shell and tube heat exchanger is a class of heat exchanger designs. It is the most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. As its name implies, this type of heat exchanger consists of a shell (a large pressure vessel) with a bundle of tubes inside it. One fluid runs through the tubes, and another fluid flows over the tubes (through the shell) to transfer heat between the two fluids. The set of tubes is called a tube bundle, and may be composed of several types of tubes: plain, longitudinally finned, etc. Volfram offers Shell and Tube Heat Exchangers with Smooth Tubes and Corrugated Tube through its fixed sized ranges and customized ranges of heat exchangers for applications such as pre -heaters, hot water generators, and condensers, re -boilers. The heat exchangers are designed on the basis of our extensive thermal and mechanical experience acquired over the period of time through successful installation of units. VOLFRAM offers all type of ASME configurations for all types of applications in Stainless steel construction. VOLFRAM has an entire range of standard heat exchangers in single pass and multi-pass design which helps in quick selection of the heat exchanger to give an optimal and economical solution.   Applications: Steam Heaters Vapor Condensers Coolers Thermic fluid / Hot Oil heaters   Shell and Tube Heat Exchangers have various applications in following industries: Chemical Process Industry Edible oil industry Pharmaceutical industry Petrochemical Food Industry Textile Industry Pulp and paper Sugar Industry Cement and AAC Blocks

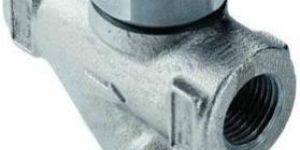

The immediate condensate discharge out of Steam Trap systems is absolutely necessary to retain the maximum possible capacity of the heat exchanger and to minimize the danger of corrosion, water-hammering & temperature fluctuations in the process. Volfram offer highly robust & maintenance free thermodynamic steam traps for the removal of condensate from the steam lines, headers etc.   They are compact & lightweight Have large condensate removal capacity in their range As disc is only moving part, maintenance can be done easily Without removing the trap from line Higher working life as material of construction is complete Stainless Steel Other Applications: Steam Trap carrying pipe lines, steam headers. Available Sizes: 15 NB, 20 NB, 25 NB.

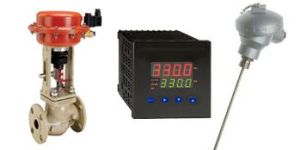

Temperature Control System Volfram provides the complete range of customized temperature control solutions and control valves which can fulfill the needs of various process requirements. In a process plant there are requirements of different temperatures at different processes. It is very important to control & maintain the temperatures as specified in order to: Reduce the rejections of the products Maintain the quality of the products Also, each degree of overheating of the product results in the wastage of steam/energy.

With day by day rising costs of fuel & in turn utility cost, recovering the waste energy is a basic need of any process industry. We offer complete customized package solution to recover energy from various waste heat sources in process plants.   In any process plant there are many heat sources available which are going to drain/ETP from which substantial amount of energy can be recovered like: Hot contaminated steam condensate, Vent Steam, Dye liquor from textile process, Process drain hot water, Boiler Blow down water & many more…. Benefits of TDS Control System: Savings of substantial amount of Steam/Fuel. Reduced load on ETP as lower temperature effluent going to ETP. Reduced batch timings as in some cases hot water from the heat recovery system is used as input to the process. Boiler steam output increases as in some cases hot water from the heat recovery system is used as input to boiler feed water tank. Features TDS Control System: Compact design & skid mounted Design for ease of maintenance User friendly Performance monitoring tools provided Cost effective Safe in operation Recovering heat from the different sources needs different engineering of the complete system, TDS Control System which involves Selection & designing of:

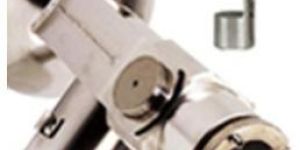

The immediate condensate discharge out of steam systems is absolutely necessary to retain the maximum possible capacity of the heat exchanger and to minimize the danger of corrosion, water-hammering & temperature fluctuations in the process. It is the task of Float controlled steam traps to discharge condensate out of steam consuming equipments but to keep the steam inside. Rotating Plug Steam Traps Working Principle VOLFRAM float controlled steam traps operate based on the rotary slide valve principle. These float controlled steam traps sense the density difference between vapor and condensate. As the incoming condensate reaches the trap body the condensate level rises so does the float. Due to the movement of the float the rotary valve is able to turn and open the outlet port and the condensate is discharged. Now as the level of condensate falls so does the float and the rotary valve turns and closes the outlet port. With this type of operation the condensate is discharged continuously. VOLFRAM float controlled steam traps operate effectively even at small differential pressures. Their operation is not affected by pressure fluctuations. These traps are provided with features such as air vent and a steam / gas barrier in the form of immersion tube. The thermostatic air vent offers the added benefit of significantly increasing condensate capacity on cold start-up. Features of Steam Trap: Only one moving point Proportional control action Exact, impact free & silent condensate discharge Independent of pressure & temperature Extremely long working life Little wear with extremely low maintenance Simple mechanism Applications: Float traps are recommended to be installed at process equipments. Sizes Available: 15 NB, 20 NB, 25 NB, 40 NB, 50 NB

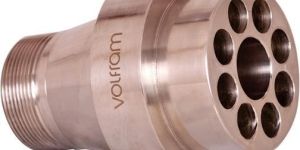

We offer complete solution for the direct steam injection system for the feed water tank to maintain the required temperature in the feed water tank.Steam Injector system is the heart of this system which ensures proper mixing of steam and water resulting in uniform temperature.   Features Steam Injector system: Completely mechanical components. Steam Injector system has complete SS316 construction. Temperature maintained in the range of +2°C. Temperature setting is very easy. Highly robust & maintenance free.   Application of Steam Injector system: Boiler feed water tanks Process hot water tanks Washer in textile industries Available Sizes: 25 NB, 40 NB,50 NB, 80 NB, 100 NB

To have complete control of the utilities in the plant, it is very important to measure & monitor their consumptions. Steam being the one of the costly utilities in the process plant a proper measuring system must be in place. Unless & until we monitor, we cannot optimize its usage.

VOLFRAM Offers Small Industrial Boiler which are suitable for plants where there is requirement of low pressure steam & lower steam loads like Small Milk processing Units, Feed plants, Laundries, Hose Manufacturing, Small Chemical units etc. Benefits to the customer: Compact Layout Boiler is compact & require less floor space at the site. Lower Site Activities Boiler comes as a package with insulation, refractory, cabling & control panel work done at factory Small Industrial Boiler. Thus the site activities are lowered & Customer saves on the costs of carrying out these activities at site. Lower Time for Installation Lower site activities further reduces the time for the installation. Better Quality As the complete assembly of the boiler is done at factory the quality achieved is better than the one done at site. Centric Furnace The furnace of the boiler is centrally located which ensures no tubes in cold zone & enhances effective heat transfer resulting into lower start up time. Better Response to Fluctuating Loads The higher steam space inside the boiler results in better response to Fluctuating steam loads. As a unique feature VOLFRAM offers Boiler along with the Head Mounted Feed water tank with inbuilt Heat recovery system. This ensures maximum heat extraction from the flue gases before escaping to the atmosphere ensuring minimum steam cost. Capacity Range From 300 kg/hr to 600 kg/hr. Standard Design Pressure 7 kg/cm2 (g) VOLFRAM offers complete package for the Boiler House consisting of Chimney Pollution control equipments Piping (IBR/NIBR) Feed water tank with accessories Water treatment plant for boiler On site IBR formalities

In a close system of steam & condensate, it is very difficult to check whether the steam traps are working or not. Sight glass is a tool for the user for the monitoring of the performance of the equipment.   Application: Used for Indication of the flow, so as to detect the blockage of the flow Inspecting the performance of the equipments, whether any leakage of the vapors or live steam No moving parts so maintenance free Double window glass gives ease of inspection Available with CS body which has higher working life Available Sizes: 15NB, 25NB, 40NB, 50NB.

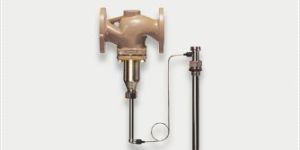

This consists of completely mechanical & robust self operated temperature control systems which can easily maintain the temperature within a band of +/- 2˚ C. The system is very easy to install, commission, maintenance free. Unique feature of this system is that it doesn’t require electrical or pneumatic connection to operate, thus it is intrinsically safe. Applications of this system are in Feed water tank of boiler, process hot water tanks and areas in the process where electric/pneumatic supply is not available.

Self operated steam control Strainer is the most trusted pressure reduction solution for consistent pressure at user point. Features of Strainer: Accuracy: The Self Operated PRV operates with +/- 2% which is the best accuracy in its range. Running Cost: The Strainer is purely mechanical & works on the direct feedback from the downstream of the Pressure Reducing Strainer. Hence no pneumatic or electric supply is needed. Easy To Maintain: Self Operated PRV is very easy to maintain as it has very simple mechanism & it can be repaired without removing from the line. Higher Turn Down Ratio: Self Operated PRV has high turn down ratio due to which it responses well to the fluctuating loads.

VOLFRAM offers Safety Valve for Steam & other media application with precise pressure release settings to avoid the mechanical damage to equipment & surroundings, injury to the operators, loss of production etc. because of the higher pressure rise. In the event of the Control valves malfunctioning, the equipment to which it is supplying steam or any other media needs to be safeguarded from increase in pressure. This necessitates the installation of a Safety valve at each equipment.   Features of Safety Valve: Complete SS316 construction Suitable for various medias Highly Robust Suitable for the chemical industries where there is corrosive atmosphere Comes with factory setting of safety pressure Easy to install Compact Design High Discharge Capacity Pressure Range upto : 0.5 bar to 18 bar Temp. Range upto : 280 Deg C Self Draining Body Design ensures no residues & corrosion   Applications of Safety Valve: Saturated Steam Compressed Air / other gases Cylinder filling stations Chemical plants equipments, reactors etc, Pressure Vessels End Connection Available : 15NB, 20NB, 25NB Screwed BSP and NPT

VOLFRAM The model A-10 Pressure Transmitter sensor for general industrial application is not only notable for its compact design, but it also offers excellent quality at an extremely competitive price.The user can choose between a non-linearity of 0.25% and 0.5 %. A free test protocol provides information on the measuring points recorded during manufacture. Special features of Pressure Transmitter: Measuring ranges from 0 ... 0.05 to 0 ... 1, 000 bar Non-linearity 0.25 % or 0.5 % Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others Electrical connection: Angular connector from A and C, circular connector M12*1, cable outlet 2 m Process connection G 1/4 A DIN 3852-E,1/4 NPT and others   Application of Pressure Transmitter: Machine building Shipbuilding Measurement and control technology Hydraulics and pneumatics Pumps and compressors

The Samson make Type 41-23 self-operated universal pressure reducing regulator is a standard size regulator (1/2" - 4") designed to work in all general industrial applications. A pressure reducing valve is used for controlling the downstream pressure (p2) to an adjusted set point. The design of a pressure reducing regulator valve is to close when the downstream pressure rises above a set value.These valves are self-operated in that the downstream pressure being controlled is tapped downstream of the Pressure Reducing Valve and transmitted via a control line to the operating diaphragm of the Type 41-23 where it is converted into a positioning force.   Special features of Pressure Reducing Valve: Low-maintenance proportional regulators requiring no auxiliary energy Frictionless plug stem seal with stainless steel bellows Control line kit available for tapping the pressure directly at the valve body Wide set point range and convenient set point adjustment using a nut Exchangeable set point springs and actuator Spring-loaded, single-seated Pressure Reducing Valve with upstream and down stream pressure balancing by a stainless steel bellows Soft-seated plug for high shut-off requirements Standard low-noise plug Special version with flow dividerSt I or St III (NPS 2½ to 4/DN 65 to 100) for further noise level reduction All wetted parts free of non-ferrous metal   Application of Pressure Reducing Valve: Pressure regulators for set points from 0.75 to 400 psi (0.05 to 28 bar) Valves in NPS ½ to 4 (DN 15 to 100) Pressure rating Class 125 to 300 (PN 16 to 40) Suitable for water,gases, and vapors up to 660 °F (350 °C)

VOLFRAM offers high quality Bourdon tube pressure gauges with complete stainless steel body and internals for accurate measurement of pressures, suitable for various media applications.   Application: For gaseous and liquid aggressive media that are not highly viscous or crystallizing, also in aggressive ambience CDA (clean dry air) applications Indication of failure alarm on gas cylinders Machine building and general plant construction Pressure Gauges are most commonly used on media like Steam, Water, Hot Oil, and Compressed Air.   Features of Pressure Gauges: All stainless steel (Ss316) construction Cost-effective and reliable Highly Robust and Accurate Design as per EN 837-1

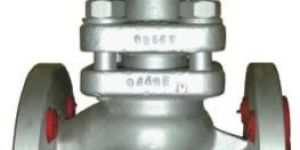

VOLFRAM Cast Steel Piston Valves provide perfect tightness and Installation durable stability on different mediums such as steam, superheated steam, heat transfer fluid, ammonia, L.P.G., acids, alkalise, etc.   Salient Features of Piston Valve: Economic, easy to service Absolutely leak-tight across the ports and to the atmosphere No erosion of sealing surface Saves energy and does not contaminate the environment Maintenance free   Piston valves can be provided with additional feature like: Regulating Piston/Lantern Bush; for coarse regulating/Throttling operation Extended Spindle: For Cryogenic application/Hot media to prevent heat transfer to H/W and aid handling of valve Heating Jacket: For Media that tends to solidify/crystallize at low temperature and needs constant heating by either steam/Thermic oils circulated through the Jacket. Pneumatic, Hydraulic or Electrical Actuator: For remote operating of the Valves Safety Information of Piston valve: Before attempting any maintenance of the Valve, ensure that pressure is isolated and safely vented to atmosphere. Do not assume that the system is depressurized even when a pressure gauge indicates zero. Maintenance of Piston valve: Maintenance of Piston valve is very easy and can be done while the valve is in position & not in service. Please refer 'User Manual' for replacement of Body sealing stack set, Bonnet Sealing Ring & Gland sealing stack. Lubricate spindle regularly with Molykote M30 oil.

Valve Type PAV - In normal condition, 'A' port is closed and 'AB' port is connected to 'B' or 'B' port is connected to 'AB' port. On receiving pilot pressure, 'A" port is connected to 'AB' or 'AB' port is connected to 'A' closing port B. Piston Actuated Valve Type 6619E - Normally 'B' port is closed and 'A' port is connected to 'AB' or 'AB' port is connected to 'A'. On receiving signal 'A' port is closed and 'B' port is connected to 'AB' or 'AB' port connected to 'B'.   Applications of Piston Actuated Valve: Boiler feed water tanks Process hot water tanks Washers in textile industries

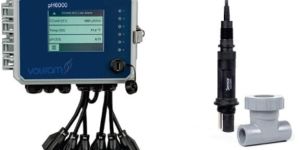

VOLFRAM offers The ph6000 series provides reliable, flexible and powerful control for your water treatment program.   Features of pH Control System: Large touchscreen display with icon based programming makes setup easy Universal sensor input provides extraordinary flexibility: pH Control System the same controller can be used with almost any type of sensor needed Combination Sensor Input and Analog Input board that add even more flexibility lead/lag control of up to 6 relays Optional dual analog (4-20 mA) input for Fluorometers or nearly any other process value Multiple language support allows simple setup no matter where your business takes you Six control outputs allow the controller to be used in more applications Economical wall-mount package for easy installation On-screen and web page graphing of sensor values and control output status Two Virtual Inputs that are calculated from two real inputs (cycles of concentration, % rejection, etc,) Complete flexibility in the function of each relay Datalogging Emailing Alarm messages, Datalog reports or pH Control System Summary reports Ethernet option for remote access via the Internet, LAN or Modbus/TCP

VOLFRAM offers high efficient 3 pass internal furnace packaged solid fuel fired steam boilers. Capable of being fired on Wood/Solid agro waste, Coal this is capable of achieving high thermal and combustion efficiencies through the optimum sizing of steam output. Utilizing the 3 pass wet back concept the full combustion of fuel takes place within the large furnace before passing into the fully submerged wet back reversal chamber. Two passes of convection tubes then carry the hot flue gases through the two convection tube bank in the boiler and thus ensuring complete transfer of heat for steam generation and thus ensuring high efficiency. Features of Packaged Solid Fuel Boiler: Saddle Mounted Boiler The entire unit is saddle mounted, including all accessories - only connections for water, I D fan, chimney, electricity and steam outlet are required to commission the boiler. Mountings & Accessories VOLFRAM Boilers are fitted with mounting and accessories of international repute and standards, the feed water pumps are the vertical multistage SS pumps. Truly packaged type The Boiler Comes Pre-wired & pre-insulated from the factory itself reducing the site work & cost of site activities. Centrally Located Furnace This ensures no tubes in cold zone & enhances effective heat transfer resulting into lower start up time. Better Response to Fluctuating Loads The higher steam space inside the boiler results in better response to Fluctuating steam loads. TDS based Automatic Boiler Blow down The boiler is provided with TDS based automatic boiler blow down system which ensures optimum blow down from the boiler. Capacity Range: From 1000 kg/hr to 5000 kg/hr. Standard Design Pressure: 10.54 kg/cm2 (g), 17.5 kg/cm2 (g) & 21 kg/cm2 (g) VOLFRAM offers complete package for the Boiler House consisting of Self Operated PRV has high turn down ratio due to which it responses well to the fluctuating loads. Chimney Pollution control equipments Piping (IBR/NIBR) Feed water tank with accessories On site IBR formalities

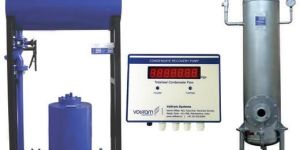

We offer fully equipped Feed water tank for Boiler, designed to maintain various in parameters of feed water, required to run the boiler safely & efficiently. We provide complete package of feed water tank of various capacities with the proper automation to maintain the optimum level & temperature in feed water tank Oxygen or other incondensable gases in the steam system can cause restrict the heat transfer to the process as well as causes corrosion in the steam & condensate system. So it is very important to remove the oxygen & other gases from the steam system or to ensure that these do not get into the steam system. This can be done by thermal deaeration. The removal of the gases is achieved by maintaining the highest possible temperature in the feed water tank from where these gases can enter into steam system. We offer specially designed deaerator heads to suit customer's requirement.   Features of Packaged Feed Water Tank System: Designed as per operational parameters Complete SS construction. Inbuilt Air Vent. Inbuilt Vacuum Breaker
