Precision Gauges Dealers in Pune

These Dipsticks are widely used in various diesel engines as oil level indicators. these Dipgauges are made from versatile engineering polymer. Application : Diesel Engines.

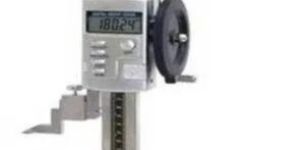

SPECIFICATIONS * Dual direction counter for up and down movement. * Zero setting of counter at any position. * Tungsten carbide tipped knife- edge scriber. * Hand wheel with rack on the beam for precise measurement. * Stainless Steel beam & Measuring slide hardened ground for high accuracy. * Interchangeable carbide tipped scriber with metal holder for better grip. * Hardened and ground CI heavy duty base for greater stability. * Fine adjustments.

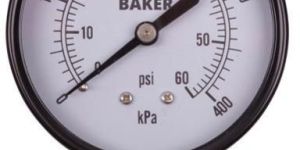

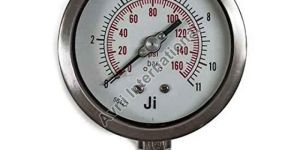

FEATURES  Reliable, small diameter, low profile gauge 1" (25mm) to 1.5" (40mm) sizes 1/8”NPT Socket Direct drive (no linkages or hairsprings) eliminating premature failure from   the gear and movement Safety over-pressure port on the lens "Use No Oil" for use in oxygen service CRN registered UL Listed for 1.25” and 1.5” gauges 2 year warranty   APPLICATIONS  Commonly used on portable pneumatic equipment such as compressors,hand-held sprayers, pressurized recreational guns, oxygen tanks andregulators, pumps and fire extinguishers

We bring forward the highest grade Bore Gauge to the national clients. Our bore checking units find their application in the purpose of checking the bore diameter of inner rings after the completion of grinding operation. Made using premium raw materials, these Bore Gauges are perfectly suited to facilitate the work of bearings manufacturers. Moreover, the clients can avail these Bore Gauges at market leading prices. Attributes High performanceSuperior qualityLow maintenanceUser friendly

BSW/ BSF/ Whits threads are used where clerance between male & female threads is to be controlled. This uses Imperial system of units. Specification •  Basic Dimensions- BS 84-2007 & Gauging Practice: BS 919 Part II - 2007. Manufacturing Range Thread Plug & Ring Gauges from Diameter 1/8 to 6" , TPI 40 to 2.5

"UNIK" Gauges are made out of Tungsten based Oil-Hardened Non Shrinking Steel (OHNS) duly tested for uniform microstructure and hardness.We make TPG as per IS, BS, DIN and American Standards.

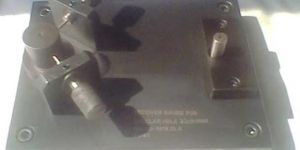

We are counted among the top Relation Gauges Manufacturers and Suppliers. The Relation Gauges are precisely designed using first grade raw material. These Relation Gauges are well known for low maintenance costs and long working life. We offer Relation Gauges at market leading prices. Attributes Accurately designedPerfect finishingSmooth operationHighly durable

The Thermometer Capillary Diaphragm Gauge are top notch products of Hitech which first undergo through various parameters under supervision of experts, after that they are forwarded for selling. They are sturdy in structure and possess long durability.

We have high-tech in-house amenities available to make sure that the range of products we offer are kept safe till final delivery. Our team experts ensure that the warehouse is free from moisture, rainwater, sunlight, etc. Owing to our well-established set-up in Pune(India), we are capable of catering to the requirements of clients with utter ease.

Elongation index of an aggregate is the percentage by weight of particles whose greatest dimension (length) is greater than one and four-fifth times their mean dimension. It is measured on particles passing through mesh size of 63mm and retained on mesh size of 6.3mm. Determination of elongation index of coarse aggregate is explained below.Apparatus required:Apparatus required for elongation index determination tests are balance, elongation gauge (length gauge) and IS sieves of the following mesh sizes – 63mm, 50mm, 40mm, 31.5mm, 25mm, 20mm, 16mm, 10mm and 6.3mm.Procedure of the test:1. Take enough quantity of dry blended sample so that at least 200 pieces of any fraction is present. This is not applicable for the biggest and smallest size.2. Sieve the blended sample through all the sieves mentioned above starting from the largest sieve i.e. 63mm.3. Separate all the individual fractions – 63mm to 50mm, 50mm to 40mm, 40mm to 25mm, 25mm to 20mm, 20mm to 16mm. 16mm to 12.5mm. 12.5mm to 10mm and 10mm to 6.3mm.4. Take all the fraction separately, gauge them one by one through the corresponding slot provided in the gauge. Keep the particles retained by the length separately. The aim should be to retain as much as possible to avoid testing bias.5. Weigh the particles retained on length gauge.6. Elongation index is the total weight of the material retained on the various length gauges, expressed as a percentage of the total weight of the sample gauged.Calculations:Elongation index of aggregate in % is calculated as follows:Where, W1 = weight of particles retained in length gauge (grams). W2 = weight of total sample taken for test (grams).Reporting of Test Results:Report the elongation index in percentage rounded off to the nearest whole number. For determination of Elongation index of coarse aggregate as per BS code, look for BS812: – Section 105.2

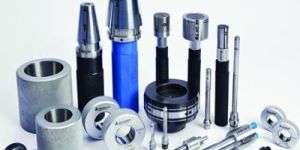

  Model 1 A gives most economical solution to inspection needs High speed of response and self cleaning of gauging areaensures accurate reading of parameters High accuracy and linearity Non-contact gauging so, no or minimum frictional wear. Requires Two setting masters for correct linear setting Minimum line pressure requires 4.5 bars Air consumption 50 LPM Every gauge carries a calibration certificate

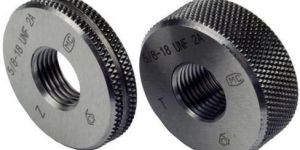

We are manufacturing Thread Plug & Thread Ring Gauges in higher side of tolerances to get maximum life for gauges. We are also manufacturing Thread Ring Gauges in Lower Side of Tolerances to get maximum life of gauges. We are using oil hardened non shrinking steel material. This is the best suited material for thread gauges.we are providing NPLNABL Traceability certificate free of cost along-with each & every gauge.

We bring forth precisely designed Carbide Gauges for our valued customers. Carbide Gauges are available in carbide & steel. Carbide Gauges that we offer, are greatly demanded for their accurate design, dimensional stability, and usability. Further, Carbide Gauges are available in different specifications and sizes, catering diverse demands of the customers.
