Air Cooled Screw Chiller Dealers in Rajkot

(2 products available)

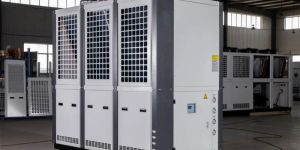

  • 140 TR Air Cooled Screw Chiller

    140 TR Air Cooled Screw Chiller

    7,500,000 / piece
    • Country of OriginMade in India
    • Voltage415V
    • PhaseThree Phase
    • MaterialSteel
    • Minimum Order Quantity1 Piece
    • TypeFully Automatic
    • Size/DimensionLarge
    • We are proud to offer the 140 TR Air Cooled Screw Chiller, a fully automatic chiller made in India from high-quality steel material. Operating at 415V voltage with three-phase power, this large-sized chiller is perfect for traders looking for efficient cooling solutions. With a minimum order quantity of 1 piece, this chiller is designed to meet your business needs while ensuring reliable performance and durability. Invest in this top-notch chiller to enhance your operations and stay ahead in the market.
    ...more

    Aquatech Plus Pvt. Ltd.

    Sanganwa Chowk, Rajkot
    9 yrs
  • 80 TR Air Cooled Screw Chiller/air Cooled Screw CHILLER/80 TR Air Screw CHILLER/80 TR Chiller

    80 TR Air Cooled Screw Chiller/air Cooled Screw CHILLER/80 TR Air Screw CHILLER/80 TR Chiller

    2,450,000 / piece
    • MaterialMETEL
    • ApplicationAIR COOLED CHILLER
    • ColorMULTI
    • Warranty1 YEAR
    • Country of OriginINDIA
    • TypeAIR COOLED CHILLER
    • STATEGUJRAT
    • CITYRAJKOT
    • Technical Specification   Sr. No. Parameter Details 1 Model FMACSC-80TR-R407C 2 Cooling Capacity 80 TR / 280 kW 3 Refrigeration Circuit 1 No 4 Power Supply 400V, 3Ph, 50Hz 5 Connected Load  70.25 kW /114.8A 6 Refrigerant R407C 7 Refrigerant Control Thermostatic Expansion Valve 8 Evaporating SST 7°C 9 Condensing SDT 50°C 10 Ambient Temperature 45°C 11 Working Temperature Range +10°C to +20°C 12 Chilled Water Flow 6000 LPH (ΔT = 35°C) 13 Condenser Air Flow 30720 CFM 14 Fan Type Axial Type, Large Blade 15 Fan Quantity  4 Nos 16 Fan Size  28 inches (Suction Type) 17 Fan Power  0.65kW × 4 Nos = 2.6 kW 18 Compressor Type Semi-Hermetic Screw 19 Compressor Quantity 1 No 20 Compressor Make & Model Bitzer 21 Compressor Power  63.9 kW / 105.4 A @ 50 Hz 22 Start Mode Star-Delta Starter 23 Capacity Control Step (0,25,50,75,100%) 24 Evaporator Type Shell & Tube Type 25 Evaporator Shell MOC Carbon Steel, Powder Coated 26 Evaporator Tube MOC Inner Grooved Copper Tubes 27 Evaporator Baffle & Header SS-304, TIG Welded 28 Evaporator Design Pressure 10 Bar 29 Evaporator Test Pressure 15 Bar (Hydrostatic) 30 Evaporator Pipe Connection 3” BSP (Inlet & Outlet) 31 Evaporator Insulation 40 mm PUF, Closed Cell 32 Condenser Type Air Cooled (Copper Tubes & Aluminum Fins) 33 Pump power  3.75 kw/5HP/5.2A/50000LPH 34 Pump head(Lift)  2.33 KG 35 Condenser Pipe Size 3/8” 36 Condenser Support Galvanized Steel Frame 37 Safety Protections Inner Thermostat, HP/LP Switch, Overload Relay, Phase Reverse, Flow Switch, Anti-Freeze, Discharge Temp. Protection, Water low levels. 38 Electrical Panel MCB, Contactor, Overload, Timer, Relays, Pre-wired, PLC, HMI 39 Dimensions (L×W×H) After confirmation, we will provide the dimensions and drawing
    ...more
    www

    Aquatechplus Pvt. Ltd.

    Kuvadva Road, Rajkot
    GST 7 yrs 4.4 (14)
