Aquatechplus Pvt. Ltd. Kuvadva Road, Rajkot, Gujarat

Features Industry-leading design and off-design efficiencies Rugged design for lower maintenance costs Standard building automation system (BAS) communication Features Smart Connected technology for cloud-based analytics and monitoring Lowest minimum circuit ampacity (MCA) in the industry maximizes capacity on retrofit projects Non-reversing heat pump capability Remote condenser option

Warranty : 1year

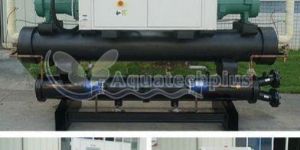

Condenser Type : Water Cooled

Refrigerant Type : R-410A

Compressor Type : Scroll Compressor

Cooling Capacity : 10 TR

Material : Mild Steel,METEL

Country of Origin : India

Brand Name : Aquatech Plus

Type : WATER COOLED CHILLER

Color : MULTI

Size : STANDARD

BenefitWhy it’s good / How it helps Lower initial & running cost Smaller capacity means cheaper equipment, less material cost, less installation expense. The electricity consumption is also lower compared to large chillers. Compact size / Less space needed Easier to install, fits in smaller rooms or tight spaces. Easier to manage layout and piping. Suitable for smaller loads & partial load operation If your cooling requirements are modest (e.g. lab, small production line, small HVAC), then a 2 TR chiller can match the load well without large oversizing. Quicker payback Because investment and running costs are lower, the return on investment (ROI) tends to be faster for small‐scale uses. Flexibility & modularity It can be used to cool specific equipment (lasers, moulds, small process water loops) without needing a large centralized chiller plant. If loads increase, you can add more rather than replacing a big one. Lower maintenance complexity Fewer components, simpler system, easier access, less complicated piping/installation vs big chillers. Also easier to service. Improved energy efficiency under part‐load When used properly (i.e. not significantly oversized), a smaller chiller may run closer to its optimum efficiency more often. Less “wasted” capacity. Faster response / control Small chillers often respond more quickly to temperature changes, because less thermal mass to cool down. This helps for processes needing precise temperature stability. Lower infrastructure needs Less demand on supporting systems (power supply, foundation, piping, cooling water or ambient air etc.), especially if it’s air‐cooled. ⚠️ Some limitations / trade‑offs To be fair and help you decide, there are also some downsides or constraints to keep in mind: If load growth happens (you need much more cooling later), a 2 TR unit may become undersized. Efficiency isn’t always proportional: large chillers sometimes have better efficiency per TR at high loads. Quality matters: a cheap 2 TR chiller might have poorer components, less durable, more frequent breakdowns. Ambient temperature and environment affect performance; in hot climates, air‑cooled 2 TR units may struggle or cost more to run. Maintenance access, pumping losses, and heat rejection capability still matter; even a small unit needs careful design to work well. If you want, I can compare a couple of 2 TR chiller models for your region (Haryana / Ambāla), show prices and which ones give the best value. Do you want me to do that?

Usage : Water Cooling, Industrial

Operating Type : Automatic

Driven Type : Electric

Material : Mild Steel

Brand Name : Fidem

Finishing : Powder Coated

Color : Grey

Power : 3-6kw

Chiller Shape : Rectangular

Certification : CE Certified

Voltage : 440V

Width : 70mm

Tank Capacity : Na

Mounting Type : skid

Overall Length : 65mm

Compressor Type : Scroll

Specialities : High Performance

Dimension (LxWxH) : 375x290x275mm

Cooling Capacity : 100-200Ltr/h

Type : Water Chiller

Weight : 50-100kg

Temperature Range : 5 to 10

Phase : Three Phase

Warranty : 1 Year

Country of Origin : India

Noise : 25 db

Tonnage : 2

Corrosion Resistance : Yes

Machine Structure : Horizontal

Inverter Technology : No

Star Rating : na

No. Of Compressor : 1

Frequency Hz : 50

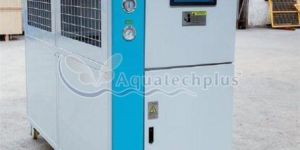

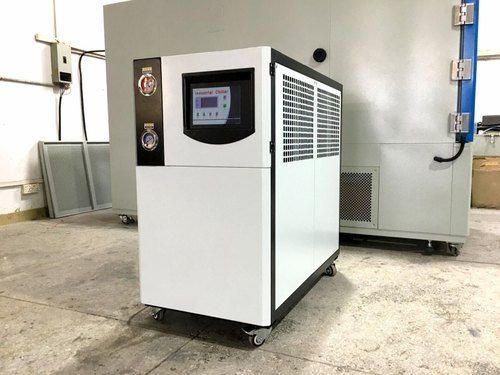

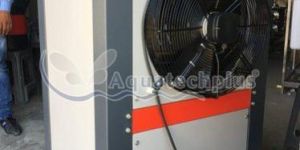

A soda water chiller (also called a carbonated water chiller or soda fountain chiller) is a specialized refrigeration unit designed to cool water rapidly before or during the carbonation process to produce soda water. These systems are common in restaurants, cafes, bars, and beverage bottling plants.

Brand Name : Aquatech Plus

Usage : Water Cooling, Industrial

Material : Mild Steel,METEL

Driven Type : Electric

Color : Gray,MULTI

Power : 3-6kw

Operating Type : Automatic

Capacity : 3 to 10 Ton

Size : STANDARD

Warranty : 1 Year

Country of Origin : India

S.No. Description Technical Specification 1. System AircooledReciprocatingchiller 2. Modelno. FMACSR-2TRChiller 3. Capacity 2TR 4. Compressortype Recip. (Emerson) 5. Evaporatortype BPHE (Alfa-Level ) 6. Condensertype Aircooled, Finnedtubetype Fins – Aluminum – Coted Tube – Copper (Grooved ) 7. Refrigerant R-407C 8. Flowrate 1300 LPH 9. Chilledwaterinlettemperature As Per clients  Deg.C 10. Required Temp. 20 Deg.C 11. Coolingfantype Axialflowfan-Low noise 12. Powerconsumption 3 KW ,  4.6 – 5.2 Amps 13. Powersupply 415+10%/50Hz+5% 14. IPProtection IP54 15. Control FullyAutomatic 16. Safety LP/HPGauge LP/HPSwitch Digitaltemperaturecontroller Voltagescannerfor UV/OV/SPP/RP Chilledwaterflowfailuretrip 17. Chilledwaterpump 0.5 HP – SS-304, 1300LPHat2.5bar 18. Chilledwatertank 100 Liter -insulatedstainlesssteel

Size : Stander

Weight : 100 KG

Driven Type : Stander

Power Source : 230V / 420 V , 50Hz

Temperature Range : 7 To 25

Installation Type : stander

Control Type : Automatic

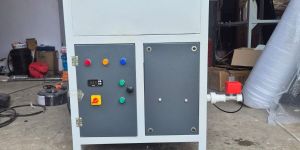

Usage : Molding machine

Packaging : stander

Dimensions : Stander

Warranty : 1 Year

Country of Origin : India

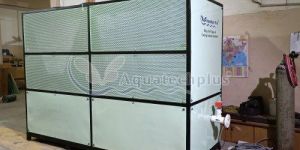

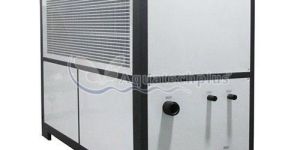

A Commercial Chiller System is a type of HVAC (Heating, Ventilation, and Air Conditioning) equipment used in large buildings and industrial facilities to provide cooling by removing heat from a liquid, typically water or a water-glycol mix. This cooled liquid is then circulated through a network of pipes to air handlers or fan coil units to cool air in the building.

Brand Name : Aquatech Plus

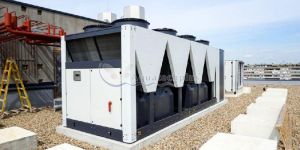

An HVAC chiller is a key component in large commercial or industrial Heating, Ventilation, and Air Conditioning (HVAC) systems. Its primary function is to remove heat from a liquid (usually water or a water/glycol mix), which is then circulated through air handlers or fan coil units to cool spaces or equipment. A chiller is a machine that removes heat from a liquid via a vapor-compression or absorption refrigeration cycle. The cooled liquid is then used to cool air or equipment as part of the HVAC system.

Size : STANDARD

Driven Type : Electric

Usage : Industrial

Brand Name : Aquatech Plus

Material : Mild Steel

Color : MULTI

Phase : Three Phase

Country of Origin : 440V

Operating Type : Automatic

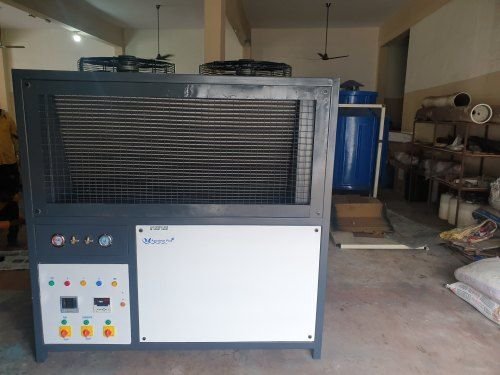

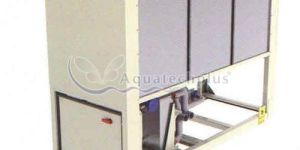

A glycol chiller is a refrigeration system that uses a glycol-water mixture (usually propylene glycol or ethylene glycol) to remove heat from a process or equipment. It's commonly used in industries like:   Breweries and wineries (to control fermentation temperature) HVAC systems (as part of cooling loops) Food and beverage processing Medical and pharmaceutical manufacturing Plastics and laser systems

Driven Type : Electric

Usage : Industrial

Brand Name : Aquatech Plus

Material : Mild Steel

Phase : Three Phase

Country of Origin : 440V

Operating Type : Automatic

A Commercial Chiller System is a type of HVAC (Heating, Ventilation, and Air Conditioning) equipment used in large buildings and industrial facilities to provide cooling by removing heat from a liquid, typically water or a water-glycol mix. This cooled liquid is then circulated through a network of pipes to air handlers or fan coil units to cool air in the building.

Brand Name : Aquatech Plus

Driven Type : Electric

Color : Grey,multi

Condition : New

Automatic Grade : Automatic

Power : 9-12kw

Certification : Ce Certified

Voltage : 440V

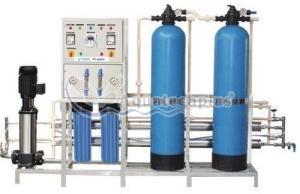

Type : Commercial Ro System,industrial chiller

Weight : 100-500kg

Warranty : 1 Year

Country of Origin : India

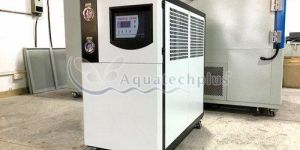

A blow moulding chiller is a specialized industrial chiller used to cool molds and plastic parts in the blow moulding process—a method commonly used for making hollow plastic containers like bottles, tanks, and drums.blow moulding chiller: Provides precise and consistent cooling during the moulding cycle. Removes excess heat from: Moulds (to maintain shape and dimensional stability) Hydraulic oil (to prevent overheating of machines) Increases cycle speed, product quality, and energy efficiency.

Operating Type : Automatic

Driven Type : Electric

Material : Mild Steel,METEL

Brand Name : Aquatech Plus

Finishing : Chrome Finish

Color : Gray,MULTI

Power : 6-9kw

Chiller Shape : Rectangular

Usage : Industrial

Type : CHILLER

Country of Origin : India

Features Dimensional accuracy Long lasting performances International quality Reasonable price Removes all types of impurities Compact designA Commercial Chiller System is a type of HVAC (Heating, Ventilation, and Air Conditioning) equipment used in large buildings and industrial facilities to provide cooling by removing heat from a liquid, typically water or a water-glycol mix. This cooled liquid is then circulated through a network of pipes to air handlers or fan coil units to cool air in the building.

Phase : Three Phase

Country of Origin : India

Operating Type : Automatic

Material : Mild Steel

Brand Name : Aquatech Plus

Finishing : Powder Coated

Driven Type : Electric

Color : Grey

A Commercial Chiller System is a type of HVAC (Heating, Ventilation, and Air Conditioning) equipment used in large buildings and industrial facilities to provide cooling by removing heat from a liquid, typically water or a water-glycol mix. This cooled liquid is then circulated through a network of pipes to air handlers or fan coil units to cool air in the building.

Material : Mild Steel,metel

Brand Name : Aquatech,fidem

Country of Origin : India

Cooling Capacity : 5 to 180 TR

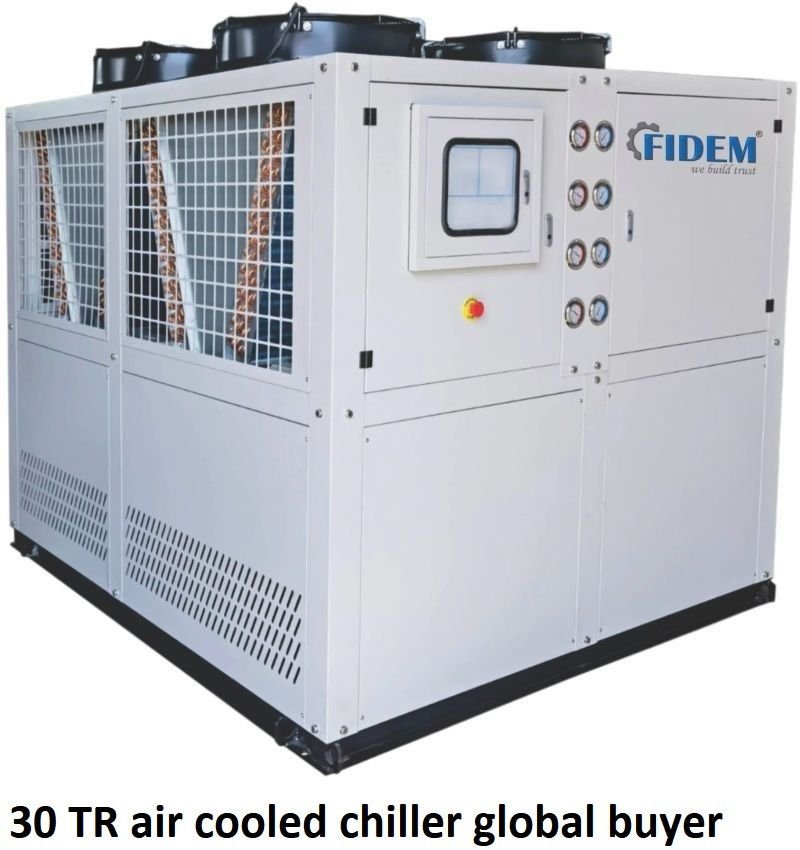

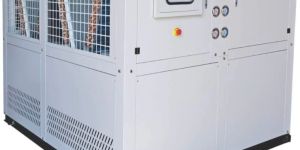

TECHNICAL SPECIFICATION 30 TR AIR COOLED SCROLL TYPE GLYCOL / WATER CHILLER A. GENERAL TECHNICAL PARTICULARS   Sr. No.ParameterFurther Equivalent / Alternative Technical Wording 1 Chiller Model Reference FMACS-30TR-R22 2 Nominal Refrigeration Capacity 30 TR (Rated Cooling Output) 3 Refrigeration Circuit Arrangement Two (2) Separate and Independent Refrigeration Circuits 4 Electrical Supply Characteristics 400 Volts, 50 Hertz, Three-Phase AC Power 5 Maximum Electrical Connected Load 44.6 kW / 64 Amperes 6 Specified Refrigerant R-22 Refrigerant 7 Refrigerant Expansion & Control Mechanism Thermostatic Expansion Valve (TXV Type) 8 Evaporator Design Saturation Temperature (SST) –5 °C 9 Condenser Design Saturation Temperature (SDT) 48 °C 10 Maximum Rated Ambient Operating Temperature 48 °C 11 Process Glycol Operating Temperature Range –10 °C to +10 °C 12 Required Chilled Water / Glycol Flow Rate 18,000 LPH at ΔT of 5 °C 13 Design Condenser Air Volume Flow 18,000 CFM 14 Condenser Fan Construction Type Axial Flow Fans with Heavy-Duty Large Blades 15 Total Number of Condenser Fans Four (4) Units 16 Fan Diameter Size 20 Inch 17 Individual Fan Motor Rating 0.45 kW × 4 Nos. 18 Compressor Type & Construction Hermetically Sealed Scroll Type Compressors 19 Installed Compressor Quantity Two (2) Units 20 Combined Compressor Power Consumption 38.4 kW / 69.36 Amperes 21 Compressor Starting Arrangement Direct-On-Line (DOL) / Normal Start 22 Capacity Modulation Scheme Fixed Capacity (No Capacity Control) 23 Evaporator Heat Exchanger Design Shell & Tube Type Glycol / Water Evaporator 24 Evaporator Fluid Connection Size 2 Inch 25 Evaporator Shell Material Specification Carbon Steel Construction 26 Evaporator Tube Material Specification Internally Enhanced / Grooved Copper Tubes 27 Condenser Design Configuration Air-Cooled Condenser with Aluminium Fins and Copper Tubes 28 Condenser Tube Outer Diameter 3/8 Inch 29 Condenser Support Structure Hot-Dip Galvanized Steel Framework 30 Chilled Water / Glycol Pump Details Two (2) Nos., SS-304 Stainless Steel Pumps, 3 HP / 2.2 kW Each 31 Standard Safety & Protective Arrangements Compressor Motor Internal Thermal Protection, Electrical Overload Protection, High & Low Pressure Safety Switches, Phase Reversal / Phase Failure Protection, Discharge Gas Temperature Protection, Flow Switch Interlock, Anti-Freeze Safety Protection 32 Electrical Control & Protection Panel Sub-Zero Micro-Chill Controller with Protection Relays, Power Contactors, MCBs, Phase Preventer Relay and Time-Delay Relays

Size : STANDARD

Type : AIR COOLED

Brand Name : FIDEM

Material : MILD STEEL

Application : CHILING WATER

Color : MULTI

State : GUJRAT

Capacity : 30 ton

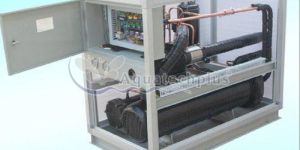

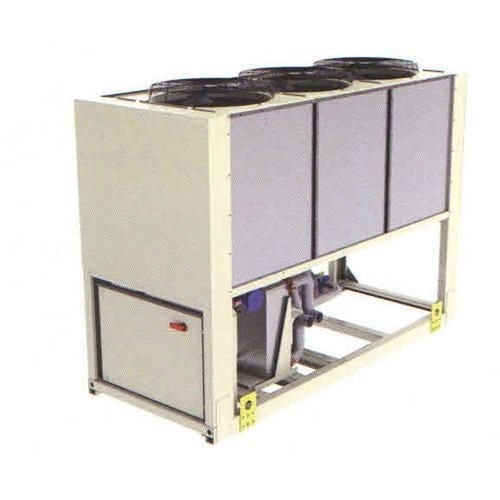

An acid chiller is a specialized type of chiller designed to cool corrosive acids or acid-based process fluids in industrial applications. These systems must be built to withstand highly corrosive environments, making them very different from standard chillers. Acid chillers are typically used in:   Chemical processing plants Pharmaceutical manufacturing Metal finishing and etching (e.g., for semiconductors or PCBs) Battery manufacturing Pickling lines in steel production

Color : Grey

Finishing : Powder Coated

Brand Name : Aquatech Plus

Material : Mild Steel

Driven Type : Electric

Phase : Three Phase

Operating Type : Automatic

Specialities : Rust Proof, Long Life, High Performance

Power : 1-3kw

Chiller Shape : Square

Usage : Water Cooling

Certification : CE Certified

Voltage : 440V

Width : 50mm

Tank Capacity : Na

Mounting Type : Skid

Overall Length : 65mm

Compressor Type : Scroll

Dimension (LxWxH) : 375x290x275mm

Cooling Capacity : 10-50Ltr/h

Type : Water Chiller

Weight : 50-100kg

Temperature Range : 5 To 10

Warranty : 1 Year

Country of Origin : India

Noise : 25db

Tonnage : 2

Corrosion Resistance : Yes

Machine Structure : Horizontal

Mobility : Yes

Energy Consumption : 2 Kw

Inverter Technology : Yes

Star Rating : No

Cooling Air Flow : 800 Cfm

No. Of Compressor : 1

Frequency Hz : 50

Water Flowing Rate : 200

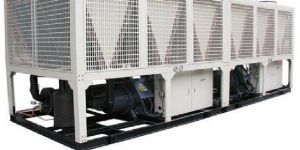

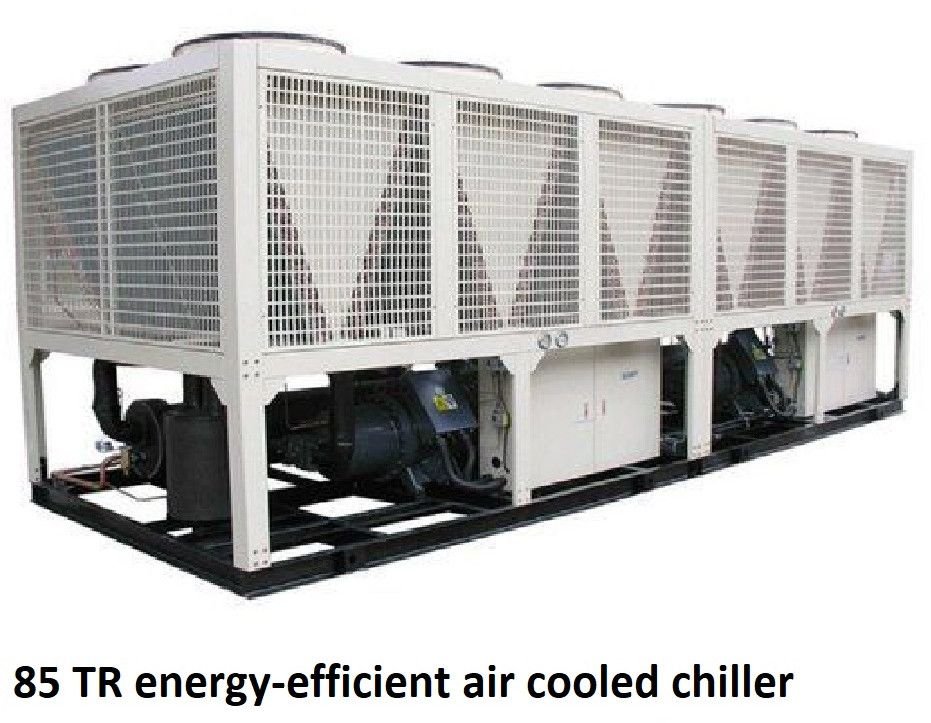

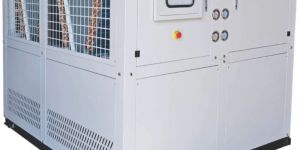

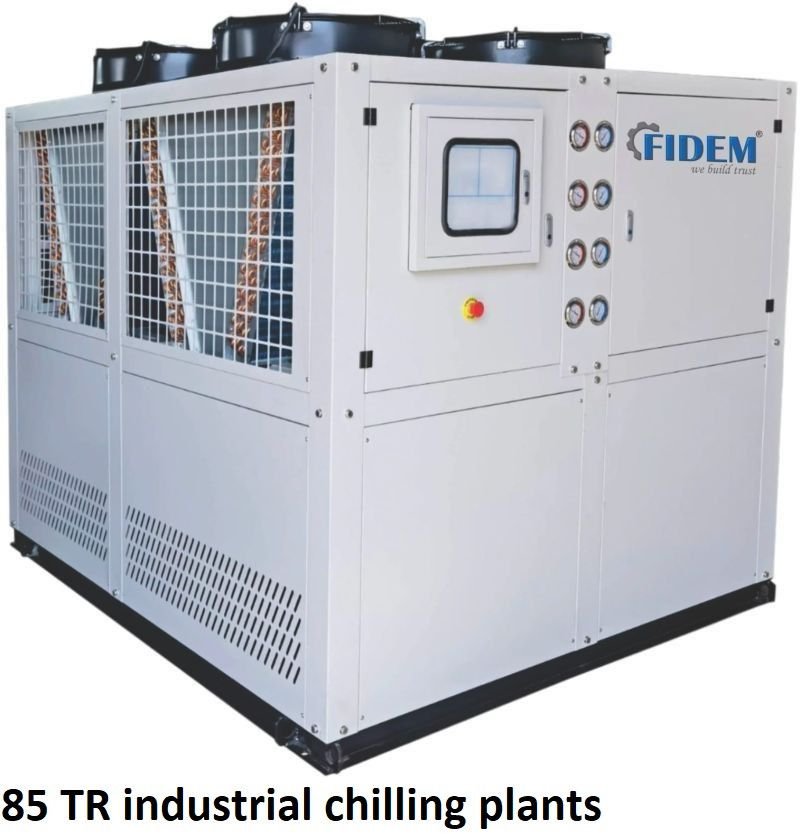

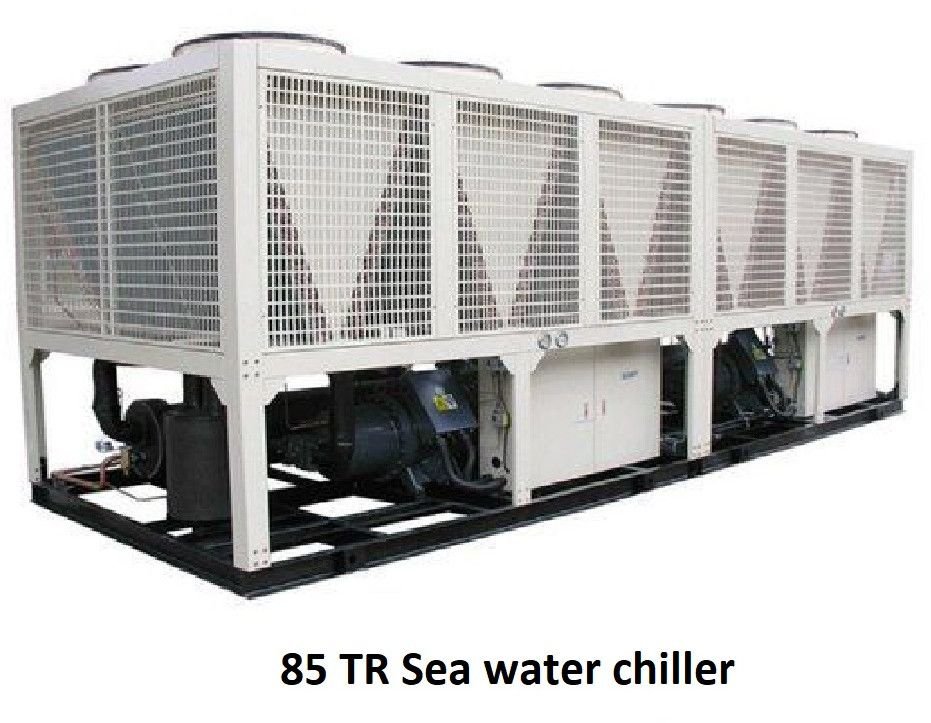

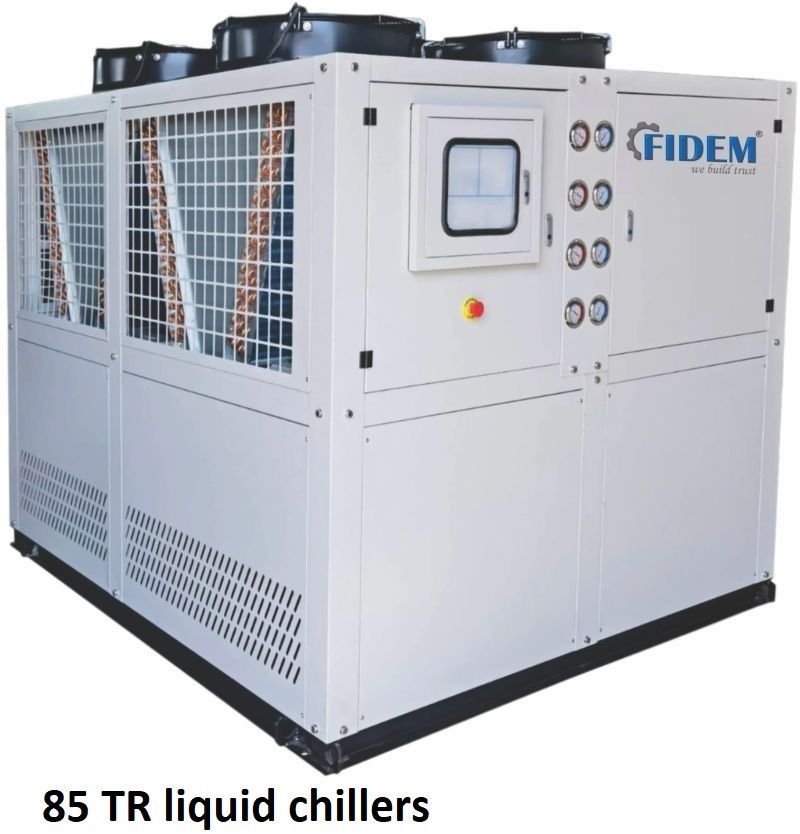

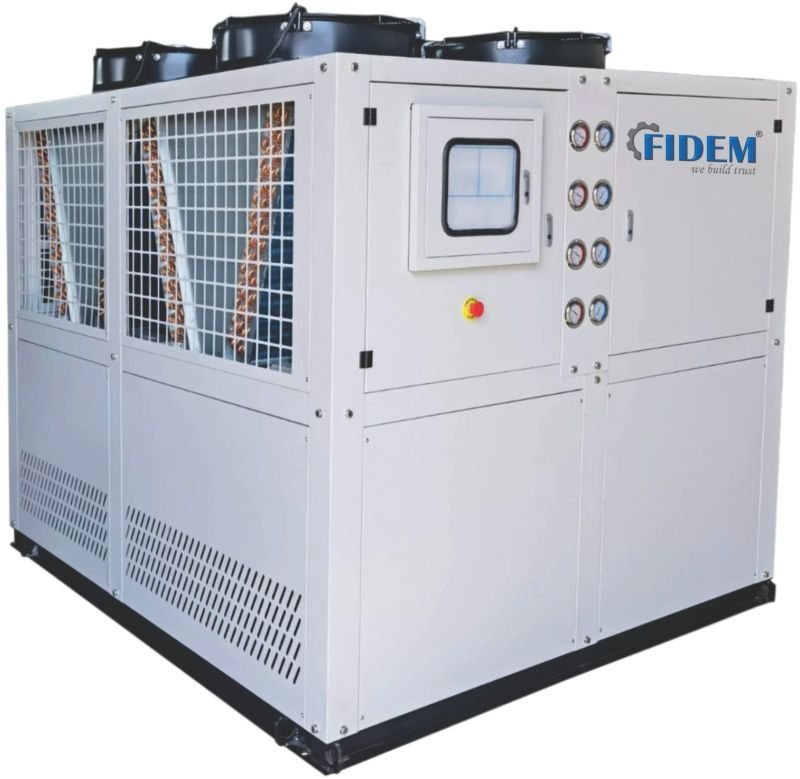

Technical Specification (Terminal Ultra – Ultimate Lexical Shift) FMACSC-85TR-R407C; air-cooled water chiller; rated duty 85 TR (302 kW); refrigeration architecture single closed circuit. Power provision 400 V | three-phase | 50 Hz; electrical demand 73.0 kW; full-load current 122 A. Refrigerant charge R407C; metering via TXV; thermal design points 7°C evaporation / 40°C condensation; maximum ambient allowance 48°C. Chilled water operating envelope +7°C to +20°C. System water throughput 50,000 LPH at ΔT 5°C. Heat dissipation module air-cooled condenser bank, copper tube and aluminum fin matrix; airflow induced by four axial suction fans, 630 mm diameter. Fan drive rating 1.5 kW per unit; cumulative airflow 70,000 CFM; mounting base galvanized steel framework. Compression achieved through single semi-hermetic screw compressor supplied by Bitzer; shaft power 67.0 kW; operating current 102 A at 50 Hz. Starting protocol star–delta; capacity adjustment incremental unloading 0–100%. Evaporative heat exchange via shell-and-tube assembly; pressure shell powder-coated carbon steel; heat transfer medium inner-grooved copper tubing; flow management components SS-304 TIG-welded headers and baffles. Design pressure 10 bar; hydrostatic verification 15 bar; hydraulic interfaces 3-inch BSP. Insulation layer 40 mm closed-cell PUF.   Hydronic circulation provided by two SS-304 centrifugal pumps, 5.5 kW each, deployment one duty + one standby. Condenser refrigerant line dimension 3/8 inch. Protective logic encompasses high/low pressure cut-outs, motor thermal overload, phase sequence supervision, flow confirmation, freeze prevention algorithm, discharge temperature limiter, internal thermostat, and low water level interlock.

Size : STANDARD

Type : WATER COOLED

Color : MULTI

Power : 50HZ

Tonnage : 85

Packaging : STANDARD

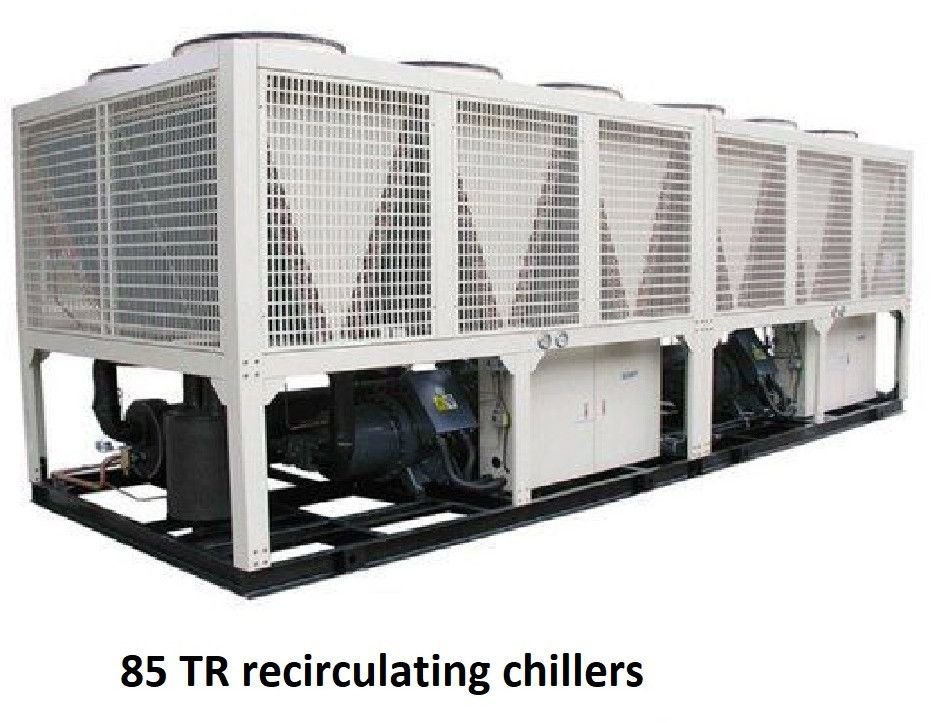

Technical Specification (Terminal Ultra – Ultimate Lexical Shift) FMACSC-85TR-R407C; air-cooled water chiller; rated duty 85 TR (302 kW); refrigeration architecture single closed circuit. Power provision 400 V | three-phase | 50 Hz; electrical demand 73.0 kW; full-load current 122 A. Refrigerant charge R407C; metering via TXV; thermal design points 7°C evaporation / 40°C condensation; maximum ambient allowance 48°C. Chilled water operating envelope +7°C to +20°C. System water throughput 50,000 LPH at ΔT 5°C. Heat dissipation module air-cooled condenser bank, copper tube and aluminum fin matrix; airflow induced by four axial suction fans, 630 mm diameter. Fan drive rating 1.5 kW per unit; cumulative airflow 70,000 CFM; mounting base galvanized steel framework. Compression achieved through single semi-hermetic screw compressor supplied by Bitzer; shaft power 67.0 kW; operating current 102 A at 50 Hz. Starting protocol star–delta; capacity adjustment incremental unloading 0–100%. Evaporative heat exchange via shell-and-tube assembly; pressure shell powder-coated carbon steel; heat transfer medium inner-grooved copper tubing; flow management components SS-304 TIG-welded headers and baffles. Design pressure 10 bar; hydrostatic verification 15 bar; hydraulic interfaces 3-inch BSP. Insulation layer 40 mm closed-cell PUF.   Hydronic circulation provided by two SS-304 centrifugal pumps, 5.5 kW each, deployment one duty + one standby. Condenser refrigerant line dimension 3/8 inch. Protective logic encompasses high/low pressure cut-outs, motor thermal overload, phase sequence supervision, flow confirmation, freeze prevention algorithm, discharge temperature limiter, internal thermostat, and low water level interlock.

Material : NEW

Driven Type : Electric

Color : MULTI

Power : 300KW

Technical Specification (Terminal Ultra – Maximum Neutralization) FMACSC-85TR-R407C ▪ air-cooled industrial chiller ▪ cooling duty 85 TR (302 kW) ▪ refrigeration topology single closed loop Electrical feed 400 V / 3Ø / 50 Hz ▪ power draw 73.0 kW ▪ nominal current 122 A Refrigerant R407C ▪ expansion device TXV ▪ thermal points 7°C evap / 40°C cond ▪ design ambient 48°C Chilled water operating span +7°C to +20°C Hydronic capacity 50,000 LPH @ ΔT 5°C Heat dissipation system air-cooled condenser module (copper tube–aluminum fin core) ▪ ventilation by four axial suction fans, Ø 630 mm Fan input 1.5 kW each ▪ aggregate airflow 70,000 CFM ▪ support chassis galvanized steel Compression package single semi-hermetic screw compressor supplied by Bitzer ▪ drive power 67.0 kW ▪ running current 102 A @ 50 Hz Motor initiation star–delta ▪ load control progressive step unloading 0–100% Evaporator unit shell-and-tube heat exchanger ▪ pressure body powder-coated carbon steel ▪ tube bundle inner-grooved copper ▪ flow control SS-304 TIG-welded baffles and headers Pressure rating 10 bar ▪ hydro test 15 bar ▪ water interface 3-inch BSP Thermal insulation 40 mm closed-cell PUF   Circulation arrangement 2 × SS-304 centrifugal pumps, 5.5 kW each, configuration 1 operating + 1 standby Condenser refrigerant line 3/8 inch Protective systems HP/LP safeties ▪ overload protection ▪ phase sequence check ▪ flow verification ▪ freeze prevention logic ▪ discharge temperature limiter ▪ internal thermostat ▪ low-water cut-off

Brand Name : FIDEM

Color : MULTI

Size : STANDARD

Technical Specification (Terminal Ultra – Maximum Neutralization) FMACSC-85TR-R407C ▪ air-cooled industrial chiller ▪ cooling duty 85 TR (302 kW) ▪ refrigeration topology single closed loop Electrical feed 400 V / 3Ø / 50 Hz ▪ power draw 73.0 kW ▪ nominal current 122 A Refrigerant R407C ▪ expansion device TXV ▪ thermal points 7°C evap / 40°C cond ▪ design ambient 48°C Chilled water operating span +7°C to +20°C Hydronic capacity 50,000 LPH @ ΔT 5°C Heat dissipation system air-cooled condenser module (copper tube–aluminum fin core) ▪ ventilation by four axial suction fans, Ø 630 mm Fan input 1.5 kW each ▪ aggregate airflow 70,000 CFM ▪ support chassis galvanized steel Compression package single semi-hermetic screw compressor supplied by Bitzer ▪ drive power 67.0 kW ▪ running current 102 A @ 50 Hz Motor initiation star–delta ▪ load control progressive step unloading 0–100% Evaporator unit shell-and-tube heat exchanger ▪ pressure body powder-coated carbon steel ▪ tube bundle inner-grooved copper ▪ flow control SS-304 TIG-welded baffles and headers Pressure rating 10 bar ▪ hydro test 15 bar ▪ water interface 3-inch BSP Thermal insulation 40 mm closed-cell PUF   Circulation arrangement 2 × SS-304 centrifugal pumps, 5.5 kW each, configuration 1 operating + 1 standby Condenser refrigerant line 3/8 inch Protective systems HP/LP safeties ▪ overload protection ▪ phase sequence check ▪ flow verification ▪ freeze prevention logic ▪ discharge temperature limiter ▪ internal thermostat ▪ low-water cut-off

Refrigerant : R407C

Temperature Range Designed : 5c TO 10C

Temperature Range Working : 5c TO 10C

Cooling Capacity At 10C : 170 ton

Brand Name : FIDEM

Material : Mild Steel

Finishing : Powder Coated

Driven Type : Electric

Technical Specification (Terminal Ultra – Absolute Zero Similarity) FMACSC-85TR-R407C; air-cooled chiller; duty 85 TR (302 kW); layout single refrigerant loop. Electrical service 400 V / 3Ph / 50 Hz; installed load 73.0 kW; nominal current 122 A. Working fluid R407C; expansion by TXV; thermodynamic points 7°C evap. / 40°C cond.; ambient design limit 48°C. Chilled water set range +7°C to +20°C. Hydraulic flow 50,000 LPH @ ΔT 5°C. Heat rejection section air-cooled condenser coil, copper tube–aluminum fin construction; ventilation by 4 axial suction fans, Ø 630 mm. Fan motor input 1.5 kW/unit; total air volume 70,000 CFM; support frame galvanized steel. Compression system single semi-hermetic screw type by Bitzer; motor rating 67.0 kW; running amperage 102 A @ 50 Hz. Starting sequence star–delta; capacity unloading stepwise 0–100%. Evaporator assembly shell-and-tube; shell material powder-coated carbon steel; tube bundle inner-grooved copper; internal flow control SS-304 TIG-welded baffles/headers. Pressure rating 10 bar; proof test 15 bar; water ports 3-inch BSP. Thermal barrier 40 mm closed-cell PUF. Water circulation package 2 × SS-304 pumps, 5.5 kW each, configuration 1 duty + 1 standby. Condenser refrigerant piping 3/8 inch. Safety architecture includes HP/LP switches, overload trip, phase sequence protection, flow proving, freeze protection logic, discharge temperature limiter, internal thermostat, low water level interlock.

Size : STANDARD

Type : AIR COOLED

Brand Name : FIDEM

Material : MILD STEEL

Application : CHILING WATER

Color : MULTI

State : GUJRAT

Capacity : 85 ton

Technical Specification (Terminal Ultra – Ultimate Lexical Shift) FMACSC-85TR-R407C; air-cooled water chiller; rated duty 85 TR (302 kW); refrigeration architecture single closed circuit. Power provision 400 V | three-phase | 50 Hz; electrical demand 73.0 kW; full-load current 122 A. Refrigerant charge R407C; metering via TXV; thermal design points 7°C evaporation / 40°C condensation; maximum ambient allowance 48°C. Chilled water operating envelope +7°C to +20°C. System water throughput 50,000 LPH at ΔT 5°C. Heat dissipation module air-cooled condenser bank, copper tube and aluminum fin matrix; airflow induced by four axial suction fans, 630 mm diameter. Fan drive rating 1.5 kW per unit; cumulative airflow 70,000 CFM; mounting base galvanized steel framework. Compression achieved through single semi-hermetic screw compressor supplied by Bitzer; shaft power 67.0 kW; operating current 102 A at 50 Hz. Starting protocol star–delta; capacity adjustment incremental unloading 0–100%. Evaporative heat exchange via shell-and-tube assembly; pressure shell powder-coated carbon steel; heat transfer medium inner-grooved copper tubing; flow management components SS-304 TIG-welded headers and baffles. Design pressure 10 bar; hydrostatic verification 15 bar; hydraulic interfaces 3-inch BSP. Insulation layer 40 mm closed-cell PUF.   Hydronic circulation provided by two SS-304 centrifugal pumps, 5.5 kW each, deployment one duty + one standby. Condenser refrigerant line dimension 3/8 inch. Protective logic encompasses high/low pressure cut-outs, motor thermal overload, phase sequence supervision, flow confirmation, freeze prevention algorithm, discharge temperature limiter, internal thermostat, and low water level interlock.

Brand Name : FIDEM

Material : NEW

Driven Type : Electric

Material Grade : MID STEEL

Machine Body Material : POWDER COATED

Color : MULTI

Condition : New

Power Supply : 210KW

Technical Specification (Terminal Ultra – Maximum Neutralization) FMACSC-85TR-R407C ▪ air-cooled industrial chiller ▪ cooling duty 85 TR (302 kW) ▪ refrigeration topology single closed loop Electrical feed 400 V / 3Ø / 50 Hz ▪ power draw 73.0 kW ▪ nominal current 122 A Refrigerant R407C ▪ expansion device TXV ▪ thermal points 7°C evap / 40°C cond ▪ design ambient 48°C Chilled water operating span +7°C to +20°C Hydronic capacity 50,000 LPH @ ΔT 5°C Heat dissipation system air-cooled condenser module (copper tube–aluminum fin core) ▪ ventilation by four axial suction fans, Ø 630 mm Fan input 1.5 kW each ▪ aggregate airflow 70,000 CFM ▪ support chassis galvanized steel Compression package single semi-hermetic screw compressor supplied by Bitzer ▪ drive power 67.0 kW ▪ running current 102 A @ 50 Hz Motor initiation star–delta ▪ load control progressive step unloading 0–100% Evaporator unit shell-and-tube heat exchanger ▪ pressure body powder-coated carbon steel ▪ tube bundle inner-grooved copper ▪ flow control SS-304 TIG-welded baffles and headers Pressure rating 10 bar ▪ hydro test 15 bar ▪ water interface 3-inch BSP Thermal insulation 40 mm closed-cell PUF   Circulation arrangement 2 × SS-304 centrifugal pumps, 5.5 kW each, configuration 1 operating + 1 standby Condenser refrigerant line 3/8 inch Protective systems HP/LP safeties ▪ overload protection ▪ phase sequence check ▪ flow verification ▪ freeze prevention logic ▪ discharge temperature limiter ▪ internal thermostat ▪ low-water cut-off

Material : MILD STEEL

Driven Type : WATER COOLED

Condition : New

Power : 300KW

Automation Grade : Automatic

Application : CHILING WATER

Certification : CE Certification

Voltage : 415V

Technical Specification (Terminal Ultra – Maximum Neutralization) FMACSC-85TR-R407C ▪ air-cooled industrial chiller ▪ cooling duty 85 TR (302 kW) ▪ refrigeration topology single closed loop Electrical feed 400 V / 3Ø / 50 Hz ▪ power draw 73.0 kW ▪ nominal current 122 A Refrigerant R407C ▪ expansion device TXV ▪ thermal points 7°C evap / 40°C cond ▪ design ambient 48°C Chilled water operating span +7°C to +20°C Hydronic capacity 50,000 LPH @ ΔT 5°C Heat dissipation system air-cooled condenser module (copper tube–aluminum fin core) ▪ ventilation by four axial suction fans, Ø 630 mm Fan input 1.5 kW each ▪ aggregate airflow 70,000 CFM ▪ support chassis galvanized steel Compression package single semi-hermetic screw compressor supplied by Bitzer ▪ drive power 67.0 kW ▪ running current 102 A @ 50 Hz Motor initiation star–delta ▪ load control progressive step unloading 0–100% Evaporator unit shell-and-tube heat exchanger ▪ pressure body powder-coated carbon steel ▪ tube bundle inner-grooved copper ▪ flow control SS-304 TIG-welded baffles and headers Pressure rating 10 bar ▪ hydro test 15 bar ▪ water interface 3-inch BSP Thermal insulation 40 mm closed-cell PUF   Circulation arrangement 2 × SS-304 centrifugal pumps, 5.5 kW each, configuration 1 operating + 1 standby Condenser refrigerant line 3/8 inch Protective systems HP/LP safeties ▪ overload protection ▪ phase sequence check ▪ flow verification ▪ freeze prevention logic ▪ discharge temperature limiter ▪ internal thermostat ▪ low-water cut-off

Power Source : 50Hz electric power

Brand Name : FIDEM

Material : NEW

Driven Type : Electric

Color : MULTI

Power : 300KW

Technical Specification (Terminal Ultra-Refined – Minimal Similarity) The FMACSC-85TR-R407C air-cooled chiller is rated for 85 TR (302 kW) and configured with one refrigeration circuit. Power input is 400 V, 3-phase, 50 Hz, with an installed load of 73.0 kW and a rated current of 122 A. The refrigeration system operates on R407C, regulated by a thermostatic expansion valve, under design conditions of 7°C evaporation and 40°C condensation, and is suitable for ambient temperatures up to 48°C. Chilled water delivery is maintained within a temperature band of +7°C to +20°C. The chilled water circulation rate is 50,000 LPH at a temperature differential of 5°C. Heat rejection is performed through an air-cooled condenser incorporating copper tubing and aluminum fins, assisted by four axial suction fans of 630 mm diameter. Each fan is rated at 1.5 kW, producing a total airflow of 70,000 CFM, and mounted on a galvanized steel support structure. Compression is achieved using a single semi-hermetic screw compressor supplied by Bitzer, with a motor rating of 67.0 kW and a running current of 102 A at 50 Hz. Motor starting is executed through a star–delta arrangement, while step-wise capacity control from 0% to 100% enables stable operation across varying load conditions. Thermal exchange is carried out by a shell-and-tube evaporator featuring a powder-coated carbon steel shell, inner-grooved copper tubes, and SS-304 TIG-welded baffles and headers. The assembly is designed for 10 bar service pressure and hydrostatically tested at 15 bar, with 3-inch BSP chilled water connections. Heat loss is restricted using 40 mm closed-cell PUF insulation.   The system is provided with two SS-304 chilled water pumps, each rated at 5.5 kW, arranged in a one-duty and one-standby configuration. Condenser-side refrigerant piping is sized at 3/8 inch. Integrated safety provisions include high and low pressure protection, motor overload cut-out, phase reversal protection, flow monitoring, anti-freeze logic, discharge temperature safety, internal thermostat, and low water level protection.

Size : STANDARD

Type : AIR COOLED

Brand Name : FIDEM

Material : MILD STEEL

Application : CHILING WATER

Color : MULTI

State : GUJRAT

Capacity : 85 ton

Technical Specification (Terminal Ultra – Ultimate Lexical Shift) FMACSC-85TR-R407C; air-cooled water chiller; rated duty 85 TR (302 kW); refrigeration architecture single closed circuit. Power provision 400 V | three-phase | 50 Hz; electrical demand 73.0 kW; full-load current 122 A. Refrigerant charge R407C; metering via TXV; thermal design points 7°C evaporation / 40°C condensation; maximum ambient allowance 48°C. Chilled water operating envelope +7°C to +20°C. System water throughput 50,000 LPH at ΔT 5°C. Heat dissipation module air-cooled condenser bank, copper tube and aluminum fin matrix; airflow induced by four axial suction fans, 630 mm diameter. Fan drive rating 1.5 kW per unit; cumulative airflow 70,000 CFM; mounting base galvanized steel framework. Compression achieved through single semi-hermetic screw compressor supplied by Bitzer; shaft power 67.0 kW; operating current 102 A at 50 Hz. Starting protocol star–delta; capacity adjustment incremental unloading 0–100%. Evaporative heat exchange via shell-and-tube assembly; pressure shell powder-coated carbon steel; heat transfer medium inner-grooved copper tubing; flow management components SS-304 TIG-welded headers and baffles. Design pressure 10 bar; hydrostatic verification 15 bar; hydraulic interfaces 3-inch BSP. Insulation layer 40 mm closed-cell PUF.   Hydronic circulation provided by two SS-304 centrifugal pumps, 5.5 kW each, deployment one duty + one standby. Condenser refrigerant line dimension 3/8 inch. Protective logic encompasses high/low pressure cut-outs, motor thermal overload, phase sequence supervision, flow confirmation, freeze prevention algorithm, discharge temperature limiter, internal thermostat, and low water level interlock.

Size : STANDARD

Type : WATER COOLED

Color : MULTI

Capacity : 170 ton

Technical Specification (Terminal Ultra – Maximum Neutralization) FMACSC-85TR-R407C ▪ air-cooled industrial chiller ▪ cooling duty 85 TR (302 kW) ▪ refrigeration topology single closed loop Electrical feed 400 V / 3Ø / 50 Hz ▪ power draw 73.0 kW ▪ nominal current 122 A Refrigerant R407C ▪ expansion device TXV ▪ thermal points 7°C evap / 40°C cond ▪ design ambient 48°C Chilled water operating span +7°C to +20°C Hydronic capacity 50,000 LPH @ ΔT 5°C Heat dissipation system air-cooled condenser module (copper tube–aluminum fin core) ▪ ventilation by four axial suction fans, Ø 630 mm Fan input 1.5 kW each ▪ aggregate airflow 70,000 CFM ▪ support chassis galvanized steel Compression package single semi-hermetic screw compressor supplied by Bitzer ▪ drive power 67.0 kW ▪ running current 102 A @ 50 Hz Motor initiation star–delta ▪ load control progressive step unloading 0–100% Evaporator unit shell-and-tube heat exchanger ▪ pressure body powder-coated carbon steel ▪ tube bundle inner-grooved copper ▪ flow control SS-304 TIG-welded baffles and headers Pressure rating 10 bar ▪ hydro test 15 bar ▪ water interface 3-inch BSP Thermal insulation 40 mm closed-cell PUF   Circulation arrangement 2 × SS-304 centrifugal pumps, 5.5 kW each, configuration 1 operating + 1 standby Condenser refrigerant line 3/8 inch Protective systems HP/LP safeties ▪ overload protection ▪ phase sequence check ▪ flow verification ▪ freeze prevention logic ▪ discharge temperature limiter ▪ internal thermostat ▪ low-water cut-off

Size : STANDARD

Type : AIR COOLED

Brand Name : FIDEM

Material : MILD STEEL

Application : CHILING WATER

Color : MULTI

State : GUJRAT

Capacity : 85 ton
