C Purlin Roll Forming Machine Dealers in Rajkot

(6 products available)
  • C Purlin Roll Forming Machine

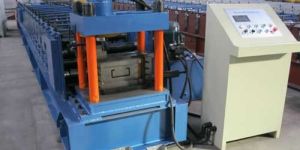

    C Purlin Roll Forming Machine

    Get Price Quote

    • Automation GradeFully Automatic
    • Country of Origin440v-50Hz-3phase
    • MaterialCR, HR, GP
    • Number of Forming Stations20
    • Outer Diameter of Shaft90
    • Main Motor Power25 HP
    • Roll Forming Speed8-10 meter/min
    • Yield Strength500 Mpa
    • Cutting SystemHydraulic,Automatic
    • Weight of Coil5000kg
    • Length of the Machine25 ft approx
    • Weight of Machine Approx10 ton
    • Min. Width of Coil200 mm
    • Max Width of Coil700 mm
    • Min. Thickness of Coil1.5 mm
    • Max Thickness of Coil2.5 mm
    • Adjust TypeHandwheel
    • Automation Level in PerformanceP.L.C Controlled Length
    • Accuracy LevelLength : +/- 2 M.M.
    • Bend / Twist1.5 MM/MTR
    • Dimn+/- 2 M.m
    • Tank Capacity200 ltr
    • Motor5 HP, 3phase, 1440 RPM, Flange, ABB
    • Direction Control ValveNG-06-24v-DC
    • Pump1P series 27 LPM
    • Section FilterSC3-30
    • Return Line FilterT1-F2-08-B25 (Hydro line)
    • Level GuageLG-03 (Hydro line)
    • Working Pressure90 kg/cm2
    • Equipment List : De-coiler (Manual) Main roll forming machine (20 stand) Hydraulic post cutoff unit Hydraulic power pack Electrical control system Electrical Control System : Destined for electrical controlling of line equipment Fabricated sheet metal enclosure Easy accessibly mounting of components PLC control mechanism system for high accuracy in length control. Front panel with operator interface, push button panel, operating & indicators. For ease of operation operator pendent can be at difference desired place on line. Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console. HMI 3x3 Touch color screen Variable frequency Drive Encoder Contactor,relay,smps, Auto single plece system Auto machine length counting Terms & Condition : 50% Advance Payment , Full Payment after trial at our workshop. Free training your operator person. One year service ( Ticket & Accommodation in your scope) GST extra. Ex Factory Rate Erection Charges will be Extra Transportation Extra as actual Delivery time Delivery 45-60 Working Days After Advance Payment
    ...more
  • C To Z Purlin Roll Forming Machine

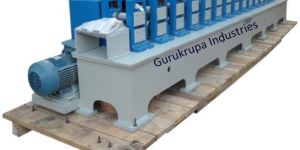

    C To Z Purlin Roll Forming Machine

    Get Price Quote

    We are offering c to z purlin roll forming machine. gurukrupa industries is a leading and widely recognized manufacturer and exporter of roll forming machine, roll forming line, cold forming machine, tube mill, cold roll forming machine, pipe bending machine, ring bending machine, pipe polishing machine, d coiler, plate body type roll forming machine, and bending machine our products the success that we have assumed is indicative of our commitment to the superior quality of products and needs of the customers. We offer a gamut of products which include: roll forming machineroll forming line pipe mill slitting length cold roll forming machine cut to length bending machine plate bending machine pipe bending machine ring bending machine pipe polishing machine tube polishing machine tube bending machine
    ...more
  • C Purlin Machine

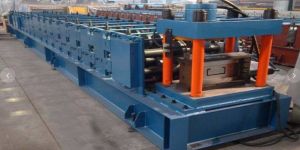

    C Purlin Machine

    Get Price Quote

    • Maximum sheet width that can be formed175 mm
    • Maximum sheet thickness in CRCA Strips that can be formed2mm
    • Horizontal distance between shafts300 mm
    • Number of forming stations20 nos
    • Vertical station6 nos
    • Total HP for Line35
    • Speed of the machine4 mt/minit
    • Size of machine7200 x 1100 x 1100 mm
    • Coil weight2 MT Max
    • Coil width500 MM
    • Coil bore450 MM min, 510 MM max dia
    • Mandrel movementManually adjusted
    • Back TensionManually adjusted
    • We are one of the leading organization occupied in providing brilliant quality C Purlin Machine, which are producing by using high grade material.we designed a lots kinds of CZ Purlin roll forming machine. due to the high graded superiority and our client fulfillment,The product by C&Z purlin roll forming machine has many benefit such as beautiful and colorful outside, light weigh, long life durability. It was widely used in every corn world wide. we can develop special C Purlin Roll Forming Machine as per customer requirement. D Coiler 1 ton cap. Entry Gate with Roll Forming Machine with 20 station , 10 Gear Boxes & 25 H.P. electrical. Power press 20 tone, Feeder Control Panel semi auto Cutting Unit (Hydro.) Entry Gate Entry gate will be provided for movement of sheet to roll former. Main Base The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands. Mill stands (Station) The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings. Roll shafts The roll shafts dia. 60mm will be manufactured from quality steel and will be keyed to locate tooling. Drive The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 10 HP motor Tooling One set of Tooling with EN31 grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above. Feeder Shaft Dia. - 60 mm Inner - 200 mm Material - EN 31 Motor H.P. - 1 Gear box - 1 Punching Press Capacity - 20 tone Motor H.P. - 3 Cutting Unit (Hydro) Hydraulically operated power pack along with cutting die with 3 HP electrical.
    ...more
  • C Purlin Roll Forming Machine

    C Purlin Roll Forming Machine

    Get Price Quote

    The c purlin roll forming machine manufactured by our company is used as the supporter of roofs and walls in large-scale and mid-scale construction, such as factories, warehouses, garages, exhibition centers, cinemas, theatres, gardens, and so on. The product of our c purlin roll forming machine is used as the supporter of roofs and walls. our c purlin roll forming machine consists of decoilerleveling devicepunching systemroll forming systempost-cutting equipmenthydraulic stationelectric controlling system and run out table for product
    ...more
  • C Purlin Roll Forming Machine

    C Purlin Roll Forming Machine

    Get Price Quote

    We are one of the leading organization occupied in providing brilliant quality CZ Purlin Roll Forming Machines, which are producing by using high grade material.we designed a lots kinds of C & Z purlin roll forming machine. due to the high graded superiority and our client fulfillment,The product by C&Z purlin roll forming machine has many benefit such as beautiful and colorful outside, light weigh, long life durability. It was widely used in every corn world wide. we can develop special C Purlin Roll Forming Machine as per customer requirement.
    ...more
  • Cz Purlin Machine

    Cz Purlin Machine

    Get Price Quote

    Cz Purlin Machine, Aluminum Gasifier Plant, Biomass Gasifier Plan
