Automation Level in PerformanceP.l.C Controlled Length
Accuracy Level : Length+/- 2 M.M.
Bend / Twist1.5 MM/MTR
DIMN+/- 2 M.M
Motor5 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLG-03 (Hydro line)
Working Pressure90 kg/cm2
Equipment List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Equipment List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Automation Level in PerformanceP.L.C Controlled Length
Accuracy LevelLength : +/- 2 M.M.
Bend / Twist1.5 MM/MTR
DIMN+/- 2 M.M
Tank Capacity120 Ltr
Motor5 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLG-03 (Hydro line)
Working Pressure90 kg/cm2
Equipment List:-
De-coiler (Manual)
Main roll forming machine (24 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Back cutter
Lamination unit
Electrical control system
De-Coiler :
Weight of the machine : 2500 kg
Capacity : 5000 kg max
Coil id : 510 mm
Max coil width can be loaded : 1450mm
Min coil width can be loaded :- 500 mm
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
EncoderContactor,relay,smps,Auto single plece systemauto machine length countingTerms & Condition :50% Advance Payment , Full Payment after trial at our workshop.Free training your operator person.One year service ( Ticket & Accommodation in your scope)GST extra.Ex Factory RateErection Charges will be ExtraTransportation Extra as actual
Equipment List:-
De-coiler (Manual)
Main roll forming machine (24 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Back cutter
Lamination unit
Electrical control system
De-Coiler :
Weight of the machine : 2500 kg
Capacity : 5000 kg max
Coil id : 510 mm
Max coil width can be loaded : 1450mm
Min coil width can be loaded :- 500 mm
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
EncoderContactor,relay,smps,Auto single plece systemauto machine length countingTerms & Condition :50% Advance Payment , Full Payment after trial at our workshop.Free training your operator person.One year service ( Ticket & Accommodation in your scope)GST extra.Ex Factory RateErection Charges will be ExtraTransportation Extra as actual
Features :
Electrical Panel
Bend Sheet Of Polycarbonate Sheet, Roofing Sheet , Ridge, Gutter
With 100 % Accuracy
Equipment List :
crimping machine
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
Variable frequency Drive
Contactor
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Features :
Electrical Panel
Bend Sheet Of Polycarbonate Sheet, Roofing Sheet , Ridge, Gutter
With 100 % Accuracy
Equipment List :
crimping machine
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
Variable frequency Drive
Contactor
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Center Distance of Lower Shaft to Base Plate150 mm
Horizontal Distance Between Two Stations450 mm
Max. Vertical Cent. Dist. Between Lower to Upper Shaft300 mm
Tank Capacity80 ltr
Motor3 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLg-03 (hydro Line)
Product Details :
Fabricated machined bed.
Plate type work station option
All roll shaft mounted on Ball Bearing
Roller shaft material EN-8 hardened and ground
Entry guides with vertical guide rolls & lateral movement manual screw type.
Roll tooling are made of suitable for PPGI coil.
For sensitive surface material like pre painted coil, aluminium,stainless steel, brass etc. Rolls are chrome plated as option.
Roll tooling manufacturing on C.N.C. machines.
Drive Mechanism will be chain drive.
Equipment List :
crimping machine
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
Variable frequency Drive
Contactor
Terms & Condition :50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Product Details :
Fabricated machined bed.
Plate type work station option
All roll shaft mounted on Ball Bearing
Roller shaft material EN-8 hardened and ground
Entry guides with vertical guide rolls & lateral movement manual screw type.
Roll tooling are made of suitable for PPGI coil.
For sensitive surface material like pre painted coil, aluminium,stainless steel, brass etc. Rolls are chrome plated as option.
Roll tooling manufacturing on C.N.C. machines.
Drive Mechanism will be chain drive.
Equipment List :
crimping machine
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
Variable frequency Drive
Contactor
Terms & Condition :50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Product Details :
All steel body construction
Mandrel rotation on Deep groove ball bearing
Panel With A.C Drive
Equipment List :
De-coiler (Hydraulic)
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
Variable frequency Drive
Contactor
Terms & Condition:-
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Product Details :
All steel body construction
Mandrel rotation on Deep groove ball bearing
Panel With A.C Drive
Equipment List :
De-coiler (Hydraulic)
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
Variable frequency Drive
Contactor
Terms & Condition:-
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Automation Level in PerformanceP.L.C Controlled Length
Accuracy Level : Length+/- 2 M.M.
Bend /twist1.5 MM/MTR
DIMN+/- 2 M.M
Tank Capacity200 Ltr
Motor5 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLG-03 (Hydro line)
Working Pressure90 kg/cm2
Equipmet List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System:-
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
Auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Equipmet List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System:-
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
Auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Automation Level in PerformanceP.l.c Controlled Length
Accuracy LevelLength : +/- 2 M.M.
Bend / Twist1.5 Mm/mtr
Dimn+/- 2 M.m\
Tank Capacity120 ltr
Motor5 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLG-03 (Hydro line)
Working Pressure90 kg/cm2
Equipment List :
De-coiler (Manual)
Main roll forming machine (24 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Back cutter
Lamination unit
Electrical control system
De-Coiler :
Weight of the machine : 2500 kg
Capacity : 5000 kg max
Coil id : 510 mm
Max coil width can be loaded : 1450mm
Min coil width can be loaded :- 500 mm
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Equipment List :
De-coiler (Manual)
Main roll forming machine (24 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Back cutter
Lamination unit
Electrical control system
De-Coiler :
Weight of the machine : 2500 kg
Capacity : 5000 kg max
Coil id : 510 mm
Max coil width can be loaded : 1450mm
Min coil width can be loaded :- 500 mm
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Automation Level in PerformanceP.L.C Controlled Length
Accuracy LevelLength : +/- 2 M.M.
Bend / Twist1.5 MM/MTR
DIMN+/- 2 M.M
Tank Capacity200 Ltr
Motor5 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLg-03 (hydro Line)
Working Pressure90 kg/cm2
Equipment List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System:-
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
auto machine length counting
Terms & Condition:-
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Equipment List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System:-
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
auto machine length counting
Terms & Condition:-
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Automation Level in PerformanceP.LC Controlled Length
Accuracy LevelLength : +/- 2 M.M.
Bend /twist1.5 MM/MTR
DIMN+/- 2 M.M
Tank Capacity200 ltr
Motor5 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLG-03 (Hydro line)
Working Pressure90 kg/cm2
Equipment List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
Auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Equipment List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
Auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Automation Level in PerformanceP.L.C Controlled Length
Accuracy LevelLength : +/- 2 M.M.
Bend / Twist1.5 MM/MTR
Dimn+/- 2 M.m
Tank Capacity200 ltr
Motor5 HP, 3phase, 1440 RPM, Flange, ABB
Direction Control ValveNG-06-24v-DC
Pump1P series 27 LPM
Section FilterSC3-30
Return Line FilterT1-F2-08-B25 (Hydro line)
Level GuageLG-03 (Hydro line)
Working Pressure90 kg/cm2
Equipment List :
De-coiler (Manual)
Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
Auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Delivery time Delivery 45-60 Working Days After Advance Payment
Equipment List :
De-coiler (Manual)

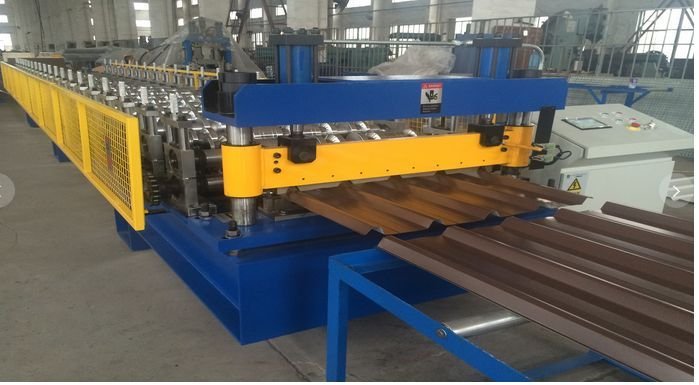

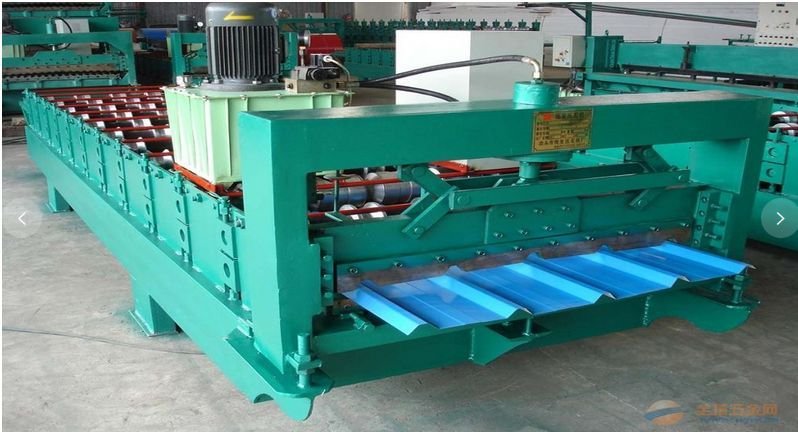

Main roll forming machine (20 stand)
Hydraulic post cutoff unit
Hydraulic power pack
Electrical control system
Electrical Control System :
Destined for electrical controlling of line equipment
Fabricated sheet metal enclosure
Easy accessibly mounting of components
PLC control mechanism system for high accuracy in length control.
Front panel with operator interface, push button panel, operating & indicators.
For ease of operation operator pendent can be at difference desired place on line.
Mains with 3 phase 4 wire necessary protections shall be arranged by us near main panel console.
HMI 3x3 Touch color screen
Variable frequency Drive
Encoder
Contactor,relay,smps,
Auto single plece system
Auto machine length counting
Terms & Condition :
50% Advance Payment , Full Payment after trial at our workshop.
Free training your operator person.
One year service ( Ticket & Accommodation in your scope)
GST extra.
Ex Factory Rate
Erection Charges will be Extra
Transportation Extra as actual
Delivery time Delivery 45-60 Working Days After Advance Payment
Reviews & Ratings
Write a Review
Post Free Ad
