Chemical Vessels Dealers in Rajkot

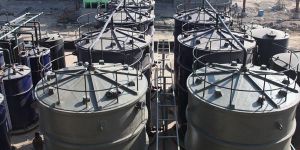

SALIENT FEATURES Good Corrosion and Weather Resistance High Physical and Mechanical Strength High Strength to weight ratio Highly Durable Higher conveying ability due to glossy internal finish & hence less pump loads Abrasion resistance & Lower thermal conductivity Resistant to galvanic & stray electrical currents and Excellent thermal insulation Good adaptability & dimensional stability UV resistant, Aesthetically appealing, Flexibility in design, Light in Weight and hence easy to handle and install Ease of fabrication such as cutting, drilling, joining etc Good Insulating Qualities Ease of Maintenance with Zero Downtime Economical & cost effective TECHNICAL SPECIFICATION Our FRP tanks & Vessels having a wide range of applications and sizes. DESIGN STANDARDS Major Design Standards: BS 4994, ASME RTP-1, ASME Section X SIZE 100 Liters to 300 KL MATERIAL OF CONSTRUCTION FRP Moulded and Filament Wound using Isopthalic, Bisphenol, Vinylester and Epoxy Resin PP & HDPE Spiral Wound PP/FRP, PPH/FRP, PVC/FRP, CPVC/FRP, PVDF/FRP, ECTFE/FRP, FEP/FRP QUALITY SPECIFICATIONS Qualification as per BS 4994, ASME Section X

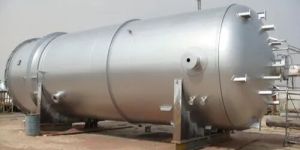

A Pressure Vessel is a closed container designed to hold gases or liquids at a pressure different from the ambient pressure. Some examples of pressure vessels are; industrial compressed air receivers, domestic hot water storage tanks, diving cylinder, recompression chamber, distillation towers, autoclaves, etc. Many other vessels used in oil refineries and petrochemical plants, and storage vessels for liquefied gases such as ammonia, chlorine, propane, butane and LPG are also categorized as pressure vessels. Industrial Pressure Vessels can theoretically be of any shape, but shapes made of sections of spheres, cylinders and cones are usually employed. Boiler Pressure Vessels are designed to operate safely at a specific pressure and temperature. A vessel that is inadequately designed to handle a high pressure constitutes a very significant safety hazard. Because of that, the design and certification of pressure vessels is governed by design codes such as the ASME Boiler and Pressure Vessel Code.

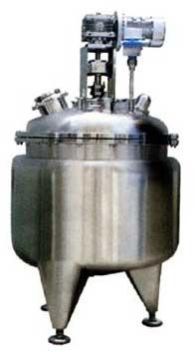

We manufacture Reaction Vessel from 50 Ltrs to 20 KL in Material of construction Mild Steel, Stainless Steel SS 304 or SS 316. Construction : Jacketed Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends.A jacket is provided on the Outside of the shell for Heating the reactor by passing steam or thermic Oil. or Cooling the reactor by passing cooling media. Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel. Agitator assembly mounted on the Top dish of Reactor consists of Shaft supported by Lantern Assembly on the Top End containing Bearing Housing with Tapered roller bearing and Ball bearing to withstand impact load and vibratory load ensuring smooth rotation of the Shaft. Water cooled Stuffing box filled with gland rope pressed by Gland pusher is also provided. On the other end of the shaft Blade is fitted of different types as per the need of the Process viz. Single Anchor, Double Anchor, Gate, Paddle, Flat or Curved Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement. Top Dish of the Reactor is provided with various Nozzles viz. Manhole, Light Glass, Sight glass, Vapour, Addition, Reflux, Thermowell etc. Bottom Dish of the Reactor is provided with an Outlet nozzle where valve is fitted. Drive : The drive is designed to give maintenance and trouble free performance. The Agitator Shaft is coupled to the Reduction Gear Box with Flexible coupling. The Reduction Gear Box is mounted on the Top of the Lantern Assembly and is driven by Motor using V belt pulley. Variator or AC drive can by used to get variable speed of the Agitator if desired. Mounting : Four lugs support are provided on the Shell of the reactor to mount it on the Platform of the Factory. Platform can also be prefabricated and assembled at site. Welding : Welding work is performed by Argon Arc process using Good Characteristic Filler rods on all S. S. Parts. M.S. Parts welding is performed by D. C Arc welding process using suitable electrodes of Advani Oerlikon make. Finish : All weld joints will be finished from inside and outside, S S. Parts is cleaned from inside and outside. Two coates of primer / redoxide will be given on M.S. parts from outside. Testing : Equipments are tested Hydraulically as per design Pressure. Function : Reaction Vessels are used in carrying out a wide variety of chemical reactions including condensation, polymerization, esterification etherifciation, hydrolysis, hydration, reduction, oxidation, hydrogenation etc. at pressures (Up to 30 Kg. / cm2) and at temperatures ranging -20oC to +250oC. Reaction needing simultaneous fractional distillation and azeotropic distillation can also be conducted very efficiently using these chemical reaction vessels. Material of Constructions : Various materials of construction, such as MS, SS304, SS 316, SS 316L, Rubber Lined etc, can be offered as per requirement.

The firm is ranked amidst the major Manufacturers and Suppliers of highly efficient Reaction Vessels. Designed using advanced spiral technology; these Reaction Vessels are used in various industries for conducting chemical reactions. Our Reaction Vessels are particularly used for special purposes like FRP Reaction as well. The complete reaction vessel that we offer includes M.S. Structure for holding the vessel, agitator and gear box assembly. Attributes Rust proofChemical resistantCan withstand high temperatureLow maintenance

Specifications :- We are recognized firm engaged in manufacturing extremely efficient Reactor Vessel that is the central component of the reactor coolant system and which is sturdily steel constructed by the skilled professionals of our company. The Reactor Vessels designed and developed by us are widely used in commercial nuclear power plant, pharmaceutical industries, chemical plants, etc.Reaction vessels are at the heart of a chemical plant. They are where the chemical Changes and reactions take place. Powders or liquids may be poured into reaction vessels using large funnels, called hoppers, connected to the top of the vessel.These stainless steel liquid mixing tanks are highly efficient to use with its robust mixing structure for homogeneous mixing of different chemicals and ingredients. Material of Construction :-   MS Jacketed – SS304 limpet coil for heating & cooling tested for 5kg/cm² Anchor shaft, propeller, turbine will be available Chemical cleaning is done internal & external to remove contamination. Material can be Carbon steel, mild steel, stainless steel, 304, 304 L, 316, 316 L, 317 L, 904 L. Blades with different shapes such as: Paddle Form, Frame Form, Scrapper Form.   Features :-   High quality Durable Reliable Strong Construction Superior Functionality Corrosion Resistance High Durability Easy Installation   Heating way mainly :- Steam Heating, Thermal Oil Heating, Electric heating etc. Applications :- The reactor vessel used in the first commercial nuclear power plant, Fit for pharmacy, chemical industry, dye, resin and food Industry, It can be widely used in Liquid Resin, Rubber, Pesticide, Glue, Dye, Medicines. Food, Pharma, Chemical, Minerals, Guar Gum, Starch, Pigment Colors & etc. Model size is Available :- 500 ltrs to 20,000 ltrs (Drive HP as per design)

FEATURES Dead leg & Crevice free Mirror polished contact surface as per cGMP criteria 100% Aseptic and Hygeinic Design as per USFDA 3A, EHEDG, ASME (BPE) Norms 100% cleanable & sterilizable Electropolished inside surface to Comfortable handling Specially designed Pressure Vessel suitable for In-situ sterilization Complete set of filtration equipment with Pressure Vessel + Membrane Filter Holder + Sterile Filling Vessels can be supplied SPECIFICATIONS We provide complete range of Aseptic and sterile SS containers for Pressure Filling Vessels for handling Injectable Liquids under highest grade classified area Dispensing Nozzle with Dip Tube Pressure Nozzle with Clamp Handle for Lifting/Shifting SS Trolley with PU Castors Sight Glass (Optional) Safety Valve Vertical, Cylindrical with Conical / Dish top and shallow dish bottom with skirt Top opening with T/C clamped with skirt Contact parts: SS 316L, Mirror polished to 0.3 Micron RA Non-Contact parts: SS 304 Matte finished to 0.8 Micron Gasket: Food Grade Silicone Dynamic Working of 3.5 to 4 Barg Pressure and partial vacuum 5 L to 250 L

Drinking water from copper vessels is extremely beneficial for our health. From a healthy heart to super digestion, drinking water from copper jug can work like magic. Though its usage is less nowadays we can revive using it all again to stay healthy and fit.

Chemical Vessels, Paper Drum Machinery, Pharma Machinery, Acid Tan

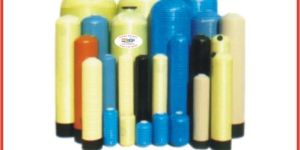

FRP Pressure Vessel, PET Bottle Filling Machin

We manufacture receiver, accumulators, and oil separators from plates as per its standard.

Metal Pressure Vessels, Distillation Columns, Flanges, Pipings, Skid

Pressure Vessels, Air Compressor, Heat Exchangers & Tube Bundle

Vessels, Ball Mill, Dustpan Mill, Muller, Attritor, pulleys & coupling

Reaction Vessels, Dryers, Vessels, Vacuum Dryers, Ribbon Blender

Vessels, Bucket Elevators, Screw Conveyor

Fabrication Vessel

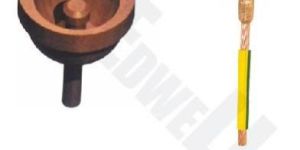

Static Earth Receptacle, DC Clip, Brass Wiping Gland, T Connector Clamp

Pressure Vessel

SS Vessel, Sheet Metal Parts, Steel Fabrication Cabinet Structur

Storage Vessels, Conveyor Belt, Sand Core Mixer, Storage Tan
