JJ PV Solar Private Limited Shapar, Rajkot, Gujarat

Features & Benefits : Available in both type surface and submersible. Applicable for all type of bore, ponds etc. Maintenance free/Low DC/AC branded pumps fit and forget. No any running cost, freedom from electricity bills. Complete mounting structure(powder coated) with tracking system. It can supply water at flow rate of 1000L/min or more. It can work for more than 100 meter depth. It can be installed in any remote areas Properly designed AC drives to run AC pump with solar modules. Subsidy from MNRE/NABARD and other state (India) nodal agency is available   Application : Agriculture Irrigation purpose  Drinking Water Pond aeration & livestock watering Drip & Sprinkler Industry water supply

Features and Benefits : Automatic Dusk to Dawn Operation No strains & Pains of Manual Operation Free from messy cable MNRE Approved Model Appealing Aesthetic of Luminaries Reliable MOSFET based Electronics Lamp Protection with Pre-Heating Selective height of the Pole as per Customers requirement LED & CFL based fixtures with inbuilt charge controller Powder coated all metal bodies for protection from environment MNRE approved 2Days Autonomy(higher can be provided on the demand of customer)

Number Of Flower : Street Lights

We are leading supplier of huge range of Solar Street Lights SOLAR PANEL 40 WATT, LED LIGHT 11 WATTS, BATTERY 40 aH

"We ensure our customers with following features of our modules." : Best - in class manufacturing technology and equipment from Europe. High Quality, TUV & UL Certified raw materials. High Transitivity, Low iron, Tempered & Toughened glass to ensure higher light absorption. Anodized Al. frames and high quality back sheet to ensure protection in all weather conditions. High quality encapsulation material to ensure high quality lamination and best working on field. High quality IP-65 Junction Box to ensure high electrical output and best registrant to temperature to all weather condition. 5 Year of mechanical workmanship warranty. 12 Years of output power warranty for performance of not less than 90% of output power. 25 Years of output power warranty for performance of not less than 80% of output power. Globally recognized & World class certificates of IEC 61215 & IEC 61730, IEC 61701, ISO 9001:2008 & ISO   Applications :   On-grid as well as off-grid Roof-top Power Plant  Commercial MW Scale Power Plant  Solar Street Lighting & Water Pumping System

Size : As Per Required

Number Of Flower : Power Plant

Number Of Flower : Blue

On grid solar power plant work with parallel to grid. If not utilized power you can export to the grid.

Solar Multy crystlline Solar panel. panel Size 1970*990mm with iec 61215 and salt mist certificates.

Solar power : 300 watt

Country of Origin : India

INPUT max. Dc power [w]: 11000 max. Dc voltage [v]: 850 mppt voltage range [v]: 420~800 max. Dc current [a]: 21 number of mppt tracker strings per tracker: 16 OUTPUT power connector: 3 phases max. Ac power [w]: 10700 nominal ac phase voltagerange [v]: 3npe,230400 ; it:195~265; au:200~270 de:185~265 nominal ac frequencyrange [hz]: 50it: 47.5~51.5; au:45.0~55.0; de:47.5~50.2 max. Ac current [a]: 17 nominal ac current [a]: 14 power factor>0.99 output current thd99%

Number Of Flower : Solar On Grid Tie Inverter

Brand Name : JJ PV SOLAR

INPUT max. Dc power [w]: 6200 max. Dc voltage [v]: 550 mppt voltage range [v]: 120 - 450 max. Dc current [a]: 27 number of mppt trackers strings per mpp tracker : 13 OUTPUT power connector: 3 phase max. Ac power [w]: 6000 nominal ac phase voltage range [v]: 230au:200~270; it:196~253; uk:200~253 nominal ac frequency range [hz]: 50au:48.5~51.5; it:47.5~51.5; uk:47.5~51.5 max. Ac current [a]: 26 nominal ac current [a]: 26 power factor>0.99 output current thd99%

Number Of Flower : Solar On Grid Tie Inverter

Brand Name : JJ PV SOLAR

Input max. Dc power [w]: 3200 max. Dc voltage [v]: 550 mppt voltage range [v]: 120 - 450 max. Dc current [a]: 17 number of mppt trackers strings per mpp tracker: 12 output power connector: single phase max. Ac power [w]: 3000 nominal ac phase voltage range [v]: 230au:200~270; it:196~253; uk:207~264 nominal ac frequency range [hz]: 50au:48.5~51.5; it:47.5~51.5; uk:47~50.5 max. Ac current [a]: 14 nominal ac current [a]: 14 power factor>0.99 output current thd 99%

Number Of Flower : solar on grid tie inverter

Brand Name : JJ PV SOLAR

Input max. Dc power [w]: 4200 max. Dc voltage [v]: 550 mppt voltage range [v]: 120 - 450 max. Dc current [a]: 20 number of mppt trackers strings per mpp tracker: 12 output power connector: single phase max. Ac power [w]: 4000 nominal ac phase voltage range [v]: 230au:200~270; it:196~253; uk:200~253 nominal ac frequency range [hz]: 50au:48.5~51.5; it:47.5~51.5; uk:47.5~51.5 max. Ac current [a]: 18 nominal ac current [a]: 18 power factor>0.99 output current thd99%

Number Of Flower : Solar On Grid Tie Inverter

Brand Name : JJ PV SOLAR

INPUT max. Dc power [w]: 11000 max. Dc voltage [v]: 850 mppt voltage range [v]: 420~800 max. Dc current [a]: 21 number of mppt tracker strings per tracker: 16 OUTPUT power connector: 3 phases max. Ac power [w]: 10700 nominal ac phase voltagerange [v]: 3npe,230400 ; it:195~265; au:200~270 de:185~265 nominal ac frequencyrange [hz]: 50it: 47.5~51.5; au:45.0~55.0; de:47.5~50.2 max. Ac current [a]: 17 nominal ac current [a]: 14 power factor>0.99 output current thd99%

Number Of Flower : Solar On Grid Tie Inverter

Brand Name : JJ PV SOLAR

Input max. Dc power [w]: 5200 max. Dc voltage [v]: 550 mppt voltage range [v]: 120 - 450 max. Dc current [a]: 25 number of mppt trackers strings per mpp tracker: 13 output power connector- 3phase max. Ac power [w]: 5000 nominal ac phase voltage range [v]: 230au:200~270; it:196~253; uk:200~253 nominal ac frequency range [hz]: 50au:48.5~51.5; it:47.5~51.5; uk:47.5~51.5 max. Ac current [a]: 22 nominal ac current [a]: 22 power factor>0.99 output current thd99%

Number Of Flower : Solar On Grid Tie Inverter

Brand Name : JJ PV SOLAR

> integrated dc switch for added safety protection > power factor continuously adjustable >transformer-less design and high power density, off lighter and more convenient installation.

Number Of Flower : grid tie

Brand Name : JJ PV SOLAR

Our services Includes : Cost impact analysis and feasibility study Technical / Commercial consulting. Site survey Project Design and Detailed engineering. Regulatory and government Liason Supply of materials, components and BOS Erection and commissioning Project Management Maintenance Subsequent Consulting for revenue maximization

Number Of Flower : On Grid

Number Of Flower : Blue

Number Of Flower : Solar

Jj pv solar offers customized solution according to requirement and need of customer. We offer turnkey solution from concept to commissioning for off - grid as well as grid interactive solar power plants.

Solar power : 5KW

Country of Origin : India

On grid solar power plant work 9 kw with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

On grid solar power plant 8 kw work with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

On grid solar power plant work with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

On grid solar power plant work with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

On grid solar power plant 5 KWwork with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

On grid solar power plant 4 KW work with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

On grid solar power plant 3 KW work with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

On grid solar power plant 2 KWwork with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India

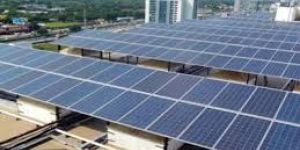

On grid solar power plant 10 KW work with parallel to grid. If not utilized power you can export to the grid and use it after when it is necessary.

Country of Origin : India
