Smew Textile Machinery Pvt. Ltd Gandhigram, Rajkot, Gujarat

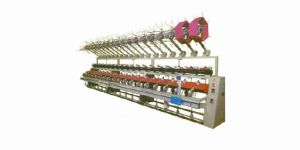

Main Features Machine arrangement - single sided Max. Spindles - 48(in multiples of 3) Installed power per spindle - 0.150Kw Input power - 415/380/220 v ac three phase + n + e Individual ac inverter for every drum motor for soft start Pre feeder for reducing yarn tension variation while unwainding from hanks Separate common inverter for controlling speed of pre-feeding motors Stepless speed variation from 0 to 750 mpm by frequency inverter Yarn sensing by electronic non contact type yarn detector Traverse - 6" - 8" - 10" Electronic anti patterning Single sided pacakage holders suitable for 5 57 cones Maximum take-up package - 320mm Swift capable of holding hank upto 1000gms Swift circumference adjustable from 45" to 68" Optional Extras Length Measuring system Splicer Waxing

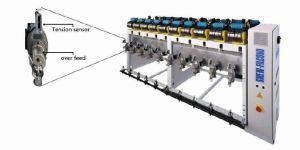

Main Features Machine arrangement - single/double sided Max. Spindles - 160(in multiples of 10) Installed power per spindle - 0.075Kw Input power - 230/380/400/440v AC Three phase Individual motor for every spindle Stepless speed variation from 0 to 1400 mpm by frequency inverter DIGITAL TENSION CONTROL SYSTEM WITH REAL TIME TENSION FEEDBACK AND OVER FEED FOR ACCURATE TENSION CONTROL UPTO 0.1 GM RESOLUTION   Hard aluminium anodized drum of 1.5 turns with large diameter Electronic anti patterning Double sided package holder suitable dye tubes/cones Maximum take-up package - 300mm Optional Extras Length measuring system Air / Aqua Splicer Over head travelling cleaner

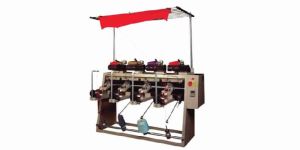

Main Features Individual drive per spindle Pre-feeding motor for yarn coming from knitted fabric to regulate yarn tension Speed of pre-feeding motor and drum motor can be changes to have a hard or soft package as desired Soft start so that yarn does not break during startup Lower creel provided for cone to cone winding Traverse - 6" Auto stop on yarn breakage Auto stop and brake on yarn entanglements Cicular disc yarn clearer Motorized Waxing Non contact type yarn sensor cone holder sutiable for tubes and cones tuto 5.57 degree cones Sutable for recovering from 2 to 8 ends from knitted fabric Stepless speed variation from 0 to 1200 mpm by frequency inverter

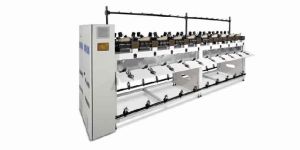

Main Features Machine arrangement - single/double sided Max no. of Spindles per machine - 160(in multiples of 10) Installed power per spindle - 0.075Kw Input voltage - 220/380/415v three phase Individual motor on every spindle Stepless speed variation from 200mpm to 1200mpm by frequency inverter Yarn sensing by electronic non contact type detector Hard aluminium anodized drum of 2 or 2.5 turns Adjustable disc slub catcher Motorised waxing device Electronic anti patterning Single/Double sided cone holders with bearings for cones and tubes from 0 degree to 5.57 degree cones.(Single sided cone holders avilable on special request)   Maximum take-up package dia:300mm Optional Extras Length measuring system Splicer Over head travellign cleaner Liquid waxing Double waxing

Main Features Machine arrangement - single/double sided Max. Spindles - 160(in multiples of 10) Installed power per spindle - 0.075Kw Input power - 230/380/400/440v AC Three phase Individual motor for every spindle Step less speed variation from 0 to 1200 mpm by frequency inverter Yarn sensing by electronic non contact type yarn detector Auto stop on yarn breakage Traverse - 8"(200 mm) or 10"(250 mm) Pre-feeding motor to reduce tension variations and to produce soft or hard final package Double disc tensioning Circular slub catcher Electronic anti patterning Double sided package holder suitable dye tubes/cones Maximum take-up package - 350mm Optional Extras Length measuring system Over head travelling cleaner Waxing

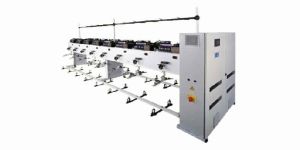

Main features machine arrangement - double sided installed power per spindle - 0.075kw input power - 220/380/415 v ac three phase + n + e individual motor on every spindle stepless speed variation from 200mpm to 1000 mpm by frequency inverter yarn sensing by electronic non contact type yarn detector auto stop on yarn breakage yarn cutter to cut additional yarn during yarn breaks straight yarn path ensure miminum breaks inspite of high speed winding hard alumimium anodized drum double dic tensioning with forced movement by motor integrated creel for 2 ply or upto 4 ply winding max. Take-up package for 2 ply winding - 300mm electonic anti patterning double sided package holders sutiable for tubes lenght control system optional extras over head travelign cleaner splicer 6 ply & 8 ply with separate creel
