The Radhey Export GIDC, Rajkot, Gujarat

Capacity : 50-100 Lts , 100-200 Ltrs

Layer Type : Double Layer, Single Layer

Color : SILVER

Application : Water Boiling, Water Storage

Finishing : Chemical Coated, Powder Coated

Shape : Rectangular , Round ,Other

Automatic Vertical Air Jet Cleaning Machine works on positive air pressure & vacuum cleaning. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of S. S. Slat Conveyor & Reciprocating cleaning nozzles. No container No cleaning system arrangement is standard features of the machine.The main drive of the machine and conveyor drive consists of A/C Motor with synchronized variable A/C Frequency Drive. Operation : Automatic Vertical Air Jet Cleaning Machine can accomplish a task by a photoelectric system, all the bottle should be cleaned before being filled, when an empty bottle arrives at the specified position, a cleaner comes down automatically until at the mouth of the bottle, then pure air is pressed into the bottle, and the impurity inside of the bottle is removed by vacuum system. This product conforms to the requirements of GMP completely.   Salient Features : Positive air pressure and vacuum cleaning. Easy operation. Adjustable & diving type cleaning nozzles. Automatic loading and unloading of container. Individual control for air pressure and vacuum cleaning. Higher capacity blower to clean properly. S. S. pressure meter.

Direction Of Movement : Left to Right

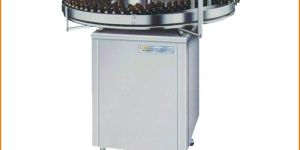

Stainless steel scrambler & un scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to ensure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line. Operation : Container inputs in turn table by manually or automatic will rotate on disk of turn table and exit through outlet, during rotation of container will guided by a SS strip, which will guide the container towards outlet path.   Salient Features : Construction AISI S.S. 304 quality. Three step pulley for different speed. Special self-aligning bearings ensure smooth and trouble free operation. Suitable for different type of container. S.S. elegantly matt finished body. Reduction gears ensure jerk free and noiseless operation. Matt Finished body.

Voltage : 440

Material : Aluminum, Carbon Steel, Metal, PVC, Stainless Steel

Color : Grey, Light Silver, Metallic, Silver

Condition : New, Used

Capacity : 1000-5000L, 500-1000L, 5000-10000L

Surface Finishing : Coated, Non Coated

Salient Features: Designed especially considering the variety of containers of lube oil. Perfect design with top holding for accurate label placement. High consistency of label placement on parallel surfaces. No change parts requirements. Very less down time for change over.

Pack Well Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine. Operation : Medi Pack Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.   Salient Features : No container no cap arrangement. Single motor synchronizes conveyor, star wheel & platform turret. Adjustable height of conveyor belt. All contact parts are made out of stainless steel. Pick & Place arrangement. Torque adjustable. Low noise level, low power consumptions.

Salient Features : No container No cap arrangement. Adjustable height of conveyor belt, to align with other machine of the line. SS elegantly matt finished body. Sealing pressure can be varied to suit different gauges and size of caps. Single motor synchronizes conveyor, star wheel, & platform turret. Adjustable bottle height gauge for easy and quick setting. Self-lubricating UHMW-PE guide profile for low friction wears surface, smooth and noiseless conveying. SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. Synchronized A/C drives to synchronize, Conveyor, Star wheel and Platform turret & capping blow. Low noise level, low power consumptions.

Direction Of Movement : Left to Right

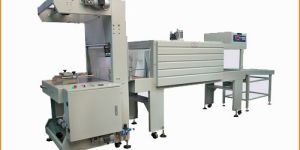

1. Model:Auto film wrapping machine The machine is specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, fruit juice, and milk product).During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency. 2. Features Auto film wrapping machine 1. With full automatic functions of bottle transferring and arranging, membrane packing, sealing and cutting, shrinking, cooling and shaping,etc.2. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.3. The quick seal cooling structure guarantees that the seal has a higher strength even if under high speed production condition.4. Adopted with PLC automatic program circulation control with stable and reliable performance.5. The original imported guido bar cylinder guarantees correct and durable operation.6. The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss.7. All the transfer system is controlled by frequency converter with stable and smooth transfer speed.8. Unique thermal passage with centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.9. 3 layers of heat insulation treatment with good insulating properly,quick temperature rise and energy saving.10.The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transpoded.

Air Pressure : 0.6-0.8Mpa

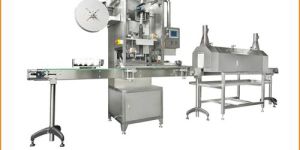

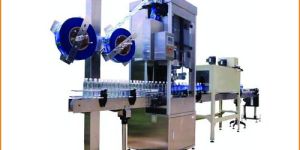

Materials: stainless steel and high quality aluminum alloy Compact structure No need to fasten feet bolts to ground, it can be moved flexibly Shrinking film volume label frame: adjustable according to different volume label paper pipes from 5 to 10. Gear device can be adjusted conveniently without using tools, which makes it suitable for different bottles Servo motor and high-delicacy photo-electricity from Japan make the cutting label precise Applicable diameter of bottle body: 28 to 120mm Applicable length of label: 30 to 250mm Applicable thickness of label: 0.03 to 0.13mm

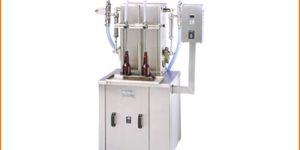

Pack Well Semi Automatic Volumetric Liquid Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Working on volumetric principle. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body. Operation : Containers have to place manually below the filling nozzles at platform of machine. Where motor operated syringes fill desire pre set volume in container, bottle guide are provide for precisely match for centering of container below nozzles, to avoid spillage of liquid on container. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.   Salient Features : Semi Automatic with filling range from 5 ml to 1000 ml. Accuracy ± 1 % in single doze. Three different speeds depending upon capacity of bottles. Body covered with SS sheet. All contact parts SS 316. A unit to fill variety of liquid and can be used for various type of containers. Minimum change over time from one size to another container or fill size.

The semi automatic cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is having motorized rotating head mechanism, which ensures proper cap sealing with uniform torque. Operation : Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head, and sealing head is performing perfect operation of capping with uniform torque.   Salient Features : The unit is made compact & versatile. S.S. Elegantly Matt Finished Body. Built in front control panel. Quick setting. Motorized head movement. No change parts require for different container diameter. Low noise level, low power consumptions. Adjustable bottle height gauge for easy and quick setting. SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. Sealing pressure can be varied to suit different gauges and size of caps.

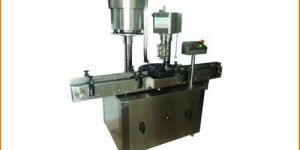

The semi automatic cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is motorized incorporating rotating threading & sealing rollers, for threading & sealing of ROPP cap. Operation : Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head, and sealing head is performing perfect operation of threading & sealing.   Salient Features : The unit is made compact & versatile. S.S. elegantly matt finished body Built in front control panel. Quick setting. Motorized head movement. No change parts require for different container diameter. Low noise level, low power consumptions. Adjustable bottle height gauge for easy and quick setting. SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. Sealing pressure can be varied to suit different gauges and size of caps.

Net Weight : 200 Kgs. Approx.

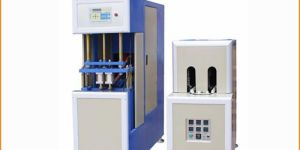

Semi Automatic PET Stretch Blow Moulding machine to make PET bottles and Jars from PET performs.   Features: Built in automatic microprocessor system to control entire operation Memory storage and recall for up to 40 parameters settings High quality cylinders and valves for long lasting life Touch Screen LCD operator panel for easy Men – Machine interface Heating section with 1120 mm long Infra red heaters and PMDC motor to control self rotation speed of perform for uniform and proper heating of perform before blowing Integrated Water cooling System with one inlet & one outlet Usage: PET bottles and Jars for Mineral Water, Juice, Edible Oil, Pesticides, Pharmaceuticals, Carbonated Soft Drinks, Liquor, Cosmetics and ConfectioneriesKeywords: PET Stretch, Blow molding machine, Blowing moulding machine,semi-automatic

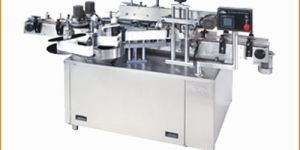

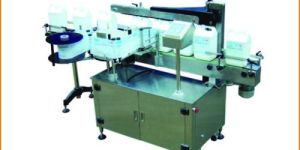

The Automatic Vertical Sticker Labeling Machine MPASAL-150TF is one of the most users friendly. The machine is used for two sides labeling on flat surface of different size of flat container. It is capable to labeling up to 150 containers per minutes depending on products and label size. The automatic model is equipped with belt spacing device resulting in a simple to “No change parts required”. Operation : The round containers positioned & curate spacing between two containers by the belt spacing device and a belt drive mechanism hold the container from top of the container for two sides labeling on flat container at the labeling point, an electronics product sensor sense container & relies a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.   Salient Features : High Production Speeds. Suitable for any type of Flat Container. Container hold from top for perfect & accurate labeling. Stainless steel 304 construction. GMP design. Accurate label placement. Full Security Package including counter. Secondary pressure unit. PLC with Soft Key Pad System. Product data storage Facility. No change parts requirements. Very less down time for change over. Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

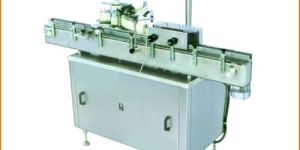

The Automatic Vertical Sticker Labeling Machine DASAL-150 is one of the most user friendly. The machine is used for full/partial wrap around labeling on different size of round container. It is capable of labeling up to 150 containers per minutes depending on products and label size. The automatic model is equipped with roller spacing device resulting in a simple to “No change parts required”. Operation : The round containers positioned & accurate spacing between two containers by the roller spacing device for wrap-around operation at the operation at the labeling point, an electronic product sensor senses container & release a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.   Salient Features : High Production Speeds. Stainless steel 304 construction. GMP design. Accurate label placement. Full Security Package including counter. Product data storage facility. No change parts requirements. Very less down time for change over. Suitable for Glass, Plastic, Pet, Tin, Corrugated containers. Online printing device. Online inspection of batch no & printing. Acrylic cabinet. Servomotor instead of stepper motor. PLC with touch screen system.

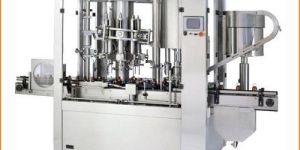

Salient Features: All operations through PLC. + 0.5% filling accuracy due to piston dozing principle. Centralized Volume Adjustment System- no down time in volume settings. Automatic volume adjustment system with reference to the change of viscosity because of change of temperature through PLC and servo mechanism. Oil level controller and pneumatically controlled product in feed valve. 160 liters oil tank with flushing valve. No Container – No Fill mechanism . No cap & No bottle – Machine stop mechanism. Container jamming at in feed or out feed – Machine stop system. Wrong neck & No label – container rejection at in feed.

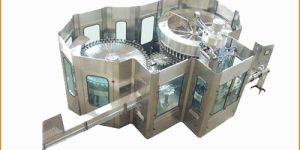

The carbonated filling Tri-bloc is used to bottle carbonated beverage such as Coca cola, Pepsi, Sprite, soda water and so on. This machine is integrated with washing, filling and capping in one machine. It takes bottle handling technology, which makes changing different size bottle more easily. It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles. We suggest users to take same specification bottles, especially the same bottle neck. Our Tri-bloc uses high quality stainless steel 304, which makes sure the quality of the products. The washing we take reversing bottle methods. It has so many washing heads which will spray the inside of the bottle after the bottle is reversed. After washing there will approximate 2 seconds dropping water. The filling technology is named “Counter pressure filling”, it means when bottle enter into the filler, the filling tank will firstly inputting enough pressure to the bottle. Just after the pressure in tank is same as the bottle, filling begins. Capping we use magnetic capper. And capping power can be adjusted. We equip the machine with “No-bottle, No-Cap” system. If there is no bottle, the caps feeding will be stopped. The capper feeder is stand beside the mono-bloc, which is parallel to the machine.Above all our mono-bloc is high quality and is just the machine you are looking for!It adopts neck holding type conveying-bottle structure to make changing bottle model more convenient, faster and more est. The main machine adopts advanced PLC control technology.

Salient Features : Geneva Mechanism. Four inner (included one air wash) & one outer. Sequence of washes to customer’s choice. Easy operation. Stationary nozzels eliminate contamination of water cycles. Easy loading and uploading. Bottel guide especially for lightweight bottel. Individual solenoid valve for each washing sequence, that eliminates carbon plate and other accesories reduce leackage and maintenance to minium. Higher capacity centrifugal pumps to wash bigger bottels (500 & 100 ml.). The stationary nozzles avoid chipping of bottle necks. Pumps and tanks are mounted on portable stand for easy maintenance. Seprate panel control to avoid any circuit due to sprayingof water. S.S. glycerin fill pressure meter.

A.Brief Introduction MMB-R6 (6 stations, one mould in each station), 9000 Bottles/Hour, 1500 bottles/station/hour.MMB-R8 (8 stations, one mould in each station), 12000 Bottles/Hour, 1500 bottles/station/hour.MMB-R4-R6-R8 and R10 is the most stable two-step fully automatic high-speed rotary stretch-blow molding machines(reheat). The capacity of the products is from 0.25L to 2.0L. It can blow pet bottles for different use: carbonated, mineral water, milk, beer, oil, hot filling tea, and other drink packing containers, which is made of plastic of crystalline type, such as PET, PP etc.MMB-R series has adopted original heating and blowing technics, by which the automatic blowing machine series have achieved in powerful productivity but very reasonable pric B.Machine Construction B.1. Preform feeding and loading unit The design of the recycling unit prevents the preforms from getting bound up in the unscrambler. The star wheel design of the feeding unit provides the lowest possible changeover times for switching to different perform sizes. .B.2. Linear Oven A mandrel capable of turning 180 degrees guarantees uniform neck section during the heating. A unique oven ventilation system enables the MMB-R series blower to handle various difficult applications easily Power saving: heater is fixed with link of short section, which assures to heat more performs with the same heating length. In this way, it saves electricity of 25% B.3. Preform and bottle transfer wheel/ The new MMB-R series utilizes a classic double cam telescopic gripper system, this guarantees reliable movement, and easy maintenance.   B.4. Molds and Mold Carriers The mold carrier utilizes a shell blow mold design; this reduces the changeover time for different blow molds. The Mold carriers accommodate all shell type molds from conventional blow molding machines, this saves time and expense for bottle producer. Moreover, the reliable quick locking system maximizes the performance of the mold carriers. B.5. Blowing Station A changeable cam for the stretching curve guider guarantees the form quality for different size bottles. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during the blowing stage by a specially designed sealing unit. C.Options: C.1. PID heating zone system (Option) Within this system, an infrared thermometer automatically detects the temperature of the performs and adjusts the temperature of the oven as needed. This automatic adjustment avoids the influence of a temperature difference between day time and night; also the system can use an additional lamp alarm, this alarm will sound when it detects any broken or aging lamps. C.2. Air Recovery system (Option) We know that most of the production costs for blowing bottles are attributed to generating the high pressure compressed air and applying heat to the preforms. In order to lower these production costs for the bottler producer, Demark Machinery has introduced its patented Air recovery system. This system recovers up to 30% of the final high pressure blowing air and ultimately lowers the cost to produce bottles. C.3. Air cooling system (Option) Thanks to the design contributions of our engineer, Maruti Machines Pvt.Ltd. has developed a revolutionary air cooling system for hot fill PET bottles. After high pressure blowing, an air cooling stage is introduced to reduce the level of PET residual stress and increase the rate of PET crystallization. After this air cooling process, now PET bottles can stand hot filling without deformation. D.Advantages of Rotary Automatic Stretch-Blow Molding Machines High productivity: 1700pcs/cavity/hour High eligible rate: above 99.6% Adopting SIMENS electric controlling system; with high precision and fast speed Stable function: Blowing system adopts Germany valve and cylinder, which has stable and accurate stretching speed and good product consistency Heating system adopts PHILIPS original infrared lamps, which is good in thermal properties and high in durability. Mold fixing structure assures fast mold fixing speed and fast mold changing speed Automatic plastic loader and automatic recovery device.

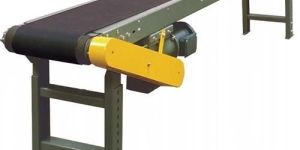

Belt Material : PVC

Type : Gravity Conveyor

Condition : New

Brand Name : RADHEY

Material : Stainless Steel
