3 CORE PVC AND XLPE SUBMERSIBLE FLAT CABLES
80 - 750 Per Meter
100 Meter (MOQ)
Size : 1.5 Sq.mm to 16 Sq.mm
Model Number : NA
Material : PVC
Shape : Flat
Application : Submersible
Feature : PVC Flat Cable
Packaging Type : Roll or Drum
Customization : Available
Lead Time : 3 Working Days
Application : These cables are mainly used in submersible pump connections. The outer sheath is made with special formulation which ensures that the cable resists extreme environmental conditions, water, oil and grease. Conductor : The conductors are drawn from bright electrolytic grade copper and bunched together as per relevant class of IS : 8130. Core colour : Red, Yellow, Blue. Insulation : Bunched conductors are insulated with specially developed RoHS PVC which has high Insulation and volume resistivity. Sheathing : Best in class soft PVC is used for sheathing of the cable which ensures high flexibility. Marking : Sequential meter marking with generic marking “Bintex” at one meter interval. Packing : Available in standard packing of 100 mtr. Drum packing 500 mtr and above available on request.

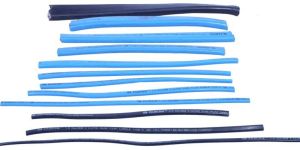

3 Core Submersible Flat Cables
We provide 3 Core Submersible Flat Cables for Submersible Pumps & other types of pumps. The 3 Core Submersible Flat Cables that we offer are fire resistant and having the best copper conductivity. 3 Core Submersible Flat Cables can be acquired in plenty of specifications from us. We provide a wide array of Flat 3 Core Cable to clients in India and overseas. We are a notable 3 Core Submersible Flat Cables Manufacturer, Exporter and Supplier in Gujarat, India. Sizes Available : 1.5 MM² TO 35 MM² Raw Material Used Copper (EC Grade)PVC &BOPP Films Special Feature : Use of graded copper Applications Submersible bore wellOpen well motors Packaging : Packing in wooden drum
PVC 3 Core Submersible Flat Cable
Cable standard bs 6500, is 964:2010 conductor: bare bunch copper is:8130 insulation: pvc as per is:5831 outer sheath: pvc as per is:5831 silent features • high flexibility • excellent resistant to moisture, abrasion, grace, oil • long life • excellent mechanical & electrical properties technical data operating temp: -10°c to max.+90°c nominal voltage: 1.1 kv test voltage: 3.0 kv min. Bending radius: 6 x cable diameter standard packing coils 100, 200,300, 500, 1000m application ideal for irrigation pumps, drinking water supply pumps, submersible pump motor power supply. core colour as per is: 694:2010 – red, yellow, blue as per iec:60227 - black, blue, brown.
3 Core Flat Copper Cable
Brand Name : AQUA
Color : Black
Voltage : 1100 V
Features : Easy to install, Perfect Quality, High strength
Core Type : 3 Core
Usage/Application : Submersible , Motor
Core Material : PVC
Size : 1.5 MM , 2.5 MM , 4 MM , 6 MM , 10 MM
Number Of Cores : 3
Packaging Type : 300 , 500 , 1000 Meter Roll
Three Core Flexible Copper Cable
21 - 125 Per Meter
500 Meter (MOQ)
Country of Origin : India
Type : Pvc Multi Core Flexible Cables
Material : PVC
Color : Black
Feature : High Ductility
Condition : New
Certificate : CE Certified, ISI, ISO 9001:2008
Brand Name : ARROWON / WIDYOOT
Application : HOME APPLINCE
Conductor Material : PVC
Insulation Material : PVC
Conductor Type : COPPER
Jacket : PVC
Color : BLACK
Usage : HOME APPLINCE
Product : FLEXIBLE
