Yantrang Precise Gondal, Rajkot, Gujarat

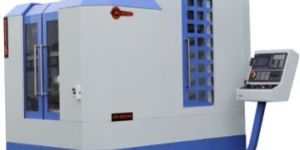

Vertical turning lathe (pallet changer) specifications: capacity 400500 max. Swing diameter 550 max. Cutting diameter 500 max. Cutting height 400 spindle spindle nose a2-8 spindle speed 50-2000 rpm turret max. Dia. 40 tools size 25 x 25 travel feedrate x axis travel 320 y axis travel 550 zb axis (optional) na x axis rapid travel 15 y axis rapid travel 15 motor spindle motor 1815kw x-axis motor 11 z-axis motor 11 zb-axis gear motor with break - 3 jaw power chuck 400 machine body machine (l x w) 2000 x 1800 machine (h) 3600 machine weight 4500 kg.

As a manufacturer, supplier and exporter of cnc turning machine, in vertical turning center we have quill type and turret type turning center. vertical turning center: model quill type available models are.... 400500 800500 800800 10001000

We are one of the leading manufacturer , supplier and exporter of cnc turning center.with the years of experience in this field we provide cnc vertical turning center.in this we cater two types of vtc quill type and turret type. Model : turret type available models are... Capacity 400500 800500 800800 10001000

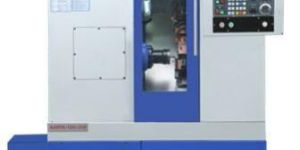

We are the leading manufacturer of CNC Turning Center Model: AARIYA SPECIFICATION  CAPACITY 100200 SWING OVER BED 275 MAXIMUM TURNING LENGTH 200 STANDARD TURNING DIA. 100 CHUCK SIZE 125 MAX. TURING DIA. 150 X-AXIS TRAVEL 300 Z-AXIS TRAVEL 200 RAPID TRAVERSE 20M  AXES Z AXIS BALL SCREW 25 x 10 MOTOR TORQUE (Z axis) 3.5NM X ASIX BALL SCREW 25 x 10 MOTOR TORQUE (X axis) 3.5NM  MAIN SPINDLE SPINDLE MOTOR 5.5 3.5 SPINDLE BORE 38 SPINDLE NOSE A2-4 MAXIMUM BAR CAPACITY 25 SPINDLE SPEED RANGE 50-5000 FULL POWER SPEED RANGE 750-3500  TOOL MAX. BORING BAR DIA. 32 TOOL SIZE (CROSS SECTION) 20 x 20  OTHERS POSITIONING ACCURACY (MICRON) 0.01 REPEATABILITY (MICRON) 0.005

Model : micro turn(200800) specification capacity 200800 swing over bed 500 maximum turning length 800 maximum dia. Between center 250 distance between center 850 standard turning dia. 200 chuck size 200 max. Turing dia. 300 x-axis travel 175 z-axis travel 850 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 11 7. 5 spindle bore 55 spindle nose a2-6 maximum bar capacity 40 spindle speed range 50-3500 full power speed range 750-3500 turret btp-80 number of station 8 max. Boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 3400 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

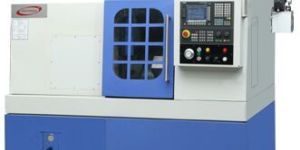

Model : turn mill specifications: we are the reputed cnc turning center manufacturer. We have wide range of machines. One of our turn mill model shown in image. Specifications are below: capacity 100200 swing over bed 275 maximum turning length 200 maximum dia. Between center 200 distance between center 200 standard turning dia. 100 chuck size 125 max. Turing dia. 200 x-axis travel 360 z-axis travel 200 rapid traverse 20 axes z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 5. 5 3. 5 spindle bore 38 spindle nose a2-4 maximum bar capacity 25 spindle speed range 50-5000 full power speed range 750-3500 tool number of station - max. Boring bar dia. 40 tool size (cross section) 25 x 25

One of the reputed name in manufacturer of cnc turning center. With the years of experience we cater variety of cnc turning center. model micro turn 200300 specification capacity 200300 swing over bed 500 maximum turning length 300 maximum dia. Between center 250 distance between center 350 standard turning dia. 200 chuck size 200 max. Turing dia. 300 x-axis travel 175 z-axis travel 350 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 5. 5 3. 5 spindle bore 38 spindle nose a2-5 maximum bar capacity 25 spindle speed range 50-4000 full power speed range 750-3500 turret btp-63 number of station 8 max. Boring bar dia. 32 tool size (cross section) 20 x 20 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 3000 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

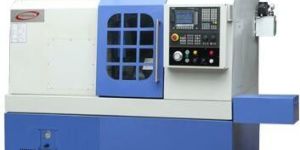

We manufacture cnc turning center and special-purpose-machine (spms) for industrial applications. We are specialized in medium & heavy duty and long length machine.every single machine is builtusing finest components and with utmost care to ensure reliable performance over years. Model micro turn 100200 specification capacity 100200 swing over bed 275 maximum turning length 200 maximum dia. Between center 200 distance between center 200 standard turning dia. 100 chuck size 125 max. Turing dia. 200 x-axis travel 360 z-axis travel 200 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 5. 5 3. 5 spindle bore 38 spindle nose a2-4 maximum bar capacity 25 spindle speed range 50-5000 full power speed range 750-3500 turret number of station - max. Boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. - quill stroke - thrust (adjustable) kgf - others weight (approx) 2500 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

We are one of the significant manufacturers, suppliers,and exporter engaged in offering premium quality automatic heavy duty and long length cnc turning center to our clients.all our products are produced and designed as per the international quality and standard.our products found immense use in the various departments of engineering industry. Features less maintenance operator friendly handling and control panel high functionality cost effective specification of our model hi-cut 300800 shown in image capacity 300800 swing over bed 600 maximum turning length 800 maximum dia. Between center 400 distance between center 800 standard turning dia. 300 chuck size 300 max. Turing dia. 400 x-axis travel 225 z-axis travel 800 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 11nm x asix ball screw 32 x 10 motor torque (x axis) 11nm main spindle spindle motor 15 11 spindle bore 75 spindle nose a2-8 maximum bar capacity 60 spindle speed range 50-3000 full power speed range 750-3000 turret btp-100 number of station 8 max. Boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 5300 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

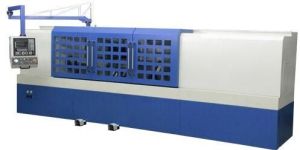

As a cnc turning center manufacturer we provider our clients to wide range in machines for medium and heavy duty long length machine and we are able to provide customized service for our reputed clients. One of our hi-cut machine shown in image specifications as below: model - hi cut 3002500 specification capacity 3002500 swing over bed 600 maximum turning length 2400 maximum dia. Between center 400 distance between center 2500 standard turning dia. 300 chuck size 300 max. Turing dia. 400 x-axis travel 225 z-axis travel 2500 rapid traverse 20 slide z axis ball screw 40 x 10 motor torque (z axis) 16nm x asix ball screw 32 x 10 motor torque (x axis) 11nm main spindle spindle motor 15 18 spindle bore 75 spindle nose a2-8 maximum bar capacity 60 spindle speed range 50-3000 full power speed range 750-3000 turret btp-100 number of station 8 max. Boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. 130 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 7500 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

we are pleased to introduce ourselves as one of the leading manufacturers and exporters of cnc turning center. with the years of experience in this field we could earn a pioneer name in the domestic as well as in international markets.we provide wide range of cnc turning center like micro turn, hi-cut, vtc-quil type, vtc-turret type, spm. model hi-cut 3001250 specification capacity 3001250 swing over bed 600 maximum turning length 1200 maximum dia. between center 400 distance between center 1250 standard turning dia. 300 chuck size 300 max. turing dia. 400 x-axis travel 225 z-axis travel 1250 rapid traverse 20 slide z axis ball screw 40 x 10 motor torque (z axis) 11nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 1511 spindle bore 75 spindle nose a2-8 maximum bar capacity 60 spindle speed range 50-3000 full power speed range 750-3000 turret btp-100 number of station 12 max. boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 6300 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

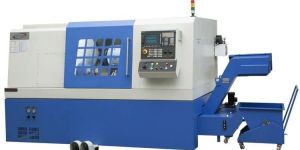

With the years of experience in this field, specialized in heavy duty and long length cnc turning machines excellence in metal cutting. Model hi-cut 200800 specification capacity 200800 swing over bed 500 maximum turning length 800 maximum dia. Between center 300 distance between center 800 standard turning dia. 200 chuck size 200 max. Turing dia. 300 x-axis travel 175 z-axis travel 800 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 11nm x asix ball screw 32 x 10 motor torque (x axis) 11nm main spindle spindle motor 11 7. 5 spindle bore 55 spindle nose a2-6 maximum bar capacity 40 spindle speed range 50-3500 full power speed range 750-3500 turret btp-80 number of station 8 max. Boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 4800 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

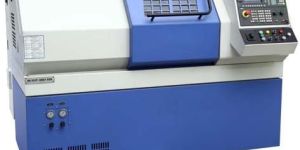

Specification capacity 200500 swing over bed 500 maximum turning length 500 maximum dia. Between center 300 distance between center 500 standard turning dia. 200 chuck size 200 max. Turing dia. 300 x-axis travel 175 z-axis travel 500 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 11 7. 5 spindle bore 55 spindle nose a2-6 maximum bar capacity 40 spindle speed range 50-3500 full power speed range 750-3500 turret btp-80 number of station 8 max. Boring bar dia. 40 tool size (cross section) 25 x 25 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 3700 positioning accuracy (micron) 0. 01 repeatability (micron) 0. 005

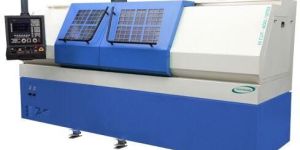

As cnc turning center manufacture we catering a wide range in machines for heavy and medium duty cnc machine, excellent in metal cutting used in various industries. Model hi-cut 2001250 specification capacity 2001250 swing over bed 500 maximum turning length 1200 maximum dia. Between center 300 distance between center 1250 standard turning dia. 200 chuck size 200 max. Turing dia. 300 x-axis travel 175 z-axis travel 1250 rapid traverse 20 slide z axis ball screw 40 x 10 motor torque (z axis) 11nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 1511 spindle bore 55 spindle nose a2-6 maximum bar capacity 40 spindle speed range 50-4000 full power speed range 750-3500 turret btp-80 number of station 12 max. Boring bar dia. 32 tool size (cross section) 20 x 20 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 5800 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005

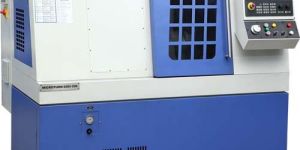

With the years of experiance as cnc turning center manufacture, we catering medium and heavy duty and long length machines. Model micro turn 165300 specification capacity 165300 swing over bed 375 maximum turning length 300 maximum dia. Between center 250 distance between center 300 standard turning dia. 165 chuck size 165 max. Turing dia. 250 x-axis travel 150 z-axis travel 350 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 5. 5 3. 5 spindle bore 38 spindle nose a2-5 maximum bar capacity 25 spindle speed range 50-4000 full power speed range 750-3500 turret btp-63 number of station 8 max. Boring bar dia. 32 tool size (cross section) 20 x 20 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 3000 positioning accuracy (micron)0. 010 repeatability (micron) 0. 005

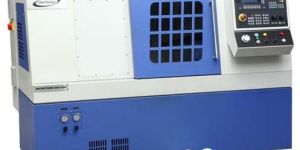

With the years of experience as a manufacturer, supplier and exporter, we cater wide range of cnc turning center mainly used in metal cutting, specialist for automatic slant bed heavy duty long length machine. Specification for our micro turn model which is shown in the image as below: model micro turn 200600 specification capacity 200600 swing over bed 500 maximum turning length 600 maximum dia. Between center 250 distance between center 650 standard turning dia. 200 chuck size 200 max. Turing dia. 300 x-axis travel 175 z-axis travel 650 rapid traverse 20 slide z axis ball screw 32 x 10 motor torque (z axis) 7nm x asix ball screw 32 x 10 motor torque (x axis) 7nm main spindle spindle motor 11 7. 5 spindle bore 55 spindle nose a2-6 maximum bar capacity 40 spindle speed range 50-3500 full power speed range 750-3500 turret btp-80 number of station 8 max. Boring bar dia. 40 tool size (cross section) 20 x 20 tailstock quill dia. 85 quill stroke 120 thrust (adjustable) kgf 500 others weight (approx) 3400 positioning accuracy (micron) 0. 010 repeatability (micron) 0. 005
