CNC Machine Dealers in Rajkot

We are one of the well-known Manufacturers, Exporters and Suppliers of the CNC Turning Centers . Our company uses the raw materials and components of the highest grade in the manufacture of the Model No. Features LM guides for both axes Cartridge type spindle Full enclosure Linear turret type Fanuc, Siemens, Mitsubishi CNC Control System Technical Specifications Capacity Max. Turning DIA. 55mm Max. Turning Length 70 mm Swing Over bed 150 mm STD. Turning Dia. 50 mm Main Spindle Spindle Nose A2-3 Bore Through Spindle 29 mm Bar capacity 18 mm Chuck Size 95 mm* Spindle Drive Spindle motor Power Cont./15 Min. Rating 3 HP Speed Range (RPM) 3500 Axes Slides X Axis Stroke 125 mm Z Axis Stroke 90 mm Rapid Traverse : X Axis 20 M/Min. X-Axis Guide ways LM Rapid Traverse : Z Axis 20 M/Min. Z-Axis Guide ways LM Turret Turret Type Linear No. of Stations 2 Max. Boring Bar Dia. 20 mm Tool cross section 16 x 16 Accuracy Position Accuracy 0.015 mm Repeatability ± 0.003 Machine Dimensions Dimension (LxBxH) 1300 x 800 x 1350 Weight (Approx.) 1000 Kg. Note : Hydraulic chuck available as option in GT - 50

TWIN SPINDLE - TURNING   GX 100 JR. TWIN In demanding times of machining accuracy and productivity, Macpower has addressed both the issues in Twin head single slide machines thereby offering solution to the valued customers instead of machines. Twin spindle linear tooling machines reduces idle time resulting in cumulative productivity with lesser manpower offering customers gain higher margins. Twin series suffices need of the hour of valued customers by offering range of machines resulting into higher choice with cost effective productive based solution for them. Standard Accessories Linear Motion Guide Ways AC Spindle Drive & AC Servo Drive Hydraulic Chuck with Actuating Hollow Cylinder Hydraulic Unit Coolant System Centralized Lubrication System Axial & Radial Blocks Boring Bar Blocks Patrol Light Load Meter Foot Switch Optional Accessories Chip Conveyor Stabilizer Hydraulic Collet Chuck Auto Door

We are the leading manufacturer of CNC Turning Center Model: AARIYA SPECIFICATION  CAPACITY 100200 SWING OVER BED 275 MAXIMUM TURNING LENGTH 200 STANDARD TURNING DIA. 100 CHUCK SIZE 125 MAX. TURING DIA. 150 X-AXIS TRAVEL 300 Z-AXIS TRAVEL 200 RAPID TRAVERSE 20M  AXES Z AXIS BALL SCREW 25 x 10 MOTOR TORQUE (Z axis) 3.5NM X ASIX BALL SCREW 25 x 10 MOTOR TORQUE (X axis) 3.5NM  MAIN SPINDLE SPINDLE MOTOR 5.5 3.5 SPINDLE BORE 38 SPINDLE NOSE A2-4 MAXIMUM BAR CAPACITY 25 SPINDLE SPEED RANGE 50-5000 FULL POWER SPEED RANGE 750-3500  TOOL MAX. BORING BAR DIA. 32 TOOL SIZE (CROSS SECTION) 20 x 20  OTHERS POSITIONING ACCURACY (MICRON) 0.01 REPEATABILITY (MICRON) 0.005

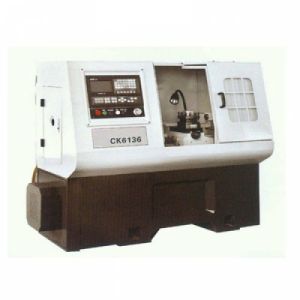

We are offering cnc lathe machines. * high quality resin sand casting & aging treatment * precision grinding supersonic quenched accuracy * independent spindle unit & imported grease lubricator * spindle & shift gear separation with low temperature & small thermal deformation * centralized automatic lubrication system * max machinable od: 250mm * max turning length: 750mm * a2-8 spindle nose * 4 station turret * weight: 2.9 tonne * main motor 7.5kw.

Features : Long lasting effects Carried out by our specialists Cost effective Our company caters to a good marketplace for providing CNC Bending Services. On the terribly initial stage of execution, a competent team of professionals analyze the surfaces and so processed victimisation the foremost acceptable ways. so as to create a metal utterly bent, our team endeavor their best, to supply our consumer, the demanded demand.

We specialize in manufacturing and supplying a qualitative range of wire & strip forming machines. The wire & strip forming machine ensures maximum production of wires and strips. These machines have a touch screen software to enhance productivity both in terms of quality and quantity. Our wire & strip forming machines are fully automatic and suitable for the production of all types of strips. These precisely designed and engineered machines save both power and energy and, therefore, highly demanded by clients across the nation. We offer this machine at a highly competitive price in the market.

We are engage in manufacturing various precision parts on cnc & vmc. such as shafts, pattern, jig-fixtures, die-moulds, die-punchs, ci parts, alluminum parts, steel parts, automotive parts, tractor parts, etc. the offered service is performed by skilled and experienced professionals who are well-facilitated with the required and ultra modern machinery and tools. our products are always treasured among the clients for its smooth performance and dimensional accuracy.

Cnc vmc machine, Bringing a new revolution in turning centre technology in today’s competitive market putting itself on a superior platform DX 200 is a Turing Centre by Jyoti CNC which is the answer to best surface finish for both smaller and bigger diameter jobs that too with better tool-life with machine working on higher parameters. DX 200 has proved itself to be a kind of machine optimum for large range of job works available in the manufacturing industry with faster and exceptional output with minimum of non-productive time. Rigid bed and single piece 30deegree slant saddle. Rigid headstock & spindle. High precision L.M. guide ways. Fast tool changing time just 0.5 sec.

he CNC external grinding Machine has expressly designed to achieve accuracy with easy to use and affordable price to shape the outside of an object. The CNC external grinding Machine can work on a variety of shapes and offer solutions to satisfy all users' needs for a wide variety of applications in production environments. We hold special expertise in manufacturing a CNC external grinding Machine and we offer our products with prompt after-sales service and technical support. 1.The Structure   All Major structure are manufactured by high grade casting heavily ribbed for higher rigidity & better damping characteristic. X and Z precision manual scraped V and flat guide ways coated with Turcite-B.   2.Controller Specifications Siemens 802D GN2 Axis servo Controller with standard built-in grinding cycles. Simultaneous 2 Axis Control, Grinding cycle/dressing cycles. Auto referencing, RS 232 C serial interface port. CF card Interface, inch/metric Switchable. Pitch error & back lash compensation. G. code/ M code compatibility with NC builders.

Standard Specification   Compact 750x2000 1 810 x 2080 mm Compact 1000x2000 1060 x 2080 mm Compact 1250x2000 1310 x 2080 mm
