Precision Machinekraft (Rajkot) Metoda, Rajkot, Gujarat

Precision Machinekraft (Rajkot) is recognized as one of the most successful Manufacturers, Exporters & Suppliers of Twin Head Boring Machine. Our Twin Head Boring Machine (ID-140) is ideal for Automobile Linear. With our twin head boring machine, two components can be bored at a time that too with one operator. Features : Removes 2-8 Station Turret

Brand Name : PMK

Precision Machinekraft (Rajkot) is a dependable Manufacturer, Exporter & Supplier of OD Turning Machine. This OD Turning Machine widely is used for OD turning of Automobile Linear. The machine has 4 Station/8 Station Turret as option. It is exclusively demanded for providing mirror-like finish to the products. Be it̢۪s about inner & outer polishing, OR concave and convex turning, our OD Turning Machine serves as the preferred choice in the industry. It is also quite popular for the chamfering of the products.

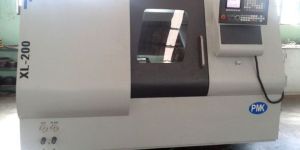

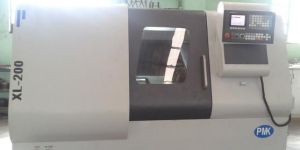

This CNC Turning Center (Model No. XL 200) is an important CNC Machine which we make. The Model has numerous utility features that make it a popular CNC Machine in the industrial sector. Features LM guides for both axes Servo Spindle Motor Full enclosure 8 Station turret Fanuc, Siemens, Mitsubishi CNC Control System Technical Specifications Capacity Max. Turning DIA. 250 mm Max. Turning Length 500 mm Swing Over bed 400 mm STD. Turning Dia. 200 mm Main Spindle Spindle Nose A2-6 Bore Through Spindle 55 mm Bar capacity 42 mm Chuck Size 200 mm Frong Bearing Bore 90 mm Spindle Drive Spindle motor Power Cont./15 Min. Rating 7.5/11 kw Speed Range (RPM) 1000 - 3500 Axes Slides X Axis Stroke 170 mm Z Axis Stroke 525 mm Rapid Traverse : X Axis 24 M/Min X-Axis Guide ways LM Rapid Traverse : Z Axis 24 M/Min Z-Axis Guide ways LM Tail Stoke Quill Diameter 80 mm Quill Stroke 100 mm Taper in Quill MT4 Turret   Turret Type ELE. Mechanical No. of Stations 8 Max. Boring Bar Dia. 40 Tool cross section 25 mm Accuracy   Position Accuracy 0.015 mm Repeatability ± 0.003 mm Machine Dimensions   Dimension (LxBxH) 2800 x 1450 x 1750 Weight (Approx.) 3500 kg.

the precision machine kraft (rajkot) is a renowned manufacturer, exporter and supplier of cnc turning centers. we manufacture cnc turning centers of superior quality and ensure timele delivery to the customers. this model is a popular cnc turning centres due to its various features. features lm guides for both axes servo spindle motor full enclosure 8 station turret fanuc, siemens, mitsubishi cnc control system technical specifications capacity max. turning dia. 200 mm max. turning length 300 mm swing over bed 300 mm std. turning dia. 165 mm main spindle spindle nose a2-5 bore through spindle 38 mm bar capacity 25 mm chuck size 165 mm frong bearing bore 80 mm spindle drive spindle motor power cont./15 min. rating 5.5/7.5 kw speed range (rpm) 1000 - 3500 axes slides x axis stroke 140 mm z axis stroke 300 mm rapid traverse : x axis 24 m/min x-axis guide ways lm rapid traverse : z axis 24 m/min z-axis guide ways lm tail stoke quill diameter 70 mm quill stroke 80 mm taper in quill mt3 turret   turret type ele. mechanical no. of stations 8 max. boring bar dia. 32 tool cross section 20 mm accuracy   position accuracy 0.015 mm repeatability â± 0.003 mm machine dimensions   dimension (lxbxh) 2250 x 1400 x 1500 weight (approx.) 2700 kg.

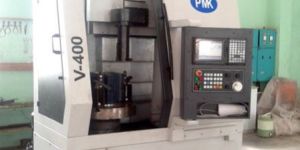

We, at Precision Machinekraft (Rajkot) manufacture CNC VTL Machines (Model No. - VTL 400 using top-grade raw materials and latest manufacturing technologies. This Model is a well-known CNC Machine and has numerous features that make it suitable for use. Features Fanuc, Siemens, Mitsubishi CNC Control System A2-8 Spindle Nose 8 stations in turret Capacity of 7.5-11 KW in Spindle Motor Technical Specifications Capacity Swing Over Bed 500 mm Max. Turning Dia. 300 mm Max. Turning Length 500 mm Max. Work Piece wieght 200 Kg Main Spindle Spindle Nose A 2-8 Chuck Size 250 mm x 3 Jaw Spindle Motor 7.5 11 kw Speed Range 750 1500 RPm Slide X Axis Travel 250 mm Z Axis Travel 525 mm Rapid Traverse (X - Axis) 15 M/Min. Rapid Traverse (Z - Axis) 12 M/Min. Ball Screw Dia (X-Axis) 31 x 10 mm Ball Screw Dia (Z-Axis) 40 x 10 mm Z Axis Drive 18 Nm X Axis Drive 8 Nm Turret No. of Stations 8 Max. Boring Bar Dia. 40 mm Tool Cross section 25 mm Control System Control System Siemens/Fanuc/Mitsubishi Size L x B x H 1610 x 1945 x 2730 mm Machine weight 5500 kg Note : Roller Guide for both Axes

Precision Machine kraft (Rajkot), is one of the well-known Manufacturers, Exporters and Suppliers of CNC VTL Machines (Model No. - VTL 1200) in Rajkot. We manufacture high-quality CNC VTL Machine and deliver the product on a timely basis to ensure maximum customer satisfaction. This Model is an important CNC Machine of the modern times and its numerous features make it a perfect foil for the industrial sector. Features Fanuc, Siemens, Mitsubishi CNC Control System A2-15 Spindle Nose Capacity of 22-26 KW in Spindle Motor RAM head with 200 x 200 mm disc Technical Specifications Capacity Swing Over Diameter 1250 mm Max. Turning Diameter 1200 mm Max. Turning Height 750 mm Max.Work PieceWeight 3000 Kgs. Spindle   Spindle Nose A2 - 15 Spindle Motor 22 / 26 Kw Spindle Range 10 - 150 - 500 Slides   X Axis Travel 50 to 500 mm Z Axis Travel 750 mm X Axis Rapid 15 M/Min Z Axis Rapid 12 M/Min Turret or RAM Head   Turret *** RAM Head with 200 x 200 mm Disc type ATC as option CNC Control System   Control System Siemens, Fanuc Mitsubhishi

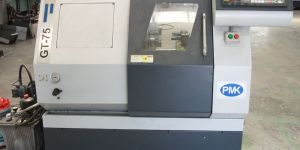

Our company is actively involved in the manufacture of the CNC Turning Centers (Model No. GT 75). We manufacture high quality CNC Turning Centers with the best-grade raw material and components. We ensure timely delivery of the product so as to meet the customer demands in the best possible way. Features LM guides for both axes Cartidge type spindle Full enclosure Linear turret type Fanuc, Siemens, Mitsubishi CNC Control System Technical Specifications Capacity Max. Turning DIA. 100 mm Max. Turning Length 150 mm Swing Over bed 200 mm STD. Turning Dia. 75 mm Main Spindle Spindle Nose A2-4 Bore Through Spindle 32 mm Bar capacity 20 mm Chuck Size 135 mm Spindle Drive Spindle motor Power Cont./15 Min. Rating 3 HP Speed Range (RPM) 3500 Axes Slides X Axis Stroke 200 mm Z Axis Stroke 150 mm Rapid Traverse : X Axis 20 M/Min. X-Axis Guide ways LM Rapid Traverse : Z Axis 20 M/Min. Z-Axis Guide ways LM Turret Turret Type Linear No. of Stations 3 Max. Boring Bar Dia. 32 mm Tool cross section 20 x 20 Accuracy Position Accuracy 0.015 mm Repeatability ± 0.003 Machine Dimensions Dimension (LxBxH) 1700 x 1125 x 1500 Weight (Approx.) 1800 Kg.

We are one of the well-known Manufacturers, Exporters and Suppliers of the CNC Turning Centers . Our company uses the raw materials and components of the highest grade in the manufacture of the Model No. Features LM guides for both axes Cartridge type spindle Full enclosure Linear turret type Fanuc, Siemens, Mitsubishi CNC Control System Technical Specifications Capacity Max. Turning DIA. 55mm Max. Turning Length 70 mm Swing Over bed 150 mm STD. Turning Dia. 50 mm Main Spindle Spindle Nose A2-3 Bore Through Spindle 29 mm Bar capacity 18 mm Chuck Size 95 mm* Spindle Drive Spindle motor Power Cont./15 Min. Rating 3 HP Speed Range (RPM) 3500 Axes Slides X Axis Stroke 125 mm Z Axis Stroke 90 mm Rapid Traverse : X Axis 20 M/Min. X-Axis Guide ways LM Rapid Traverse : Z Axis 20 M/Min. Z-Axis Guide ways LM Turret Turret Type Linear No. of Stations 2 Max. Boring Bar Dia. 20 mm Tool cross section 16 x 16 Accuracy Position Accuracy 0.015 mm Repeatability ± 0.003 Machine Dimensions Dimension (LxBxH) 1300 x 800 x 1350 Weight (Approx.) 1000 Kg. Note : Hydraulic chuck available as option in GT - 50

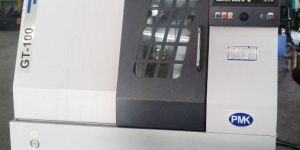

We are a well-known Manufacturer, Exporter and Supplier of the CNC Turning Centers (Model No. GT 100). The CNC Turning Center manufactured by our company is one of the most popular CNC Machines. It can be relied upon for the fast and efficient completion of the industrial processes. Features LM guides for both axes Cartridge type spindle Full enclosure Linear turret type Fanuc, Siemens, Mitsubishi CNC Control System Technical Specifications Capacity Max. Turning DIA. 100 mm Max. Turning Length 150 mm Swing Over bed 200 mm STD. Turning Dia. 60 mm Main Spindle Spindle Nose A2-4 Bore Through Spindle 32 mm Bar capacity 20 mm Chuck Size 135 mm Spindle Drive Spindle motor Power Cont./15 Min. Rating 5 HP Speed Range (RPM) 3500 Axes Slides X Axis Stroke 225 mm Z Axis Stroke 150 mm Rapid Traverse : X Axis 20 M/Min. X-Axis Guide ways LM Rapid Traverse : Z Axis 20 M/Min. Z-Axis Guide ways LM Turret Turret Type Linear No. of Stations 3 Max. Boring Bar Dia. 32 mm Tool cross section 20 x 20 Accuracy Position Accuracy 0.015 mm Repeatability ± 0.003 Machine Dimensions Dimension (LxBxH) 1850 x 1375 x 1700 Weight (Approx.) 2400 Kg.

Our company is actively involved in the manufacture of the CNC Turning Centers (Model No. FBL 350). The component used as well as the subsequent quality of the CNC Turning Center is very good and it complies with the national and international quality parameters. Features MT 5 taper in quill Electro-mechanical turret 4-8 stations in the turret Servo Spindle Motor optional Technical Specifications Capacity Max. Turning DIA. 500 mm Max. Turning Length 1000/1500 mm Swing Over bed 600 mm STD. Turning Dia. 350 mm Main Spindle Spindle Nose A2-8 Bore Through Spindle 75 mm Bar capacity 62 mm Chuck Size 315 mm Frong Bearing Bore 100 mm Spindle Drive Spindle motor Power Cont./15 Min. Rating 15 HP Speed Range (RPM) 1000 Axes Slides X Axis Stroke 350 mm Z Axis Stroke 1050 / 1550 mm Rapid Traverse : X Axis 15 M/Min. X-Axis Guide ways LM Rapid Traverse : Z Axis 15 M/Min. Z-Axis Guide ways LM Tail Stoke Quill Diameter 100 Quill Stroke 100 Taper in Quill MT 5 Turret   Turret Type ELE. Mechanical No. of Stations 4/8 Max. Boring Bar Dia. 32/40 Tool cross section 25 mm Accuracy   Position Accuracy 0.015 mm Repeatability ± 0.003 mm Machine Dimensions   Dimension (LxBxH) 3500 x 1950 x 1850 Weight (Approx.) 5050 kg.

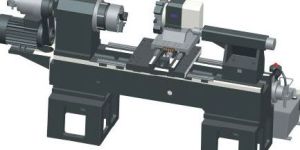

We manufacture CNC Turning Centers. The manufacture of this type of CNC Turning Centers is done using raw material and components of superior quality. This model is used for a large variety of industrial purposes. Some features of Model No. FBL 250 is as follows: Features MT 5 taper in quill Electro-mechanical turret 4-8 stations Servo Spindle Motor optional Technical Specifications Capacity Max. Turning DIA. 400 mm Max. Turning Length 500 mm Swing Over bed 500 mm STD. Turning Dia. 250 mm Main Spindle Spindle Nose A2-8 Bore Through Spindle 75 mm Bar capacity 62 mm Chuck Size 250 mm Frong Bearing Bore 100 mm Spindle Drive Spindle motor Power Cont./15 Min. Rating 10 H.P. Speed Range (RPM) 1500 Axes Slides X Axis Stroke 225 mm Z Axis Stroke 500 mm Rapid Traverse : X Axis 15 M/Min. X-Axis Guide ways LM Rapid Traverse : Z Axis 15 M/Min. Z-Axis Guide ways LM Tail Stoke Quill Diameter 100 Quill Stroke 100 Taper in Quill MT 5 Turret   Turret Type ELE. Mechanical No. of Stations 4/8 Max. Boring Bar Dia. 32/40 Tool cross section 25 mm Accuracy   Position Accuracy 0.015 mm Repeatability ± 0.003 mm Machine Dimensions   Dimension (LxBxH) 3500 x 1850 x 1850 Weight (Approx.) 4050 kg.

Material : Steel

Brand Name : Yogesh

Size : 16-100 mm

Packaging Type : Standered

Condition : New

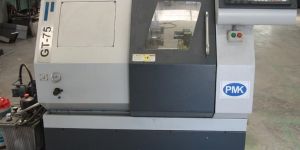

We are offering gt75 cnc turning center. capacity max turning dia:-100mm max turing length:-150mm swing over bed:-200mm std. Turning dia:-75mm main spindle:-a2-4 bore through spindle:-32mm bar capacity:-20mm chuck size:-135 x 3 jaw hydraulic chuck spindle drive spindle motor power:-5hp **servo spindle motor as option spindle rpm:- max upto 3000 axes slides x axis stroke:-200mm z axis stroke:-150mm rapid:- 15m/min x/z slides:- lm guides tooling type:-linear no. Of tools:-3 max boring bar dia:-32mm tool shank:-20 x 20 dimension:- 1700 x 1125 x 1500 weight:- approx. 1800kgs

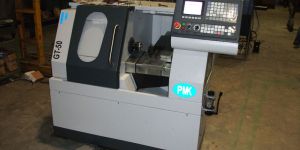

We are offering cnc turning machine gt-50. capacity max turning dia:-55mm max turing length:-70mm swing over bed:-150mm std. Turning dia:-50mm main spindle:-a2-3 bore through spindle:-29mm bar capacity:-18mm chuck size:-95mm spindle drive spindle motor power:-3hp **servo spindle motor as option spindle rpm:- max upto 3000 axes slides x axis stroke:-125mm z axis stroke:-90mm rapid:- 15m/min x/z slides:- lm guides tooling type:-linear no. Of tools:-2 max boring bar dia:-20mm tool shank:-16 x 16 dimension:- 1300 x 800 x 1350 weight:- approx. 1000kgs

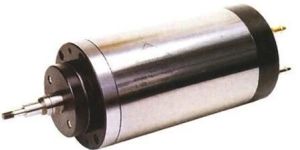

Number Of Flower : Grinding Spindles

Brand Name : PMK

Number Of Flower : Dental Milling Machine

Country of Origin : Made in India

Power Source : Electric

Brand Name : PMK

Maximum Turning Length : 400mm

Spindle Motor Power Fanuc Continuous : 9/11 Kw

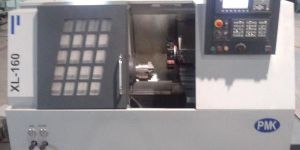

Max. Turning dia--250mm max. Turning length-500mm swing overbed------400mm std. Turning dia---200mm spindle nose:-a2-6.. X axis stroke---170mm z axis stroke---525mm spindle power-7.5kw/11 kw 8 station turret hydraulic tailstock

Max. Turning dia--200mm max. Turning length-300mm swing overbed------300mm std. Turning dia---165mm spindle nose:-a2-5.. X axis stroke---140mm z axis stroke---300mm spindle power-5.5kw/7.7 kw 8 station turret hydraulic tailstock

Spindle Speed : 24000 RPM

Country of Origin : Made in India

The Precision Machinekraft (Rajkot) is a renowned manufacturer of the CNC Turning Centers (Model No. â�� FBL 450). We provide high quality CNC Turning Centers to our clientele with numerous attractive features. This Model is one of the heaviest CNC Turning Centers of its kind. Features MT 5 taper in quill Electro-mechanical turret 4-8 stations in the turret Servo Spindle Motor optional Technical Specifications Capacity Max. Turning DIA. 600 mm Max. Turning Length 1000/1500 mm Swing Over bed 850 mm STD. Turning Dia. 450 mm Main Spindle Spindle Nose A2-11 Bore Through Spindle 110 mm Bar capacity 90 mm Chuck Size 380 mm Frong Bearing Bore 150 mm Spindle Drive Spindle motor Power Cont./15 Min. Rating 25 HP Speed Range (RPM) 800 Axes Slides X Axis Stroke 450 mm Z Axis Stroke 1050/1550 mm Rapid Traverse : X Axis 15 M/Min. X-Axis Guide ways LM Rapid Traverse : Z Axis 15 M/Min. Z-Axis Guide ways LM Tail Stoke Quill Diameter 100 Quill Stroke 100 Taper in Quill MT 5 Turret   Turret Type ELE. Mechanical No. of Stations 4/8 Max. Boring Bar Dia. 32/40 Tool cross section 25 mm Accuracy   Position Accuracy 0.015 mm Repeatability ± 0.003 mm Machine Dimensions   Dimension (LxBxH) 4000 x 1950 x 1850 Weight (Approx.) 6050 kg.

Our company is one of the well-known Manufacturers, Exporters and Suppliers of CNC VTL Machines (Model No. VTL 600). The Model is one of the major CNC Machines in the industrial sector of the present times. The CNC VTL Machine is heavy duty and easy to operate that makes it very popular among the clientele of our company. Features 8 stations in turret Fanuc, Siemens, Mitsubishi CNC Control System A2-11 Spindle Nose Capacity of 18.5-22 KW in Spindle Motor Technical Specifications Capacity Swing Over Diameter 750 mm Max. Turning Diameter 550 mm Max. Turning Height 600 mm Max.Work PieceWeight 1000 Kgs. Spindle   Spindle Nose A2 - 11 Spindle Motor 18.5 / 22 Kw Spindle Range 350 - 1200 rpm Slides   X Axis Travel 50 to 450 mm Z Axis Travel 600 mm X Axis Rapid 15 M/Min Z Axis Rapid 12 M/Min Turret or RAM Head   Turret *** 8 Station CNC Control System   Control System Siemens, Fanuc Mitsubhishi
