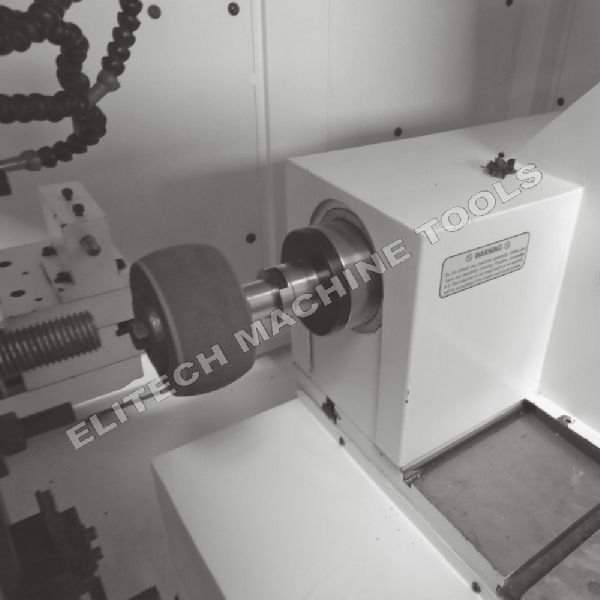

Machine Base The machine base is manufactured  of one piece  close grained graded cast iron.  Box type design,  heavily reinforced with ribs, provides high rigidity and stability.   Machine Guideways V & Flat guide ways precisely hand scrapped for Cross (X-Axis) & Table slides (Z-Axis) with turcite coating which gives stick slip free movement Excellent vibrations damping and high positioning accuracy, which insures better lubrications and longer life of guide ways. The X-Axis can be equipped with linear measuring system, depending upon requirements (Optional).   Work Head Dead Centres as standard, live cum dead centres as optional Easy belt tensioning arrangement. Special arrangements provided in front to avoid entry of coolant inside work head.   Wheel Head Cartridge type grinding wheel spindle operating at 45 m/s cutting speed & with precision anti friction bearings. Constant Cutting Speed of grinding wheel though variable speed drive (Optional) Robust wheel head with anti friction bearings is maintenance free has good thermal stability.   Tail Stock Rigid design and facility for adjusting Tail stock quill clearance. Hydraulic actuation (Optional)   Optional Accesories Automatic In-Process Guage IPG automatically and continuously measures the diameter being ground and compares the actual size to pre-set values. Confirming the diameter to the accurate dimension.   Flagging Detects the end face position on work piece,  reduces idle time and ensure safety.   Dynamic Balancing System Dynamically compensates the imbalance of grinding wheel. Balancing system improve the surface finish and geometry of the work piece.   Gap Eliminator / Crash Control This device will automatically detect the setting up or machining condition occurs, the grinding wheel will rapidly retract for safety.   Lineal Scale for X and Z axis Gives actual slide movement feedback to CNC system up to submicron level,

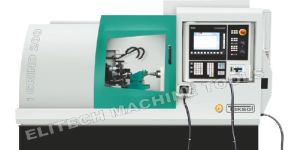

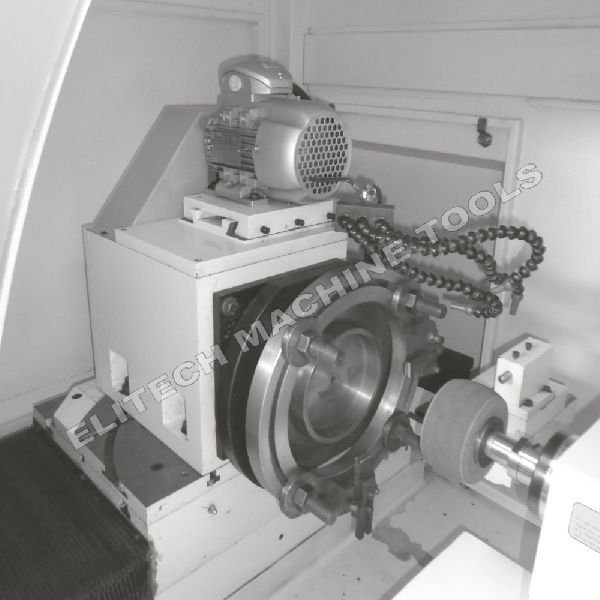

CNC Internal Grinding Machine that we provide is highly appreciated for its sturdy construction and efficient performance. Our high precision CNC Internal Grinding Machines are utilizes for different internal grinding extensive range of workings. Modular designs of the machine provide solutions having straight bore as well as taper bore grinding operations. Our range incorporates PLC, CNC, as well as Hydraulic Cylindrical Internal/External as well as Universal Grinders in addition of Singular Purpose Grinders. The bed of our CNC Internal Grinding Machine have a stiff fabricated structure that is double stressed and relived having higher static as well as dynamic inflexibility. The design helps easy flow for coolant grinding dust. Grinding Table (Z-Axis)This table moves with V as well as Flat Bed having Turcite Guidelines tables are driven by higher precision pre-loaded of 40 mm diameter Ball screw straight coupled with the servo motors having rigid coupling. Its slide is properly protected by the dust proof guard.Grinding Head Slide (X-Axis)Grinding head slide can be made from higher grade cast iron duly ribbed for higher thermal and dynamic stability. This moves with higher precision guidelines of Oil lubricated LM. The drive of X-Axis is throughout vigorous 40 mm dia. The ball screw is openly coupled with the Servo Motor.Wheel HeadDifferent belt driven / higher frequency spindles can be accessible according to specific requirements as well as offered with diverse kinds of Belt / HF driven spindles. Different high frequency / belt driven spindles also attribute CNC Controlled continuous peripheral speeds of grinding wheels may be given optionally.Work LoadThis is an inflexible Universal Work Head. This has cartridge kind of spindle. Swiveling of around +- 10 degree is promising. Work head spindle works with P-4 Class anti-friction precision pointed contact bearings. The work-head speed unpredictable AC Servo drive. Dresser UnitThe Hydraulic worked swing type dressing unit may be adjusted as per component diameter. Break up coolant jet remains diamond tool. Dressing devices might have solitary diamond/multiple diamonds or diamond rolls.Standard Accessories Auto Lubrication Unit Coolant Pump having Tank CNC packages with operating panels as well as graphic display Diamond Dresser Stand Instruction Manual 080 mm of Internal Grinding Spindle (belt driven) having two nos. of quills
