Feel free to place orders with us, we ensure timely and safe deliveries of the same. Obtain the extensive array of products from our well-established inventory located in Rewari(India).
Range :
Fiber Glass Wires (F Class)
Fiber Glass Sleeves (F & I-I Class)
L T Wires (Red, Green, Yellow)
Tin Copper Wire
Bare Copper Wire (Any Size)
Sizes : Ranging from 0.5 Sq.mm to 240 Sq.mmTechnical Specifications :
Size - 0.5sq.mm. to 240sq.mm. (Single and Multi Core)
Colors - Red, Black, White, Yellow, Green, Blue.
Conductor - Bunch Tinned Copper As per IS-8 130- 1976 Class-5
Insulation - Mylar(Polyester Tape) Wrapped & braided with Fiberglass Yarn & Impregnated with thermal class.
Varnish such as – F
Work. Volt - 600/1100 voltage A.C.R.M.S.
Work. Temp. - For Short Period 185 Deg.C
Continuous 155 Deg.C.
Salient Features :
Very good Thermal Stability
Very good Dielectric Constant
Good Resistance to Moisture & Chemicals
These cables are highly heat resistance and are made to meet your different requirements.
These cables are having an outstanding and unique combination of electrical, mechanical,thermal and chemical properties.
Where To Use / Application :Industrial Ovens, Furnaces, Boilers, Starter Field Coil, Electric Motors & Mono Block Pumps, Exhaust Fans, Alternators, Halogen Holders, Control Panels, Heaters, Terminals and Lugs, Auto Electric Products, Lighting and Luminaries, Heating Elements, Medical Equipment,Home Appliances (Mixer, Water Heater, Oven etc).

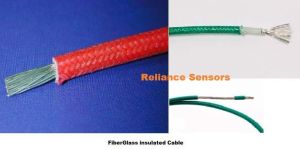

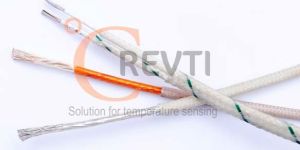

We are instrumental in offering Fibreglass Cables for furnaces and industrial ovens. Also, Fibreglass Cables are suitable for internal wiring of electrical home appliances. They are fabricated using high grade tinned copper, which is in accordance with the IS : 8130-1976, class-5 standards. The Fibreglass Cables ensure easy installation owing to their sleek design. Extra insulation is provided to provide them more strength. Our Fibreglass Cables feature two or three layers of glass fiber yarn braiding.
