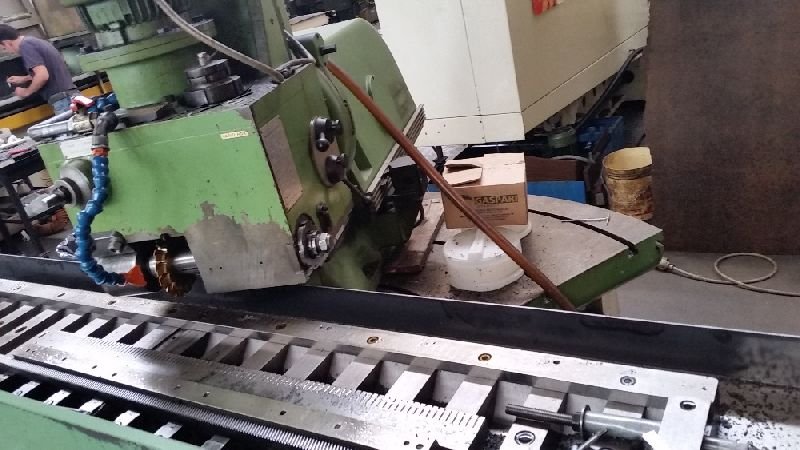

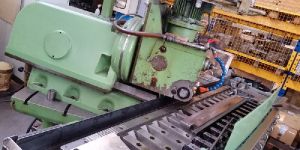

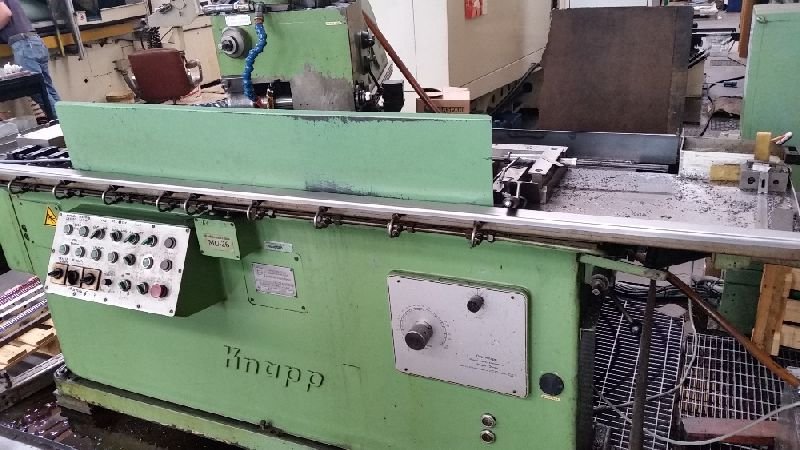

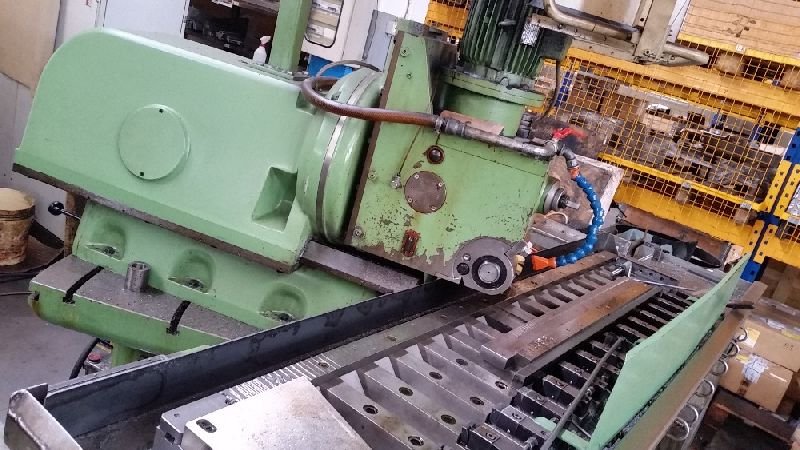

Desirous of buying Knapp Rack Cutting & Milling Machine? We are one of the eminent Suppliers of a wide range. We stringently make complete arrangements for the vigil examination of the inputs used for the products. By this, we are capable of bringing forth reliable products that are presented after complete inspection and examination by the experts.
Details :
Make - Knapp.
Model - Uzfm.
Max Pitch - Modul 8
Max Pitch Cast Iron - Module 10
Max Length - 1750mm
Size Of Table With Water Channel - 2100 X 460mm
Size Of Table - 1850 X 250mm
Horizontal Movement Of Milling Head - 260mm
Min./max. Height Between Table & Spindle Centre - 136mm/410mm
Range Of Variable Feeds - 0-300 Mm/min
Rapid Traverse - 3 M/min
Range Of Milling Speeds - 29-178 Rpm
Swivel Of Spindle Head (Left) Relief Milled - 45 Degree
Swivel Of Spindle Head (Right) - 30 Degree
Swivel Of Saddle Either Side (Spiral Gearing) - 30 Degree
Dia Of Arbor Inside Support - 25-40mm
Max. With Of Cutter - 100mm
Dia Of Arbor Outside - 22-32mm
Max Capacity Width Of Cutter Outside - 50mm
Min Dia Of Cutter - 105mm
Max Dia Of Cutter - 165mm
Indexing Spindle Pitch - Module - 4=12,5-66mm
Weight Of Machine - 3500kg
