Freeness Tester Dealers in Saharanpur

(5 products available)
  • Canadian Freeness Tester

    Canadian Freeness Tester

    40,000 / Pcs
    • Frequency50 / 60Hz
    • Automatic GradeAutomatic
    • Power SourceElectric
    • FeatureEasy To Use, Proper Working, Superior Finish
    • Consistency5-7 %
    • Brand NameAdvancetech
    • Surface FinishingPolished
    • We Are prominent Manufacturer, Dealer, Supplier & Exporter of Canadian Freeness Tester in Uttar pradesh, India. We Supply Canadian Freeness Tester All Across india. These Canadian Freeness Tester Are manufactured With High-quality Material. The Canadian Freeness (CF) number of pulp is a measure of the drainability of a suspension of pulp in water, determined and expressed as specified in this method.A known volume of pulp in aqueous suspension is drained through the fibre mat, formed on a screen plate during the test, into a funnel provided a bottom and a side orifice. The filtrate collected from the side orifice is measured in a cylinder graduated in millimeters, as a Canadian Freeness number of pulp.Limitation of the Test : This method applies to any kind of pulp with this limitations. The Canadian Freeness test gives acceptable results only if a sufficiently dense mat of fibres is formed on the screen plat. For this reason the test is not recommended for very short-fibred pulps such as those from well beaten hardwood, as most of the fibres may pass through a the screen plate, and high CF number will result although the pulp will drain slowly on the paper machine.The most reliable results are obtained within the CF number range 30-850.
    ...more
    www

    Advancetech Instruments

    Mandi Samiti Road, Saharanpur
    GST 9 yrs 4.4 (12)
  • Beating & Freeness Tester

    Beating & Freeness Tester

    80,000 - 135,000 / Piece
    We are a reputed Manufacturer, Exporter and Supplier of Beating & Freeness Tester from Saharanpur, Uttar Pradesh. Our Tester is accurately fabricated by skilled professionals who adhere to the latest international quality norms. We are proficient in delivering any order of the Beating & Freeness Tester all over the world.Details : The Shopper Reigler Type Beating & Freeness tester measures the drainage of beaten a pulp suspension and expressed as SR number. Pneumatic arrangement ensures a constant lifting rate for the sealing cone Model No. AI 3002
    ...more

    Angels Instruments

    Sabri Bagh, Saharanpur
    GST 16 yrs 5.0 (1)

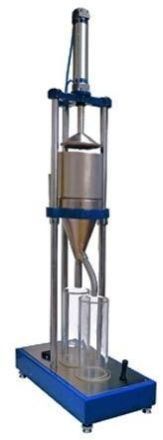

  • Canadian Freeness Tester

    Canadian Freeness Tester

    Get Price Quote
    • Number Of FlowerAutomatic
    • CertificationISI Certified
    • ApplicationLiquid Testing
    • ConditionNew
    • Frequency66Hz
    • Power SourceElectric
    • CertificationCE Certified
    • Warranty1 Year
    • Canadian Freeness Tester provided by us is used for determination of freeness of wood fiber ground wood and mechanical pulp. It measures the Canadian Freeness number which is a measurement of the drainage capacity of different pulp types. It is a useful index of the amount of mechanical treatment given to the pulp with standard screen plate and Plexiglas measuring cylinder for CSF value. 3 gram of OD fiber pulp in aqueous suspension is drained through the fiber mat on a standard perforated screen plate during the test into a funnel provided with a bottom and side orifice. The filtrate collected in specially gruadated measuring cylinder from the side orifice is expressed as a CSF value corresponds to milliliter. Product Details Color available : Blue Applications : Testing equipment Industries : Paper & packaging industries
    ...more
    www

    PREMIER INTERNATIONAL

    Nadeem Colony, Saharanpur
    GST 16 yrs 4.5 (30)
  • Canadian Freeness Tester

    Canadian Freeness Tester

    1 - 10,000 / Unit
    • Automatic GradeAutomatic
    • Power SourceElectric
    • Temperature CapacityLow Temperature
    • Number Of FlowerFreeness Tester
    • Brand NameSTIPL
    • Capacity of the Cylinder1000 Ml Above the Screen Plate
    • The Volume in the Bottom23.5 ± 0.2ml
    • Slope of the Main Cone290 ± 5 min.
    • Orifices Provided in FunnelTwo, One At the Bottom & other On the Side
    • Distance Between the Overflow50.8 Mm ± 0.75 Mm Lip of the Tube (inside the Funnel)
    • Size of the Perforations in the Screen Plate0.51±.01 Mm Diameter and No of Holes are 97 Per/cm2 (tappi Standard)
    • Compliance to the following International StandardsISO 5267/2 CPPA C1 BS 6035/2 TAPPI T 227 .
    • Definition: Freeness of pulp is a measure of precisely how rapidly water can drain from a diluted fiber furnishes suspension. The freeness of pulp is designed to give a measure of the rate at which a dilute suspension of pulp (3 g of pulp in 1 L of water) may be drained. The freeness, or drainage rate has been shown to be related to the surface conditions and swelling of the fibers. Besides these factors, the result is dependent also on conditions under which the test is carried out, such as stock preparation, temperature, and water quality. Standardization : ISO 5267/2 , CPPA C1 , BS 6035/2 , TAPPI T 227 . Device Description : The freeness tester consists of a drainage chamber and a rate measuring funnel, mounted on a Stainless Steel Shaft Fitted on a Base Plate . 1. The drainage chamber bottom of which contains a perforated brass screen plate and is closed with an air-tight lid, hinged on one side of the cylinder and latched at the other. 2. The lid fitted in such a way that not more than 5 mL of water will flow when the bottom cover is opened at the start of the test. 3. The upper end of the cylinder is closed by a similar lid with hinge and latching mechanisms to provide an air-tight closure by means of a rubber gasket on the inside of the lid. An air-cock is inserted in the center of the upper lid to admit air to the cylinder at the start of a test. Test Description : 1. Thoroughly clean and wet the freeness tester with distilled or deionized water at the temperature of the stock to be tested. 2. Place the drainage chamber on the upper supporting bracket with its lower lid closed and the upper lid and air-cock open. 3. Place the graduated cylinder in position to receive the discharge from the side orifice, and a container to collect the discharge from the bottom orifice. 4. Thoroughly stir the stock in the bucket to ensure a homogeneous mix and accurately measure 1000 mL into a clean 1-L cylinder. Take its temperature to the nearest 0.5°C . 5. Mix the sample in the graduated cylinder by closing the top of the cylinder with the hand and gently invert the cylinder 180° three times. 6. Pour the stock gently but as rapidly as possible into the chamber. It is imperative that at the end of the pouring, the stock be almost motionless in the chamber. This step is critical . 7. Close the top of the lid and the air-cock. Open the bottom lid. After 5 s from the time the addition of the stock is completed, fully open the air-cock in a single motion. 8. When the side discharge has ceased, record the volume discharged from the side orifice in milliliters to the maximum accuracy possible for the graduate used
    ...more

    Saharanpur Testing Instruments Pvt Ltd

    Delhi Road, Saharanpur
    GST 3 yrs

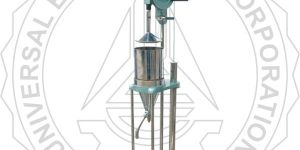

  • BEATING & FREENESS TESTER (SR TYPE) REGULAR & MECHANICAL LIFTING MODEL(UEC-2002 A)

    BEATING & FREENESS TESTER (SR TYPE) REGULAR & MECHANICAL LIFTING MODEL(UEC-2002 A)

    Get Price Quote
    • Number Of FlowerFreeness Tester
    • CertificationISO 9001:2008 Certified, CE CERTIFIED
    • FeatureEasy To Use, Proper Working, Superior Finish
    • ConditionNew
    • Automatic GradeAutomatic
    • Power SourceElectric
    • Warrenty1year
    • Puncture Voltage220V
    • Country of OriginIndia
    • Brand NameUEC
    • Power220V
    • CertificationCE AND ISO
    • MaterialMetal
    • Surface FinishingPolished
    • ResistivityRust Resistant
    • Drive TypeElectric
    • UEC-2002 ABEATING & FREENESS TESTER (SR TYPE) REGULAR & MECHANICAL LIFTING MODELThis instrument is used for determination of refining as freeness of wood fibre, ground wood Mechanical pulp and recycle fibers. It measures the drainage capacity of beaten pulp and checking the progress of beating process. This Model has provision of Mechanically controlled lifting of valve. Plexiglas Double Graduated measuring cylinder is provided to check the obtained Schopper Riegler value. A stock dilution of 2 Grams/Ltr. is poured into the cylindric container fitted with Standard wire mesh screen. After 5 seconds the sealing cone is lifted through a latch and due to the acceleration, the water contained in the stock is drained through a wire, , passes through the side orifice, and is a measure of the draining capacity of the sample. Pneumatic arrangement ensures a constant lifting rate for the sealing cone. The equipment is intended for long fibered pulps that produce a dense fibre mat on the screen.Applicable Standards : SCAN C19:65, M4:65, ISO 5267/1, MERKBLATT V7/61, APPITA P 205Testing Applications    Pulp Testing Raw Material Recycled Fibre (Freeness) Pulp Testing Raw Material Agro Fibre (Freeness) Pulp Testing Raw Material Wood Fibre (Freeness) Dimension : 44.0 x 29.0 x 110.5 cmWeight : 32 Kg
    ...more

    Universal Engineering Corporation

    Ambala Road, Saharanpur
    GST 18 yrs 4.5 (2)
