Description
Pneumatic SR Model is used for measuring the drainage capacity of beaten pulp and checking the progress of beating process.

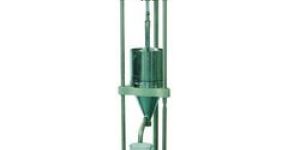

The Shopper Reigler Type Beating & Freeness tester (Pneumatic Model) measures the drainage of beaten a pulp suspension and expressed as SR number. Pneumatic arrangement ensures a constant lifting rate for the sealing cone. The equipment is intended for long fibered pulps that produce a dense fibre mat on the screen.
Standards:
As per ISO 5267/1, SCAN C 19 M3, BS6035/1 Model with provision of pneumatically controlled valve lifting.
Features:
Precisely designed
Nozzle calibrated according to ºSR standard
Semi-automatic sealing cone lifting arrangement
Model with provision of Pneumatically controlled valve lifting and Plexiglas mesuring cylinder for Schopper Riegler value with standard wire mash.
Canadian freeness tester has its container sealing lids spring loaded and wivel through 90. The lids are opened by means of light pressure on the release handles. The container grip enables easy removal for cleaning. It’s nozzle and screen plate are calibrated according to relevant standards. Two measuring cylinders are included. Standard equipment has a bench top stand. Alternatively wall mounted model can be supplied on request. Specifications: Type: Dial Indicator Material: Stainless Steel Transport Package: Wooden Case
