H & T Engineers Mahipura, Saharanpur, Uttar Pradesh

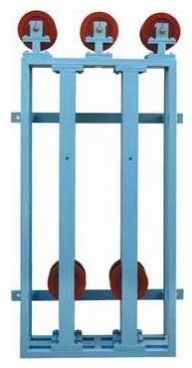

The Vertical Stretcher is specially designed for first floor machines and provides optimum performance to minimize production timings. We provide Vertical Stretcher with requisite accessories and different rope configurations to deal with every requirement. Availability Rope configurations: 1, 2 and 3 Specialty Enhances life of the ropesEasy to operateCompact designRobust constructionCost-effective H & T Rope Carrier System with Vertical Stretcher : Vertical Stretchers are specially designed for first floor machines.These Vertical Stretchers are being made available in both variants --Weight loading as well as pneumatic loading variants.These can be installed in one, two and three Ropes configuration.

The Vertical Stretcher is specially designed for first floor machines and provides optimum performance to minimize production timings. We provide Vertical Stretcher with requisite accessories and different rope configurations to deal with every requirement. Availability Rope configurations: 1, 2 and 3 Specialty Enhances life of the ropesEasy to operateCompact designRobust constructionCost-effective H & T Rope Carrier System with Vertical Stretcher : Vertical Stretchers are specially designed for first floor machines.These Vertical Stretchers are being made available in both variants --Weight loading as well as pneumatic loading variants.These can be installed in one, two and three Ropes configuration.

We offer Straight Shaft, which is used for Pulley adjustment. Giving freedom of 360o rotation of Sheaves, our Straight Shaft supports the working of carrier rope assembly in the most effective manner. Used for adjustment and 3600 rotation of Pulleys

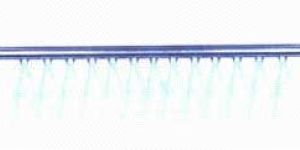

Stationary Showers are fabricated completely in Stainless Steel. These showers are put to various uses e.g. Fan Jet Showers for foam killing action in the head box, Fish Tail Showers for cleaning the wire returning rolls, etc. The Stationary Showers can be availed at the most affordable prices from us. Applications : Cleans the wire returning rollsFoam killing action in the head box

The Starch Spray System is designed as an answer to improve the bursting factor of paper. Indian Paper Mills, Kraft Paper Mills and Corrugated Container manufacturers have traditionally had access to inexpensive virgin fiber that could be mixed with hardwood or softwood to reach required strength. That has changed in recent years, with increasing dependence on recycled fiber sources, especially for liner board and medium grades. However, as the fibers are recycled, they get shorter and weaker which results in a lower grade product with less final sheet strength. Synthetic additives to enhance product strength have often been prohibitively expensive in a marketplace where profit margins have been ravaged by declining paper prices. Now, a cost-effective starch spray solution has emerged in India that is designed to boost paper strength (up to 100% in IGT, 25% in Concora, and 20% in CFC and Mullen) while cutting fiber use by replacing much of the fiber with starch. Principle Of System : Essentially, special Spray Nozzles apply an unmodified starch suspension to the fiber web of paper products to increase their internal strength and improve their surface properties. The starch stays internally on formed sheets and gelatinizes while drying. In its Starch Spraying System, processed water mixes with starch to create slurry that flows into a run tank, which is sprayed onto the sheet former. The process of Starch Spray is based on the principle that the starch solution is sprayed through a spray bar over the wire section where it discharges starch on the paper. Maximum retention, of up to 80%, of starch takes place so that the bursting factor of the paper gets improved. It is achieved at the point where the dryness of the paper starts. The Solution used is generally 30gpl. However, it may change according to process requirements. Design : H & T Starch Spray System consists mainly of a two tanks for the preparation of starch solution. It is then transferred to Nozzles attached on a shower pipe over the machine through end suction centrifugal pump operated by a motor. The Starch Solution also passes through Stainless Steel Duplex Water Filter. There is also a provision to add fresh water and to bypass the excess starch solution back to the tank in case it is not used.   Tanks : Preparation and Service Tank along with Agitator and Motor.Pump : End Suction Centrifugal Pump.Motor : 10 HP, 3-phase, Frequency 50 or 60 Hz.Filters : SS 304 Duplex Quick Release FiltersSpray Pipe : With Fish Tail Nozzles to cover complete Paper width or Mould widthLinear, Angular & Vertical Positioner : Positioners ensure spray at the correct point so that maximum benefits can be achieved.Angular movement is caused by a gear box.Vertical Movement is caused by a wheel through spindle and nut.Horizontal Movement along the machine direction is through a slotted channel. Your Requirement for Starch Spray System : Location - Wire MouldWireMould Face WidthMachine Frame Centre DistanceFrame Width

The Starch Spray System is designed as an answer to improve the bursting factor of paper. Indian Paper Mills, Kraft Paper Mills and Corrugated Container manufacturers have traditionally had access to inexpensive virgin fiber that could be mixed with hardwood or softwood to reach required strength. That has changed in recent years, with increasing dependence on recycled fiber sources, especially for liner board and medium grades. However, as the fibers are recycled, they get shorter and weaker which results in a lower grade product with less final sheet strength. Synthetic additives to enhance product strength have often been prohibitively expensive in a marketplace where profit margins have been ravaged by declining paper prices. Now, a cost-effective starch spray solution has emerged in India that is designed to boost paper strength (up to 100% in IGT, 25% in Concora, and 20% in CFC and Mullen) while cutting fiber use by replacing much of the fiber with starch. Principle Of System : Essentially, special Spray Nozzles apply an unmodified starch suspension to the fiber web of paper products to increase their internal strength and improve their surface properties. The starch stays internally on formed sheets and gelatinizes while drying. In its Starch Spraying System, processed water mixes with starch to create slurry that flows into a run tank, which is sprayed onto the sheet former. The process of Starch Spray is based on the principle that the starch solution is sprayed through a spray bar over the wire section where it discharges starch on the paper. Maximum retention, of up to 80%, of starch takes place so that the bursting factor of the paper gets improved. It is achieved at the point where the dryness of the paper starts. The Solution used is generally 30gpl. However, it may change according to process requirements. Design : H & T Starch Spray System consists mainly of a two tanks for the preparation of starch solution. It is then transferred to Nozzles attached on a shower pipe over the machine through end suction centrifugal pump operated by a motor. The Starch Solution also passes through Stainless Steel Duplex Water Filter. There is also a provision to add fresh water and to bypass the excess starch solution back to the tank in case it is not used.   Tanks : Preparation and Service Tank along with Agitator and Motor.Pump : End Suction Centrifugal Pump.Motor : 10 HP, 3-phase, Frequency 50 or 60 Hz.Filters : SS 304 Duplex Quick Release FiltersSpray Pipe : With Fish Tail Nozzles to cover complete Paper width or Mould widthLinear, Angular & Vertical Positioner : Positioners ensure spray at the correct point so that maximum benefits can be achieved.Angular movement is caused by a gear box.Vertical Movement is caused by a wheel through spindle and nut.Horizontal Movement along the machine direction is through a slotted channel. Your Requirement for Starch Spray System : Location - Wire / MouldWire/Mould Face WidthMachine Frame Centre DistanceFrame Width

In a Paper Machine there are several forming wires and felts, called fabrics in general, that function to support the paper being manufactured. These Fabrics travel over a number of rolls in cyclical patterns. Since all these Rolls cannot be exactly aligned with each other, certain devices called the Guiding Systems are needed to keep the fabrics running properly in the centre of the rolls. A Wire and Felt Guiding System is composed of mechanical devices used to keep the fabric running properly in the centre of the rolls over which it travels. This is done by pivoting one end of the guide roll in the proper direction to correct the errant fabric travel. H & T Proportional Bellows Auto Guide avoids damage to wire or felt caused by their cross-directional movements, over running or pre-mature creasing and thus saves the resultant loss of production. An Auto Guide is the most convenient, reliable and economical device using mill's normal air supply for its auto operation. Principle of Guiding The guiding of fabrics is based on the principle that the fabric will always leave a roll perpendicular to its rotational axis. This is governed by the direction of fabric travel. This dictates that the fabric will always travel towards the end of the roll it encounters first. Hence, the Guide Roll is automatically moved to change the fabric travel. Design H & T Wire and Felt Guide mainly consist of a pneumatically operated automatic guide and a sensor to control the movement. The auto guide holds the bearing housing of one end of a roll and moves it back and forth using Air-pressurized Rubber Bellows. The sensor is a control device for the guide and regulates the air flow to each of the Guide Bellows. When triggered appropriately, the Rubber Bellow Swivels the Guide Roll, mounted on-site on the positioning unit, in any direction. An Edge Sensing Device is required to control the guide that continuously monitors the fabric run that minimizes wear by avoiding fabric run-off. It determines the actual position of the fabric and specifies its target position. The one supplied with the system is the contacting pneumatic type palm assembly. Models : WIRE/FELT/SCREEN RANGETYPEUpto 3000 mm wide80-160/60From 3000 to 3800 mm140-200/65Over 3800 mm wide upto 4500 mm160-250/70 Specifications : Type80 -160/60140 -200/65160 -250/70Air PressureMax3Kg/cm23Kg/cm23Kg/cm2Air PressureMin.1.5Kg/cm21.5Kg/cm21.5Kg/cm2Air Consumption0.5 cfm0.7 cfm0.8 cfmPalm Travel20-30 mm20-30 mm20-30 mmGuide roll movement60 mm65 mm70 mmMode of controlProportionalProportionalProportional Dimensions : TypeDLHB1CH1DB80-160/6080-16063031514030020020230140-200/65140-20074032518045020020250160-250/70160-25079043518050027027325

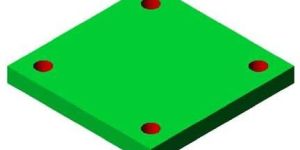

All parts are supplied with Padding Tapped Plates that can be easily grouted into concrete or welded over steel frame members for easy mounting and removal of rope carrier parts.

We are a prominent Manufacturer of a wide array of Oscillating Showers that is in huge demand in the market. Oscillating Showers are high pressure Showers that are used for cleaning felt or wire so that smooth running of the machine can be assured. The oscillation is provided either by pneumatic or electro-mechanical method. Electro Mechanical Drive In this type of shower, oscillation is provided by a geared electric motor, crank and shaft drive. The stroke length of the shower is 110-150mm, but can be changed. Minimum number of oscillations is 20 per minute but can be more if needed. Crank & shaft drive are usually covered with M.S. Sheet but can be supplied in Stainless Steel if desired. Shaft is supported on brass roller. The standard distance between two nozzles has been kept at 100 mm which can be altered as per the application. Micro Travel Drive For meticulous, uniform cleaning of the entire area of the felt or wire H & T offers its top-most model MICRO TRAVEL NEEDLE JET SHOWER. It does its cleaning operation with unmatched thoroughness. High Pressure Oscillating Showers of traditional design tend to leave diamond shapes of cleanedun-cleaned and over cleaned portions on the felt or wire. However, micro-travel Mechanism of this shower eliminates this inherent weakness and ensures that uniformly spaced nozzles cover the area between any two of them by travelling at predetermined suitable speed depending upon machine's speed. This micro-travel to and fro movement is caused by an electric double geared motor and crank drive. The standard distance between two nozzles has been kept at 100 mm, but can be reduced - if so desired by the client. However, Pump of higher capacity would be needed to maintain same pressure for greater number of nozzles. With micro travel drive, the supplied dome shaped needle jet nozzles have Nylon brush to keep the nozzles clean. The brush is to be rotated manually to clean the nozzle as and when required. Materials of Construction : Shower Bar in SS 304 SS 316Oscillator with Geared DriveFresh Water Filter in SS 304SS 316Shower Mounting Brackets in SS304SS 316 with Brass Rollers Your Requirement for Showers : WireScreen WidthMachine Frame Centre DistanceType of Oscillator RequiredShower Required with Brush Cleaning System

We are a prominent Manufacturer of Needle Jet Nozzles that is attached to High Pressure Needle Jet Showers and used for continuous cleaning operation of felt or wire. Disk Type Nozzle is made up of three pieces base block, locking nut and the disk. Being the main functional part, only disk wears down and needs occasional replacement. One Piece Needle Jet Nozzle offers greater security by eliminating any chances of accidental loosening of it. Material : SS-304 SS-316 System Advantages : DurableHigh pressure impactLow Cost of Replacement Uses : Felt or Wire CleaningEdge cutting in paper making Specifications : WATER CONSUMPTION AT DIFFERENT PRESSURES (LitersMin.)Jet Nozzle OrificePressure (Kgcm2)681015200.8 mm0.921.11.21.51.91.0 mm1.301.51.72.12.5

We are a leading Manufacturer and Supplier of superior quality Mounting Bracket required by the Paper industry. The Mounting Bracket is a highly useful hardware used for mounting Pulley in any direction. Used For : Mounting Pulley

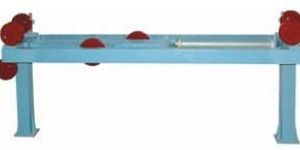

We offer superior quality Horizontal Stretcher, which is manufactured using premium raw materials and designed using advanced systems. The Horizontal Stretcher is basically designed to be used for a ground floor machine but we can provide it for the first floor machines as well. Availability Rope configurations : 1, 2 and 3Sizes : as per number of dryers (usually 6-8 cylinders group) Features Easy to installAvailable in different sizesEasy to accessAcquires less spaceEconomical H & T Rope Carrier System with Horizontal Stretcher : Primarily designed for ground floor machine but it can also be designed for first floor machines.Easy to install and access.Size variation according to number of dryers in a group. (Usually, there are 6-8 cylinders in a group).Available in one, two and three ropes configurations.Available in weight loading and pneumatic loading variants

We offer superior quality Horizontal Stretcher, which is manufactured using premium raw materials and designed using advanced systems. The Horizontal Stretcher is basically designed to be used for a ground floor machine but we can provide it for the first floor machines as well. Availability Rope configurations : 1, 2 and 3Sizes : as per number of dryers (usually 6-8 cylinders group) Features Easy to installAvailable in different sizesEasy to accessAcquires less spaceEconomical H & T Rope Carrier System with Horizontal Stretcher : Primarily designed for ground floor machine but it can also be designed for first floor machines.Easy to install and access.Size variation according to number of dryers in a group. (Usually, there are 6-8 cylinders in a group).Available in one, two and three ropes configurations.Available in weight loading and pneumatic loading variants

We are a prominent Manufacturer and Exporter of Grease Throught Shaft for the carrier rope assembly used in Paper industry. The high quality offered by us has resulted in repeated demands from different corners of the world.

We are a leading Manufacturer of a comprehensive range of Fish Tail Nozzles that are used for continuous washing of wire return rolls for removal of any fiber. These nozzles generate fish tail type spray of water and are very effective even at low pressure. The complete arrangement consists of universal base block, lock nut and the fish tail tip. It has a low running cost, owing to lower water consumption in comparison with traditional drilled showers. Material : SS-304 SS-316 System Advantages : Longer LifeHigh Impact at Low pressureLow cost of replacement

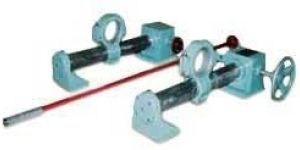

The basic linear Stretchers have been proven for decades and are available in different sizes. They all guarantee a linear and absolutely parallel positioning of tensioning roll. System Advantages : Ensures precise roll positioningLess maintenance costMaintains optimum tension in felt enhancing its life

Available with us is an impeccable variety of high quality Fan Jet Nozzles. When attached to a stationary shower over the head box of a machine, these nozzles create a cone shaped mist and perform its foam-killing action effectively. Our Fan Jet Nozzles are widely appreciated by the clients, owing to its high pressure impact and wear resistant properties. Besides, these Nozzles are available at the most economical prices. Material : Brass/ SS- 304 Uses : Foam KillingDust suppression

Our Edge Cutter Nozzles are designed in compliance with the highest international standards. These nozzles generate an extremely fine (usually 0.5 mm) stream of water at very high pressure which cuts through the paper edges very neatly. With a view to avoid choking of the fine-holed disk, a filter is attached in the nozzle to remove dust particles from the water. Material : SS-304 SS -316

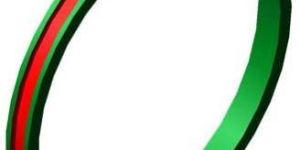

The most frequently asked question by a paper mill is, “What if our dryer cylinders have no grooves for rope?” H & T found the solution to it by providing a separate grooved ring. The grooved ring diameter is approximately the same size as the cylinder diameter and can easily be mounted over the dryer cylinder face. The width of the ring may vary from 50mm and above. For Mild Steel Cylinders the ring is directly welded to the face of the cylinder. For Cast Iron cylinders the ring is mounted to the face of the cylinder through bolts and mounting blocks provided with ring. Fabricated Dryer Rope Sheaves : Proven groove design in 2 or 3 rope profile, insures good rope grip for better tail carrying.Custom designed for dryer cylinders and reel drums in sizes from 36" to 60" diameter.Can be directly welded to Mild Steel Cylinders or bolted to Cast Iron Cylinders.

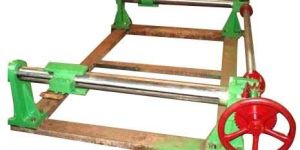

These stretchers have been specially designed for long felts especially in duplex machines. Stretching achieved through these is four times the roll movement. System Advantages : Robust designLow maintenanceMotor Operated through Chain DriveEnsures precise roll positioning Material of Construction : Cast Steel and Stainless steel bodyStainless Steel SpindleBrass Nuts Your Requirement for Felt Tensioner : Felt WidthMachine Frame Centre DistanceFrame WidthFelt Roll Bracket DrawingFelt Stretching RequiredFelt Tension

We provide the finest Concrete & Weld Plates that are designed using latest technology. These are actually Steel plates designed to be anchored into concrete or welded on to steel frame members to create a flange.

We supply high quality Cast Iron Pulley for our Rope Carrier System. This Pulley is designed with double row bearings and stationary greased fitting through the shaft in such a way that it can be greased even while the machine is running. These pulleys are available in flat groove, single groove, double groove and triple groove variations in different sizes as per the requirements. System Advantages : Dimensional accuracyEasy installation & removalRugged constructionSteady performanceLong lifeLow maintenance Availability : Single groove variationsDouble groove variationsTriple groove variationsFlat groove variations

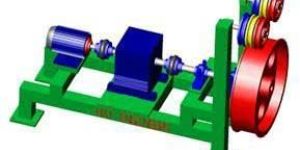

The rope is normally driven through Dryer Cylinders but in few cases a separate rope drive is used to drive a set of ropes independent of the machine rolls or Dryer Cylinders: Normally used in Coater, Size Press and Pope Reel Sections however can also be used for Dryer Sections after installing Idler Pulleys over Dryer Cylinders.Suitable for one, two and three ropes.Requires a separate motor, gearbox and variable frequency drive.A drive wheel that allows double rope wrap angle eliminates rope slippage.Rolls are equipped with freewheeling sheaves.Ropes are fully operated only during threading operation.To extend rope life.Synchronized with machine speed. System Advantages : The rope system can be shut down when not in useExtends life of the equipment and ropesRopes are not continuously running through contaminated areas

H & T Electro Mechanical Belt Shifter shifts the belt over the cone pulley drive to match the draw speed between different sections. The spindle is operated through a geared motor drive ensuring precise positioning. Distance between rotating rollers can be adjusted as per the width of the belt. System Advantages : Easy installationSturdy constructionOptimum efficiency Material of Construction : Body in Cast SteelSpindle in Stainless SteelNut in BrassRotating Rollers with Bearings in Mild Steel Stainless Steel Your Requirement for Belt Shifters : Cone Pulley WidthBelt Width
