Spring Testing Machine Dealers

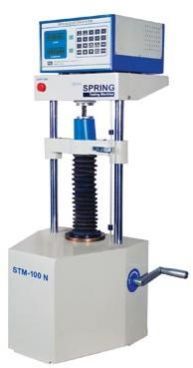

we are acknowledged in the global markets for the manufacturing of coil spring testing machine. we are also known for the exporting of coil spring testing machine in worldwide countries. based in the ravishing features of our offered coil spring testing machine, we are statured on top among the listed traders of coil spring testing machine. accomplished with :- the machine is table mounted, digital & hand operated.load measurement by load cell & displacement by rotary encoderlcd display on das panel for load & displacementstandard load resolution is with 10,000 countsfiner resolution (optional) with 20,000 counts can also be offered at extra cost. standard displacement resolution is 0.01 mmvertical day light is 300 mmtension shackles & compression plates are provided for tension & compression springsit is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. cost of one load cell is included in the price, but additional load cell will be at extra costvarious models – maximum capacity from 100 n to 2000 nloading accuracy well within ±1%, conforms to is:1828 / bs:1610 known for :- durabilityaccurate dimensionsapt functioningreliability

FMI makes range of spring testing machines are used for quick and accurate testing of tension and compression spring. Features:- manual loading and unloading arrangement . High precision load cell for measurement of force &scale for displacement measurement microprocessor based electronic with tare facility.

We offer Leaf Spring Testing Machines. LEAF SPRING TESTING MACHINES ( Model : FST, FST-E, FST-EC ) • The machine is used to test wide range of Leaf Laminated Springs for load rate as per IS:1135-1984. • Measuring ranges available with auto load selection facility. • Large size table for wide range of springs with motorized rapid adjustment of test height. • Standard autographic recorder. • Over load & Over travel safety provisions. • Facility of Compression, Shear, Brinell & Bending test with extra accessories. • Load stabilizer (Optional) is an extra attachment used to maintain a desired load constant at specific deflection enabling measuring it easily & accurately. • We can also supply machines for Helical compression springs & Disc springs. • Various Models – Maximum Capacity from 100 kN to 500 kN. • Loading accuracy well within ±1%, conforms to IS:1828 BS:1610. • Analogue, Digital & Computerized versions are available.
