Systems & Controls (sangli) Pvt Ltd MIDC, Sangli, Maharashtra

We are offering over voltage relay features:-
user friendly
advance micro controller technology.
protection against under voltage over voltage.
protection against voltage unbalance and single phasing.
protection against phase reversal.
easy to operate.
ultra compact size.
reset facility. display features:-
normal indicator
under voltage trip indicator
over voltage trip indicator
reverse phase trip indicator
single phase trip indicator
voltage unbalance trip indicator technical specification: supply voltage system 415vac phase unbalance 20% (fixed)±2% under voltage 80% to 95% (adjustable) over voltage 105% to 120% (adjustable) power on delayq 2.0 sec ± 0.5 sec. trip time delay on ov & uv 5min on phase fail ,reverse phase, and unb 5secs electrical specification:- auxiliary supply 230v ac (110 vac and 415 vac optional) relay output potential free no-c-nc, 10 amps at 250 vac contacts operating temp range 0ºc to +70ºc calibration sycon 8802 is calibrated with digital power meter yokogowa, japan. accuracy ± 2% tolerance. setting under voltage setting range:- 80% to -95% (415 vac) over voltage setting range:- 105% to 120% (415 vac) mechanical specification:- mounting din rail body plastic size 70 x 60 x 115 (mm).

Brand Name : SYCON

We are offering thyrister firing module. Power factor controlling capacitors are generally switched by contactors. But due to random switching of contactors, high inrush currents are developed. These high inrush currents, decreases the life of capacitors. As contactor is a mechanical device the contacts get burnt due to inrush current & have to replace time to time also the switching limit is limited by capacitor discharge time. To solve these limitations of capacitor switching by contactors, sycon has come with thyrister switching modules. These modules are switched on at zero voltage across the capacitor and switched off at zero current. General features:-
easy to install
switch on at zero voltage
switch off at zero current
indication of power on, capacitor on
protection and indication of over voltage, over current, thyristor open, thyristor short

Brand Name : SYCON

We are offering single phase preventor. General features:-
easy to install
user friendly
normal indication available
spp indication available application:-
suitable for 3 phase equipments
agricultural pump starters
3 ph. Split ac machines
hoist motor control
valve actuator motor
machine tool
injection molding mc control features:-
single phasing
reverse phasing
unbalanced supply electrical specification:
aux supply 415 vac
frequency 50 hz mechanical specification:-
dimensions:- 65mm × 110mm × 55 mm (w × h × d)
weight:- 300gm
operating temperature:- -10 to °c +55°c
mounting type:- - wall

Brand Name : SYCON

We are offering power kitz, digital panel meters. general features intelligent kvar based switching friendly user interface easy to install large alpha-numeric display available in 12 stages display large alphanumeric lcd display (20 x 4 characters) friendly user interface easy to install large alpha-numeric display available in 12 stages display parameters power factor (ryb) voltage (ryb) current (ryb) shortfall kvar (ryb) kw (ryb) kvar (ryb) kva (ryb) control features password protection for settings site settable c.t. Primary from 5 to 7500 a target pf switching delay lockout time for power on auto identification or manual feeding of capacitor values manual switching facility test mode facility electrical specifications voltage input 230 v ac +- 15% current input --5a --1a (optional) frequency 50hz over voltage setting 270v ac low current 1% in (50ma) 2 % out (100 ma) switching contact 10a at 250v ac accuracy class 1 switching interval 5 to 1200 sec switching program intelligent (best fit ) mechanical specifications dimensions 144 (l) x 144 (w) x 80 (d) mm panel cutout 138 mm x 138 mm weight 1.5 kg.

Brand Name : SYCON

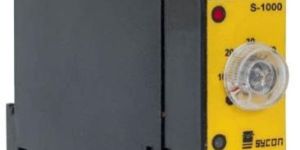

We are offering on delay timer, off delay timer. Features:- · user friendly · easy installation · 1no+1nc contacts · power on indication · also available in 2no+2nc · adjustable time delay from 1 sec to 60 sec · relay on indication electrical specification:- · aux. Supply:- 230vac±15% · frequency:- 50 hz ± 5% 60 hz ± 5% mechanical specification:- · operating temperature:- -10 °c to +55°c · dimensions:- 100mm x 20mm x 75 mm ( l x w x h) · weight:- 100 gm · mounting type:- din rail.

We are offering multifunction meter 'p' model. General features friendly user interface. easy to install. rs-485 modbus communication available display features p-n voltage of each phase p-p voltage of each phase current of each phase frequency pf (ryb) kw (ryb) kw (total) kva (ryb) kva (total) kvar (ryb) kvar (total) kwh (total) electrical specifications voltage input 230 vac ± 15% current input 5 a frequency 50hz low current 1% (50ma) accuracy class 1 class 0.5 (optional).

We are offering multifunction meter. Display features three phase voltages and currents. three phase line voltages and currents. power factor of each phase and frequency. active power (kw), apparent power (kva), reactive power (kvar), total power active energy (kwh), apparent energy (kvah), reactive energy (kvarh) and total energy. friendly user interface. easy to install. rs-485 modbus communication available average and maximum demand in integration time (15 min or 30 min). average power factor of each phase separately. display of real time clock. display last reset date and time of energy and maximum demand.

Brand Name : SYCON

We are offering motor master relay order code current range sycon 2100 2a to 5a sycon 2120 5a to 12a sycon 2130 12a to 30a general features as a special feature the relay can be used to motor having forward & reveres operations giving the protections except incorrect phase sequences. advance microcontroller technology. overload protection with inverse time characteristics. protection against: unbalance protection. phase unbalance. incorrect phase sequence. ultra compact size. display features visual indication of s.p.p. & over load. control features settable overload current & time. technical specifications over current setting 2a to 5a continuously adjustable inverse time characteristics selectable thermal characteristic curve. 2 to 10 sec continuously adjustable unbalance current 50% unbalance, tripping time: 3 sec., inverse characteristics unbalance single phase (phase failure) tripping time 3 sec reverse phase tripping time 3 sec electrical specifications ct input 5, 15va auxiliary supply 440v ac ac burden 10 va at rated current relay output 10 amp at 250 v mechanical specifications mounting wall mounting 35mm din-railpanel size 55 x 75 x 109.5 (w x h x d) weight 450gm.

Brand Name : SYCON

We are offering maximum demand controller. General features: 1 alarm point and 3 tripping point (potential free) pc interfacing facility with rs-232 friendly user interface easy to install display features continuous display of average kva demand instantaneous demand, rms voltage, rms current selectable display of setting selectable display present and previous maximum demand trip status of contacts control features password protection for settings adjustable integration time of 15 minutes or 30 minutes programmable ct primary adjustable demand settings manipulating facility clock setting facility to match eb clock electrical specifications voltage input 415v ac -15% current input --5a --1a optional frequency 50hz switching contact 10a at 250v ac accuracy 1 digit mechanical specifications dimensions 144(l) x 144(w) x 120(d) mm panel cutout 138 mm x 138 mm

We are offering maximum demand controller. General features: 1 alarm point and 1 tripping point (potential free) friendly user interface easy to install display features continuous display of average kva demand instantaneous demand, rms voltage, rms current selectable display of setting selectable display present and previous maximum demand trip status of contacts control features password protection for settings adjustable integration time of 15 minutes or 30 minutes programmable ct primary adjustable demand settings manipulating facility clock setting facility to match eb clock voltage input 415v ac -15% current input --5a --1a optional frequency 50hz switching contact 10a at 250v ac accuracy 1 digit mechanical specifications dimensions 144(l) x 144(w) x 120(d) mm panel cutout 138 mm x 138 mm.

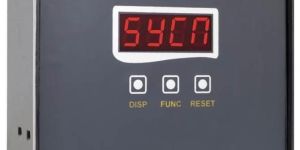

We are offering intelligent motor protection relay. General features:- â· advance micro controller based state-of-art technology. · selectable inverse time curves. · protection against â· unbalance â· single phasing â· reverse phasing â· overload â· stalling over load characteristics select either inverse time characteristics or definite time characteristics overload setting :-30 % to 110% tripping time :-inverse time : as per thermal curve :-definite time: (0 to 30 sec) under current :-20%-50 %, tripping time: 30 sec motor stall :-200-600 %, tripping time 30 â�� 300 sec earth fault :-1 a- 3 a, tripping time: 1 sec -20 sec unbalance :-25-100 %, inverse phase failure :-tripping time: 5 sec reverse phase :-tripping time: 0.1 sec motor start time :-0-10 sec reset :-manual reset â· undercurrent â· earth fault â· common tripping for all protective function. · thermal overload protection. · alarm for tripping. · ultra compact size. electrical specifications ct input :-5, 15va auxiliary supply :-440v ac â±15% frequency :-50 hz â± 5% ac burden :-10 va at rated current relay output :-10amp at 250v mechanical specification :- mounting type : wall mounting panel mounting size : 144mm x 144mm x 110mm (wxhxd) panel mounting 115mm x 115mm x 75mm (wxhxd) wall mounting.

Brand Name : SYCON

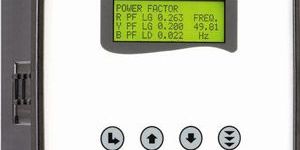

We are offering Intelligent Load Manager. General Features: 1 Alarm point and 3 tripping point (potential free). PC interface facility with RS-485. True RMS measurements. Model available for LT as well as HT. Selectable display of present & previous. Facility for Date & time settings. Uses advanced DSP process. Easy readability on alphanumeric back lit LCD Display. Low PT, CT burden. Auto reset facility for maximum demand with programmable date & time. Cost effective energy management solution. Easy user interface & easy installation. Confirms to IEC standards. Rugged & can be used under extreme environmental condition. 1 Alarm point and 3 tripping point (potential free). PC interface facility with RS-485. True RMS measurements. Model available for LT as well as HT. Selectable display of present & previous. Facility for Date & time settings. Uses advanced DSP process. Easy readability on alphanumeric back lit LCD Display. Low PT, CT burden. Auto reset facility for maximum demand with programmable date & time. Cost effective energy management solution. Easy user interface & easy installation. Confirms to IEC standards. Rugged & can be used under extreme environmental condition. Display Features Phase to neutral & phase to phase voltage. Current of each phase. KW of all phases & total KW. KVA of all phases & total KVA. KVAH of all phases & total KVAH. KVAR of all phases & total KVAR. PF of all phases, average PF & cumulative PF. Electrical Specifications Voltage Input 415V AC -15% Current Input --5A --1A Optional Frequency 50Hz Switching Contact 10 A at 250V AC Accuracy 1 digit Front Bezel Size 144 (L) x 144 (W) x 120 (D) mm Panel cutout Size 138 mm X 138 mm Weight 1.5 Kg

Brand Name : SYCON

We are offering energy meter. Display features: display of kwh. microcontroller based technology. password protection. easy user interface. easy to install. confirms to iec standards. 1 year warranty. rugged & can be used under extreme environmental conditions. easy readability. high resolution. compact enclosure. cost effective optional rs 485 communication available for interface with pc along with software. dual source support.[optional] (for e.b. + d. G. Kwh) technical specification: auxiliary supply 230vac ± 10%. Accuracy class 1 operating temperature +5ºc to+60 ºc dimensions 96 mm × 96 mm × 60 mm maximum range up to 8 digits [99999999.9]

We are offering earth leakage relay with display order code current range tripping time sycon 7721 30 ma to 300 ma 0.15 sec to 3 sec sycon 7722 300 ma to 3 a 0.15 sec to 3 sec sycon 7723 1 a to 8 a 0.15 sec to 3 sec general features solid state wide operating current range. low power consumption variable current and time setting ideal for compliance to I e rule 61-a. display 3 digit led type display control features site settable current & time reset facility test mode facility input auxiliary supply 230 vac (110&415 vac optional) current sensitivity variable from 30ma to 8a settable with dip switches in three different models trip time from 0.15 seconds to 3.00 seconds settable with dip switches. Relay contacts potential free no-c-nc, 10amps at 250 vac contacts. Trip indication l.e.d cbct 65mm, 100mm, 150mm, 200mm other diameter on request.

We are offering earth leakage relay, order code current range tripping time sycon 7701 30 ma to 300 ma 0.15 sec to 3 sec sycon 7702 300 ma to 3 a 0.15 sec to 3 sec sycon 7703 1 a to 8 a 0.15 sec to 3 sec display green led for healthy indication red led for trip indication general features solid state wide operating current range low power consumption variable current and time setting ideal for compliance to I e rule 61-a control features site settable current & time reset facility test mode facility input auxiliary supply 230 vac (110 vac & 415 vac optional) current sensitivity variable from 30ma to 8a settable with dip switches in three different models trip time from 0.15 seconds to 3.00 seconds settable with dip switches relay contacts potential free no-c-nc, 10amps at 250 vac contacts trip indication led cbct 65 mm, 100 mm, 150 mm, 200 mm ,250 mm ,300 mm other diameters available on request input auxiliary supply 230 vac (110 vac & 415 vac optional) current sensitivity variable from 30ma to 8a settable with dip switches in three different models trip time from 0.15 seconds to 3.00 seconds settable with dip switches relay contacts potential free no-c-nc, 10amps at 250 vac contacts trip indication led cbct 65 mm, 100 mm, 150 mm, 200 mm ,250 mm ,300 mm other diameters available on request mechanical specifications dimensions 96 (l) x 96 (w) x 60 (d) mm panel cutout 91 mm x 91 mm.

Brand Name : SYCON

We are offering earth fault relay general features solid state current setting range 10 % to 80 % low power consumption variable current and time setting ideal for compliance to I e rule 61-a display features healthy & fault indication control features site settable current & time reset facility test mode facility electrical specifications input auxiliary supply 230 vac (110 vac & 415 vac optional) current sensitivity variable from 10 % to 80 % ,settable with dip switches in three different models trip time from 0.15 seconds to 3.00 seconds settable with dip switches relay contacts potential free no-c-nc, 10amps at 250 vac contacts trip indication led mechanical specifications dimensions 96(l) x 96(w) x 60(d) mm panel cutout 91 mm x 91 mm.

Brand Name : SYCON

We are offering Cyclic Timer Features :- · User friendly · Easy installation · 1NO+1NC Contacts · Power on indication · Adjustable time delay from 1min to 60 Min Electrical Specification:- · Aux. Supply:- 415VAC ± 15% (230VAC ±15% Optional) · Frequency:- 50 HZ ± 5% OR 60 HZ ±5% Mechanical Specification:- · Dimensions:- 115 X 115 X 75 mm (W×H×D) · Weight:- 400 Gms. · Mounting Type:- Wall Mounting · Operating Temperature:- 10°C to +55°C.

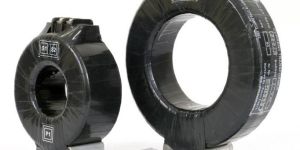

We are offering Current Transformer General Features :
Plastic tape wound CT enclosed in plastic molded Cover
CT with clamps available on request
CT with accuracy class 1 Electrical Specification :
Electrical isolation 2kV Mechanical Features
CT in round shape (Square & Rectangular shapes available on request)
Black Tape Wound CT
Resin CastResin Coated CT available on request
CT available In 5VA, 10VA , 15VA
CT available in following ID ‘s ( CT will be available as per customer requirement ) 35MM ,65MM , 100MM, 150MM ,200MM, 300MM
CT available in 1 & 5.

Brand Name : SYCON

We are offering automatic power factor controller. display parameters power factor capacitor stages onoff discharging capacitors voltage, current kwkvakvar shortfall or excess kvar % thd selectable display of 3rd to 13th harmonics selectable display of capacitor values display of settings display of alarm message features intelligent with best fit control stages 4 to 16 menu driven user friendly handling alarm output easy to install control password protection for settings adjustable %kvar switching capacity adjustable value of target pf adjustable ct ratio from 1 to 1250 adjustable time delay from 1 sec for switching on insteps for 1 sec models available in 4,6,8,12,14,16 steps adjustable settings for % thd (total harmonic distortion) protection disconnection in case of low current adjustable number of maximum stages. adjustable lock time for power on auto identification or manual feeding of capacitor values manual switching facility test mode facility modbus communication (optional).

Brand Name : SYCON

We are offering automatic power factor controller. Display four segment bright led display led indication for lag or lead p.f. General features intelligent kvar based switching friendly user interface easy to install large 4-digit 7-segment display available in 4,6,8,12,16 stages power factor led indication of capacitor onoff status selectable: kva kw kvar shortfall or excess kvar settings control features site settable: target pf ct ratio capacitor disconnection in case of: low current over voltage auto identification or manual feeding of capacitor values test mode facility electrical specifications voltage input 415v ac +- 15% current input -- 5 a -- 1 a (optional) frequency 50 hz over voltage release 470 v ac -1% low current 1% (50ma) switching contact 10a at 250v ac accuracy 1 digit switching time 5 sec mechanical specifications dimensions 144 (l) x 144 (w) x 80(d) mm panel cutout 138 mm x 138 mm weight 1.5 kg.

we are offering automatic power factor controller general features fifo switching friendly user interface easy to install large 2-digit 7-segment display available in 4,6 & 8 stages low cost display features power factor led indication of leadlag led indication of capacitor onoff status settings control features site settable two point target pf capacitor disconnection in case of low current test mode facility electrical specifications voltage input 415v ac -15% current input --5a frequency 50hz over voltage release 470v ac -1% low current 1.8% (90ma) switching contact 10a at 250v ac accuracy 1 digit switching time 5 sec dimensions 96(l) x 96(w) x 110(d) mm panel cutout 92 x 92 mm.

Brand Name : SYCON

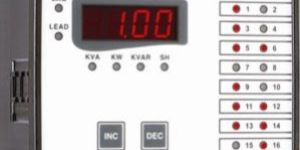

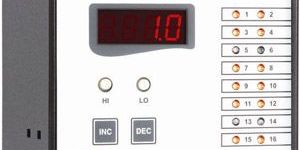

We are offering automatic power factor controller 55xx. We are pfdisplay four segment bright led display general features fifo switching friendly user interface easy to install large 4-digit 7-segment display available in 4,6,8,12,16 stages low cost control features site settable two point target pf capacitor disconnection in case of: low current over voltage test mode facility electrical specifications voltage input 415v ac +- 15% current input -- 5 a -- 1 a (optional) frequency 50 hz over voltage release 470 v ac -1% low current 1% (50ma) switching contact 10a at 250v ac accuracy 1 digit switching time 5 sec dimensions 144 (l) x 144 (w) x 80(d) mm panel cutout 138 mm x 138 mm weight 1.5 kg

Brand Name : SYCON
