Spheroidal Graphite Iron Roll Dealers in Sangrur (29 products available)

• Type: Acicular
• Material: SG Iron
• Certification: ISI Certified
• Application: Industrial
• Color: Grey
• Finishing: Polished
• Application: Paper
• Material: Sponge and printing ink
• Model Number: Ink roll
• Supply Ability: 100 Roll/Rolls per Month
• Packaging Details: In Carton Packing
• Place of Origin: India

We are Manufacturer and Supplier of this product. We manufacture centrifugally cast chilled Straightening Rolls for almost all straightening applications,. Due to its clear chill with compound casting, the working surface profile have sufficient hardening depth. Apart from chilled cast iron, we supply high chromium, nodular iron, S. G. Iron, Adamite & Forged Rolls Reels for special applications. These are available in semi finished, fully machined & axle mounted conditions. They are mostly used for straightening of T- section, Angles, Channels, Beams, Pipes & Tubes.   Manufacturing Range : 6” (150mm) to 18” (400mm) Diameter.

• Thickness: Other
• Application: Industrial
• Grade: Other
• Color: Grey
• Finishing: Non Polished, Polished
• Feature: Excellent Quality, Long Life, Vibration Free, Other
• Type: Spheroidal Graphite Iron Roll
• Material: Metal, Steel, Other
• Condition: New

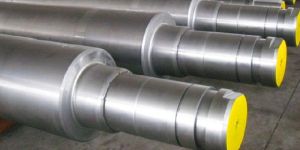

Based in Punjab, we are a renowned Manufacturer and Supplier of Spheroidal Graphite Cast Iron Rolls. Spheroidal Graphite Cast Iron Rolls are developed using S. G. Iron or ductile iron in compliance with the set industry norms and standards. Their matrix structure varies from Ferrito-Pearlitic, Pearlitic to Bainitic & Martensitic together with different carbide contents and graphite in the form of spheroids/nodules. They are extensively used as roughing, intermediate rolls and finishing rolls for slabbing and blooming mills, rail and structural mils and wire rod and narrow strip mils. We make available Spheroidal Graphite Cast Iron Rolls in a wide range of hardness and composition for a variety of applications.

• Thickness: 10-20mm
• Application: Commercial Use
• Color: Grey
• Finishing: Polished
• Feature: Heat Resistant, Scratch Proof
• Material: Stainless Steel

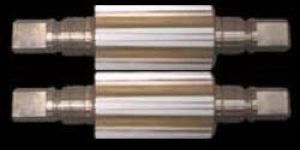

Get access to the best quality S G Iron Rolls from us. The Pearlitic spheroidal graphite rolls have a thick layer of cast iron with nodular graphite. The name of such roll is based on the fact that the material consists of nodular graphite and carbides in a pearlitic matrix. The softest grades have a pearlitic matrix containing ferrite around the graphite nodules, while the higher hardness grades have a complete pearlitic matrix. The carbide content increases proportionately with the hardness.

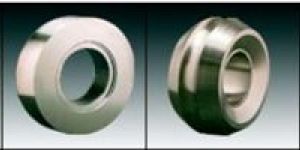

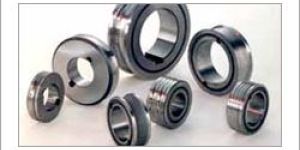

Jai Bharat Castings has maintained its leadership in designing & manufacturing of chilled cast iron straightening rolls (reels / rings) solution for almost all straightening applications through its clear chill compound casting, profile of the working surface is decisive for the production process of straightening applications high surface profile have sufficient hardening depth due to its advanced centrifugal casting ,beside manufacturing chilled cast iron reels JBC also able to produced  high chromium, nodular iron, adamite, spheroidal graphite iron or forged / tempered, straightening rolls / reels for special applications , straightening rolls / reels are available semi-finished , full machined or axel mounted condition   Advantage: Maximum & desired chilled depth is achievable due to our advanced centrifugal casting machines double layer centrifugal casting gives uniform layer of white iron for working hardness along-with high wear resistance, crack resistance & spalling resistance  Applications: :: Straightening Rolls for Structure Mills         :: Straightening Rolls for T-Section :: Straightening Rolls for Bar Straitening        :: Joist & Beam Straightening Rolls :: Straightening Rolls for Angel Straitening    :: Pipe & Tube Straightening Rolls :: Rolls for Strip Edge Preparation                 :: Rolls for Forming Applications Manufacturing Range: Barrel Diameter 6” to 24” inches or 150 mm to 610 mm Barrel Length 6” to 48” inches or 150 mm to 1220 mm Under the scope of supply   Material Specifications Process Hardness Adamite Steel Static Castings                              45 – 55 Shore°C Ni-Cr Alloyed Chilled Cast Iron      Centrifugal Cosmpound Cast  60 – 70 Shore°C EN Series Forged / Tempered   40 – 55 Shore°C Indefinite Chilled Cast Iron Centrifugal/ Static Casting    50 – 60 Shore°C S.G. Iron Castings                       Static Castings 50 – 65 Shore°C

The Manufacture of Chill Rolls of special cast iron by the state of the art centrifugal casting technology used in western european countries has been engineered in India By Standard Rolls The process has been well developed in our foundry and rolls of various diameters and lengths are being regularly manufactured for roller flour mills flaker & cracker rolls for solvent extraction plants. Rolls for Rubber, Paper, Biscuit & other Roler Mills. The rolls are the universal type and can be used as a working member in roller mills of any model.

S. G. Iron or ductile iron considered as one of the most versatile roll material now days. It is produced by small proposition of magnesium added to the melt as nickel-magnesium or altern-ative alloy, or pure magnesium in S.G Iron roll, the free carbon takes the shape of spheroids or nodules , thereby eliminating the notch effect to flake graphite and improving upon the mechanical properties of cast iron.   These Rolls are available in a wide range of hardness & composition for a variety of application. The matrix structure varies from Ferrito-Pearlitic, Pearlitic to Bainitic & Martensitic together with different carbide contents and graphite in the form of spheroids/nodules. Some critical grades are heat treated for higher strength. Chemical composition and structure are chosen to suit specific application. In many cases S G Rolls with an accicular matrix is preferred, because of its wear-resisting qualities. To this end, the iron is alloyed with nickel and molybdenum, to permit formation of an accicular structure in the as-cast condition. our quality of sgiron is also running in oval polish stands also. hardness will be given according to the customer requirements.

We are offering graphite iron rolls.We are a famous iron rolls supplier in India. We provide a graphite iron roll which has high tensile strength. We offer Spheroidal Graphite Iron Rolls, graphite iron rolls and iron rolls at the most acceptable price.

• Capacity: 50 Kg to 6 Mt
• Material: Ferrito-Pearlitic,Pearlitic,Bainitic,Martensitic,Carbide contents
• Applications: Roughing and intermediate rolls for slabbing and blooming mills,Roughing, intermediate and finishing
• Features: Also known as Ductile Iron Rolls,Available in a wide range of hardness & composition,matrix structure,Heat treated for higher strength

• Diameter: Upto 32 inches or 850 mm
• Length: Upto 80 inches or 2100 mm

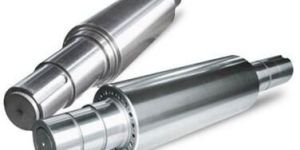

Pearlitic spheroidal graphite rolls are concentrated characterized by nodular graphite as against flake graphite in the normal cast iron rolls. These rolls are excellent substitutes for many conventional steel and cast iron rolls due to a combination of superior strength. The softest grade has a pearlitic matrix containing ferrite around the graphite nodules, while the higher hardness grades have a complete pearlitic matrix. The carbide content increases pro--portionally with the hardness. accicular spheroidal graphite rolls also have a thick layer of chill. here the name of such rolls is based on the fact that the material consist of nodular graphite and carbides in under cooled austenitic pearlitic -bainitic matrix. the carbide content is considerably higher in the harder grades than the softer ones.

Spheroidal Graphite Cast Iron (SG Iron) or ductile iron is considered as one of the most versatile roll material now a days. Rolls has greatly improved properties, including high tensile strength of more then 40kg/mm2 compared to that of 20-30 kg/mm2 of cast iron. These are specifically good for small section and flat rolling. These rolls are most suitable for heavier section where added strength and depth of hardness are required. Stand-Cast acicular S.G. iron is employed for certain special-purpose rolls. eg. pilger rolls.

Jai Bharat Castings has maintained its leadership in designing & manufacturing of chilled cast iron straightening rolls (reels rings) solution for almost all straightening applications through its clear chill compound casting, profile of the working surface is decisive for the production process of straightening applications high surface profile have sufficient hardening depth due to its advanced centrifugal casting ,beside manufacturing chilled cast iron reels JBC also able to produced high chromium, nodular iron, adamite, spheroidal graphite iron or forged tempered, straightening rolls reels for special applications , straightening rolls reels are available semi-finished , full machined or axel mounted condition

SG iron rolls, alloy steel adamite rolls, dpic rolls

Spheroidal Graphite Iron Rolls, Definite Chill Roll, Forged Rolls

We are offering spheroidal graphite iron rolls. en-8, en-9 forged rolls.

we are offering spheroidal graphite cast iron rolls. pearlitic spheroidal graphite rolls have a thick layer of cast iron with nodular graphite, the name of such roll is based on the fact that the material consists of nodular graphite and carbides in a pearlitic matrix, the softest grades have a pearlitic matrix containing ferrite around the graphite nodules, while the higher hardness grades have a complete pearlitic matrix, the carbide content increases proportionately with the hardness. acicular spheroidal graphite rolls: acicular spheroidal graphite rolls also have a thick layer of cast iron with nodular graphite, here, the name of such roll is based on the fact that the material consists of nodular graphite and carbides in a pearlitic - bainitic matrix, the carbide content is considerably higher in the harder grades than the softer ones. advantage: s.g iron rolls are so superior in wear resistance to that of cast steel rolls that they are specially adapted for roughing and intermediate plate mills and rod or bar mill roughers. as a result of the spheroidal form of the graphite, s g iron rolls are much stronger than rolls of the clear-chill type and the gradual fall in hardness is an added advantage, as such, these rolls are particularly suitable for tmt and strip mills, also bar billet mills, and are being increasingly used for other applications.

SG iron rolls, DPIC Spun cast rolls, DOUBLE POUR INDEFINITE CHILL SOLID

Sg Iron Rolls For Steel Rolling Mills, Chilled Cast Iron Piston

acciculars sg iron rolls, alloy steel adamite rolls, SG iron rolls

SG iron rolls, Adamite Rolls, definite chilled rolls

SG iron rolls, Adamite Rolls, Chill Roll Barrels, Forging Rolls

SG iron rolls, Adamite Rolls, Iron, steel, iron steel

SG iron rolls, Chilled Mill Roll, definite chilled rolls, Flaking Roll

Spheroidal Graphite Iron Rolls, Indefinite Chill Rolls

SG iron rolls

S.G. Iron Rolls / Adamite Rolls, Chilled Cast Roller

Spheroidal Graphite Iron Rolls, Indefinite Chilled Iron Rolls
