Sensors For Packaging Industry Dealers in Satara

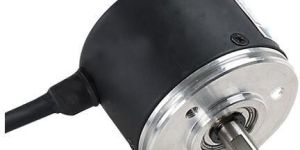

Specifications   OPTICAL ROTARY ENCODER  Diameter : 40mm & 58mm / Shaft diameter : 6 / 8 / 10 mm Different mounting options Resolution : 10 / 30 / 48 / 60 / 72 / 100 / 125 / 192 / 200 / 250 / 300 / 360 / 400 / 500 / 600 / 720 / 1000 / 1024 / 1250 / 2000 / 2048 / 2500 / 3600 / 5000 / 6000 PPR Accuracy : +/- 360 deg (8 x line count) down to + or - 15" Output : +5V TTL square wave POLE RING ENCODER SYSTEM Modular, Flexible & Robust rotary encoder system in combination with magnetic read heads Custom specification designs available up to 1200 mm outside diameter To be used with ME-6012 magnetic read heads Resolution 10 to 23000 PR MAGNETIC ROTARY ENCODER Incremental encoder Body diameters : 25 / 36 mm Shaft diameter : 6 / 8 / 10 mm Different mounting options Resolution : 50 / 64 / 100 / 128 / 250 / 256 / 360 / 500 / 512 /1000 / 1024 / 2048 PPR Accuracy : +/- 0.5 degree over 1 rotation Outputs : +5V TTL, Line Driver, Push-pull Also absolute encoder available in same size having resolution of 13 bits
